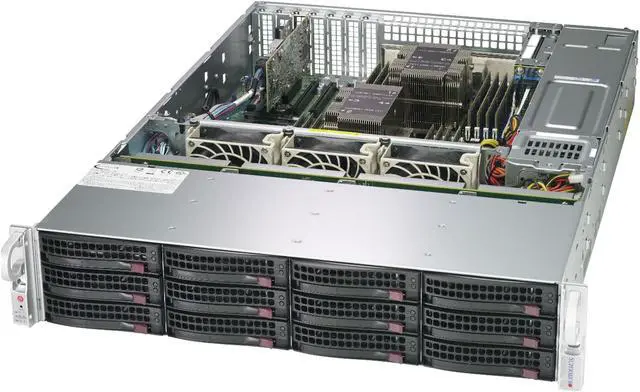

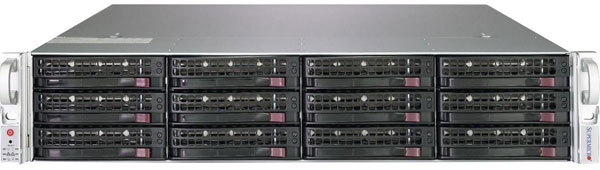

Supermicro SuperStorage 6029P-E1CR12L, Model # SSG-6029P-E1CR12L
With 12 hot-swap drive bays in a 2U form factor, this server barebone system is aimed at high-density storage in applications like data centers and corporate database. This barebone supports up to two 2nd Gen Intel Xeon Scalable processors, has 16 slots, and features seven PCI-E slots for unbeatable expandability. Dual 10GbE LAN ports deliver ultra high bus bandwidth to meet the needs of large volume data transfer. The redundant power supply guarantees maximized uptime, and the 80 Plus Titanium rating means less waste heat therefore lower cooling cost and better system stability.
A Broadcom 3008 AOC (add-on card) is pre-installed for providing eight SAS ports via two mini SAS connectors. This card (model # AOC-S3008L-L8E) supports up to 122 devices. It functions as a host bus adapter, and does not support RAID.
This is a barebone system only, and you’ll need processor(s), system RAMs, storage drives and Operate System to complete this system, all sold separately.
Ideal for:
- Corporate Database
- Database Processing & Storage
- Enterprise Server
- HPC, Data Center
- iSCSI SAN

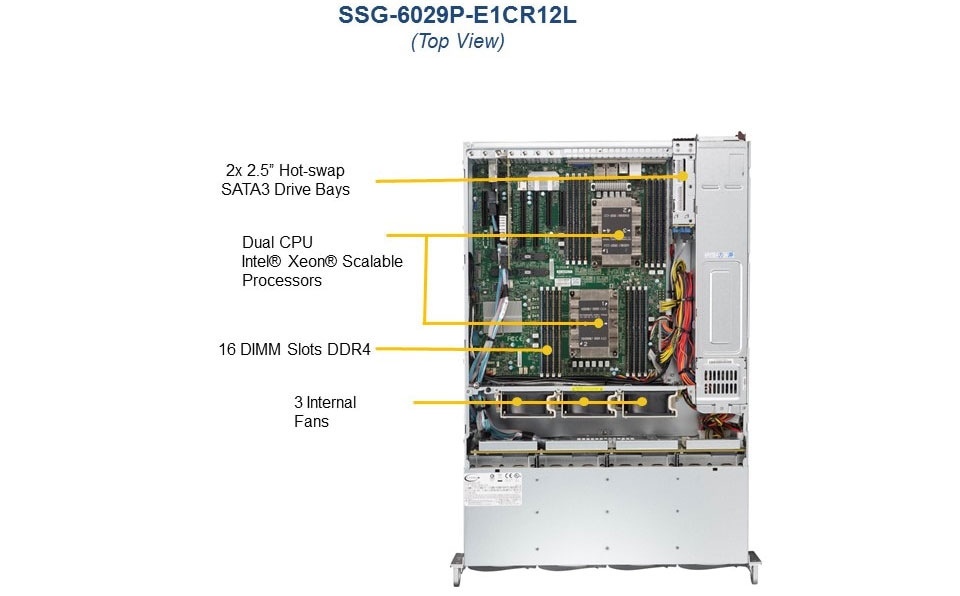

1. Dual Socket P (LGA 3647) support 2nd Gen. Intel Xeon Scalable processors (Cascade Lake/Skylake)‡
2. 16 DIMMs; up to 4TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM, Supports Intel Optane DCPMM††
3. Three PCI-E 3.0 x16, four PCI-E 3.0 x8 (slot 2 & 3 occupied by controller and JBOD expansion port)

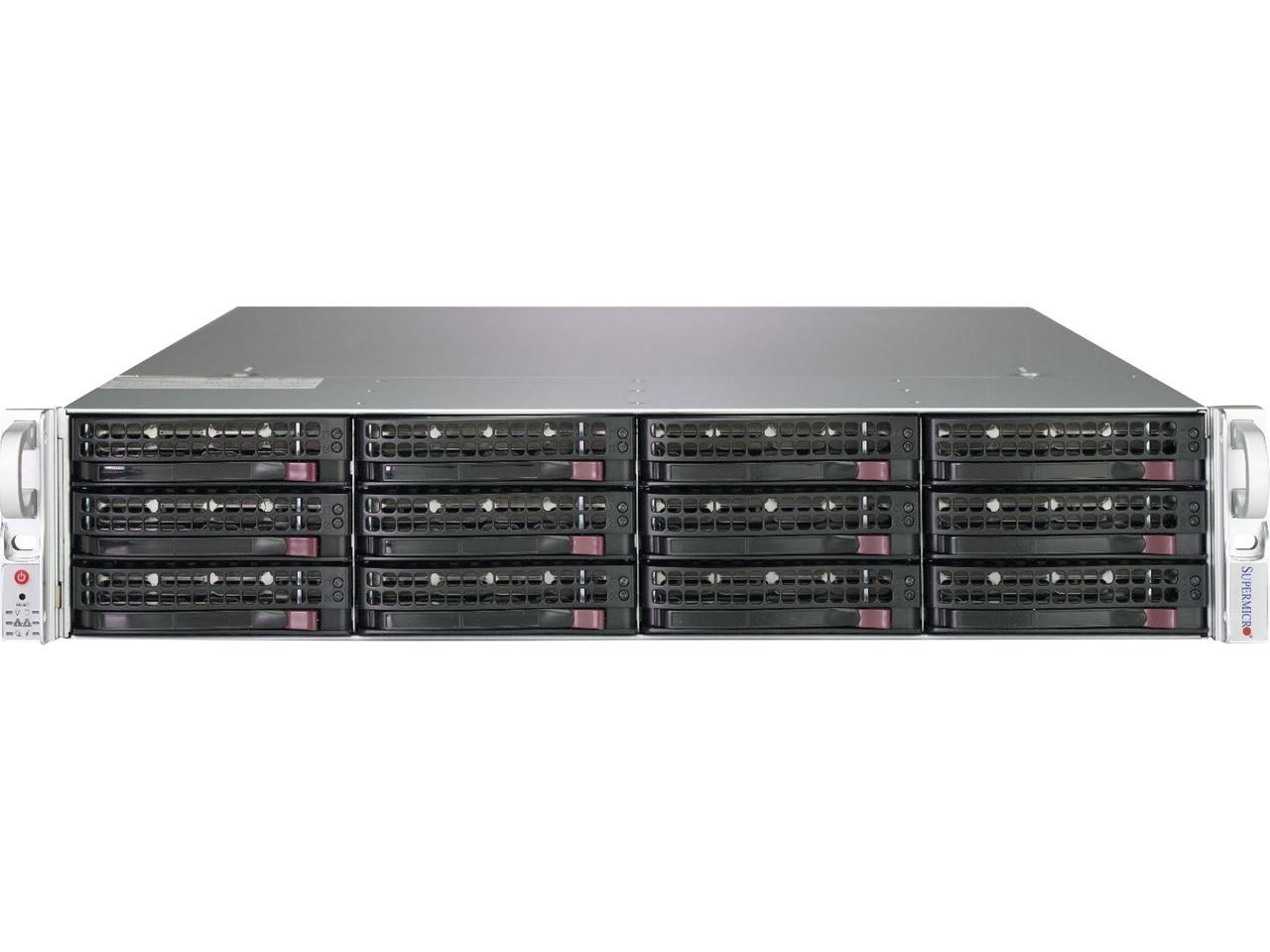

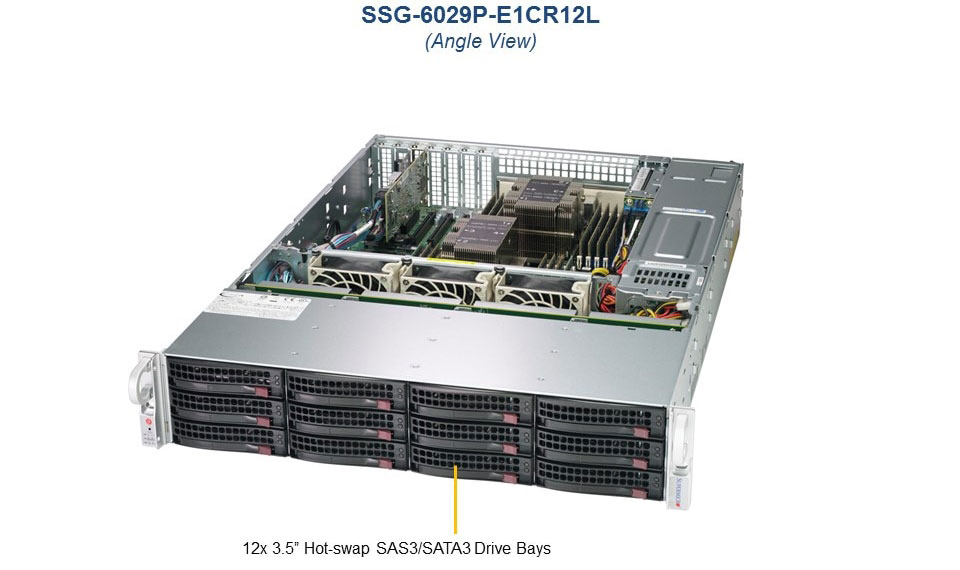

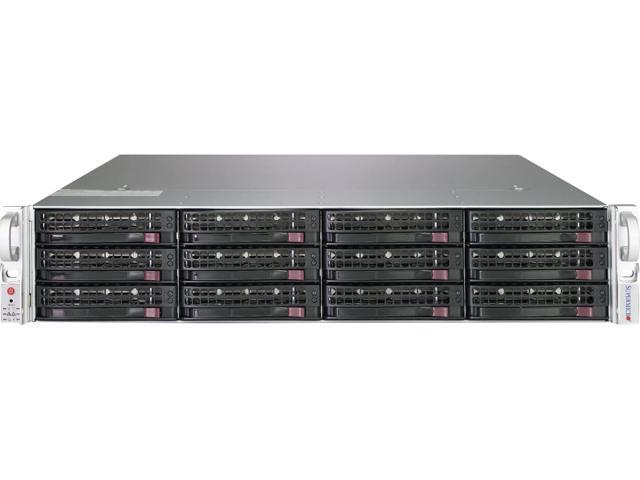

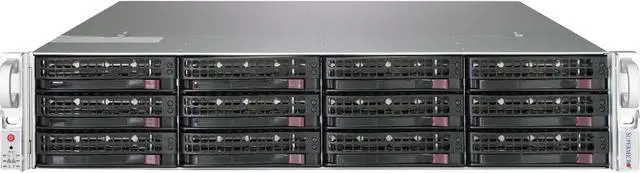

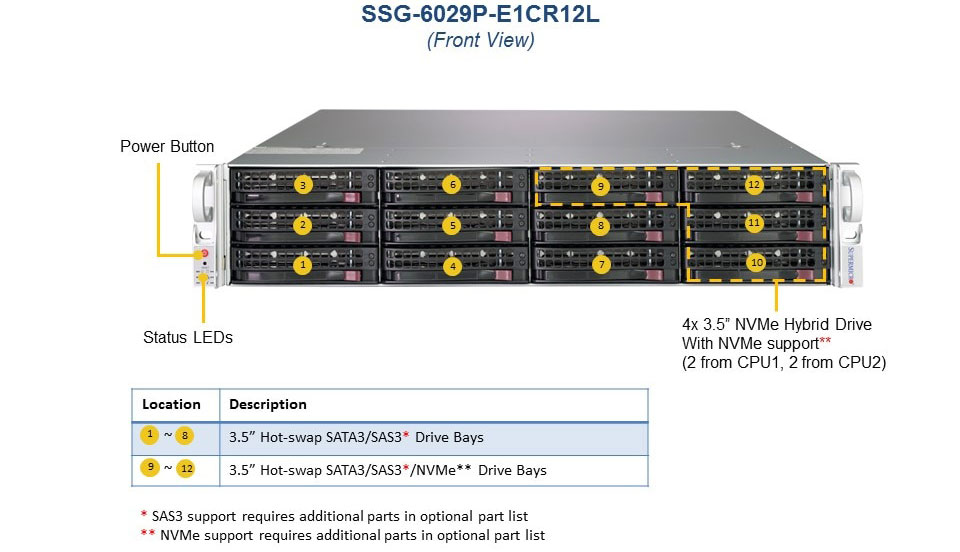

4. 12 Hot-swap 3.5" SAS3/SATA3 drive bays;

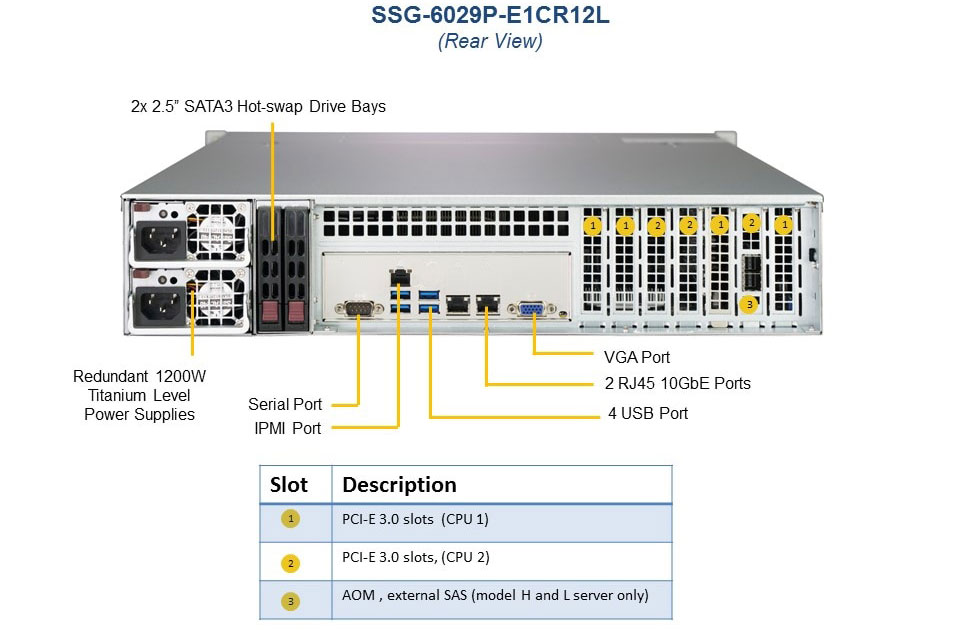

Two hot-swap 2.5" SATA3 drive bays (rear), four U.2 NVMe, 2 M.2 NVMe, Expander based backplane
5. Broadcom 3008 SAS3 AOC
6. 2x 10GBase-T LAN ports with Intel X722 + PHY Intel X557
7. Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN
8. Three Hot-swap 8cm redundant PWM fans
9. 1200W Redundant Power Supplies Titanium Level (96%)

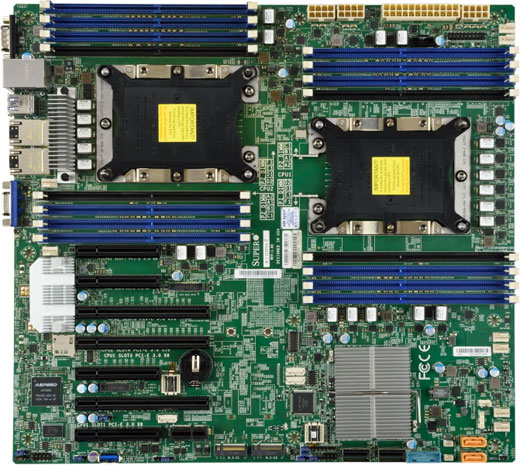

X11DPH-T
| Product SKUs | |
|---|---|
| SSG-6029P-E1CR12L | SuperStorage 6029P-E1CR12L (Black) |
| Motherboard | |
| Integrated Board | Super X11DPH-T |
| Processor/Cache | |
| CPU |
|
| Cores | Up to 28 Cores |
| Note | ‡ BIOS version 3.0a or above is required to support 2nd Gen. Intel® Xeon® Scalable processors |
| System Memory | |
| Memory Capacity |
|
| Memory Type | 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM |
| Note |
† 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro |
| On-Board Devices | |
| Chipset | Intel® C622 chipset |
| SAS |
|
| SATA | SATA3 (6Gbps); RAID 0, 1, 5, 10 |
| Network Controllers | Dual 10GBase-T LAN ports with Intel X722 + PHY Intel X557 |
| IPMI |
|
| Video | ASPEED AST2500 BMC |
| Input / Output | |
| LAN |
|
| USB |
|
| Video | 1 VGA port |
| Serial Port / Header | 1 Fast UART 16550 port / 1 Header |
| System BIOS | |
| BIOS Type | 256Mb AMI UEFI |
| Management | |
| Software |
|
| PC Health Monitoring | |
| CPU |
|
| FAN |
|
| Temperature |
|
| Chassis | |
|---|---|
| Form Factor | 2U Rackmount |
| Model | CSE-826BE1C4-R1K23LPB |
| Dimensions | |
| Width | 17.2" (437mm) |
| Height | 3.5" (89mm) |
| Depth | 24.8" (630mm) |
| Gross Weight | 61 lbs (27.7 kg) |
| Available Colors | Black |
| Front Panel | |
| Buttons |
|
| LEDs |
|
| Expansion Slots | |
| PCI-Express |
|
| Drive Bays | |
| Hot-swap |
|
| Optional |
|
| Backplane | |
| SAS3 12Gb/s expander storage backplane, w/ 12x SAS3 3.5" drive slots | |
| System Cooling | |
| Fans | 3 Hot-swap 8cm redundant PWM cooling fans |
| Power Supply (76mm Width) | |
| 1200W Redundant Power Supplies with PMBus | |
| Total Output Power | 1000W/1200W |
| Dimension (W x H x L) | 76 x 40 x 336 mm |
| Input |
|
| +12V |
|
| +5Vsb | Max: 4A / Min: 0A |
| Output Type | 19 Pairs Gold Finger Connector |
| Certification | Titanium Level |
| Operating Environment | |
| RoHS | RoHS Compliant |
| Environmental Spec. |
|
