SuperStorage 6029P-E1CR12T

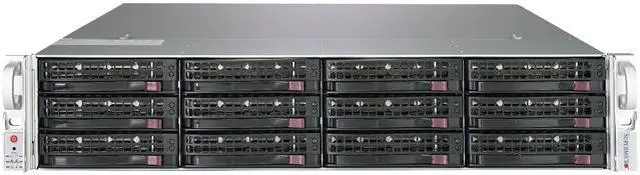

SuperStorage 6029P-E1CR12T 2U rackmount server is built with support for dual Intel Xeon Scalable processors (LGA 3647) and up to 4 TB of DDR4 memory in 16 DIMM slots, and offers 12 hot-swap 3.5” drive bays, three PCI-E 3.0 x16 slots, and four PCI-E 3.0 x 8 slots. You can easily configure it for corporate database, database processing & storage, enterprise server, HPC Data Center and iSCSI SAN applications. It has 80 Plus Titanium Certified 1200W redundant power supplies for continuous operation critical for modern businesses.

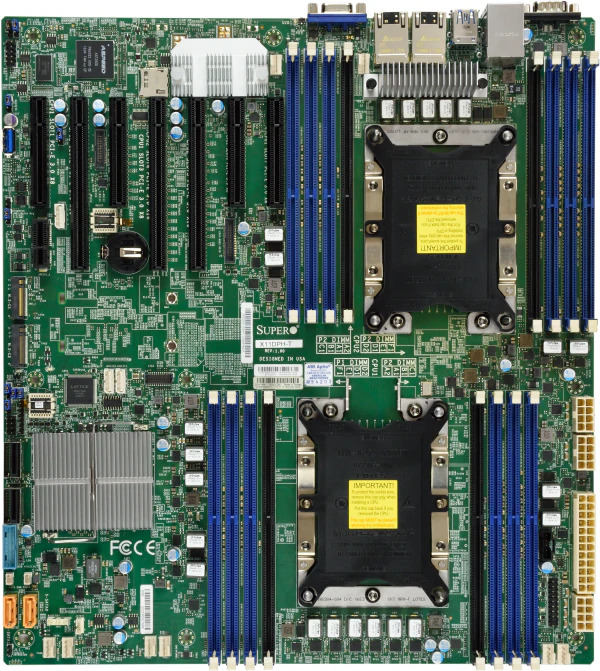

Integrated Board
Super X11DPH-T
Specifications
| Motherboard |
|
| Model |
Super X11DPH-T
|
| Processor/Cache |
|
| CPU |
- Dual Socket P (LGA 3647)
- 2nd Gen. Intel Xeon Scalable Processors (Cascade Lake/Skylake), 3 UPI up to 10.4GT/s
- Support CPU TDP 70-205W
|
| Cores |
Up to 28 Cores |
| Note |
BIOS version 3.0a or above is required to support 2nd Gen. Intel Xeon Scalable processors |
| System Memory |
|
| Memory Capacity |
- 16 DIMM slots
- Up to 4TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
- Supports Intel Optane DCPMM
|
| Memory Type |
2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM |
| Note |
- 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
- Cascade Lake only. Contact your Supermicro sales rep for more info.
|
| On-Board Devices |
|
| Chipset |
Intel C622 chipset
|
| SAS |
- SAS3 (12Gbps) via Broadcom 3008 AOC
- RAID 0, 1, 5, 6, 10, 50, 60
|
| SATA |
SATA3 (6Gbps); RAID 0, 1, 5, 10
|
| Network Controllers |
Dual 10GBase-T LAN ports with Intel X722 + PHY Intel X557
|
| IPMI |
- Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
|
| Video |
ASPEED AST2500 BMC
|
| Input / Output |
|
| LAN |
- 2 RJ45 10GBase-T LAN ports
- 1 RJ45 Dedicated IPMI LAN port
|
| USB |
- 4 USB 3.0 ports (rear)
- 1 Type A
|
| Video |
1 VGA port
|
| Serial Port / Header |
1 Fast UART 16550 port / 1 Header
|
| System BIOS |
|
| BIOS Type |
256Mb AMI UEFI
|
| Management |
|
| Software |
- Intel Node Manager
- IPMI 2.0
- NMI
- SPM, SUM
- SuperDoctor 5
- Watchdog
|
| PC Health Monitoring |
|
| CPU |
- Monitors for CPU Cores, Chipset Voltages, Memory.
- 4+1 Phase-switching voltage regulator
|
| FAN |
- Fans with tachometer monitoring
- Status monitor for speed control
- Pulse Width Modulated (PWM) fan connectors
|
| Temperature |
- Monitoring for CPU and chassis environment
- Thermal Control for fan connectors
|
| Chassis |
|
| Form Factor |
2U Rackmount
|
| Model |
CSE-216BTS-R1K23LPB
|
| Dimensions |
|
| Width |
17.2" (437mm)
|
| Height |
3.5" (89mm) |
| Depth |
24.8" (630mm) |
| Gross Weight |
61 lbs (27.7 kg) |
| Available Colors |
Black |
| Front Panel |
|
| Buttons |
- Power On/Off button
- System Reset button
|
| LEDs |
- Power status LED
- Hard drive activity LED
- Network activity LEDs
- System Information LED
- Power fail LED
|
| Expansion Slots |
|
| PCI-Express |
- 3 PCI-E 3.0 x16 slot
- 4 PCI-E 3.0 x8 slots
- Slot 2 & 3 occupied by controller
|
| Drive Bays |
|
| Hot-swap |
- 12 Hot-swap 3.5" SAS3/SATA3 drive bays
- 2 Hot-swap 2.5" SATA3 drive bays (rear)
|
| Optional |
|
| Backplane |
|
| Type |
Expander based backplane
|
| System Cooling |
|
| Fans |
3 Hot-swap 8cm redundant PWM cooling fans
|
| Power Supply (76mm Width) |
|
| Type |
1200W Redundant Power Supplies with PMBus
|
| Total Output Power |
1000W/1200W
|
| Dimension (W x H x L) |
76 x 40 x 336 mm
|
| Input |
- 100-127Vac / 15-12A / 50-60Hz
- 200-240Vac / 8.5-7A / 50-60Hz
- 200-240Vdc / 8.5-7A (for CCC only)
|
| +12V |
- Max: 83A / Min: 0A (100-127Vac)
- Max: 100A / Min: 0A (200-240Vac)
- Max: 100A / Min: 0A (200-240Vdc)
|
| 12Vsb |
Max: 4A / Min: 0A
|
| Output Type |
19 Pairs Gold Finger Connector
|
| Certification |
80 PLUS Titanium Level
|
| Operating Environment |
|
| RoHS |
RoHS Compliant
|
| Environmental Spec. |
- Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
- Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
- Operating Relative Humidity: 8% to 90% (non-condensing)
- Non-operating Relative Humidity: 5% to 95% (non-condensing)
|
New generation X11 Supermicro SuperStorage systems support node based deployment strategies where CPU and HDD capacity scale together, or deployments can be expanded using JBODs for improved economy. Low-latency SSD applications, large media files requiring massive capacity and enterprise workloads looking for the highest performance will benefit from Supermicro's SAS 3.0 (12Gbps) support which provides low-latency and maximum data bandwidth. The Supermicro SuperStorage systems offer a no compromise storage platform with flexible market entry points from 2U, 3U, and 4U form factors using 2.5 or 3.5" SSDs/HDDs. SuperStorage servers support up to: 1TB 3DS ECC LRDIMM or 256GB ECC RDIMM memory, PCI-E 3.0 slots, NVMe, flexible networking options such as 10G SFP+, 10GBase-T LAN ports and IPMI 2.0 and KVM with dedicated LAN, and have support for the latest Intel Xeon Scalable proc..."Number of Processors Supported: 2Processor Socket: Socket P LGA-3647Processor Supported: Xeon64-bit Processing: YesChipset Manufacturer: IntelChipset Model: C624Maximum Memory: 2 TBMemory Technology: DDR4 SDRAMMemory Standard: DDR4-2666/PC4-21300Number of Total Memory Slots: 16Controller Type: Serial ATA/600Controller Type: 12Gb/s SASRAID Supported: YesGraphics Controller Manufacturer: ASPEEDGraphics Controller Model: AST2500Ethernet Technology: 10 Gigabit EthernetNumber of Total Expansion Bays: 12Number of 3.5 Bays: 12Number of Total Expansion Slots: 7Number of PCI Express x8 Slots: 4Number of PCI Express x16 Slots: 3Total Number of USB Ports: 5Number of USB 3.0 Ports: 4Input Voltage: 120 V ACInput Voltage: 230 V ACNumber of Power Supplies Installed: 2Maximum Power Supply Wattage: 1200 WColor: BlackForm Factor: Rack-mountableRack Height: 2UHeight: 3.5"Width: 17.2"Depth: 24.8""
