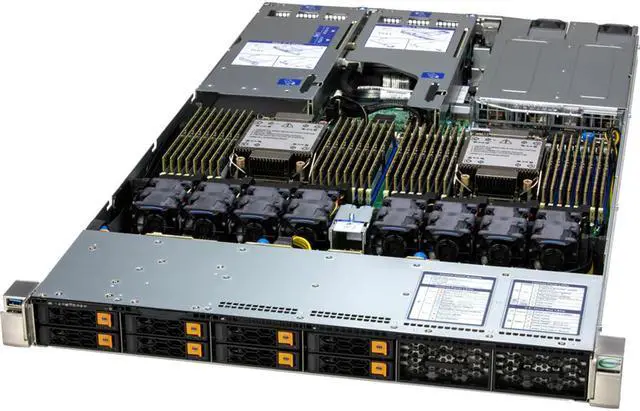

Supermicro Hyper SuperServer SYS-122H-TN, 1U Hyper with 8 hot-swap 2.5" NVMe/SAS/SATA bays and 3 PCIe 5.0 x16 + 1 PCIe 5.0 x16 AIOM slot, Complete System Only

Be the first to review this product...
  • Dual Intel® Xeon® 6 6700 series processors with E-cores
  • 32 DIMM slots supporting up to 4TB of memory
  • 3 PCIe 5.0 x16 slots with support for Network/Storage/GPU/Accelerator cards
  • Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible)
  • 8x 2.5" hot-swap NVMe/SATA/SAS drive bays; Optional 4x 2.5" hot-swap NVMe/SAS/SATA drive bays; 2x internal M.2 NVMe drive slots; Optional RAID support via storage add-on card
+
+
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Supermicro SYS-122H-TN

Model
Brand SUPERMICRO
Series SuperServer
Model SYS-122H-TN
Details
Type Rack
Rack Height 1U
LEDs HDD activity
LAN1 activity
Power
System information
Security Hardware
Trusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) - NIST 800-193 Compliant

Features
Cryptographically Signed Firmware
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown
Processor
CPU Type Intel Xeon 6700 series processors with E-cores
CPU Socket Socket E2 (LGA-4710)
CPU Features Up to 144C/144T; Up to 108MB Cache per CPU
Supports up to 330W TDP CPUs (Air Cooled)*
Supports up to 330W TDP CPUs (Liquid Cooled)
*Air Cooled CPUs with TDP over 250W only supported under specific conditions.
# of Processors Installed 0
MAX Processors 2
Memory
Memory Type DDR5
Max Memory Capacity 4TB
Memory Features Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM
Max Memory (2DPC): Up to 4TB 5200MT/s ECC DDR5 RDIMM
Number of Memory Slots 32
Storage
Hard Drive (Installed) No Hard Drive
SSD (Installed) No
Raid Level RAID 0/1/5/10
Networking
LAN Ports 1 x RJ45 1 GbE Dedicated BMC LAN port
Expansion & Ports
Expansion Slots Default
1 PCIe 5.0 x16 FHHL slot
2 PCIe 5.0 x16 FH/10.5"L slots
1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
Expansion Bays Default: Total 8 bays
8 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays
Option A: Total 12 bays
12 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays
(*NVMe/SAS/SATA support may require additional storage controller and/or cables)
Other ports 2 x USB 3.0 (rear)
1 x USB 3.0 (front)
1 x VGA
Software
Operating System No
Environmental
Temperature Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
Humidity Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing)
Dimensions & Weight
Dimensions 1.7" x 17.3" x 29.27"
Weight 18.7 lbs.
Additional Information
First Listed on Newegg October 18, 2024

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
