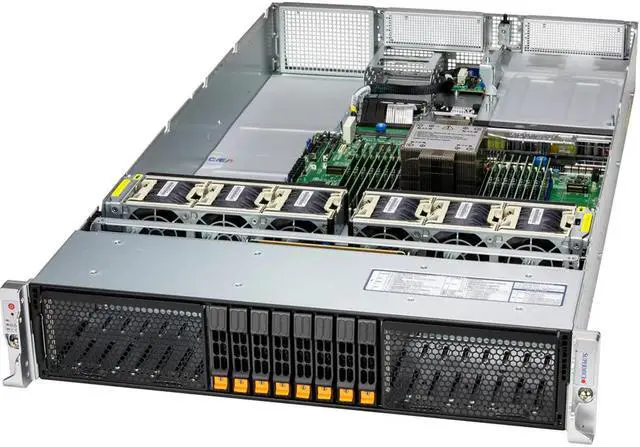

Supermicro Hyper SuperServer SYS-212H-TN, 2U UP Hyper with 8 hot-swap 2.5” NVMe/SAS/SATA bays and up to 3 PCIe 5.0 + 1 PCIe 5.0 AIOM slots.Complete System Only
- Hyper is a flagship performance rackmount server designed for scale-out cloud workloads.
- Single Intel® Xeon® 6 Processor.
- 16 DIMM slots supporting up to 2TB of memory (6700E series CPU).
- Double width add-on card support.
- Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible).
- Breeze through high throughput workloads with PCIe 5.0 NVMe drive support.
- Trusted Platform Module (TPM) 2.0 onboard.
- Modularized and Tool-less design for easy serviceability.
+
+
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Supermicro SYS-212H-TN
| Brand | SUPERMICRO |
|---|---|
| Series | SuperServer |
| Model | SYS-212H-TN |
| Type | Rack |
|---|---|
| Rack Height | 2U |
| LEDs | HDD activity LAN1 activity Power status System information |
| Security | Hardware Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) - NIST 800-193 Compliant Features Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
| CPU Type | Intel Xeon 6700 series processors with E-cores |
|---|---|
| CPU Socket | Socket E2 (LGA-4710) |
| CPU Features | Up to 144C/144T; Up to 108MB Cache Supports up to 330W TDP CPUs (Air Cooled) |
| # of Processors Installed | 0 |
| MAX Processors | 1 |
| Memory Type | DDR5 |
|---|---|
| Max Memory Capacity | 2TB |
| Memory Features | Max Memory (1DPC): Up to 1TB 6400MT/s ECC DDR5 RDIMM Max Memory (2DPC): Up to 2TB 5200MT/s ECC DDR5 RDIMM |
| Number of Memory Slots | 16 |
| Hard Drive (Installed) | No Hard Drive |
|---|---|
| SSD (Installed) | No |
| Raid Level | RAID 0/1/5/10 |
| Graphic Type | Up to 1 double-width or 2 single-width GPUs PCIe 5.0 x16 CPU-to-GPU Interconnect |
|---|
| LAN Ports | 1 x RJ45 1 GbE Dedicated BMC LAN port |
|---|
| Expansion Slots | Option A 1 PCIe 5.0 x16 FHFL double-width slot 1 PCIe 5.0 x16 FH/10.5"L double-width slot 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) Option B 1 PCIe 5.0 x16 FHFL double-width slot 2 PCIe 5.0 x8 FH/10.5"L slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) |
|---|---|
| Expansion Bays | Default: Total 8 bays 8 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays Option A: Total 16 bays 8 front hot-swap 2.5" PCIe 5.0 x4 NVMe* drive bays 8 front hot-swap 2.5" SAS*/SATA* drive bays Option B: Total 16 bays 16 front hot-swap 2.5" SAS*/SATA* drive bays Option C: Total 24 bays 24 front hot-swap 2.5" SAS*/SATA* drive bays (*NVMe/SAS/SATA support may require additional storage controller and/or cables) 2 M.2 NVMe slots (M-key 2280/22110/25110; VROC required for RAID) |
| Other ports | 2 x USB 3.0 (rear) 1 x VGA |
| Operating System | No |
|---|
| Temperature | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
|---|---|
| Humidity | Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Dimensions | 3.5" x 17.2" x 31.74" |
|---|---|
| Weight | 45 lbs. |
| First Listed on Newegg | October 18, 2024 |
|---|
