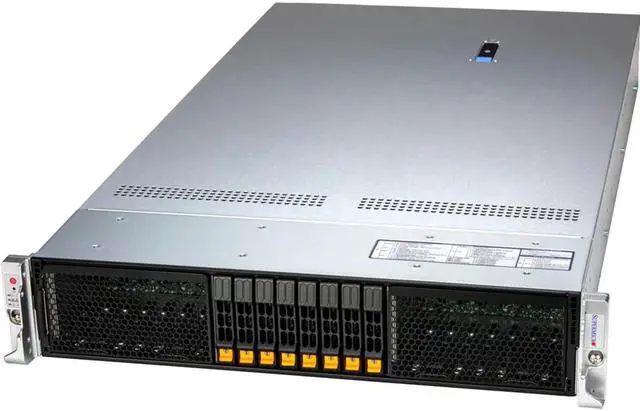

Supermicro Hyper SuperServer SYS-212HA-TN, 2U UP Hyper with 8 hot-swap 2.5” NVMe/SAS/SATA bays and up to 3 PCIe 5.0 + 1 PCIe 5.0 AIOM slots, Complete System Only.

Hyper is a flagship performance rackmount server designed for scale-out cloud workloads.
Single Intel® Xeon® 6 6900 series Processor.
12 DIMM slots supporting up to 3TB of 8800 MRDIMM
Double width add-on card support.
Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible).
Breeze through high throughput workloads with PCIe 5.0 NVMe drive support.
Trusted Platform Module (TPM) 2.0 onboard.
Modularized and Tool-less design for easy serviceability.

Specs

Reviews

Learn more about the Supermicro SYS-212HA-TN

Details
Type	Rack
Rack Height	2U
LEDs	HDD activity LAN1 activity Power status System information
Security	Hardware Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) - NIST 800-193 Compliant Features Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown

Processor
CPU Type	Intel Xeon 6900 series processors with P-cores
CPU Socket	Socket BR (LGA-7529)
CPU Features	Up to 128C/256T; Up to 504MB Cache Supports up to 500W TDP CPUs (Air Cooled)
# of Processors Installed	0
MAX Processors	1

Memory
Memory Type	DDR5
Max Memory Capacity	3TB
Memory Features	Max Memory (1DPC): Up to 3TB 8800MT/s ECC DDR5 MRDIMM Max Memory (1DPC): Up to 3TB 6400MT/s ECC DDR5 RDIMM
Number of Memory Slots	12

Networking
LAN Ports	1 x RJ45 1 GbE Dedicated BMC LAN port

Expansion & Ports
Expansion Slots	Option A 1 PCIe 5.0 x16 FHFL double-width slot 1 PCIe 5.0 x16 FH/10.5"L double-width slot 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) Option B 1 PCIe 5.0 x16 FHFL double-width slot 2 PCIe 5.0 x8 FH/10.5"L slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
Expansion Bays	Default: Total 8 bays 8 front hot-swap 2.5" NVMe/SAS/SATA* drive bays (*NVMe/SAS/SATA support may require additional storage controller and/or cables)
Other ports	2 x USB 3.0 (rear) 1 x VGA

Software
Operating System	No

Environmental
Temperature	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
Humidity	Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)

Dimensions & Weight
Dimensions	3.5" x 17.2" x 31.74"
Weight	45 lbs.

Additional Information
First Listed on Newegg	October 18, 2024
