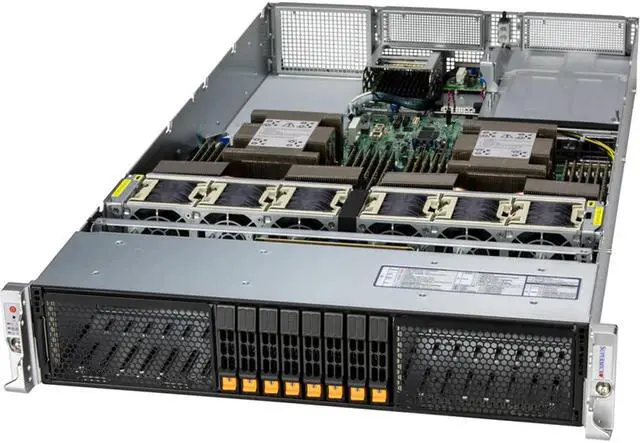

Supermicro Hyper SuperServer SYS-222HA-TN, 2U Hyper with 8 hot-swap 2.5" NVMe/SAS/SATA bays and 4 PCIe 5.0 x16 slots + up to 2 PCIe 5.0 x16 AIOM slots, Complete System Only.

Dual Intel® Xeon® 6900-Series Processors with P-cores up to 500W
Up to 24 DIMMs supporting up to 6TB 6400MT/s DDR5 RDIMM or 3TB 8800MT/s DDR5 MRDIMM
Optional PCIe slot configurations up to 8 PCIe 5.0 x8 or 4 PCIe 5.0 x16 slots with support for double-width GPU/Accelerator cards
Flexible networking options with up to 2 AIOM networking slots (OCP NIC 3.0 compatible)
8x 2.5" hot-swap NVMe/SATA/SAS drive bays with optional configurations for 16x/24x 2.5" hot-swap NVMe/SAS/SATA drive bays; 2x internal M.2 NVMe drive slots; Optional RAID support via storage add-on card

This item is covered under the Manufacturer Only Return Policy.

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Supermicro SYS-222HA-TN

Details
Type	Rack
Rack Height	2U
LEDs	HDD activity LAN1 activity Power status System information
Security	Hardware Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) - NIST 800-193 Compliant Features Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown

Processor
CPU Type	Intel Xeon 6900 series processors with P-cores
CPU Socket	Socket BR (LGA-7529)
CPU Features	Up to 128C/256T; Up to 504MB Cache per CPU Supports up to 500W TDP CPUs (Air Cooled) Supports up to 500W TDP CPUs (Liquid Cooled)
# of Processors Installed	0
MAX Processors	2

Memory
Memory Type	DDR5
Max Memory Capacity	6TB
Memory Features	Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM Max Memory (1DPC): Up to 6TB 8800MT/s ECC DDR5 MRDIMM
Number of Memory Slots	24

Graphic Controller
Graphic Type	Up to 4 double-width or 4 single-width GPUs PCIe 5.0 x16 CPU-to-GPU Interconnect

Networking
LAN Ports	1 x RJ45 1 GbE Dedicated BMC LAN port

Expansion & Ports
Expansion Slots	Option A 4 PCIe 5.0 x16 FH/10.5"L double-width slots 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible) Option B 8 PCIe 5.0 x8 (in x16) FH/10.5"L slots 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
Expansion Bays	Default: Total 8 bays 8 front hot-swap 2.5" NVMe/SAS/SATA* drive bays Option A: Total 16 bays 16 front hot-swap 2.5" NVMe/SAS/SATA* drive bays Option B: Total 24 bays 24 front hot-swap 2.5" NVMe/SAS/SATA* drive bays (*NVMe/SAS/SATA support may require additional storage controller and/or cables) 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110)
Other ports	2 x USB 3.0 (rear) 1 x VGA

Software
Operating System	No

Environmental
Temperature	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
Humidity	Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)

Dimensions & Weight
Dimensions	3.5" x 17.2" x 31.74"
Weight	45 lbs.

Additional Information
First Listed on Newegg	October 18, 2024
