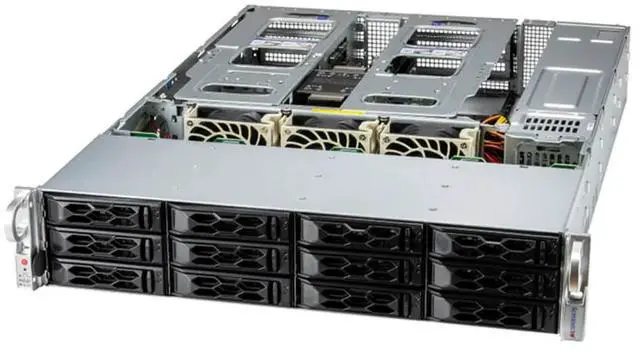

Supermicro UP SuperServer (SYS-521C-NR-G1)

Be the first to review this product...
  • Single Intel Xeon 4510 (12C/2.4GHz)
  • 128GB DDR5-5600
  • 2x 960GB M.2 NVMe SSD
  • 1 dual 10GbE RJ45
  • 2x 1200W Titanium Level
Please note that this product is non-returnable and non-refundable.
+
+
Specs
Reviews
See all Q & A
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Supermicro SYS-521C-NR-G1

Model
Brand SUPERMICRO
Series SuperServer
Model SYS-521C-NR-G1
Details
Workload General Purpose Server
Type Rack
Rack Height 2U
LEDs Drive activity
Network activity
Power status
Universal Information (UID)

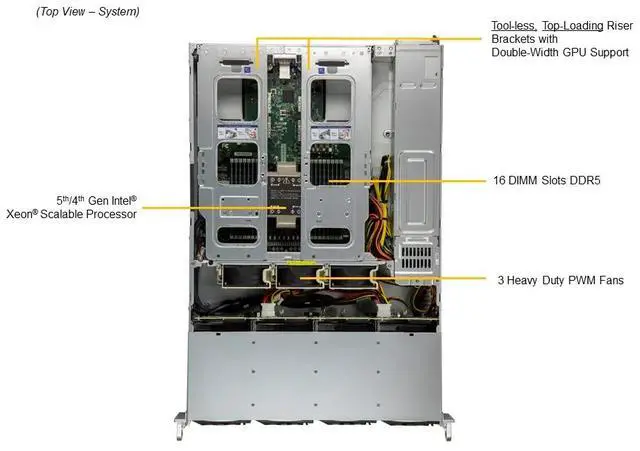

Hot-swap Fans 3 heavy duty PWM 80x80x38mm Fan(s)
Security Trusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) - NIST 800-193 Compliant
Cryptographically Signed Firmware
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown
Processor
CPU Type Intel Xeon Silver
CPU Speed 4510 (2.40 GHz)
CPU Socket LGA 4677
Number of CPU Cores 12-Core Processor
Cache Memory 30MB Cache
# of Processors Installed 1
MAX Processors 1
Memory
Installed Memory Size 128GB
Memory Type DDR5 5600
Max Memory Capacity 4TB
Memory Features Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM
Max Memory (2DPC): Up to 4TB 4400MT/s ECC DDR5 RDIMM
Number of Memory Slots 16
Storage
SSD (Installed) 1.92TB
Networking
Ethernet Controller Supermicro 10-Gigabit X710-AT2 (2 x RJ45) Ethernet Network Adapter
Expansion & Ports

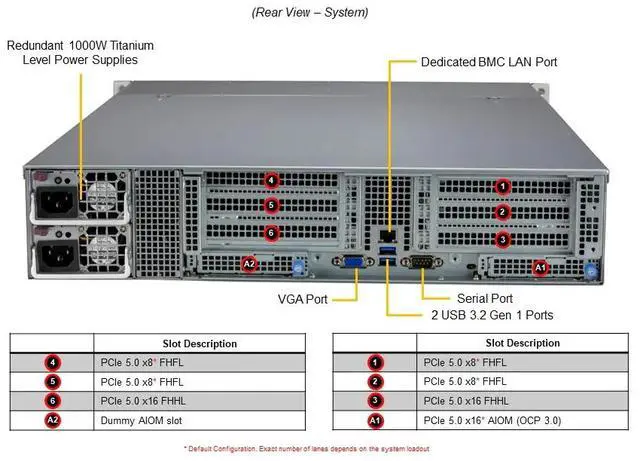

Expansion Slots 4 PCIe 5.0 x8 FHFL slots
2 PCIe 5.0 x16 FHHL slots
1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)

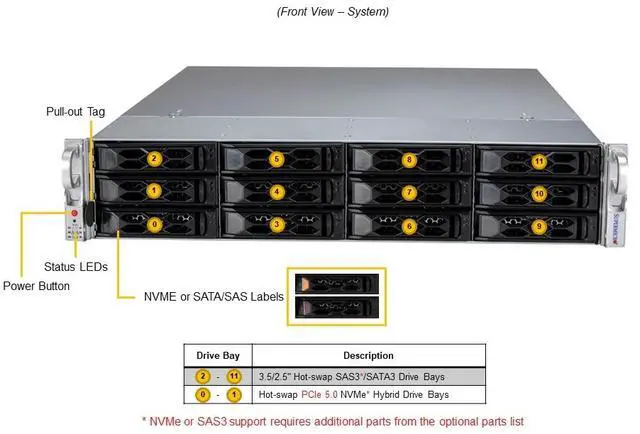

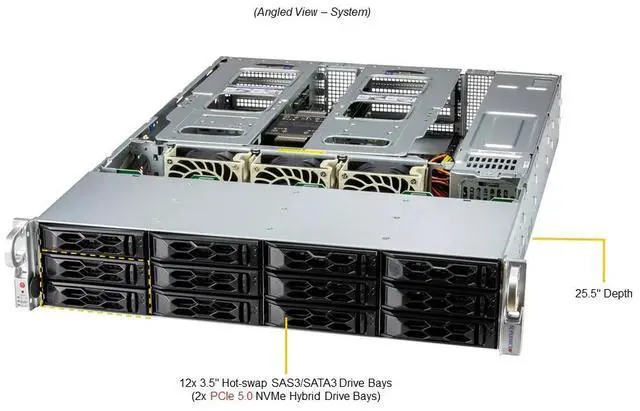

Expansion Bays 12 front hot-swap 3.5" SAS*/SATA drive bays
2 M.2 PCIe 3.0 x2 NVMe slots (M-key 2280/22110)
Power
Power Characteristics 2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies
Environmental
Temperature Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
Humidity Operating Relative Humidity: 8% to 80% (non-condensing)
Non-operating Relative Humidity: 8% to 90% (non-condensing)
Dimensions & Weight
Dimensions 3.5" x 17.2" x 25.5"
Weight 33 lbs.
