Supermicro CloudDC SuperServer SYS-621C-TN12R-02-G1

Be the first to review this product...
  • Dual Intel Xeon 4516Y+ (24C/2.2GHz)
  • 1TB DDR5-5600
  • 1x 240GB SATA
  • 1 dual 1GbE RJ45
  • 2x 1200W Titanium Level
Please note that this product is non-returnable and non-refundable.
+
+
Specs
Reviews
See all Q & A
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Supermicro SYS-621C-TN12R-02-G1

Model
Brand SUPERMICRO
Series SuperServer
Model SYS-621C-TN12R-02-G1
Details
Workload General Purpose Server
Type Rack
Rack Height 2U
LEDs Drive activity
Network activity
Power status
Universal Information (UID)
Hot-swap Fans 3x 8cm heavy duty fans with optimal fan speed control
Security Trusted Platform Module (TPM) 2.0
Silicon Root of Trust (RoT) - NIST 800-193 Compliant
Cryptographically Signed Firmware
Secure Boot
Secure Firmware Updates
Automatic Firmware Recovery
Supply Chain Security: Remote Attestation
Runtime BMC Protections
System Lockdown
Processor
CPU Type Intel Xeon
CPU Speed 4516Y+ (2.20 GHz)
Number of CPU Cores 24-Core Processor
Cache Memory 45 MB L3 Cache
# of Processors Installed 2
MAX Processors 2
Memory
Installed Memory Size 1TB
Memory Type DDR5-5600
Max Memory Capacity 4TB
Memory Features Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM

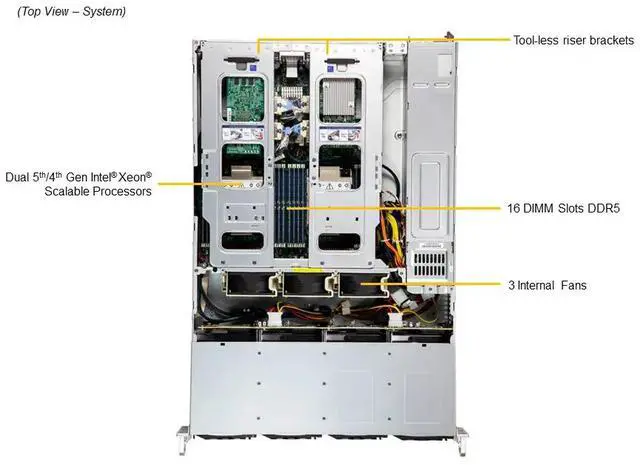

Number of Memory Slots 16
Storage
SSD (Installed) 2.5" SATA 240GB 1DWPD TLC E, SED/TCG 7mm
Networking
Ethernet Controller Supermicro 1-Gigabit i350 (2 x RJ45) Ethernet Network Adapter
Expansion & Ports
Expansion Slots 4 PCIe 5.0 x8 (in x16) FHFL double-width slots
2 PCIe 5.0 x16 FHHL slots
2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)

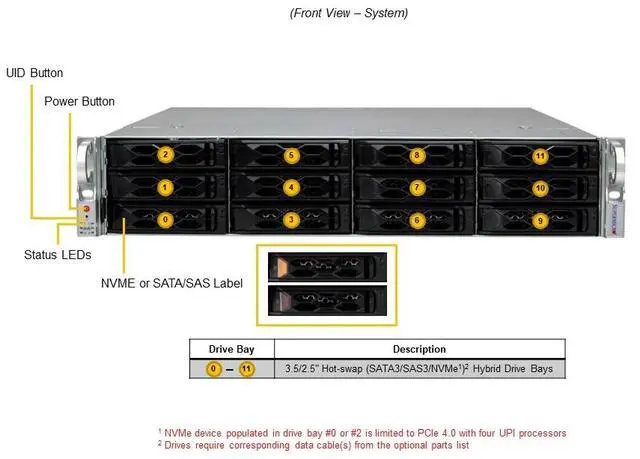

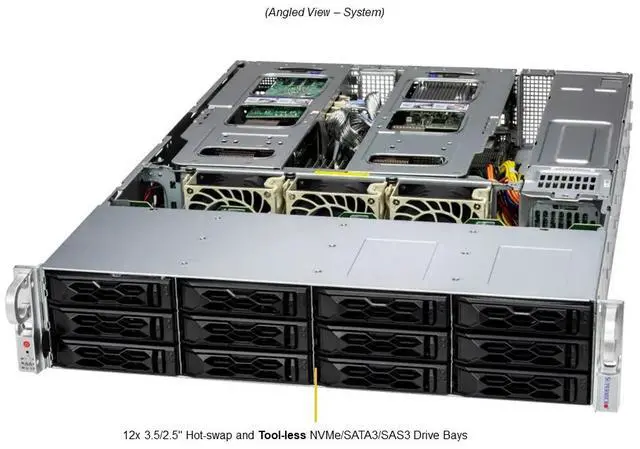

Expansion Bays 12 front hot-swap 3.5" NVMe*/SAS*/SATA* drive bays

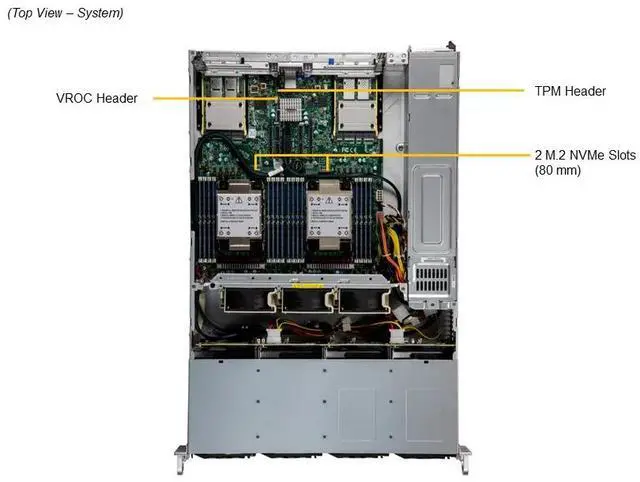

2 M.2 PCIe 5.0 x4 NVMe slots (M-key 2280(default); VROC required for RAID)
Other ports 1 RJ45 1 GbE Dedicated BMC LAN port
2 USB 3.2 Gen1 Type-A ports(rear)
1 VGA port
1 COM port(rear)
1 TPM header
Power
Power Characteristics 2 x 1200W Redundant Titanium Level (96%) Hot-plug power supplies
Environmental
Temperature Operating Temperature: 10°C to 35°C (50°F to 95°F)
Non-operating Temperature: -30°C to 60°C (-40°F to 140°F)
Humidity Operating Relative Humidity: 8% to 80% (max 21° DP; non-condensing)
Non-operating Relative Humidity: 8% to 90% (max 38° DP; non-condensing)
Dimensions & Weight
Dimensions 3.5" x 17.2" x 25.5"
Weight 33 lbs.
