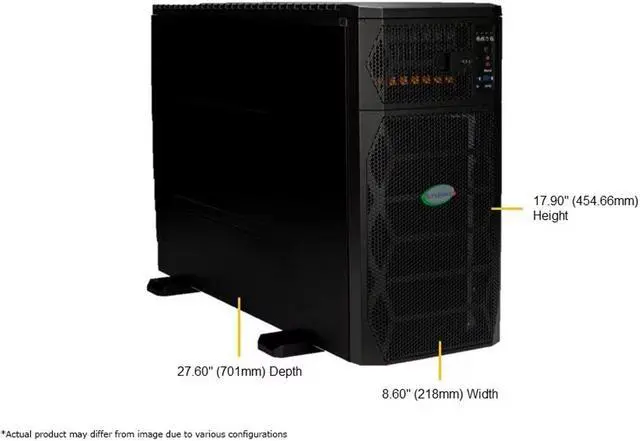

Supermicro GPU SuperServer SYS-751GE-TNRT-NV1, 4 liquid-cooled NVIDIA A100 GPUs with NVIDIA® NVLink™ (2+2) , Dual 4th Gen Intel® Xeon® Scalable Processors, 6444Y (16 cores at 3.6Ghz).
- Acoustically optimized for quiet operation

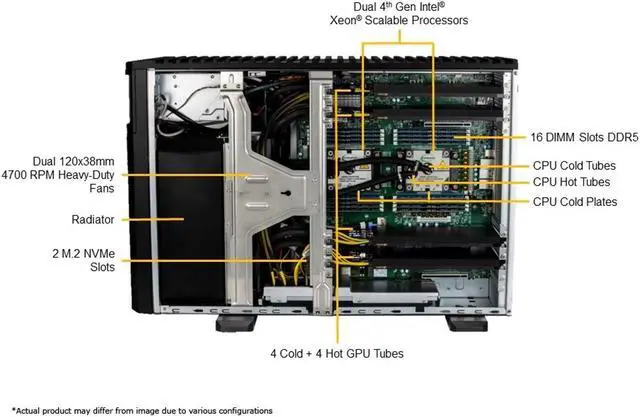

- Closed-loop liquid cooling for CPUs and GPUs
- 4 liquid-cooled NVIDIA A100 GPUs with NVIDIA® NVLink™ (2+2) installed
- Dual 4th Gen Intel® Xeon® Scalable Processors, 6444Y (16 cores at 3.6Ghz) installed
- Dual-port active-cooled NVIDIA Connect-X6 Dx 25G Network Adapter installed
- Supermicro Cloud Orchestrator AI software stack
- Ubuntu 22.04 LTS installed
+
+
Learn more about the Supermicro SYS-751GE-TNRT
| Brand | SUPERMICRO |
|---|---|
| Series | SuperServer |
| Model | SYS-751GE-TNRT |
| Workload | Workstation |
|---|---|
| Type | Tower |
| Rack Height | 5U/Tower |
| CPU Type | Intel Xeon Scalable |
|---|---|
| CPU Speed | 6444Y (3.60 GHz) |
| CPU Socket | Dual Socket E (LGA-4677) |
| CPU Features | 4th Gen Intel Xeon Scalable processors Future support for the upcoming 5th Gen Intel Xeon processors |
| # of Processors Installed | 0 |
| MAX Processors | 2 |
| Chipset | Intel C741 |
| Installed Memory Size | No |
|---|---|
| Memory Type | DDR5 |
| Max Memory Capacity | 512GB |
| Memory Features | Memory Capacity: 16 DIMM slots 512GB: 16x 32 GB DRAM Memory Type: 4800MHz ECC DDR5 DRAM |
| Number of Memory Slots | 16 |
| Hard Drive (Installed) | None |
|---|---|
| HDD Interface | SATA III |
| SSD (Installed) | No |
| Raid Level | RAID 0/1/5/10 |
| Graphic Type | GPU: NVIDIA A100 Max GPU Count: Up to 4 double-width GPU(s) CPU-GPU Interconnect: PCIe 5.0 x16 CPU-to-GPU Interconnect GPU-GPU Interconnect: NVIDIA NVLink Bridge (2+2) |
|---|
| LAN Ports | 2 x 10GbE BaseT with Intel X550-AT2 1 x 1GbE BaseT with ASPEED AST2600 1 x 25GbE SFP28 with NVIDIA Connect-X-6 Dx |
|---|
| Expansion Slots | 7 PCIe 5.0 x16 FHFL slot(s) Note: 4 NVIDIA Liquid-cooled A100 with NVIDIA NVLink, NVIDIA Connect-X6 Dx 25G Network adapter installed |
|---|---|

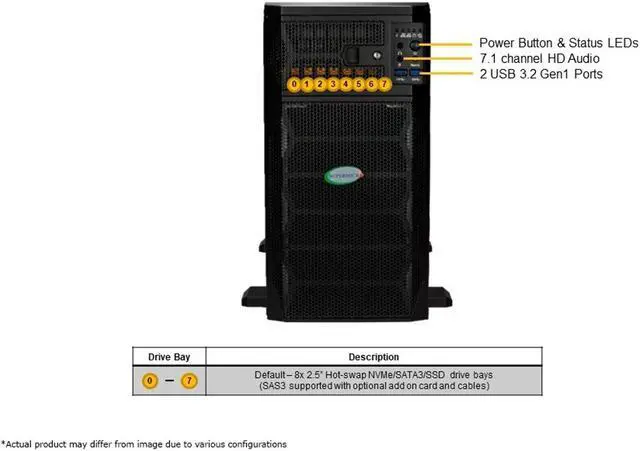

| Expansion Bays | 8 x 2.5" hot-swap NVMe/SATA drive bays (2 x 1.92TB NVMe Drives RAID 1 (OS), 4 x 1.92TB NVMe Drives (Data) installed) 2 x M.2 NVMe |
| Other ports | 1 x VGA |
| Power Characteristics | 2200W Redundant Titanium Level power supplies |
|---|
| Temperature | Operating Temperature: 10°C ~ 25°C (50°F ~ 77°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
|---|---|
| Humidity | Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
|---|
| First Listed on Newegg | November 10, 2023 |
|---|
