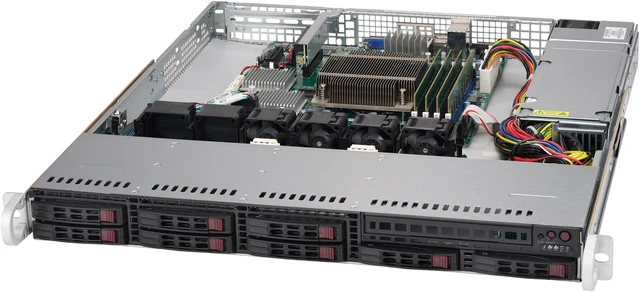

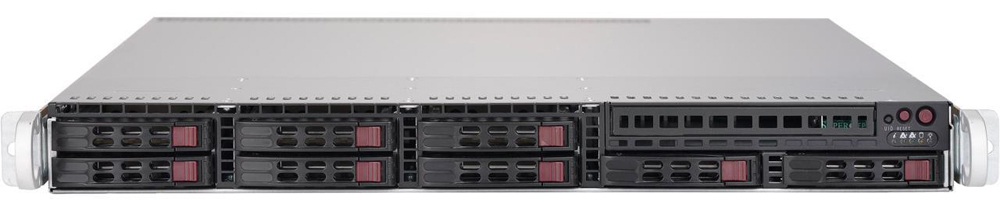

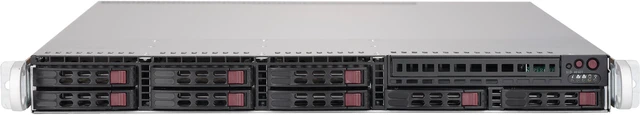

Supermicro SuperServer 1019S-MC0T (SKU Model#: SYS-1019S-MC0T)
A 1U rackmount server barebone system that's ideal for storage HN, file server and VM applications, equipped with up to eight hot-swap 2.5" SAS 3 drive bays. It supports Intel Xeon E3-1200 v6/v5 & Intel 7th/6th Gen. Core i3/Pentium/Celeron series processors with up to 80W TDP. Thefour DIMM slots can accommodate up to 64GB Unbuffered ECC UDIMM DDR4 memory. Dual 10GbE Ethernet ports provide ample throughput for today's bandwidth-hungry applications. A 340W power supply is 80 PLUS Platinum certified, delivering stable and reliable output your mission-critical applications require.
To complete this system, you’ll need a CPU, memory, storage drives and Operating System software.

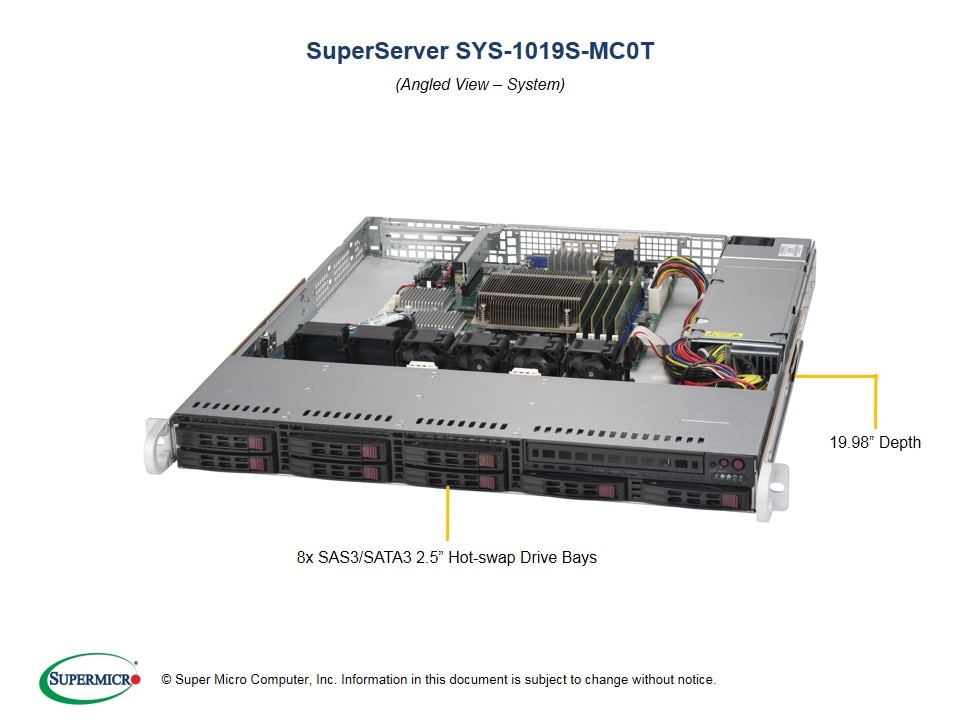

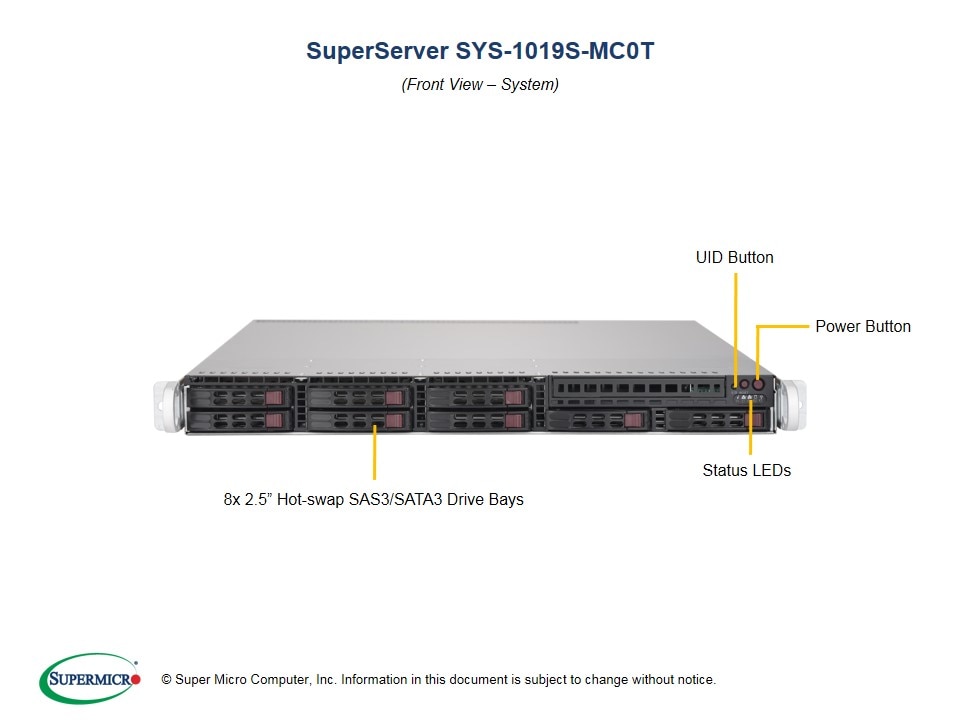

- Eight Hot-swap 2.5" SAS3 Drive Bays
- Integrated IPMI 2.0 and KVM with Dedicated LAN

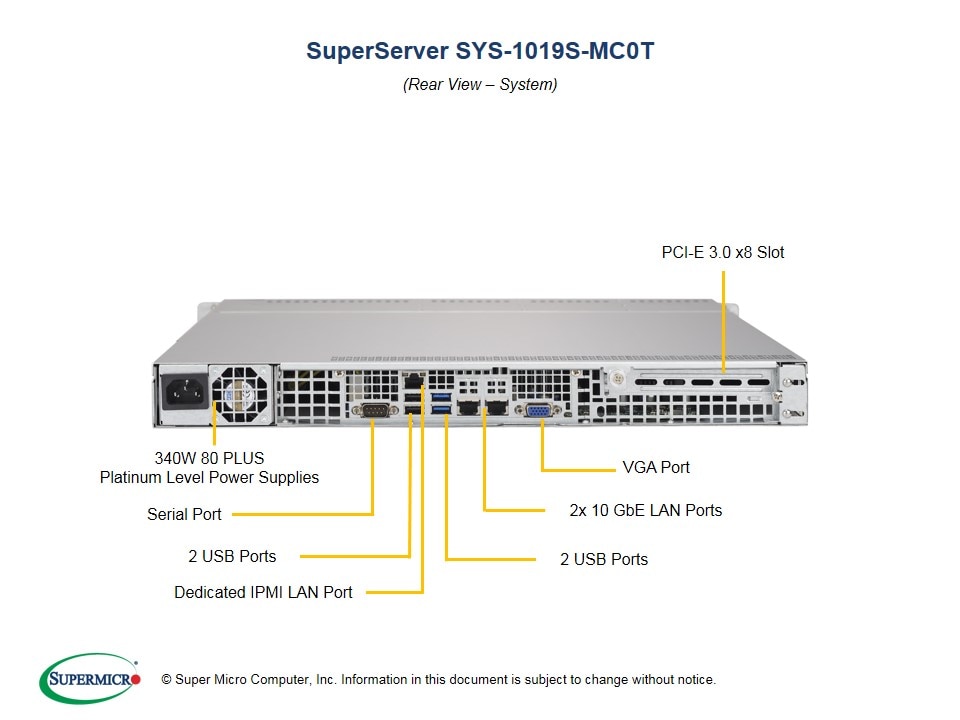

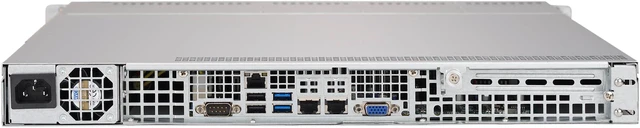

- One VGA, two COM, two USB 3.0, and two USB 2.0
- 340W High-efficiency Power Supply

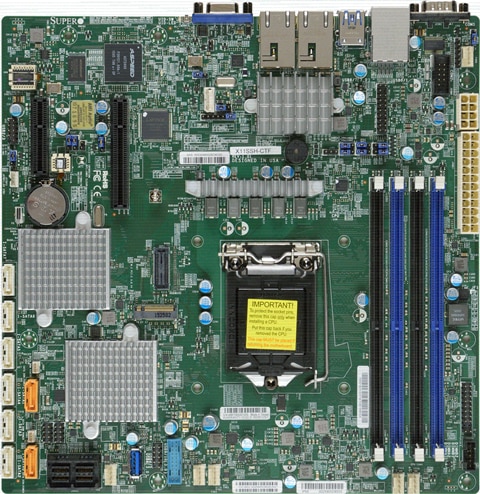

Integrated Board
X11SSH-CTF
- Single socket H4 (LGA 1151) supports Intel Xeon processor E3-1200 v6/v5, Intel 7th/6th Gen. Core i3 series, Intel Celeron and Intel Pentium, with up to 80W CPU TDP
- Intel C236 chipset

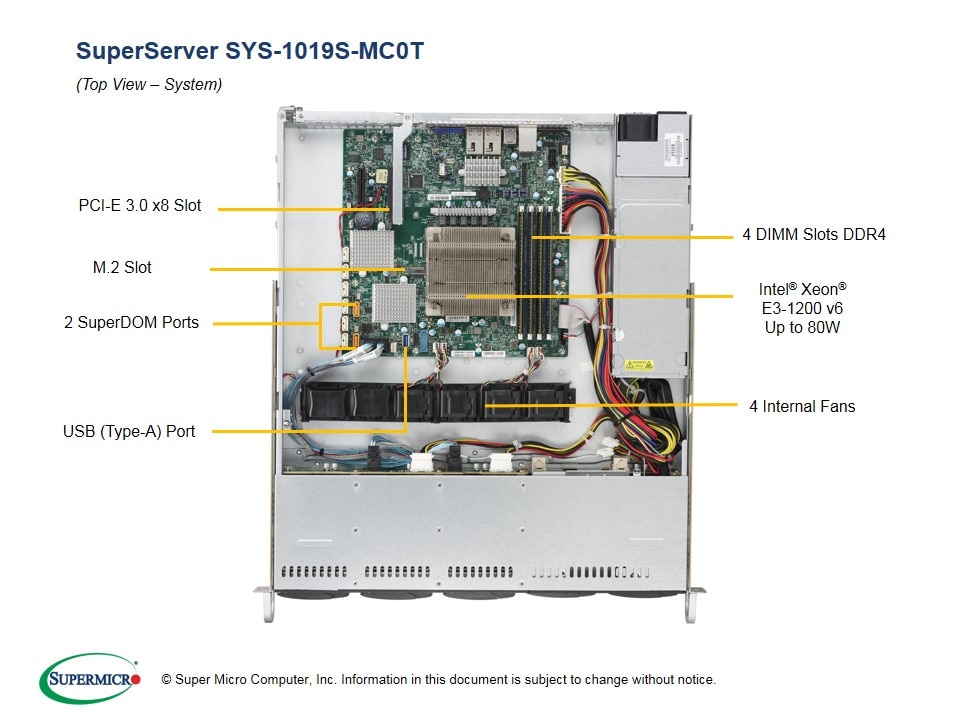

- Up to 64GB Unbuffered ECC UDIMM DDR4 2400MHz; four DIMM slots
- Expansion slots: one PCI-E 3.0 x8, one PCI-E 3.0 x2 (in x4)
- Dual 10GBase-T LAN with Intel X550
- Eight SATA 3 (6Gbps) via C236; RAID 0, 1, 5, 10
- Eight SAS 3 (12Gbps) via Broadcom 3008; RAID 0, 1, 10
- I/O: one VGA, two COM, TPM header
- Five USB 3.0 (2 rear, 2 via header(s), one Type A), six USB 2.0 (two rear, four via header(s))
- M.2 NGFF connector: SATA and PCI-E 3.0 x4, 2260, M-Key, Double Height Connector
Gallery
Please note: images in the description may show a varied configuration or optional parts.
