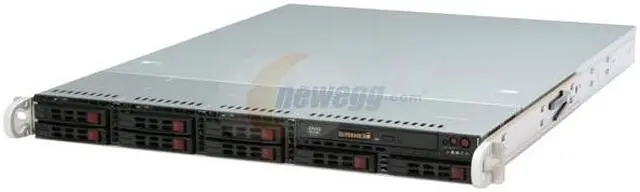

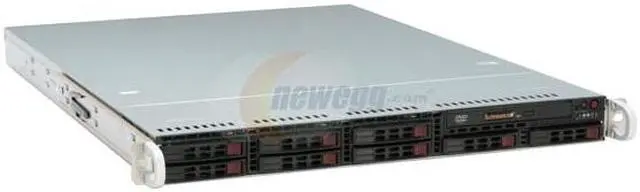

SUPERMICRO SYS-1025C-URB 1U Rackmount Barebone Server Dual LGA 771 Intel 5100 DDRII 667/533

Be the first to review this product...
  • Dual LGA 771
  • Dual Intel Xeon
  • 6 x 240Pin Memory Slots
  • 650W (1 + 1) Redundant AC power supply w/ PFC
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Supermicro SYS-1025C-URB

General
Brand SUPERMICRO
Model SYS-1025C-URB
Form Factor 1U Rackmount
CPU Supported
CPU Type Dual Intel Xeon
CPU Socket Dual LGA 771
FSB 1333/1066 MHz
Chipset
North Bridge Intel 5100
South Bridge ICH9R
Memory Supported
Memory Slots 6 x 240Pin
Max Memory Supported 48GB
Memory Type Supported DDRII 667/533
Channel Supported Dual Channel
ECC Supported Yes
Registered Yes
Storage Supported
ATA 1x ATA 33/66/100
Serial ATA 6 x SATA 300
SATA RAID RAID 0, 1, 5, 10 support (Windows only)
RAID 0, 1, 10 support (Linux)
Graphics
GPU/VPU ATI ES1000
Video Memory 32MB
Expansion Slots
PCI Express Left Slot : 1 (x8) PCI-e Slot
Right Slot : 1 (x8) PCI-e Slot (Low profile size w/ 5.5" length)
Communications
First LAN Intel 82575EB
Second LAN Intel 82575EB
Max. LAN Speed 1 Gigabit
Expansion Bays
Slim Bays 1
Hot-Swap Bays 8 x 2.5" SAS / SATA
Panel Ports
COM 1
PS/2 2
VGA 1
Rear USB 2
RJ45 2
Power Supply
Max. Power 650W (1 + 1) Redundant AC power supply w/ PFC
Dimensions & Weight
Dimensions 23.5" x 17.2" x 1.7"
Weight 37 lbs.
