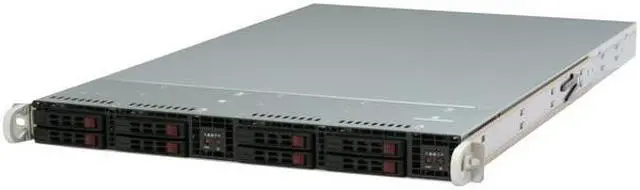

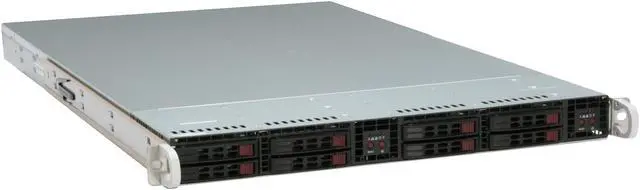

SUPERMICRO SYS-1025TC-TB 1U Rackmount Barebone Server (Two Nodes) Dual LGA 771 Intel 5100 DDRII 667/533
- Dual LGA 771
- Dual Intel Xeon
- 6 x 240Pin Memory Slots
- 780W AC to DC power supply w/ PFC
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Supermicro SYS-1025TC-TB
| Brand | SUPERMICRO |
|---|---|
| Model | SYS-1025TC-TB |
| Form Factor | 1U Rackmount |
| CPU Type | Dual Intel Xeon |
|---|---|
| CPU Socket | Dual LGA 771 |
| FSB | 1333/1066 MHz |
| North Bridge | Intel 5100 |
|---|---|
| South Bridge | ICH9R SB |
| Memory Slots | 6 x 240Pin |
|---|---|
| Max Memory Supported | 48GB |
| Memory Type Supported | DDRII 667/533 |
| Channel Supported | Dual Channel |
| ECC Supported | Yes |
| Registered | Yes |
| Serial ATA | 4 x SATA 300 |
|---|---|
| SATA RAID | RAID 0, 1, 5, 10 support (Windows) RAID 0, 1, 10 support (Linux) |
| GPU/VPU | ATI ES1000 |
|---|---|
| Video Memory | 32MB |
| PCI Express | 1 (x16) PCI-e slot (Low Profile) |
|---|
| First LAN | Intel 82573V |
|---|---|
| Second LAN | Intel 82573L |
| Max. LAN Speed | Dual 1 Gigabit |
| Hot-Swap Bays | 4 x 2.5" |
|---|
| COM | 1 |
|---|---|
| VGA | 1 |
| Rear USB | 2 |
| RJ45 | 2 |
| Max. Power | 780W AC to DC power supply w/ PFC |
|---|
| Dimensions | 27.75" x 17.2" x 1.7" |
|---|---|
| Weight | 40 lbs. (Gross) |
| First Listed on Newegg | September 29, 2008 |
|---|
