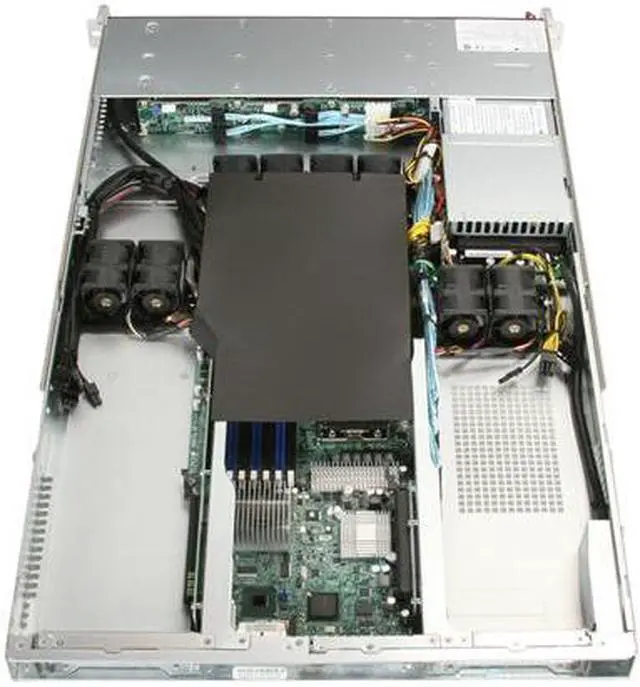

Brand | SUPERMICRO |
---|---|
Model | SYS-1026GT-TF |
CPU Type | Dual Intel Xeon 5600/5500 Series |
---|---|
CPU Socket | Dual LGA 1366 |
Installed CPU | No CPU Installed |
Max Processors | 2 |
North Bridge | Intel 5520 |
---|---|
South Bridge | ICH10R + IOH-36D |
Memory Slots | 12 x 240Pin |
---|---|
Installed Memory Size | No Memory Installed |
Max Memory Supported | Supports up to 192 GB 1333 / 1066 / 800MHz DDR3 ECC Registered memory Supports up to 48 GB 1333 / 1066 / 800MHz DDR3 ECC / Non ECC Unbuffered memory |
Memory Type Supported | DDR3 1333/1066/800 |
ECC Supported | Yes |
Registered | Yes |
Installed HDD | No Storage Installed |
---|---|
Serial ATA | 6 x SATA 300 |
SATA RAID | RAID 0/1/5/10 |
GPU/VPU | Matrox G200eW |
---|---|
Video Memory | 8 MB DDR2 |
PCI Express | 1 (x4) PCI-E 2.0 (in x16 slot -Low Profile) 2 (x16) PCI-E 2.0 (1 in each side) |
---|
First LAN | Intel 82576 |
---|---|
Max. LAN Speed | Dual 10/100/1000Mbps |

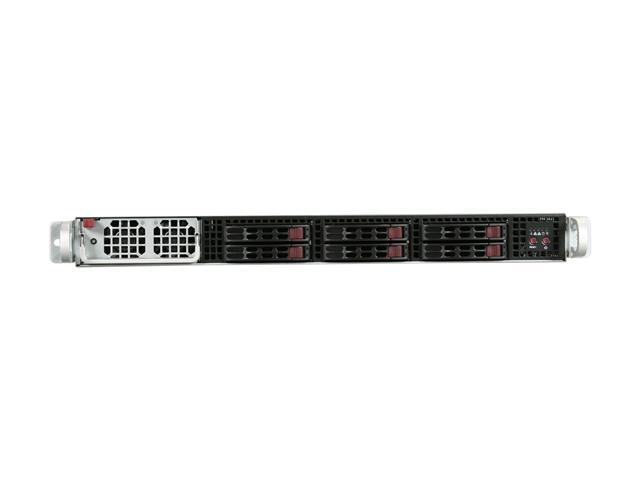

Hot-Swap Bays | 6 x 2.5" SAS/SATA |
---|

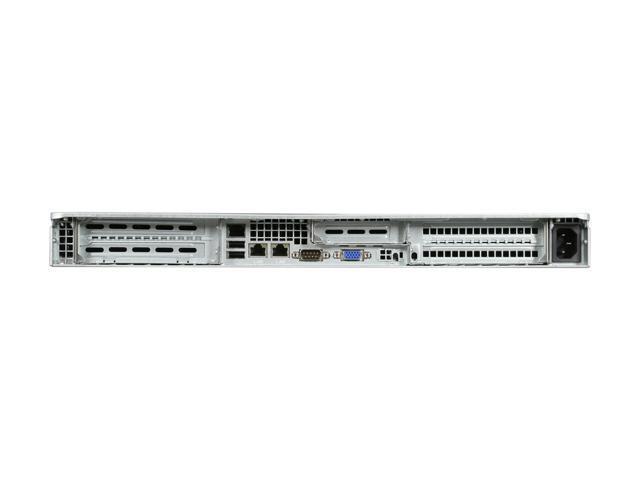

COM | 1 |
---|---|
VGA | 1 |
Rear USB | 2 |
RJ45 | 2 x RJ45 LAN ports 1 x RJ45 Dedicated IPMI LAN port |
Max. Power | 1400W high-efficiency power supply with PMBus |
---|

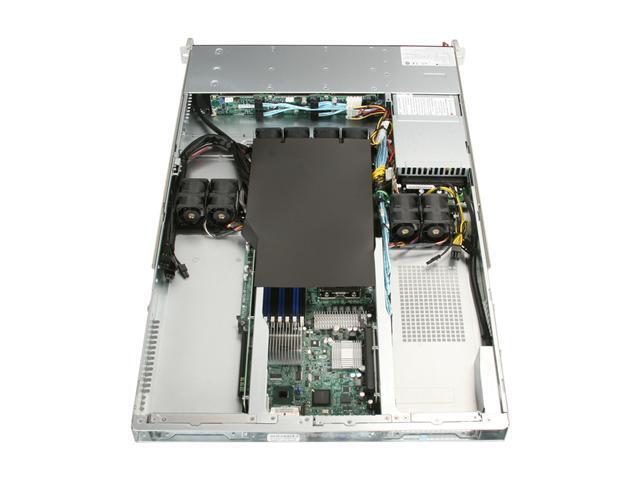

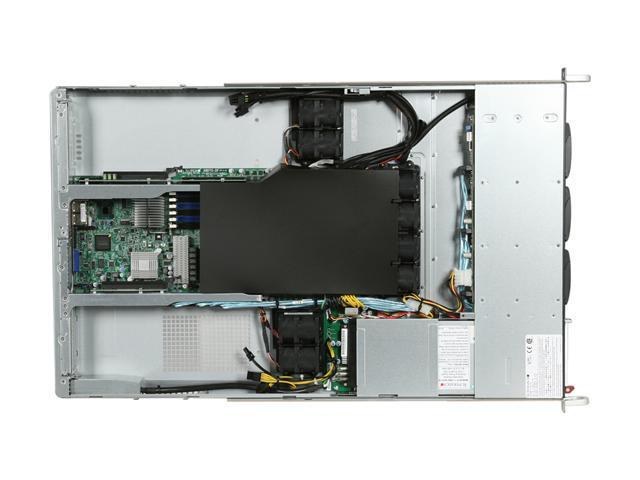

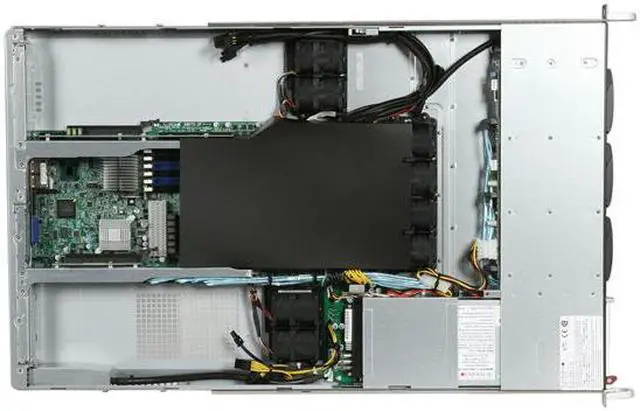

Features | Color: Black Processor: Supports up to two Intel 64-bit Xeon processor(s) of the same type below: Intel Xeon Processor X5600/E5600/L5600 Series(Westmere) 40W - 130W Intel Xeon Processor X5500/E5500/L5500 Series(Nehalem-EP) 38W - 95W QPI: Up to 6.4 GT/s Integrated IPMI 2.0 with Dedicated LAN Super I/O: Winbond W83527HG chip Buttons: Power On/Off button System Reset button LEDs: Power LED Hard drive activity LED 2x Network activity LEDs System Overheat LED / Fan fail LED / UID LED SAS/SATA HDD Backplane(SAS support requires optional SAS controller) System Cooling: 8x 4cm heavy-duty counter-rotating PWM fans with optimal fan speed control RoHS Compliant |
---|

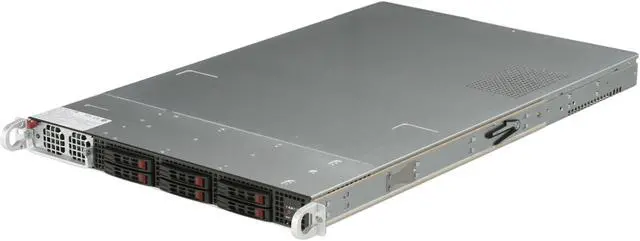

Form Factor | 1U Rackmount |
---|
Dimensions | 28.2" x 17.2" x 1.7" |
---|---|
Weight | 38 lbs. (Gross) |
Date First Available | October 12, 2010 |
---|
