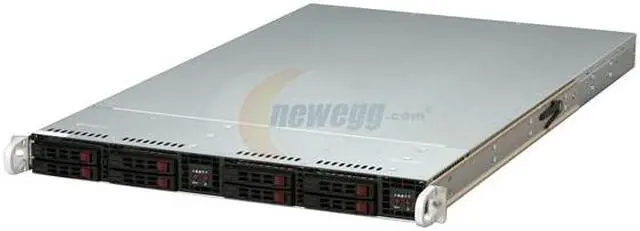

SUPERMICRO SYS-1026TT-IBXF 1U Rackmount Server Barebone Dual LGA 1366 Intel 5500 DDR3 1333/1066/800

Be the first to review this product...
  • Dual LGA 1366
  • Dual Intel Xeon 5500 sequence (Nehalem-EP processor)
  • 12 x 240Pin Memory Slots
  • 1200W high-efficiency power supply with PMBus
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Supermicro SYS-1026TT-IBXF

General
Brand SUPERMICRO
Model SYS-1026TT-IBXF
Form Factor 1U Rackmount
CPU Supported
CPU Type Dual Intel Xeon 5500 sequence (Nehalem-EP processor)
CPU Socket Dual LGA 1366
Chipset
North Bridge Intel 5500
South Bridge ICH10R
Memory Supported
Memory Slots 12 x 240Pin
Max Memory Supported Supports up to 48 GB 1333 / 1066 / 800MHz DDR3 ECC Registered memory
Supports up to 24 GB 1333 / 1066 / 800MHz DDR3 ECC Unbuffered memory
Memory Type Supported DDR3 1333/1066/800
ECC Supported Yes
Registered Yes
Storage Supported
Serial ATA 6 x SATA 300
SATA RAID RAID 0/1/5/10
Graphics
GPU/VPU Matrox G200eW
Expansion Slots
PCI Express 1 (x16) PCI-E ( Low Profile)
Communications
First LAN Intel 82576
Max. LAN Speed Dual 1 Gigabit
Expansion Bays
Hot-Swap Bays 4 x 2.5" SATA
Panel Ports
COM 1
VGA 1
Rear USB 2
RJ45 2x RJ45 LAN ports
1x RJ45 Dedicated IPMI LAN port
Power Supply
Max. Power 1200W high-efficiency power supply with PMBus
Features
Features Integrated IPMI 2.0 with KVM and Dedicated LAN

Infiniband : Mellanox ConnectX DDR Infiniband 20Gbps Controller

NOTE: Support processors with Max TDP < 100W
Dimensions & Weight
Dimensions 27.8" x 17.2" x 1.7"
Weight 40.0 lbs.
