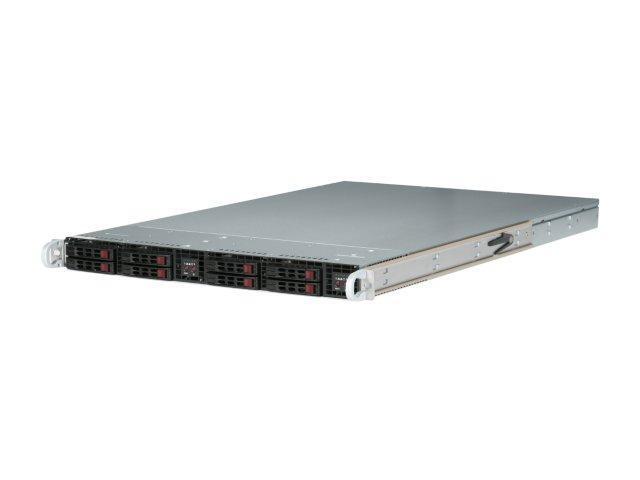

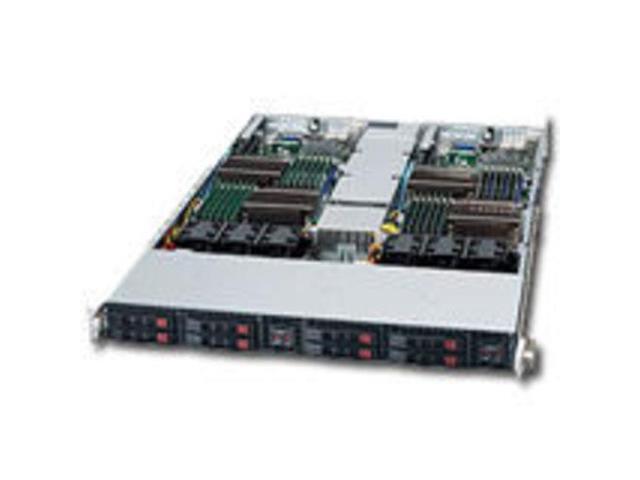

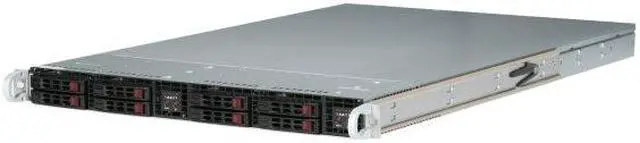

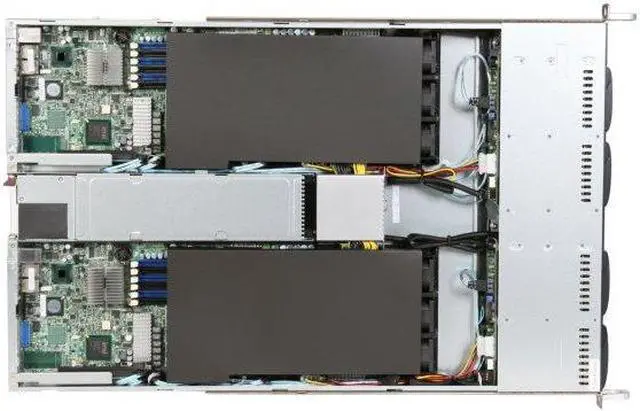

Main image of SUPERMICRO SYS-1026TT-TF 1U Rackmount Server Barebone Intel 5500 Dual LGA 1366 Dual Intel Xeon 5600/5500 Series

Alt view image 2 of 7 - SUPERMICRO SYS-1026TT-TF 1U Rackmount Server Barebone Intel 5500 Dual LGA 1366 Dual Intel Xeon 5600/5500 Series

Alt view image 3 of 7 - SUPERMICRO SYS-1026TT-TF 1U Rackmount Server Barebone Intel 5500 Dual LGA 1366 Dual Intel Xeon 5600/5500 Series

Alt view image 4 of 7 - SUPERMICRO SYS-1026TT-TF 1U Rackmount Server Barebone Intel 5500 Dual LGA 1366 Dual Intel Xeon 5600/5500 Series

Alt view image 5 of 7 - SUPERMICRO SYS-1026TT-TF 1U Rackmount Server Barebone Intel 5500 Dual LGA 1366 Dual Intel Xeon 5600/5500 Series

Alt view image 6 of 7 - SUPERMICRO SYS-1026TT-TF 1U Rackmount Server Barebone Intel 5500 Dual LGA 1366 Dual Intel Xeon 5600/5500 Series

Alt view image 7 of 7 - SUPERMICRO SYS-1026TT-TF 1U Rackmount Server Barebone Intel 5500 Dual LGA 1366 Dual Intel Xeon 5600/5500 Series

Shop All Supermicro Products

SUPERMICRO SYS-1026TT-TF 1U Rackmount Server Barebone Intel 5500 Dual LGA 1366 Dual Intel Xeon 5600/5500 Series

Be the first to review this product...

Dual LGA 1366
Supports up to two Intel 64-bit Xeon processor(s) of the same type below: Intel Xeon Processor X5600/E5600/L5600 Series (Westmere) 40W - 130W Intel Xeon Processor X5500/E5500/L5500 Series (Nehalem-EP) 38W - 95W
12 x 240Pin Memory Slots
1200W Gold-level High-efficiency Power Supply

Specs

Reviews

Any questions? Our AI mode will help you find out quickly.

Try me now

Learn more about the Supermicro SYS-1026TT-TF

General
Brand	SUPERMICRO
Model	SYS-1026TT-TF
Form Factor	1U Rackmount

CPU Supported
CPU Type	Supports up to two Intel 64-bit Xeon processor(s) of the same type below: Intel Xeon Processor X5600/E5600/L5600 Series (Westmere) 40W - 130W Intel Xeon Processor X5500/E5500/L5500 Series (Nehalem-EP) 38W - 95W
CPU Socket	Dual LGA 1366

Chipset
North Bridge	Intel 5500
South Bridge	ICH10R

Memory Supported
Memory Slots	12 x 240Pin
Max Memory Supported	Supports up to 192 GB 1333 / 1066 / 800MHz DDR3 ECC Registered memory Supports up to 48 GB 1333 / 1066 / 800MHz DDR3 ECC / Non ECC Unbuffered memory
Memory Type Supported	DDR3 1333/1066/800
ECC Supported	Yes
Registered	Yes

Storage Supported
Serial ATA	6 x SATA 300
SATA RAID	RAID 0/1/5/10

Graphics
GPU/VPU	Matrox G200eW
Video Memory	8MB

Expansion Slots
PCI Express	1 (x16) PCI-E ( Low Profile)

Communications
First LAN	Intel 82576
Max. LAN Speed	Dual 1 Gigabit

Expansion Bays

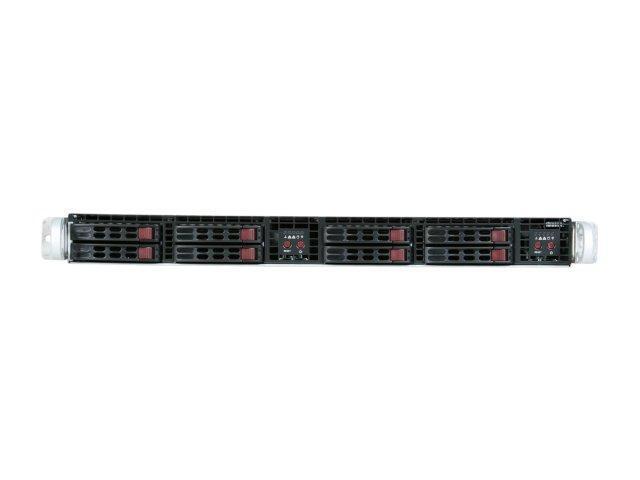

Hot-Swap Bays	4x 2.5" SATA

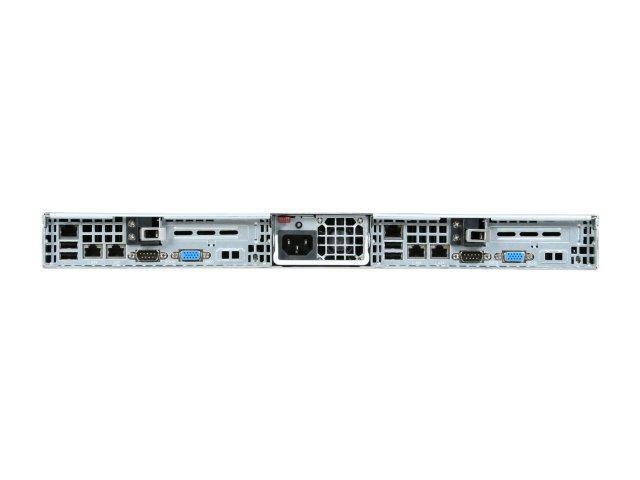

Panel Ports
COM	1
VGA	1
Rear USB	2
RJ45	2

Power Supply
Max. Power	1200W Gold-level High-efficiency Power Supply

Features
Features	Integrated IPMI 2.0 with KVM and Dedicated LAN

Dimensions & Weight

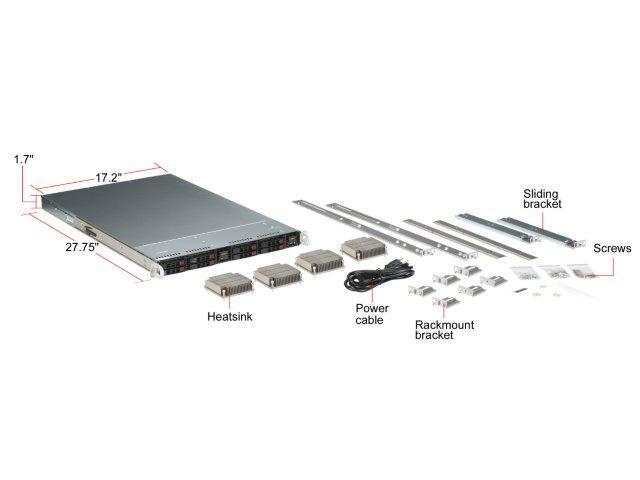

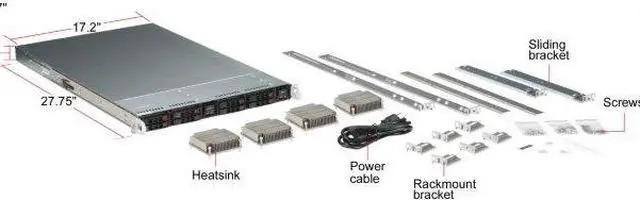

Dimensions	27.75" x 17.2" x 1.7"
Weight	40 lbs.

Additional Information
First Listed on Newegg	June 18, 2009
