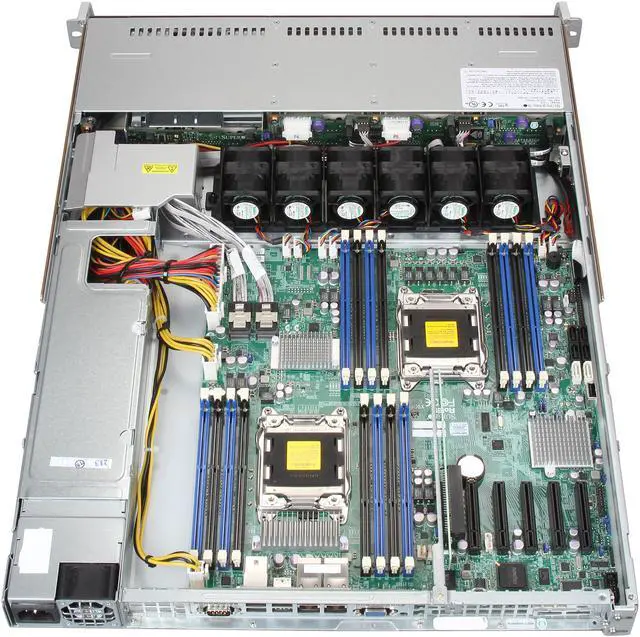

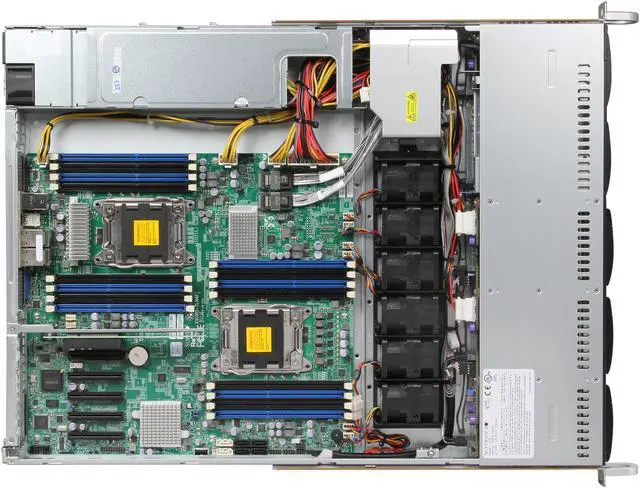

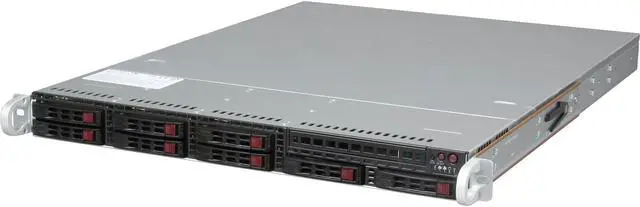

SUPERMICRO SYS-1027R-73DAF 1U Rackmount Server Dual LGA 2011 Intel C602J DDR3 1600/1333/1066/800
- Dual LGA 2011
- Support Intel Xeon E5-2600 and E5-2600 v2 family (60W - 135W TDP)
- 16 x 240Pin Memory Slots (Max 1TB)
- Support 2 x SATA 600 / 4 x SATA 300
- 560W AC power supply w/ PFC (24-pin)
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Supermicro SYS-1027R-73DAF
| Brand | SUPERMICRO |
|---|---|
| Model | SYS-1027R-73DAF |
| Form Factor | 1U Rackmount |
| CPU Type | Intel Xeon E5-2600 and E5-2600 v2 family (60W - 135W TDP) |
|---|---|
| CPU Socket | Dual LGA 2011 |
| Installed CPU | No CPU Installed |
| Max Processors | 2 |
| North Bridge | Intel C602J |
|---|
| Memory Slots | 16 x 240Pin |
|---|---|
| Installed Memory Size | No Memory Installed |
| Max Memory Supported | Up to 1TB DDR3 ECC LRDIMM Up to 512GB DDR3 ECC Registered memory (RDIMM) Up to 128GB DDR3 ECC and non-ECC UDIMM |
| Memory Type Supported | DDR3 1600/1333/1066/800 |
| ECC Supported | Yes |
| Registered | Yes |
| Installed HDD | No Storage Installed |
|---|---|
| Serial ATA | 4 x SATA 300 + 2 SATA 600 |
| SATA RAID | SATA 2.0 3Gbps with RAID 0, 1, 5, 10 SATA 3.0 6Gbps with RAID 0, 1, 5, 10 SAS2 (6Gbps) via LSI 2308 SW RAID 0, 1, 10 support |
| SAS | 8x SAS ports |
| GPU/VPU | Matrox G200eW |
|---|
| PCI Express | 1 (x8) PCI-E 3.0 slot (Both CPUs need to be installed for full access to PCI-E slots. See manual for details.) |
|---|
| First LAN | Intel I350 |
|---|---|
| Second LAN | 1x Realtek RTL8211E PHY (dedicated IPMI) |
| Max. LAN Speed | Quad 1 Gigabit |
| Hot-Swap Bays | 8x Hot-swap 2.5" SAS / SATA HDD trays |
|---|
| COM | 1x Fast UART 16550 port / 1 Header |
|---|---|
| VGA | 1 |
| Rear USB | 9x USB 2.0 ports total (4x rear + 4x via header + 1x Type A) |
| RJ45 | 4 x RJ45 Gigabit Ethernet LAN ports 1 x RJ45 Dedicated IPMI LAN port |
| Max. Power | 560W AC power supply w/ PFC (24-pin) |
|---|
| Features | Motherboard: Super X9DRD-7LN4F Chassis: CSE-113TQ-563CB 6x 40x56mm Counter-rotating PWM fans Front Panel Buttons: Power On/Off button System Reset button UID button LEDs: Power status LED HDD activity LED 2x Network activity LEDs Universal Information (UID) LED Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Renesas SH7757 BMC |
|---|
| Dimensions | 23.5"D x 17.2"W x 1.7"H |
|---|---|
| Weight | 37 lbs. |
| First Listed on Newegg | December 23, 2013 |
|---|
