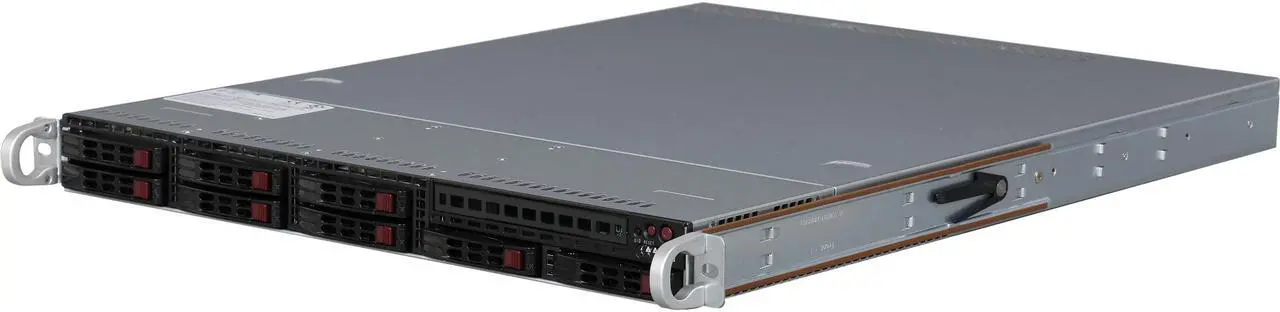

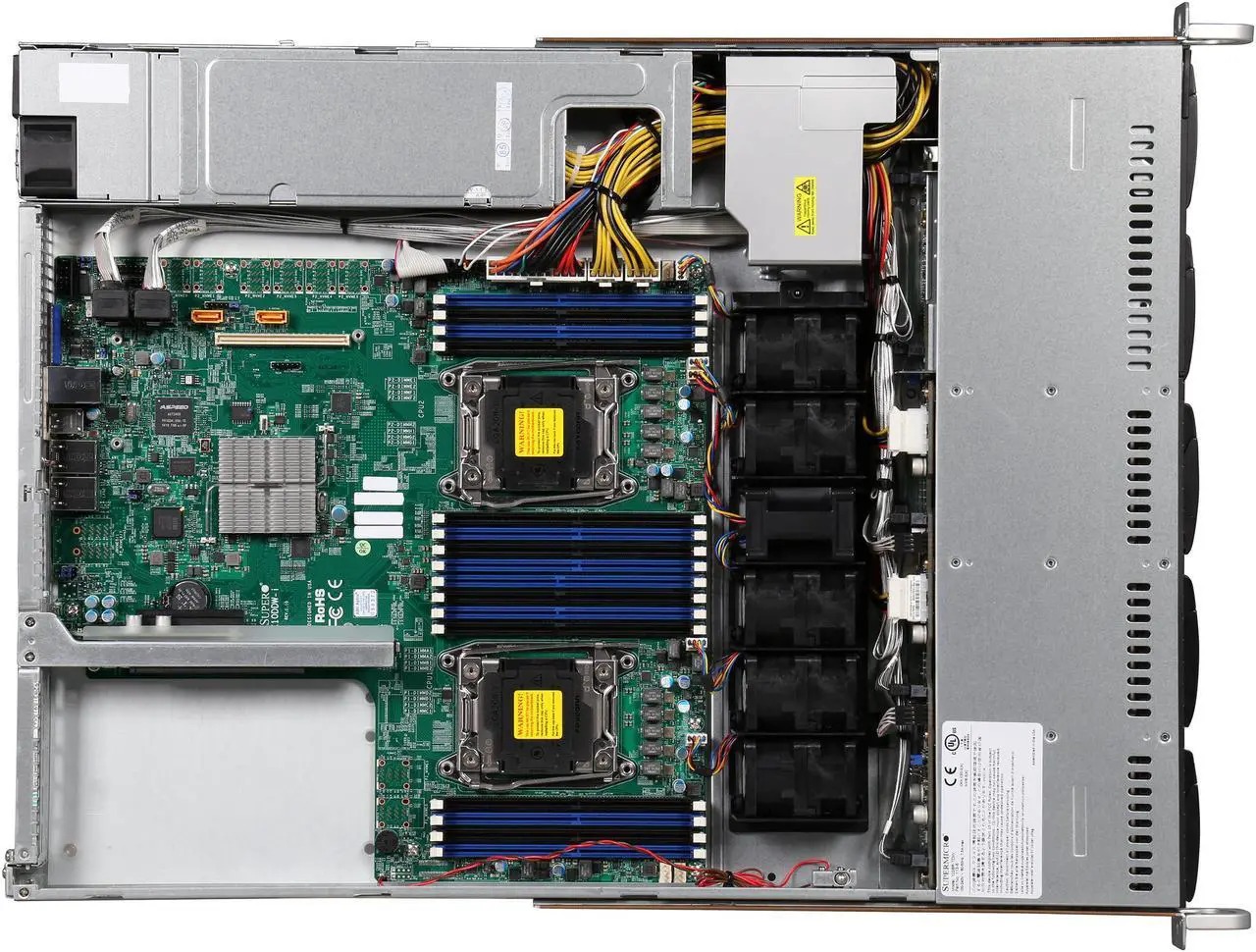

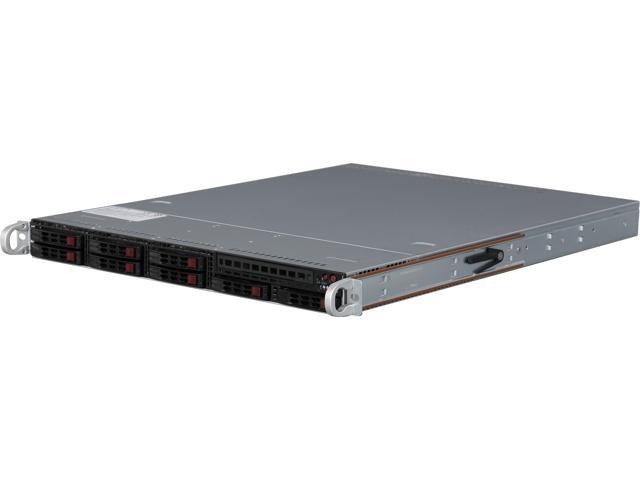

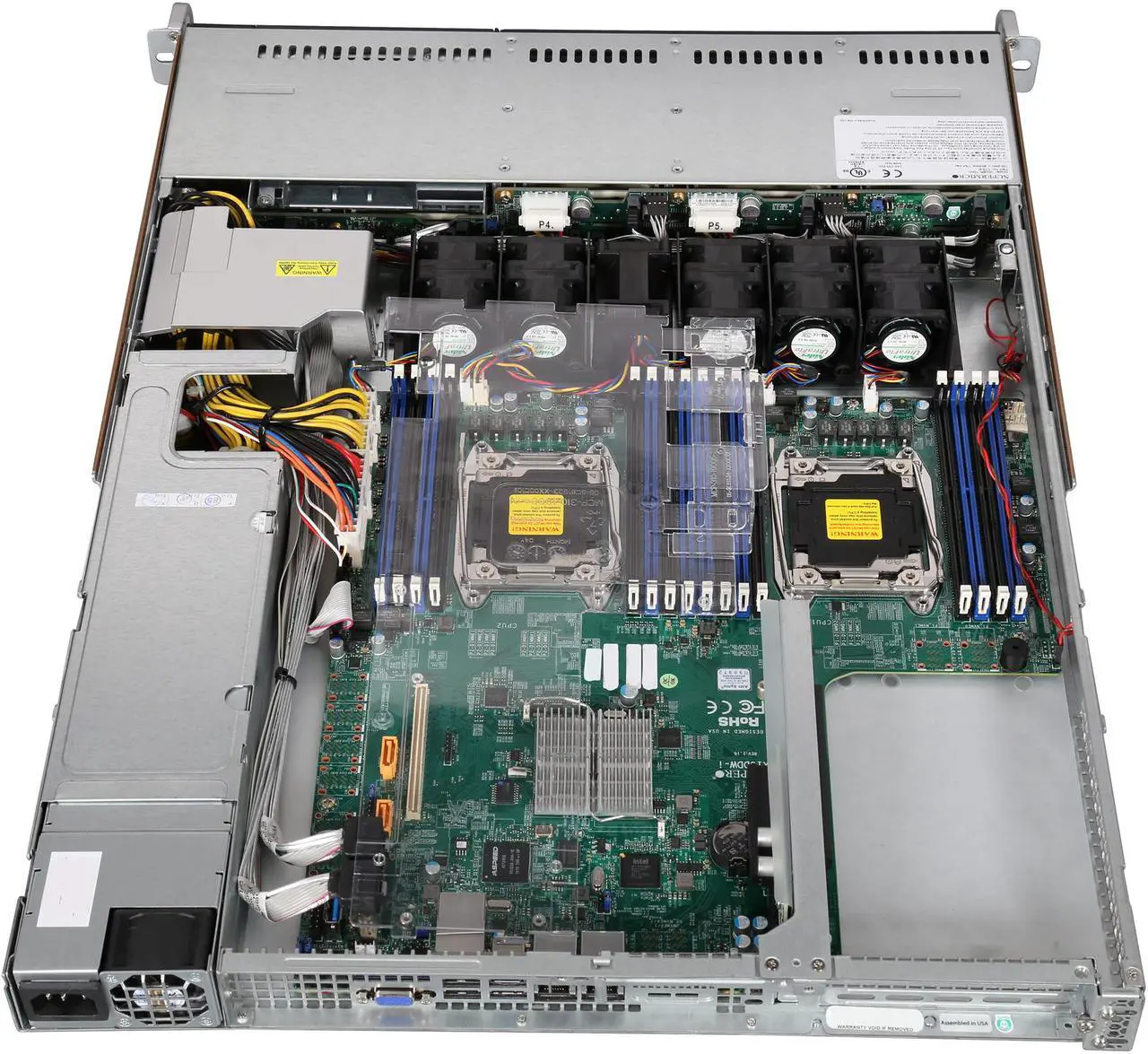

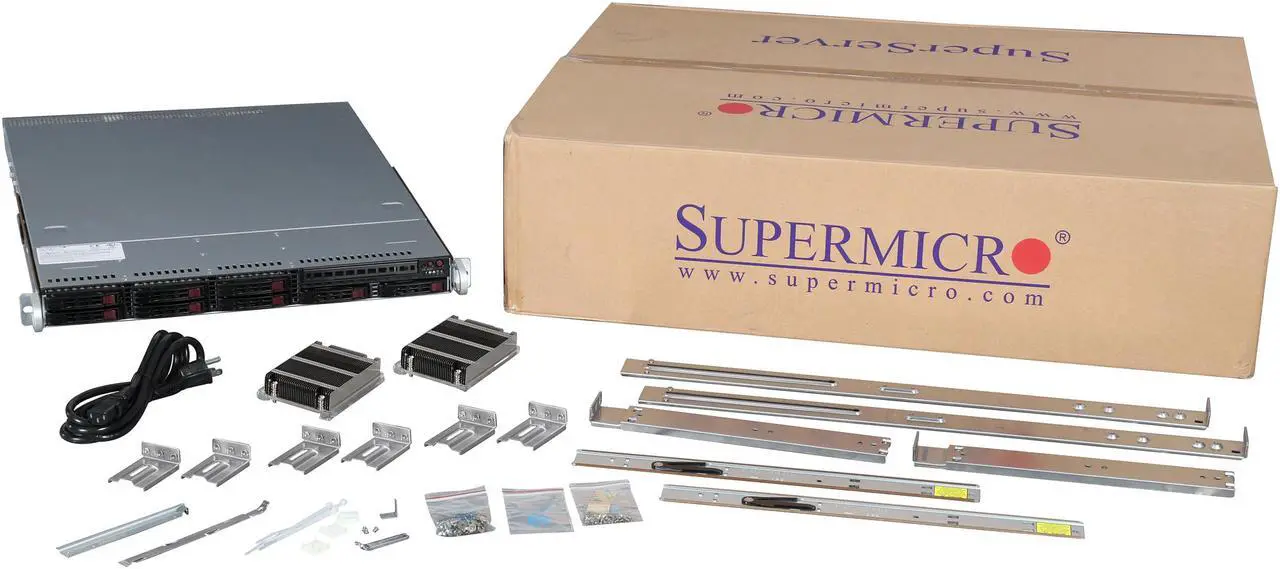

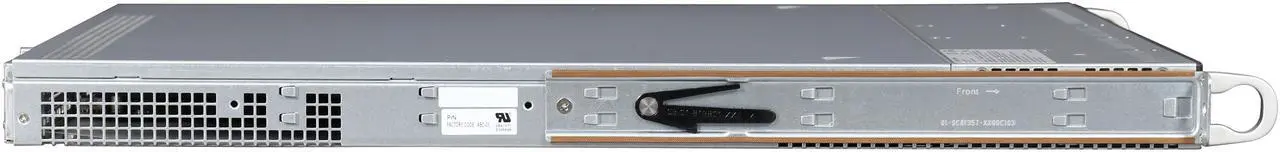

SUPERMICRO SYS-1028R-TDW 1U Rackmount Server Barebone Dual LGA 2011 Intel C612

Be the first to review this product...
  • Dual LGA 2011
  • Dual Intel Xeon processor E5-2600 v3
  • 16x 288-pin Memory Slots
  • 600W AC power supply w/ PFC (24-pin)
Specs
Reviews
See all Q & A
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Supermicro SYS-1028R-TDW

General
Brand SUPERMICRO
Model SYS-1028R-TDW
Form Factor 1U Rackmount
CPU Supported
CPU Type Dual Intel Xeon processor E5-2600 v3
CPU Socket Dual LGA 2011
Chipset
North Bridge Intel C612
Memory Supported
Memory Slots 16x 288-pin
Storage Supported
Serial ATA 8x SATA3 (6Gbps) ports
SATA RAID RAID 0/1/5/10
Graphics
GPU/VPU Aspeed AST2400
Communications
First LAN Intel i350 Dual Port Gigabit Ethernet LAN
Max. LAN Speed 1 Gigabit
Expansion Bays

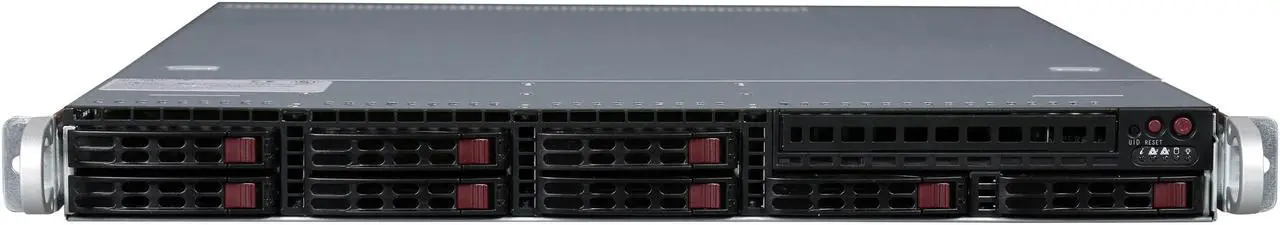

Hot-Swap Bays 8x 2.5" Hot-swap SATA HDD trays

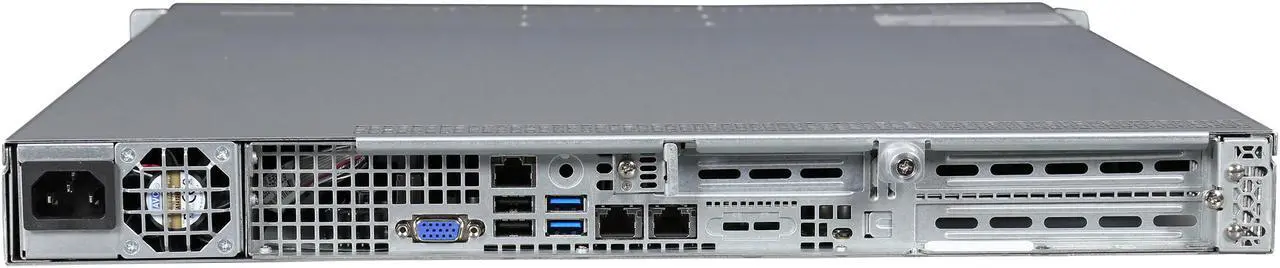

Panel Ports
VGA 1
Other Ports 3x USB 3.0 ports (2 rear + 1 Type A)
4x USB 2.0 ports (2 rear + 2 via
Power Supply
Max. Power 600W AC power supply w/ PFC (24-pin)
Features
Features Dual socket R3 (LGA 2011) supports Intel Xeon processor E5-2600 v3 family; QPI up to 9.6GT/s
Up to 1TB ECC DDR4 2133MHz;16x DIMM sockets
2x PCI-E 3.0 x8 Full-height Half-length,1x PCI-E 3.0 Low-profile
8x 2.5" Hot-swap SATA HDD bays
Intel i350 Dual port Gigabit Ethernet
I/O ports: 2x SuperDOM, 1x VGA,1x COM, 2x USB 3.0, 2x USB 2.0
600W High-efficiency Digital-switching Power Supply; Platinum Level
Dimensions & Weight
Dimensions 1.70" x 17.20" x 25.6" (H x W x D)
Weight 46 lbs.
Additional Information
First Listed on Newegg October 13, 2014
