SUPERMICRO SYS-1028R-WTRT 1U Rackmount Server Barebone Dual LGA 2011 Intel C612 DDR4 DIMM sockets

Be the first to review this product...
  • Dual LGA 2011
  • 16x 288-pin Memory Slots
  • Redundant 700W High-efficiency (platinum level) power supply
Overview
Specs
Reviews
See all Q & A
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now
SYS-1028R-WTRT

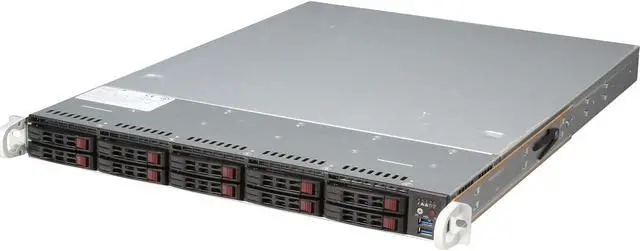

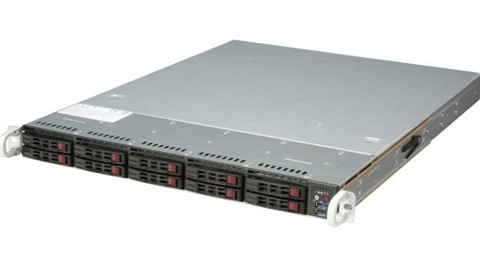

SUPERMICRO SYS-1028R-WTRT 1U Rackmount Server Barebone



Features

SYS-1028R-WTRT
  • Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v3 family; QPI up to 9.6GT/s
  • Up to 1TB ECC DDR4 2133MHz; 16x DIMM slots
  • 2x PCI-E 3.0 x16 (FHHL), 1x PCI-E 3.0 x8 Mezzanine for HBA cards

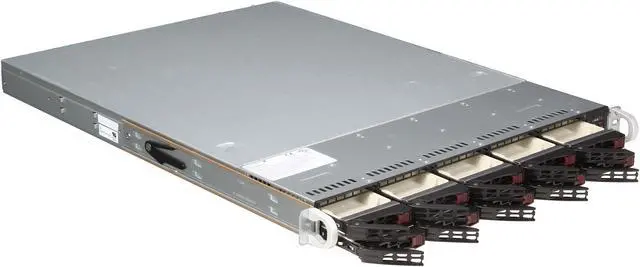

  • 10x Hot-swap 2.5" SAS/SATA HDD bays
  • Intel® X540 Dual port 10GBase-T
  • I/O ports: 2x SuperDOM, 1x VGA, 1x COM, 6x USB 3.0 (4 rear, 2 front)
  • 2x SuperDOM (Disk on Module) ports
  • 700W Redundant Power Supplies Platinum Level High-efficiency


Specifications

Product SKUs
SYS-1028R-WTRT SuperServer 1028R-WTRT (Black)
Motherboard
Motherboard Super X10DRW-iT
Processor/Cache
CPU
  • Intel® Xeon® processor E5-2600 v3 family (up to 145W TDP) *
  • Dual Socket R3 (LGA 2011)
Cores / Cache Up to 18 Cores / Up to 45MB Cache
System Bus QPI up to 9.6 GT/s
Note * Please contact Supermicro Technical Support for additional information about frequency optimized CPUs and specialized system optimization.
System Memory
Memory Capacity
  • 16x 288-pin DDR4 DIMM slots
  • Up to 1TB ECC LRDIMM, 512GB ECC RDIMM
Memory Type 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
  • RDIMM: 64GB, 16GB, 8GB, 4GB
  • LRDIMM: 64GB, 32GB
Memory Voltage 1.2 V
Error Detection Corrects single-bit errors
On-Board Devices
Chipset Intel® C612 chipset
SATA SATA3 (6Gbps); RAID 0, 1, 5, 10
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • Intel® X540 Dual Port 10GBase-T
  • Virtual Machine Device Queues reduce I/O overhead
  • Supports 10GBASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1x Realtek RTL8211E PHY (dedicated IPMI)
Video ASPEED AST2400 BMC
Input / Output
Serial ATA 10x SATA3 (6Gbps) ports
LAN
  • 2x RJ45 10GBase-T ports
  • 1x RJ45 Dedicated IPMI LAN port
USB 6x USB 3.0 ports (4 rear + 2 via header)
Video 1x VGA port
Serial Port / Header 1x Fast UART 16550 header
DOM 2x SuperDOM (Disk on Module) ports
System BIOS
BIOS Type 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • Plug and Play (PnP)
  • APM 1.2
  • PCI 2.3
  • ACPI 1.0 / 2.0 / 3.0 / 4.0
  • USB Keyboard support
  • SMBIOS 2.7.1
  • UEFI 2.3.1
PC Health Monitoring
Voltage
  • Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory Voltages.
  • 5+1 Phase-switching voltage regulator
FAN
  • 6x 4-pin fan headers (up to 6 fans)
  • 6x fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • Thermal Control for 8x Fan Connectors
  • Thermal Monitor 2 (TM2) support
  • PECI
LED
  • CPU / System Overheat LED
  • Suspend static indicator LED
  • UID/Remote UID
Other Features
  • Chassis intrusion detection
  • Chassis intrusion header
  • SDDC Support
  • RoHS

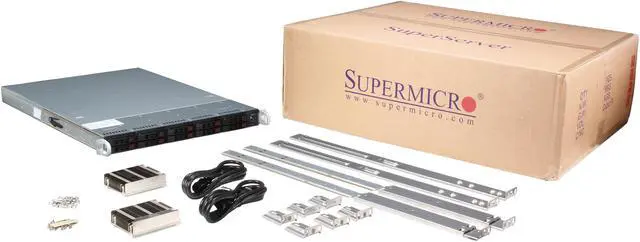

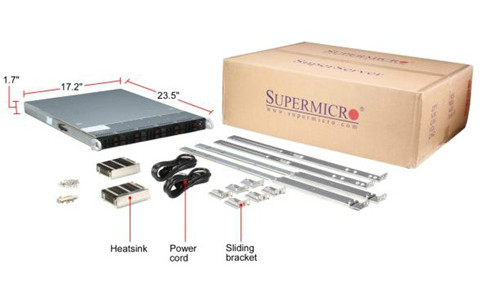

Whats in the Box

SYS-1028R-WTRT

Supermicro SuperServer 1028R-WTRT - Server - rack-mountable - 1U - 2-way - RAM 0 MB - SATA/SAS - hot-swap 2.5" - no HDD - AST2400 - GigE, 10 GigE - monitor: none

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 3 years
  • Read full details

Return Policies

  • Return for refund within: Non-refundable
  • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Replacement Only Return Policy.
