SUPERMICRO SYS-110P-FDWTR 1U Rackmount Server Barebone, for Customized Please Contact with Newegg B2B
- For Customized Please Contact with Newegg B2B
- Key Applications:
- - Multi-Access Edge Computing
- - Outdoor DU of 5G Application
- - Flex-RAN, Open-RAN vBBU
- Key Features:

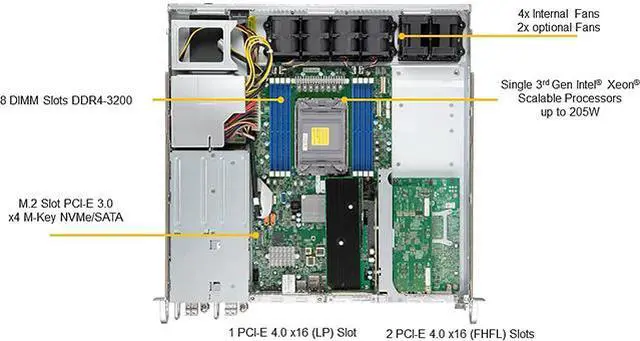

- Socket P+ (LGA-4189) support 3rd Gen Intel Xeon Scalable processors
- 8 DIMMs; Up to 2TB 3DS ECC DDR4-3200: RDIMM/LRDIMM
- 2x 2.5" drive bays; 1 M.2 NVMe OR 1 M.2 SATA3
- 6 heavy duty fans with optimal fan speed control; 1 Air Shroud(s)
- 600W Redundant Power Supplies Level (92%+)
+
+
Learn more about the Supermicro SYS-110P-FDWTR
| Brand | SUPERMICRO |
|---|---|
| Model | SYS-110P-FDWTR |
| Form Factor | 1U Rackmount |
| Workload | Edge Server |
| CPU Type | Intel Xeon |
|---|---|
| CPU Socket | LGA 4189 |
| Installed CPU | No CPU Installed |
| Max Processors | 1 |
| Memory Slots | 8 x 288Pin |
|---|---|
| Installed Memory Size | No Memory Installed |
| Max Memory Supported | 2TB |
| Memory Type Supported | DDR4 3200 |
| ECC Supported | Yes |
| Serial ATA | 2 x SATA 600 |
|---|---|
| M.2 | 1 M.2 NVMe OR 1 M.2 SATA3, M-Key, 2280/22110 |
| PCI Express | Slot 1: 1 PCIe PCI-E 4.0 x16LP Slot 2: 1 PCiE PCI-E 4.0 x16 FHFL Slot 3: 1 PCiE PCI-E 4.0 x16 FHFL |
|---|
| Max. LAN Speed | 10 Gigabit |
|---|
| VGA | 1 |
|---|---|
| RJ45 | 2 x 10GbE BaseT port(s) |
| Max. Power | 600W Redundant Power |
|---|
| Dimensions | 1.70" x 17.20" x 16.90" |
|---|---|
| Weight | 10.00 lbs. |
| First Listed on Newegg | June 15, 2022 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 1 year
- Limited Warranty period (labor): 3 years
- Read full details
Return Policies
- Return for refund until: January 31, 2027
- Return for replacement until: January 31, 2027
- This item is covered by Newegg.com's Extended Holiday Return Policy.
- Read full return policy for details.
We want to ensure your holiday shopping this year is hassle-free. That’s why we’re automatically extending our return policies on almost every product! For purchases placed between November 1st, 2026 and December 31, 2026 you will have until January 31, 2027 to return your product.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-408-503-8000
- Support Website
- View other products from Supermicro
LOADING...

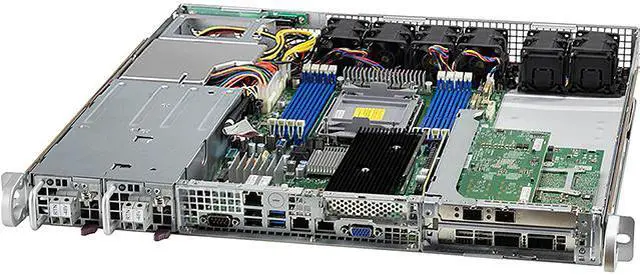

The SUPERMICRO SYS-110P-FDWTR is a 1U rackmount server barebone for edge computing, designed for integrators building systems for Multi-Access Edge Computing, 5G outdoor DU, or Flex-RAN/Open-RAN vBBU deployments. It supports one 3rd Gen Intel Xeon Scalable processor and up to 2TB of ECC DDR4-3200 memory; CPU and memory are not included.
Recommended For

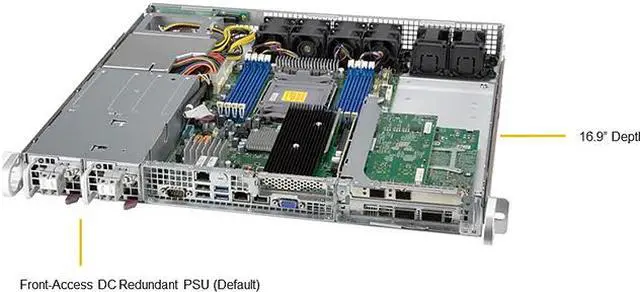

- Telecom operators and system integrators deploying 5G radio-access workloads—such as DU, vRAN, or Open RAN—at edge sites that need a compact 1U platform with front-access I/O and redundant -48 VDC power.
- Edge-computing teams placing server capacity near users, devices, or network equipment, where a short-depth 1U chassis and dual 10GbE connections suit a space-constrained deployment.
- Edge AI or networking solution builders who need a customizable Xeon-based system with PCIe expansion for add-in acceleration or networking cards, and can select and install the components themselves.
- Organizations needing a single-socket edge server with ECC memory and remote server management for a purpose-built deployment rather than a preconfigured workstation.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Edge-server deployments needing a 1U barebone that supports one Intel Xeon processor and up to 2TB of memory |
| Processor And Socket | Supports one Intel Xeon processor on an LGA 4189 socket; no CPU is installed |
| Memory Configuration | Eight 288-pin slots support up to 2TB of DDR4-3200 ECC memory; no memory is installed |
| Storage And Expansion | Two SATA 600 connections and one M.2 M-Key slot supporting NVMe or SATA3 drives in 2280 or 22110 sizes |
| PCIe Expansion | Three PCIe 4.0 x16 slots: one low-profile and two full-height, full-length |

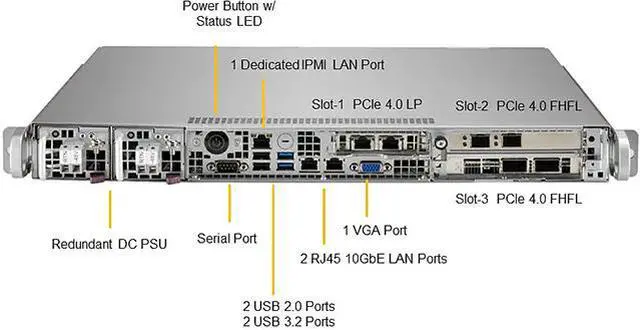

| Networking And I/O | Two 10GbE Base-T RJ45 ports and one VGA connection |
| Power | 600W redundant power supply |
| Chassis And Dimensions | 1U rackmount chassis measuring 1.70 × 17.20 × 16.90 inches; weighs 10 lb |
| Model Identifiers | SUPERMICRO SYS-110P-FDWTR |
