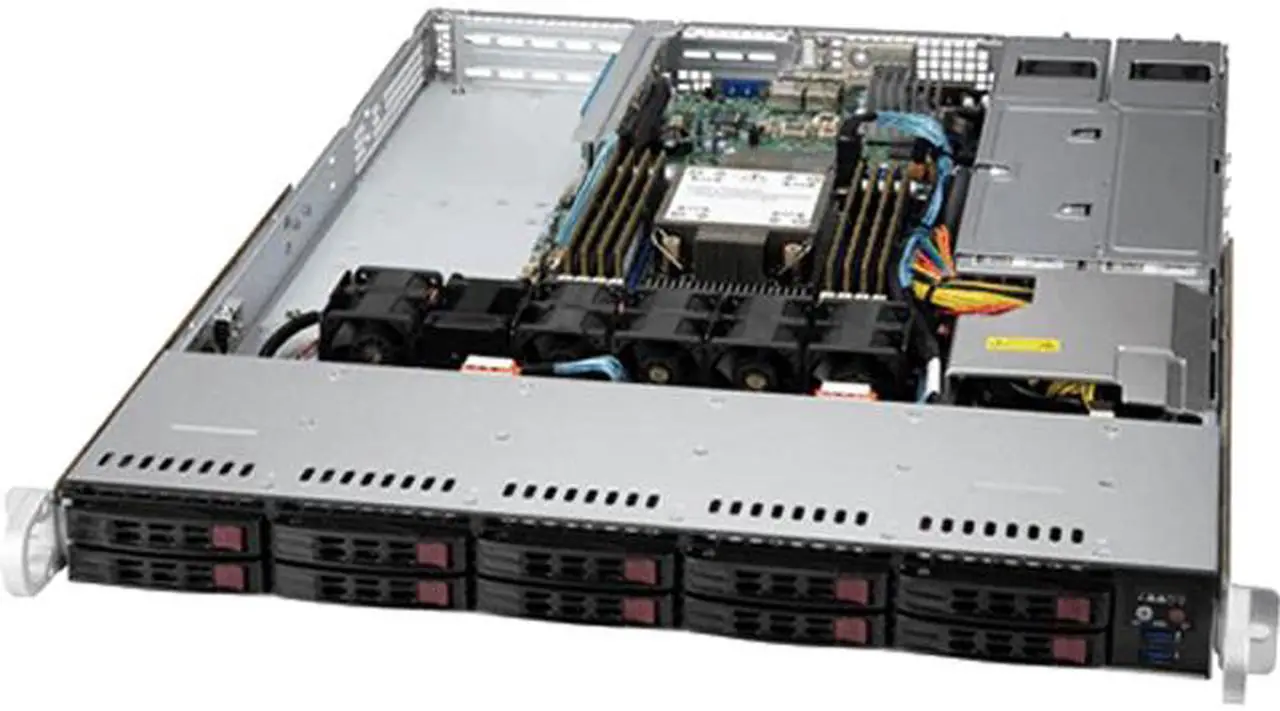

Supermicro Barebone SYS-110P-WTR, for Customized Please Contact with Newegg B2B
- For Customized Please Contact with Newegg B2B
- Key Applications:
- - Virtualization
- - Cloud Computing
- - Enterprise Server
- - Data Center Optimized
- - Database Processing and Storage
- Key Features:
- Single Socket P+ (LGA-4189) 3rd Gen Intel Xeon Scalable processors. Up to 270W TDP.
- 8 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel DCPMM
- 2 PCI-E 4.0 x16 (FHFL) slots, 1 PCI-E 4.0 x16 (LP) slot
- Intel Ethernet Controller X550 2x 10GbE RJ45
- 10x hot-swap 2.5'' SATA3 drive bays with 4 hybrid NVMe/SATA drive bays, SAS3 with additional SAS controller card; Onboard 1x NVMe/SATA M.2
- Redundant Platinum 750W Power Supply
+
+
Learn more about the Supermicro SYS-110P-WTR
| Brand | SUPERMICRO |
|---|---|
| Series | SuperServer |
| Model | SYS-110P-WTR |
| Form Factor | 1U Rackmount |
| Workload | General Purpose Server |
| CPU Type | Intel Xeon |
|---|---|
| CPU Socket | LGA 4189 |
| Installed CPU | No CPU Installed |
| Memory Slots | 8 x 288Pin |
|---|---|
| Installed Memory Size | No Memory Installed |
| Max Memory Supported | UP to 2TB: 8 x 256 GB DRAM UP to 3TB: 4 x 256 GB DRAM and 4 x 512 GB PMem |
| ECC Supported | Yes |
| Serial ATA | 10 x SATA 600 |
|---|---|
| SATA RAID | RAID 0/1/5/10 |
| GPU/VPU | ASPEED AST2600 BMC |
|---|
| PCI Express | Slot 1: PCI-E 4.0 x16 FHFL Slot 2: PCI-E 4.0 x16 FHFL Slot 3: PCI-E 4.0 x16 LP 1x PCI-E 3.0 x 4 and SATA, M-key, 2280, 22110 |
|---|
| Hot-Swap Bays | 10 x 2.5" SATA drive bays (4 x 2.5" NVMe hybrid) |
|---|
| Front USB | 1 x USB 3.2 Gen 1 |
|---|---|
| COM | 2 COM Port(s) (1 header; 1 rear) |
| VGA | 1 |
| Rear USB | 2 x USB 3.2 Gen 1 2 x USB 2.0 |
| RJ45 | 1 RJ45 Dedicated IPMI LAN port 2 RJ45 1GbE LAN ports |

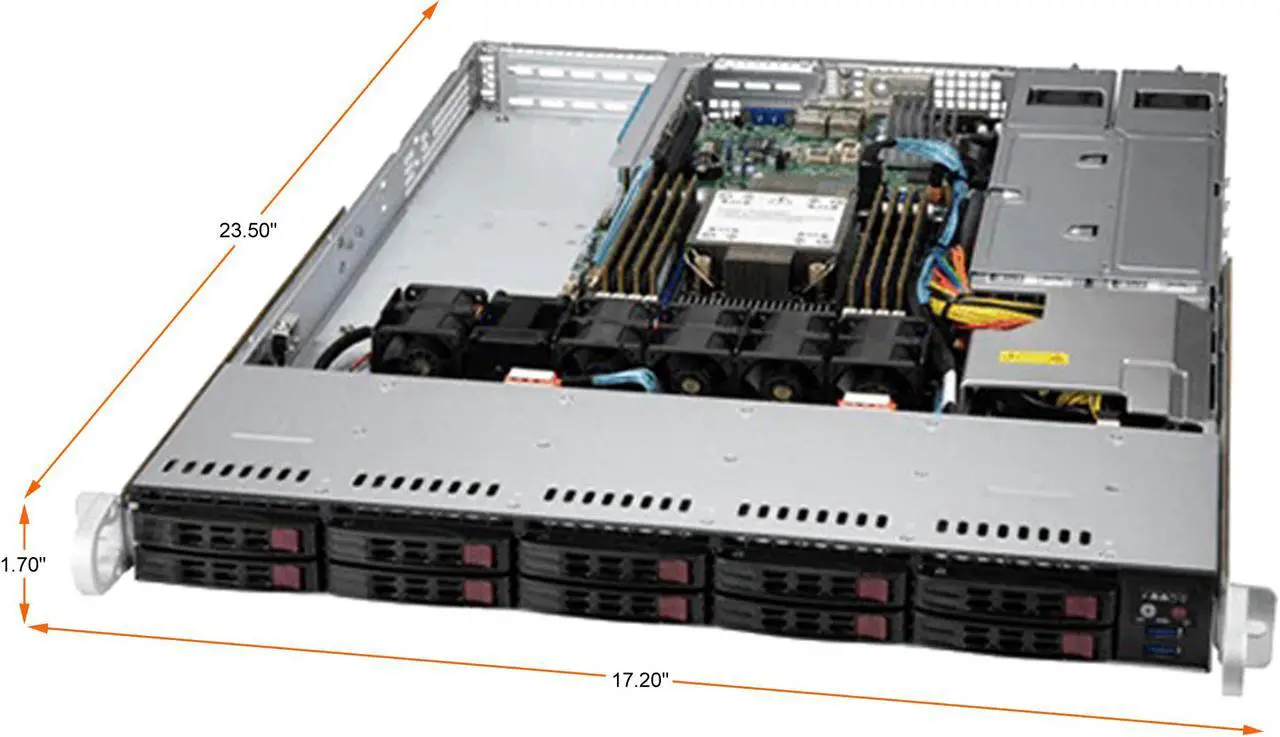

| Dimensions | 1.70" x 17.20" x 23.50" |
|---|---|
| Weight | 15.50 lbs. |
| First Listed on Newegg | June 15, 2022 |
|---|
