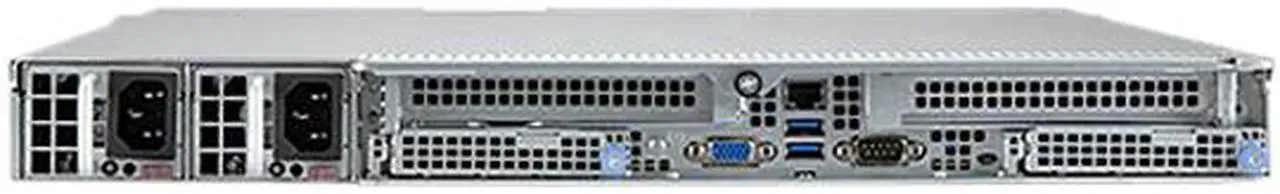

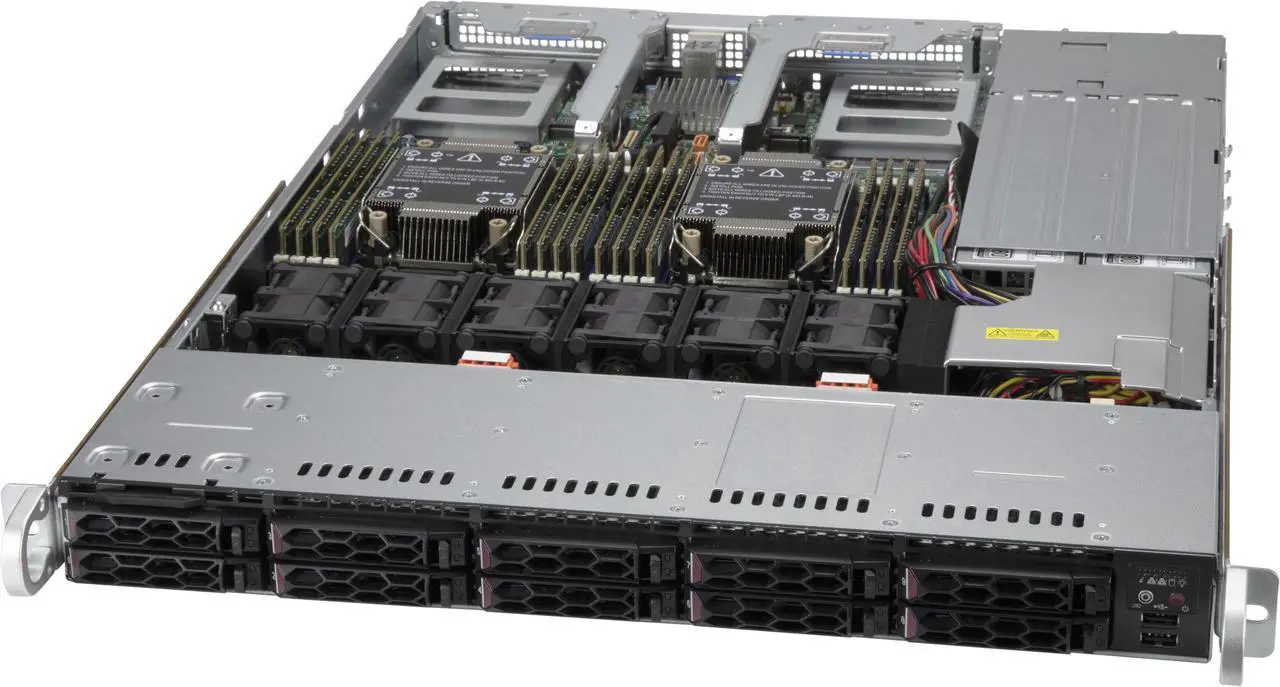

SUPERMICRO SuperServer SYS-120C-TN10R 1U Rackmount Server Barebone, Complete System Only ! For Customized Please Contact with Newegg B2B
- • Web Server, Firewall Application • Data Center Optimized, Value IaaS • Cloud Computing, Compact Server • DNS & Gateway Servers, Firewall Application • CDN, Edge Nodes
- Dual sockets P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
- Intel® C621A Chipset
- 16 DIMMs up to 6TB 3DS ECC DDR4-3200: LRDIMM/RDIMM/Intel® DCPMM
- 2 PCI-E 4.0 x16 FHHL; 2 PCI-E 4.0 x16 AIOM (OCP 3.0); 2 PCI-E 3.0 x2 NVMe M.2
- Dual AIOM with NCSI (OCP 3.0) for networking, 1 dedicated IPMI LAN
- 10x 2.5" hot-swap hybrid NVMe/SATA/SAS drive bays
- 6 counter-rotating 4 cm PWM fans with optimal fan speed control, 2 air shrouds
- 860W redundant Platinum level 100-240Vac and 200-240 Vdc power supplies
- 1 VGA, 1 COM, 2 USB 3.0 (rear), 2 USB 2.0 (front)
+
+
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Supermicro SYS-120C-TN10R
| Brand | SUPERMICRO |
|---|---|
| Series | SuperServer |
| Model | SYS-120C-TN10R |
| Form Factor | 1U Rackmount |
| Workload | General Purpose Server |
| CPU Type | Intel Xeon |
|---|---|
| CPU Socket | LGA 4189 |
| Installed CPU | No CPU Installed |
| Max Processors | 2 |
| North Bridge | Intel C621A |
|---|
| Memory Slots | 16 x 288Pin |
|---|---|
| Installed Memory Size | No Memory Installed |
| Max Memory Supported | UP to 4TB: 16x 256 GB DRAM UP to 6TB: 8x 256 GB DRAM and 8x 512 GB PMem |
| ECC Supported | Yes |
| Installed HDD | No Storage Installed |
|---|---|
| Serial ATA | 10 x SATA 600 |
| SATA RAID | RAID 0/1/5/10 |
| GPU/VPU | ASPEED AST2600 BMC |
|---|
| PCI Express | Slot 1: PCI-E 4.0 x16 FHHL Slot 2: PCI-E 4.0 x16 FHHL 2 M.2 NVMe, M-Key, 2280 |
|---|
| Hot-Swap Bays | 10 x 2.5" hot-swap NVMe/SATA/SAS drive bays (10 x 2.5" NVMe hybrid) |
|---|
| Front USB | 2 x USB 2.0 |
|---|---|
| VGA | 1 |
| Rear USB | 2 x USB 3.0 |
| RJ45 | 1 Dedicated IPMI LAN port |

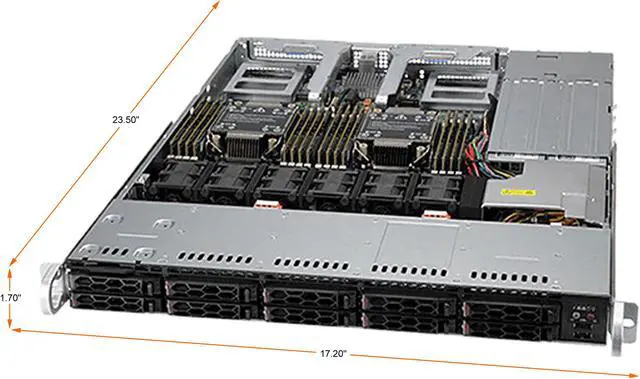

| Dimensions | 1.70" x 17.20" x 23.50" |
|---|---|
| Weight | 25.00 lbs. |
| First Listed on Newegg | June 15, 2022 |
|---|
