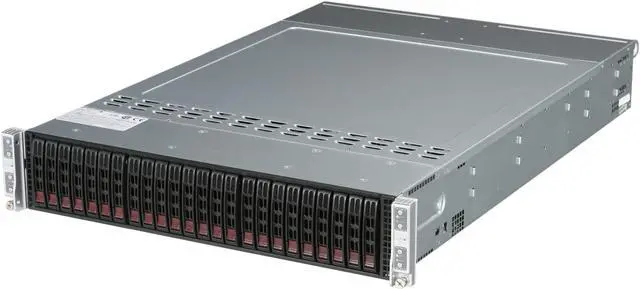

SUPERMICRO SYS-2015TA-HTRF 2U Rackmount Server Barebone (8 Nodes) DDR3 800

Be the first to review this product...
  • 4GB Max Memory Supported (each node)
  • 720W (1+1) Redundant high-efficiency power supply with PMBus, 80+ Gold Certified
  • 2 x 204Pin Memory Slots (each node)
This item is covered under the Manufacturer Only Return Policy.
Overview
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

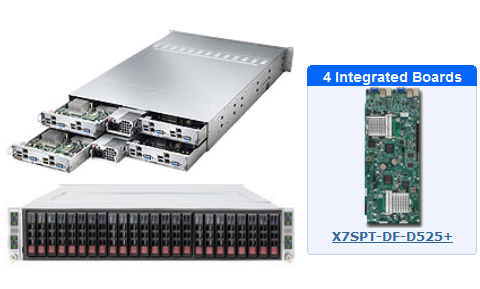

SYS-2015TA-HTRF

SUPERMICRO SYS-2015TA-HTRF 2U Rackmount Server Barebone (8 Nodes)



Key Features

SYS-2015TA-HTRF
  • Eight (8) Nodes in 2U. Two (2) Nodes per Single Hot-swap tray. Optimized for High Density and Low Power consumption UP Atom Server.
  • 1. Intel® Atom™ D525 (Pineview-D) Dual Core, 1.8GHz (13W) processor
  • 2. Intel® ICH9R Express Chipset
  • 3. 4GB non-ECC DDR3 800MHz SO-DIMM per node; SuperServer with 8 nodes can support up to 32GB
  • 4. 3x 2.5" Hot-swap SATA HDD per node; total of 24x HDDs (RAID 0, 1, 5)
  • 5. 2x Intel 82574L Gigabit Ethernet LAN 2x RJ45 LAN ports per node
  • 6. Integrated IPMI 2.0 with shared LAN
  • 7. (1+1) Redundant 720W Gold Level power supply with PMbus
  • 8. "Cable-Free" Twin Architecture


Specifications

Product SKUs
SYS-2015TA-HTRF SuperServer 2015TA-HTRF (Black)
Motherboard
4x Super X7SPT-DF-D525+
Processor/Cache
CPU
  • Intel® Atom™ D525 processor
System Bus DMI
System Memory (each node)
Memory Capacity
  • Two 204-pin SO-DIMM sockets
  • Up to 4GB unbuffered non-ECC DDR3 800MHz SO-DIMM (Single Channel)
Memory Type
  • DDR3 800MHz unbuf., non-ECC SO-DIMM
DIMM Sizes 2 GB, 1 GB, 512 MB, 256 MB
Memory Voltage
  • 1.5V only
On-Board Devices
Chipset
  • Intel ICH9R Express
  • Intel 82574L
SATA
  • 6x SATA (3 Gbps)
  • RAID 0, 1, 5, 10 support (Windows)
  • RAID 0, 1, 10 support (Linux)
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • Nuvoton WPCM450 BMC
Network Controllers
  • High Performance Intel® 82574L Dual Port Gigabit LAN
  • Virtual Machine Device Queues High efficient I/O overhead
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1x Realtek RTL8201N PHY (dedicated IPMI)
VGA Matrox G200eW 16MB DDR2
Super I/O
  • Nuvoton W83627DHG UBE
Input / Output (per Node)
Serial ATA
  • 3x SATA ports (3Gbps) through hot-plug slot, with RAID 0, 1, 5
  • 1x SATA port onboard
LAN
  • 2x RJ45 LAN port
USB
  • 6 USB 2.0 ports (2 rear + 4 via 2 headers)
IPMI Integrated IPMI 2.0 with shared LAN
DOM 1x DOM (Disk on Module) power connector
Others
  • 2x COM port headers ready
  • TPM 20-pin header ready
System BIOS
BIOS Type AMI BIOS, 8Mb SPI Flash ROM
BIOS Features
  • Plug and Play (PnP)
  • DMI 2.3
  • PCI 2.2
  • ACPI 1.0 / 2.0 / 3.0
  • USB Keyboard support
  • SMBIOS 2.3

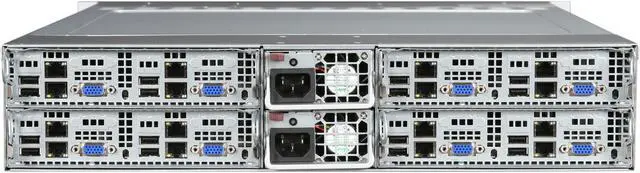

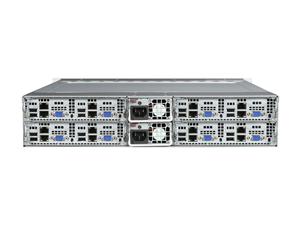

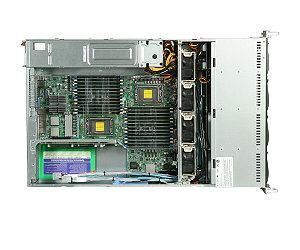

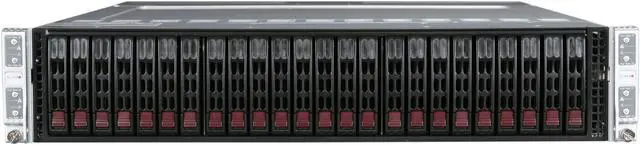

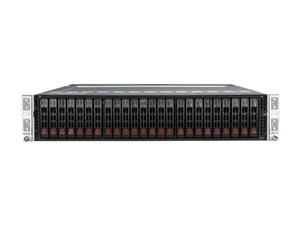

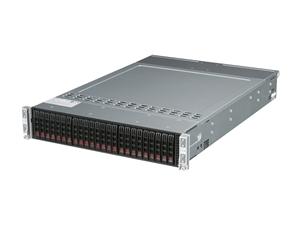

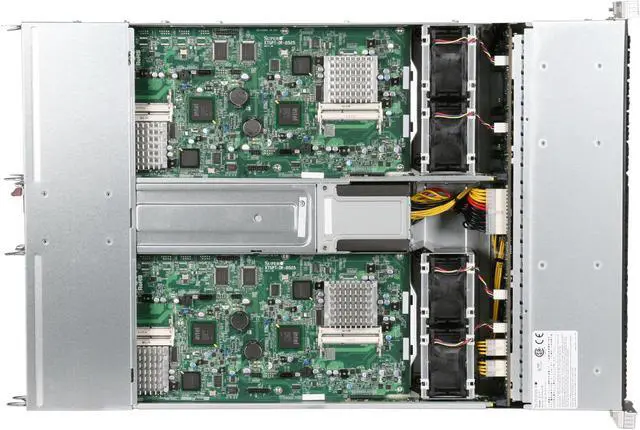

Gallery

SYS-2015TA-HTRF SYS-2015TA-HTRF SYS-2015TA-HTRF

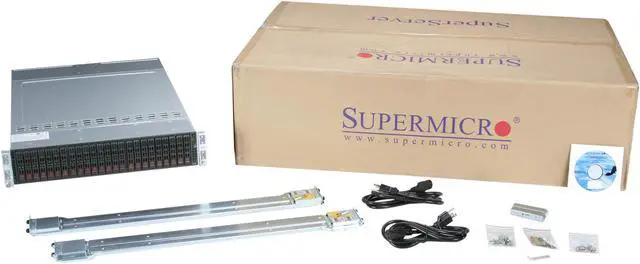

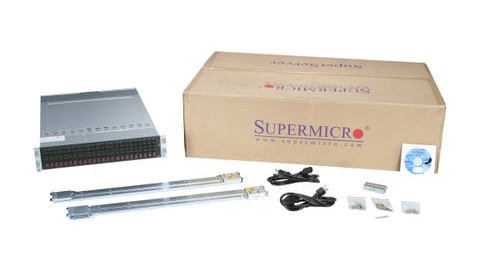

Whats in the Box

SYS-2015TA-HTRF


Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 3 years
