$4,275.68
Meet Your Seller

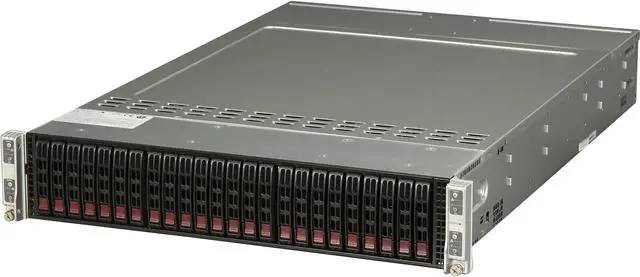

SUPERMICRO SYS-2027TR-HTRF+ 2U Rackmount Server Barebone (Four Nodes) Dual LGA 2011 (Per Node) Intel C602 DDR3 1600/1333/1066/800
- Dual LGA 2011 (Per Node)
- Support Dual Intel Xeon E5-2600 series (Per Node)
- 16 x 240Pin (Per Node) Memory Slots (Max 1TB)
- Support 2 x SATA 600 + 4 x SATA 300 HDD
- 1620W Redundant Power Supplies
+
+
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Supermicro SYS-2027TR-HTRF+
| Brand | SUPERMICRO |
|---|---|
| Series | SuperServer |
| Model | SYS-2027TR-HTRF+ |
| Form Factor | 2U Rackmount |
| CPU Type | Dual Intel Xeon E5-2600 series (Per Node) |
|---|---|
| CPU Socket | Dual LGA 2011 (Per Node) |
| Installed CPU | No CPU Installed |
| Max Processors | 2 |
| North Bridge | Intel C602 |
|---|
| Memory Slots | 16 x 240Pin (Per Node) |
|---|---|
| Installed Memory Size | No Memory Installed |
| Max Memory Supported | Up to 1TB DDR3 ECC LRDIMM Up to 512GB DDR3 ECC Registered memory (RDIMM) |
| Memory Type Supported | DDR3 1600/1333/1066/800 |
| ECC Supported | Yes |
| Registered | Yes |
| Installed HDD | No Storage Installed |
|---|---|
| Serial ATA | 2 x SATA 600 + 4 x SATA 300 |
| SATA RAID | RAID 0/1/5/10 |
| GPU/VPU | Matrox G200eW |
|---|
| PCI Express | 1 Micro Low Profile PCI-E 3.0 x8 slot (Per Node) |
|---|
| First LAN | Intel I350 (Per Node) |
|---|---|
| Max. LAN Speed | Dual 1 Gigabit |
| Hot-Swap Bays | 6 x 2.5" (Per Node) |
|---|
| COM | 1 (Per Node) |
|---|---|
| VGA | 1 (Per Node) |
| Rear USB | 2 (Per Node) |
| RJ45 | 2 (Per Node) |
| Other Ports | Per Node: 1 RJ45 Dedicated IPMI LAN port USB 2.0: 2 via header + 1 Type A 1 Serial Header |
| Max. Power | 1620W Redundant Power Supplies 80 PLUS, Platinum Level (94%) |
|---|
| Features | Fans: 4x 8cm heavy duty PWM fans with optimal fan speed control Color: Black |
|---|
| Dimensions | 26.75" x 17.25" x 3.47" |
|---|---|
| Weight | 85 lbs. Gross |
| First Listed on Newegg | January 06, 2016 |
|---|
