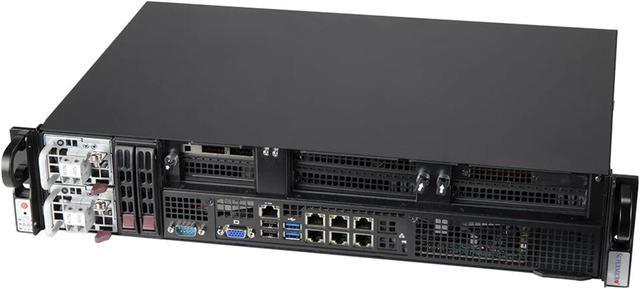

SUPERMICRO SYS-210P-FRDN6T 2U Rackmount Server Barebone, For Customized Please Contact with Newegg B2B.
- For Customized Please Contact with Newegg B2B
- Key Applications:
- - 5G Core and Edge
- - AI Inference and Machine Learning
- - Network Function Virtualization
- - Cloud Computing
- Key Features:
- Single Socket P+ (LGA-4189) 3rd Generation Intel Xeon Scalable Processors
- 8 DIMM slots; Up to 2TB 3DS ECC DDR4-3200: RDIMM/LRDIMM/Intel DCPMM
- Up to 2 PCI-E 4.0 FHHL & 2 HHHL expansion slots for Accelerator Add-On-Cards
- Design with compliance to NEBS-Level 3
- Onboard 2x 10GbE ports & 4x 1GbE ports
- 2x Internal 2.5" drive bays for SATA drives
- Redundant 600W DC -48V Power Supplies
- Ultra short depth, 2U Front I/O Edge Server
+
+
Learn more about the Supermicro SYS-210P-FRDN6T
| Brand | SUPERMICRO |
|---|---|
| Model | SYS-210P-FRDN6T |
| Form Factor | 2U Rackmount |
| Workload | Edge Server |
| CPU Type | 3rd Gen Intel Xeon Scalable processors |
|---|---|
| CPU Socket | LGA 4189 |
| Installed CPU | No CPU Installed |
| Max Processors | 1 |
| North Bridge | Intel C621A |
|---|
| Memory Slots | 8 x 288Pin |
|---|---|
| Installed Memory Size | No Memory Installed |
| Max Memory Supported | 2TB |
| Memory Type Supported | DDR4 3200 |
| ECC Supported | Yes |
| Serial ATA | 2 x SATA 600 |
|---|---|
| M.2 | 1 M.2 NVMe OR 1 M.2 SATA3, M-Key, 2280/22110 |
| PCI Express | Slot 1: PCIe 4.0 x16 or x8 slot (low profile) Slot 2: PCIe 4.0 x16 x8 slot (low profile will be disabled if slot 1 is configured as PCIe 4.0 x16) Slot 3: 1 PCI-E 4.0 x8 FHHL (optional if CPU is less than 165W with 1U heat sink) Slot 5: 1 PCI-E 4.0 x16 FHHL Slot 6: 1 PCI-E 4.0 x16 FHHL |
|---|
| Hot-Swap Bays | 8 x 2.5" hot-swap NVMe/SATA/SAS drive bays |
|---|
| Front USB | 2 x USB 2.0 (2 front) 2 x USB 3.0 (2 front) |
|---|---|
| COM | 1 |
| VGA | 1 |
| Dimensions | 3.50" x 17.20" x 11.80" |
|---|---|
| Weight | 17.00 lbs. |
| First Listed on Newegg | June 15, 2022 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 1 year
- Limited Warranty period (labor): 3 years
- Read full details
Return Policies
- Return for refund until: January 31, 2027
- Return for replacement until: January 31, 2027
- This item is covered by Newegg.com's Extended Holiday Return Policy.
- Read full return policy for details.
We want to ensure your holiday shopping this year is hassle-free. That’s why we’re automatically extending our return policies on almost every product! For purchases placed between November 1st, 2026 and December 31, 2026 you will have until January 31, 2027 to return your product.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-408-503-8000
- Support Website
- View other products from Supermicro
LOADING...
The SUPERMICRO SYS-210P-FRDN6T is a 2U, ultra-short-depth barebone edge server for organizations building 5G, network-function-virtualization, or cloud infrastructure. It supports one 3rd Gen Intel Xeon Scalable processor, up to 2TB of DDR4-3200 memory, and redundant -48V DC power; CPU and memory are not included.
Recommended For
- Telecom operators and edge-infrastructure teams deploying 5G or network services in shallow racks or cell-site cabinets; the short-depth, front-I/O chassis, NEBS Level 3 design, and redundant -48V DC power are aligned with that setting.
- Network-infrastructure teams building network-function-virtualization or edge-routing appliances that can use the system’s multiple 1GbE and 10GbE ports and add-on PCIe cards.
- Organizations running AI inference or machine-learning workloads at the edge that want a single-socket Xeon platform with ECC memory and room for supported accelerator cards.
- Cloud and virtualization teams adding compute to compact edge or micro-data-center racks, especially where short chassis depth and front-accessible I/O fit the installation.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Edge-server deployments built around a single 3rd Gen Intel Xeon Scalable processor |
| Processor And Platform | Supports one 3rd Gen Intel Xeon Scalable processor in an LGA 4189 socket; no CPU is installed. Intel C621A north bridge |
| Memory Configuration | 8 x 288-pin slots; supports up to 2TB of DDR4-3200 memory with ECC. No memory is installed |
| Storage And Expansion | 8 hot-swap 2.5-inch NVMe/SATA/SAS drive bays, 2 SATA 600 ports, and one M.2 M-key slot supporting either NVMe or SATA3 drives in 2280 or 22110 sizes |
| PCIe Expansion | PCIe 4.0 slots include two low-profile x16 or x8 slots, one optional x8 FHHL slot (conditional on CPU power and heatsink configuration), and two x16 FHHL slots. The low-profile slot 2 is disabled when slot 1 is configured as x16 |
| Front I/O | 2 USB 2.0 ports, 2 USB 3.0 ports, 1 COM port, and 1 VGA port |
| Chassis And Physical Specs | 2U rackmount chassis measuring 3.50 x 17.20 x 11.80 inches; weighs 17 lb |
| Model Identifiers | SUPERMICRO SYS-210P-FRDN6T |
