  6. Item#: N82E16816139368

Out of stock
  • $8,135.64
  • $31.98 Shipping ()
Price alert
Add to wish list
Sold by Newegg

Shipped by Newegg

Shop it at NeweggBusiness.
Shop All Supermicro Products

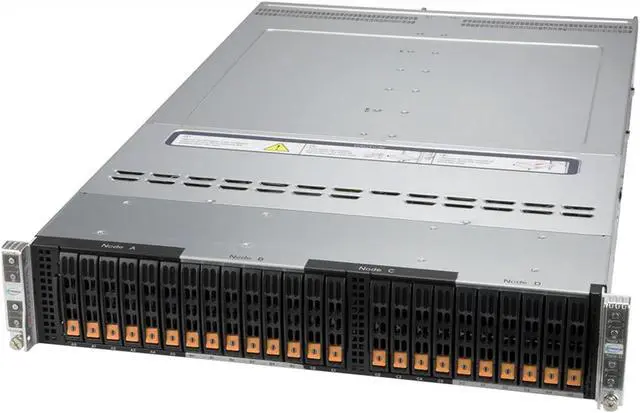

SUPERMICRO SYS-220BT-HNC8R 2U Rackmount Server Barebone, Complete System Only ! For Customized Please Contact with Newegg B2B

Be the first to review this product...
  • Complete System Only ! For Customized Please Contact with Newegg B2B
  • Key Applications:
  • - Container-as-a-Service; Application Accelerator
  • - Diskless HPC Clusters
  • - All-Flash Hyperconverged Infrastructure
  • Key Features:
  • Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
  • Socket P+ (LGA 4189) support 3rd Gen Intel® Xeon® Scalable processors
  • Intel® C621A
  • 20 DIMM Slots (16 DIMM Slots + 4 Intel Optane Persistent Memory Slots)
  • 2 PCI-E 4.0 x16 (LP) slot;
  • Tool-less support
  • Internal PCI-E 4.0 x8 for 2 M.2 NVMe/SATA support onboard
  • Optional NVMe Boot Controller via AOC-SMG3-2M2-B
  • Network connectivity via AIOM (OCP 3.0 compliant)
  • 6 Hot-swap 2.5" drive bays; 6 PCI-E 4.0 NVMe/SAS/SATA 2.5" drives
  • 4 cooling fans per 2U enclosure, 16.5K RPM; Shared Cooling Design
  • Liquid Cooling Support
  • 2600W Redundant Power Supplies Titanium Level (96%+); Shared Power Design
This item is covered under the Manufacturer Only Return Policy.
+
+
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Supermicro SYS-220BT-HNC8R

General
Brand SUPERMICRO
Model SYS-220BT-HNC8R
Form Factor 2U Rackmount
Workload AI/ML/HPC
CPU Supported
CPU Type 3rd Gen Intel Xeon Scalable processors
CPU Socket LGA 4189
Installed CPU No CPU Installed
Max Processors 2
Chipset
North Bridge Intel C621A
Memory Supported
Memory Slots 16 x 288Pin
Installed Memory Size No Memory Installed
Max Memory Supported 6TB
Memory Type Supported DDR4 3200
ECC Supported Yes
Storage Supported
Serial ATA 6 x SATA 600
M.2 2 M.2 NVMe OR 2 M.2 SATA3
Expansion Slots
PCI Express Slot 1: PCI-E 4.0 x16 LP
Slot 2: PCI-E 4.0 x16 LP
Internal Slot: M.2
Expansion Bays
Hot-Swap Bays 6 x 2.5" hot-swap NVMe/SATA/SAS drive bays
Panel Ports
COM 1
VGA 1
Rear USB 2 x USB 3.0
Power Supply
Max. Power 2600W Redundant
Dimensions & Weight
Dimensions 3.47" x 17.68" x 28.75"
Weight 54.50 lbs.
Additional Information
First Listed on Newegg June 15, 2022

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 3 years
  • Read full details

Return Policies

  • Return for refund within - Contact Manufacture for Assistance
  • Return for replacement - Contact Manufacture for Assistance
  • This item is covered by Newegg.com's Manufacturer Only Return Policy. Read full return policy for details.
