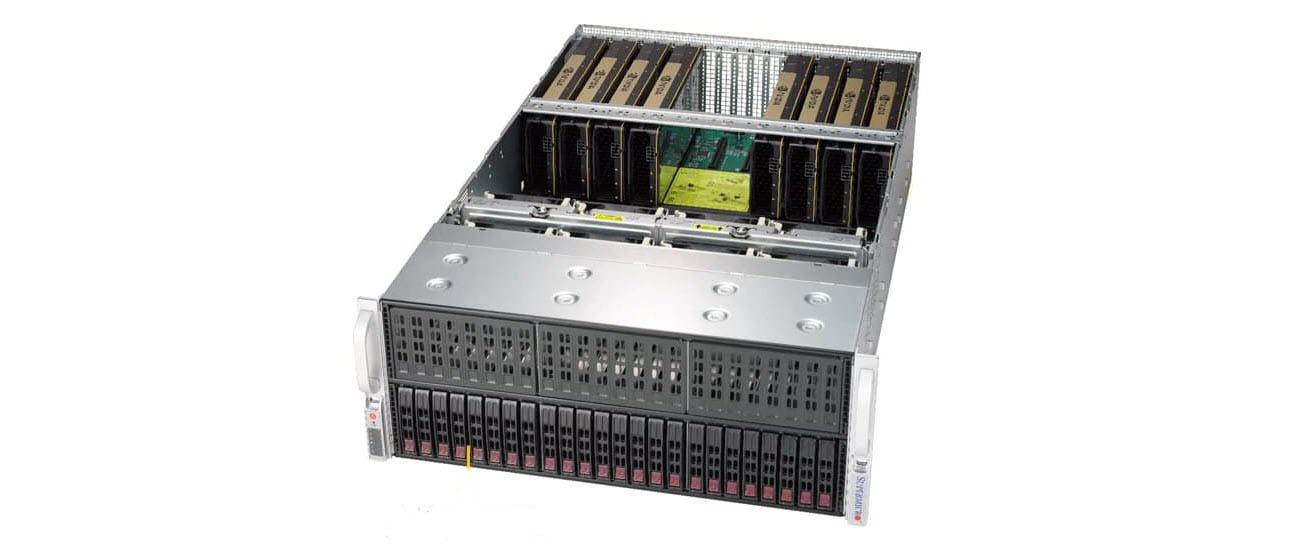

SuperServer 4029GP-TRT2
This 4U rack-mountable workstation is built for advanced performance and amazing expandability. With the 2000W redundant power supplies, you can set up the most power-hungry configurations to run around the clock, perfect for Artificial Intelligence, Big Data Analytics, Research Lab, Astrophysics, and Business Intelligence applications.
Features
Superb Performance
Supporting two 2nd Gen Intel Xeon Scalable processors (LGA 3687), up to 6TB of RDIMM/LRDIMM 3DS ECC DDR4 memory in 24 DIMM slots, and Intel Optane DCPMM, the SuperServer 4029GP-TRT2 delivers significant computing capability to conquer the most intense and demanding tasks.
Great Expandability
The SuperServer 4029GP-TRT2 is ready to accept a variety of add-on devices for future-ready computing with a total of 12 PCI-E slots.
Colossal Storage Ready
The chassis comes with 24 hot-swap drive bays and 10 of them are supported natively. And the motherboard offers 10 SATA3 ports that support RAID 0/1/5/10, and one M.2 slot that supports NVMe SSD in 2260, 2280, and 22110 form factors.
Advanced Cooling System
Eight hot-swap 92mm cooling fans combined with an air shroud provide excellent cooling efficiency. Less heat means higher performance without throttling.
Great Power Supply
The high-efficiency, 80 PLUS Titanium Level 2000W redundant power supplies ensure all the components run continuously at full load.

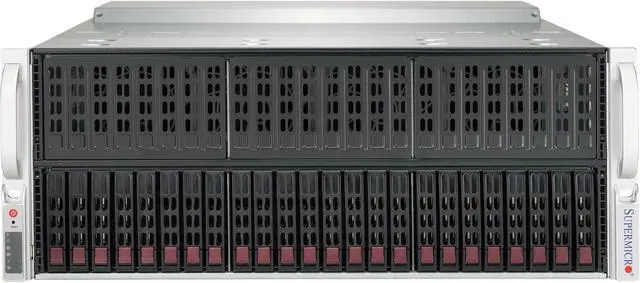

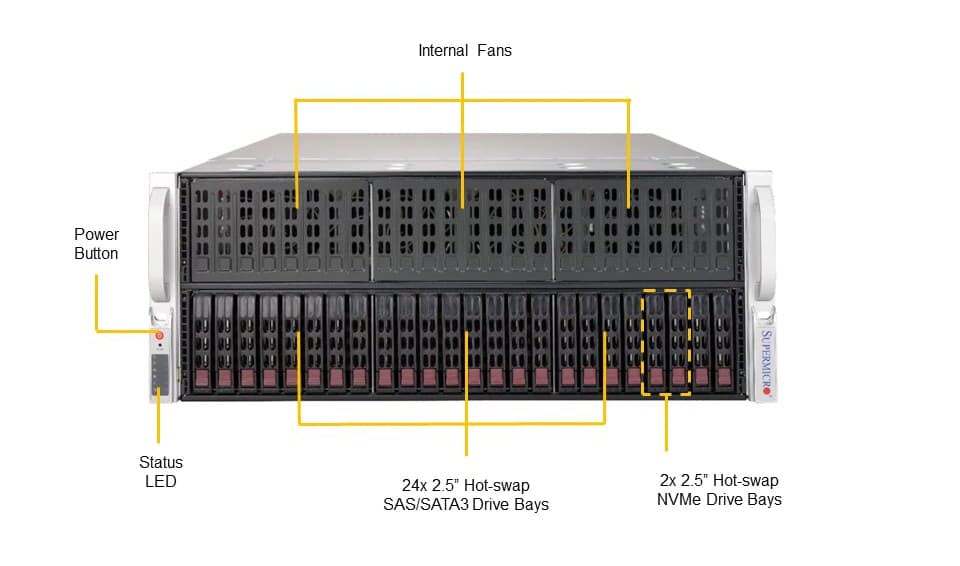

Front View

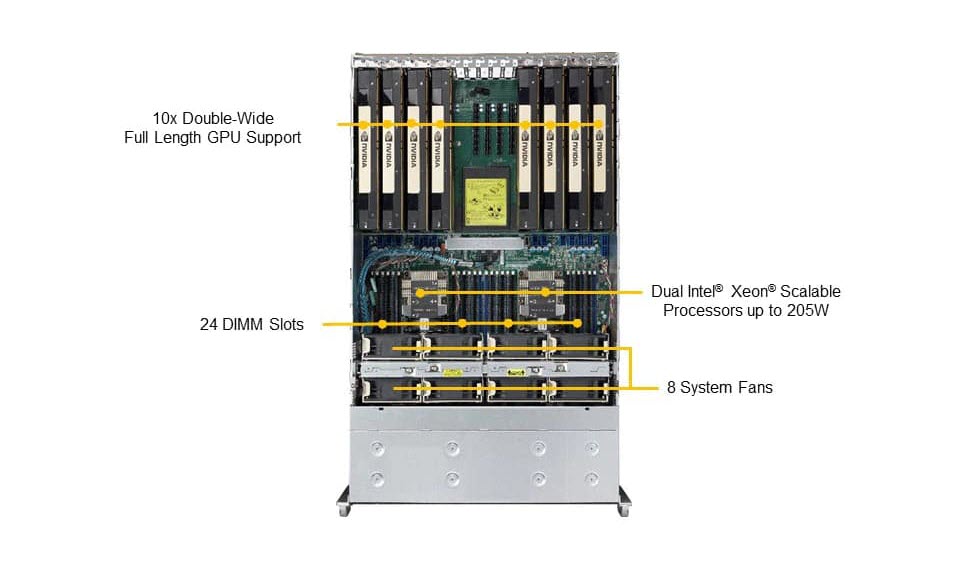

Top View

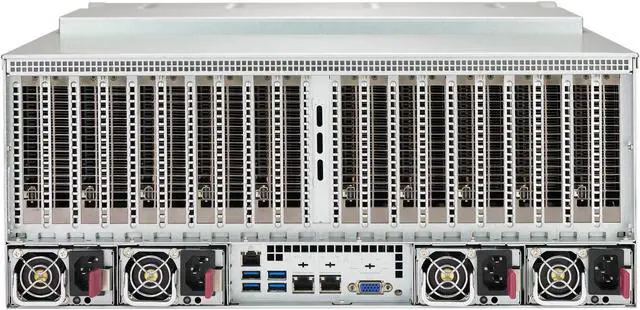

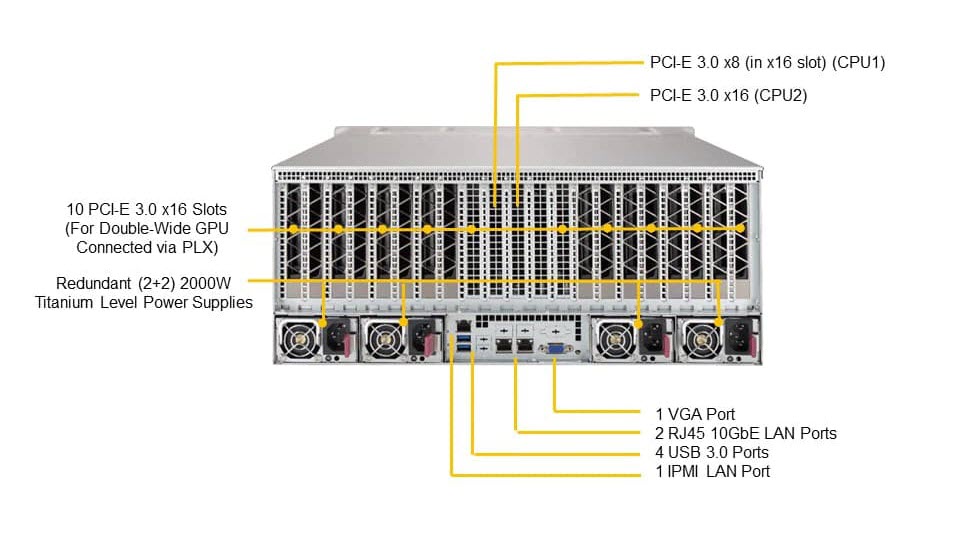

Rear View
Specifications
| Integrated Board | |
|---|---|
| Model |
|
| Processor/Cache | |
| CPU |
|
| Cores | Up to 28 Cores |
| Note | BIOS version 3.0a or above is required to support 2nd Gen. Intel Xeon Scalable processors |
| System Memory | |
| Memory Capacity |
|
| Memory Type | 2933/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM |
| Note |
|
| On-Board Devices | |
| Chipset | Intel C622 chipset |
| SATA | SATA3 (6Gbps) with RAID 0, 1, 5, 10 |
| Network Controllers | Dual Port 10GbE from C622 |
| IPMI |
|
| Input / Output | |
| SATA | 10 SATA3 (6Gbps) ports |
| LAN |
|
| USB | 4 USB 3.0 ports (rear) |
| VGA | 1 VGA Connector |
| COM Port | 1 COM port (header) |
| System BIOS | |
| BIOS Type | AMI 32Mb SPI Flash ROM |
| PC Health Monitoring | |
| CPU |
|
| FAN |
|
| Temperature |
|
| Chassis | |
|---|---|
| Form Factor |
|
| Model | CSE-418GTS-R4000BP2 |
| Dimensions | |
| Height | 7.0" (178mm) |
| Width | 17.2" (437mm) |
| Depth | 29" (737mm) |
| Weight |
|
| Available Colors | Black |
| Drive Bays / Storage | |
| Hot-swap |
|
| M.2 |
|
| Expansion Slots | |
| PCI-Express |
|
| System Cooling | |
| Fans | 8 Hot-swap 92mm cooling fans |
| Shrouds | 1 Air Shroud (MCP-310-41808-0B) |
| Power Supply | |
| Total Output Power | 1000W/1800W/1980W/2000W |
| Dimension (W x H x L) | 73.5 x 40 x 265 mm |
| Input |
|
| +12V |
|
| 12Vsb | Max: 2.1A / Min: 0A |
| Output Type | 25 Pairs Gold Finger Connector |
| Certification | Titanium Level |
| Operating Environment | |
| RoHS | RoHS Compliant |
| Environmental Specifications |
|
