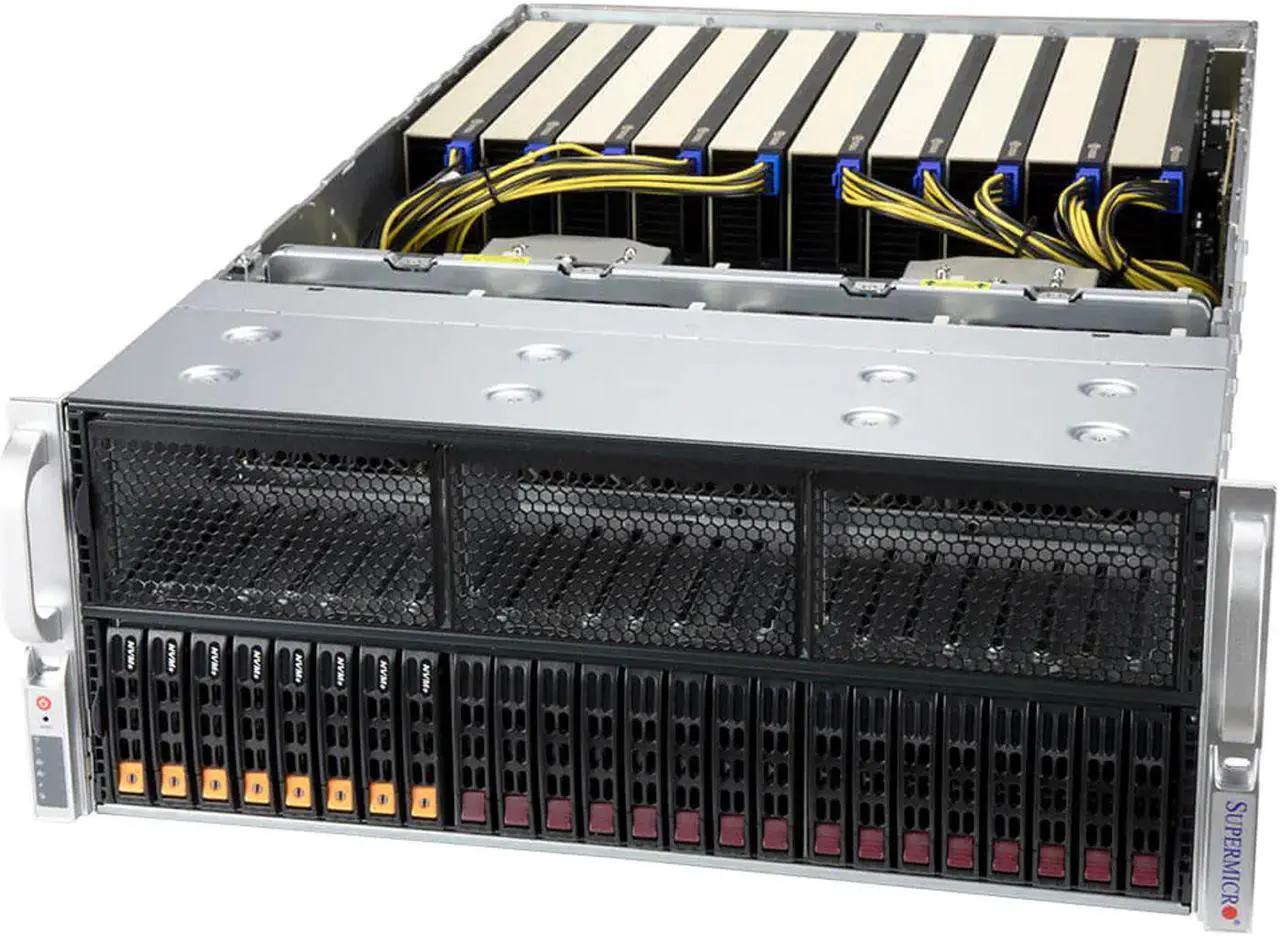

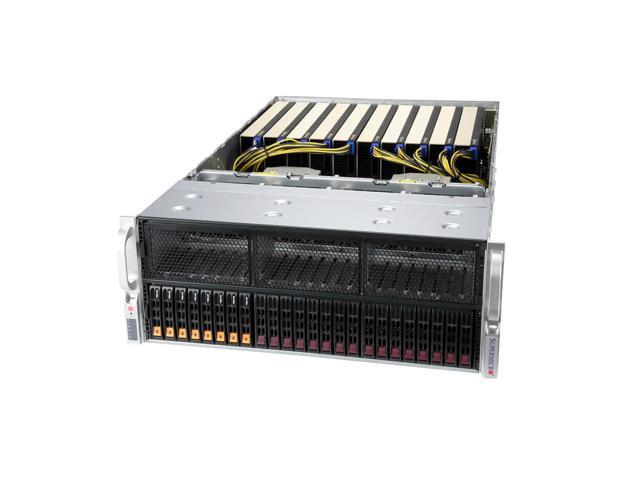

Learn more about the Supermicro SYS-420GP-TNR
General| Brand | SUPERMICRO |
|---|
| Series | SuperServer |
|---|
| Model | SYS-420GP-TNR |
|---|
| Form Factor | 4U Rackmount |
|---|
| Workload | AI/ML/HPC |
|---|
CPU Supported| CPU Type | 3rd Gen Intel Xeon Scalable processors |
|---|
| CPU Socket | LGA 4189 |
|---|
| Installed CPU | No CPU Installed |
|---|
| Max Processors | 2 |
|---|
| CPU Features | Supports up to 270W TDP CPUs (Air Cooled) |
|---|
Chipset| North Bridge | Intel C621A |
|---|
Memory Supported| Memory Slots | 32 x 288Pin |
|---|
| Installed Memory Size | No Memory Installed |
|---|
| Max Memory Supported | Up to 8TB: 32 x 256 GB DRAM
Up to 12TB: 16 x 512 GB PMem |
|---|
| Memory Type Supported | DDR4 3200 |
|---|
| ECC Supported | Yes |
|---|
Storage Supported| Installed HDD | No Storage Installed |
|---|
| Serial ATA | 24 x SATA 600 |
|---|
| M.2 | 2 x M.2 NVMe OR 2 x M.2 SATA3 |
|---|
Expansion Slots| PCI Express | 12 x PCIe 4.0 x16 FHFL slot(s) |
|---|
Communications| First LAN | Intel I350 |
|---|
| Max. LAN Speed | 10/100/1000Mbps |
|---|
Expansion Bays| Hot-Swap Bays | 24 x 2.5" hot-swap NVMe/SATA/SAS drive bays |
|---|
Environment| Temperature | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
|---|
| Humidity | Operating Relative Humidity: 8% to 90% (non-condensing)
Non-operating Relative Humidity: 5% to 95% (non-condensing) |
|---|
Dimensions & Weight| Dimensions | 7.00" x 17.20" x 29.00" |
|---|
| Weight | 65.50 lbs. |
|---|
Additional Information| Date First Available | June 15, 2022 |
|---|
