SUPERMICRO SYS-421GU-TNXR 4U Rackmount Server Barebone LGA 4677 Intel C741 DDR5 4800
- 32 DIMM slots Up to 8TB: 32x 256 GB DRAM Memory Type: 4800MHz ECC DDR5
- 8 PCIe Gen 5.0 X16 LP Slots
- Flexible networking options
- 2 M.2 NVMe and SATA for boot drive only
- 6x 2.5" Hot-swap NVMe/SATA/SAS drive bays
+
+
Learn more about the Supermicro SYS-421GU-TNXR
| Brand | SUPERMICRO |
|---|---|
| Model | SYS-421GU-TNXR |
| Form Factor | 4U Rackmount |
| Workload | AI/ML/HPC |
| CPU Type | Intel Xeon |
|---|---|
| CPU Socket | LGA 4677 |
| Installed CPU | No CPU Installed |
| Max Processors | 2 |

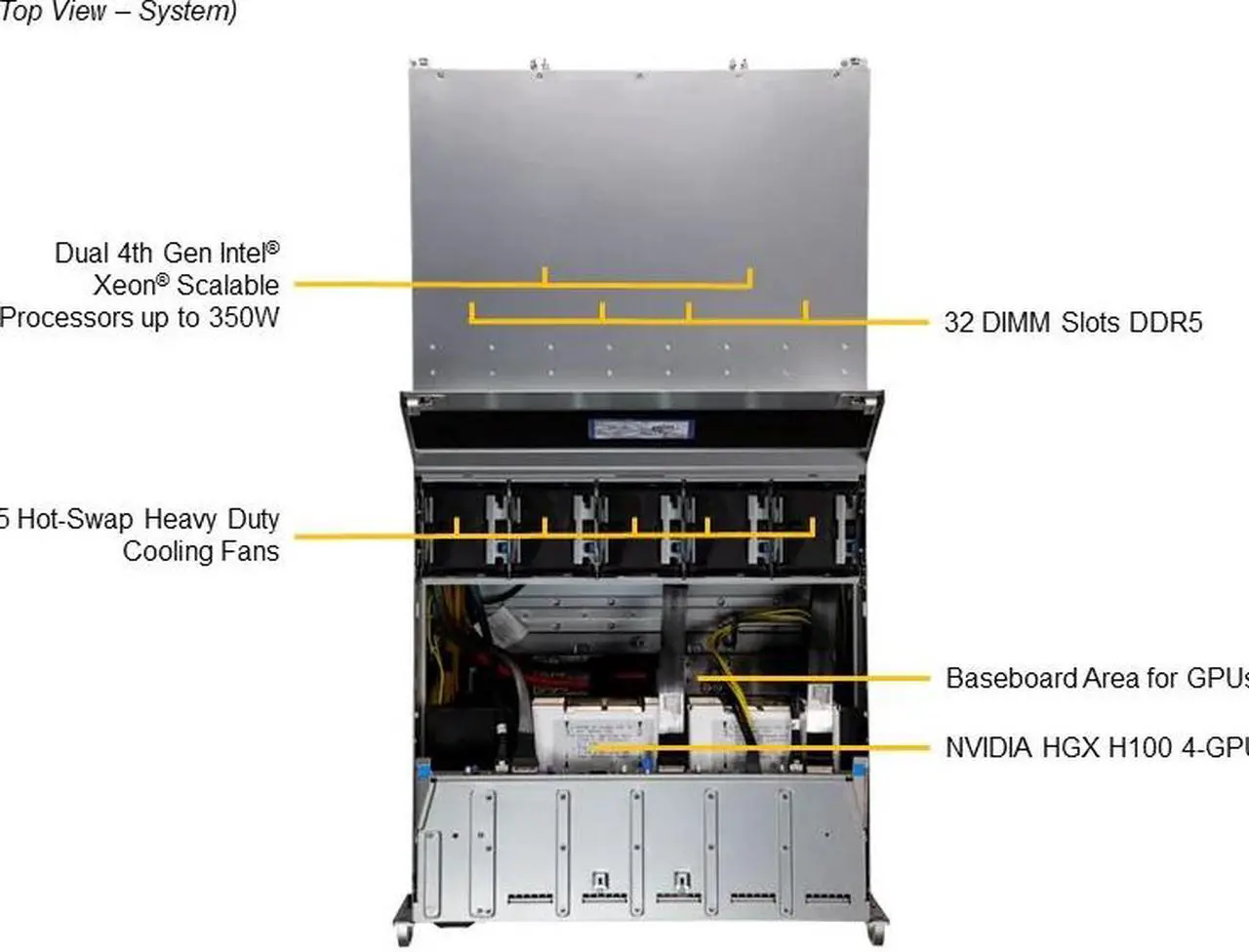

| CPU Features | 4th Gen Intel Xeon Scalable processors Future support for the upcoming 5th Gen Intel Xeon processors Supports up to 350W TDP CPUs (Air Cooled) Supports up to 350W TDP CPUs (Liquid Cooled) |
| North Bridge | Intel C741 |
|---|
| Memory Slots | 32 x 288Pin |
|---|---|
| Installed Memory Size | No Memory Installed |
| Max Memory Supported | Up to 8TB: 32 x 256 GB DRAM |
| Memory Type Supported | DDR5 4800 |
| ECC Supported | Yes |
| Installed HDD | No Storage Installed |
|---|---|
| M.2 | 2 x M.2 NVMe OR 2 x M.2 SATA3 |
| GPU/VPU | Max GPU Count: Up to 4 double-width GPU(s) Supported GPU: NVIDIA SXM: HGX H100 4-GPU (80GB) CPU-GPU Interconnect: PCIe 5.0 x16 CPU-to-GPU Interconnect GPU-GPU Interconnect: NVIDIA NVLink |
|---|
| PCI Express | 1 x PCIe 5.0 x16 LP slot(s) 7 x PCIe 5.0 X16 slot(s) |
|---|
| First LAN | Intel X710-AT2 |
|---|---|
| Max. LAN Speed | 10 Gigabit |

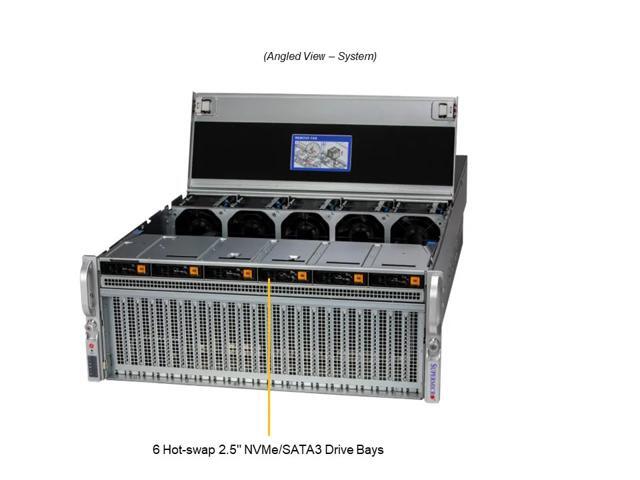

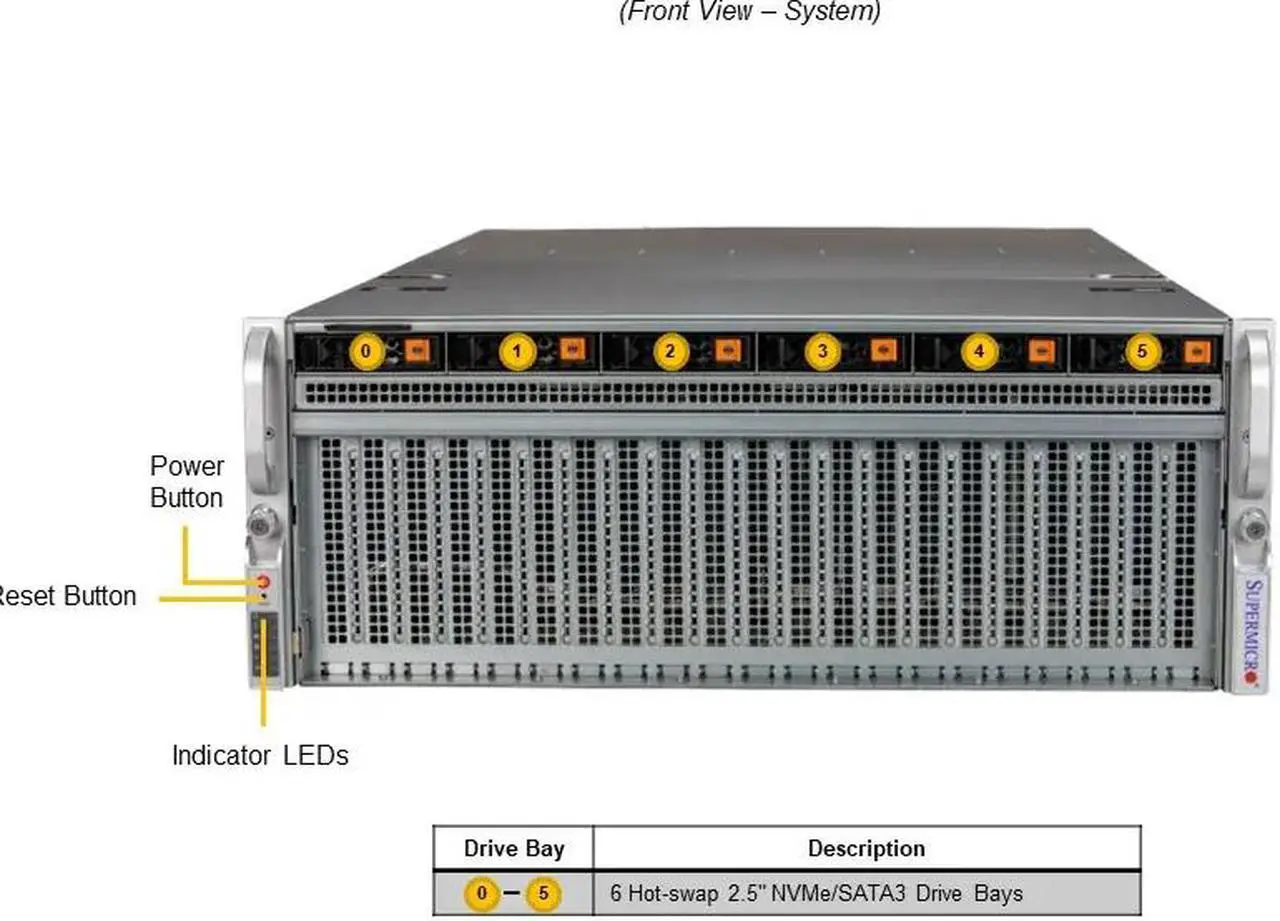

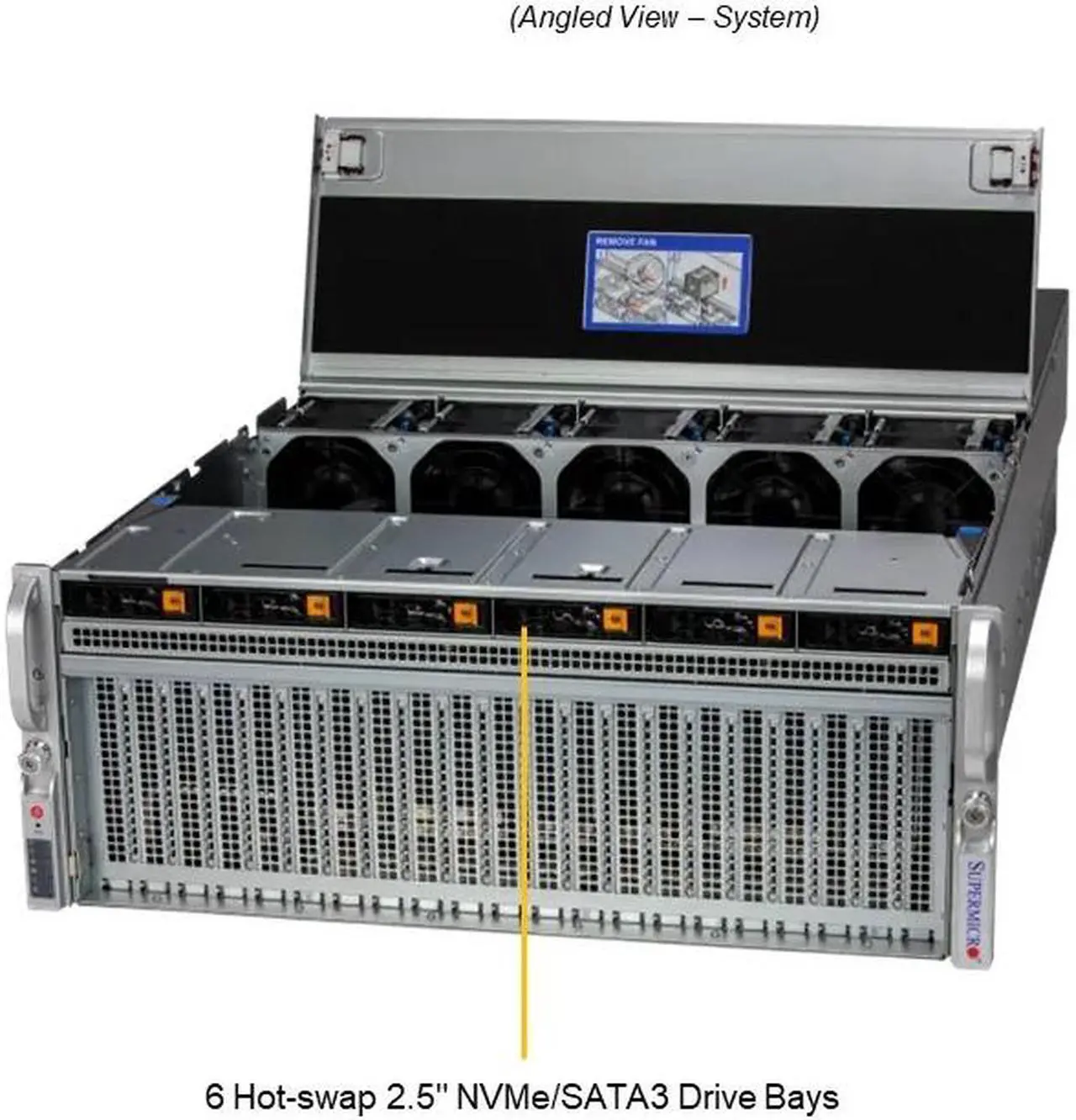

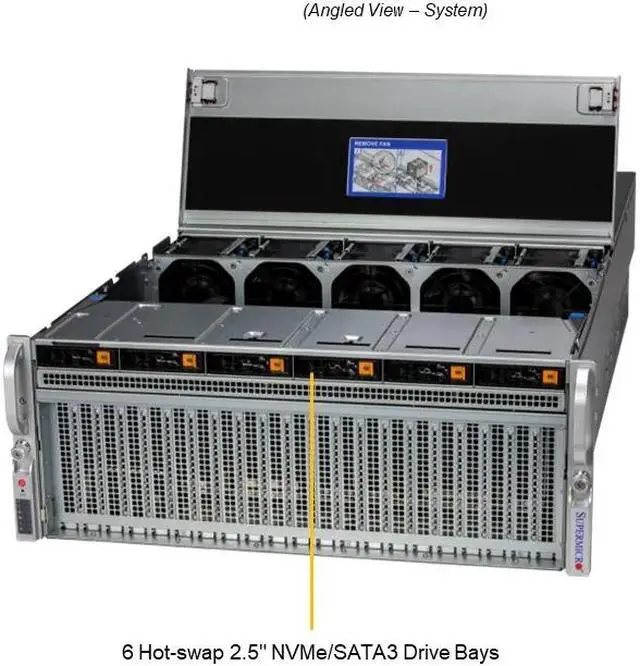

| Hot-Swap Bays | 6 x 2.5" hot-swap NVMe/SATA drive bays (6 x 2.5" NVMe hybrid) |
|---|
| VGA | 1 |
|---|---|
| RJ45 | 2 |

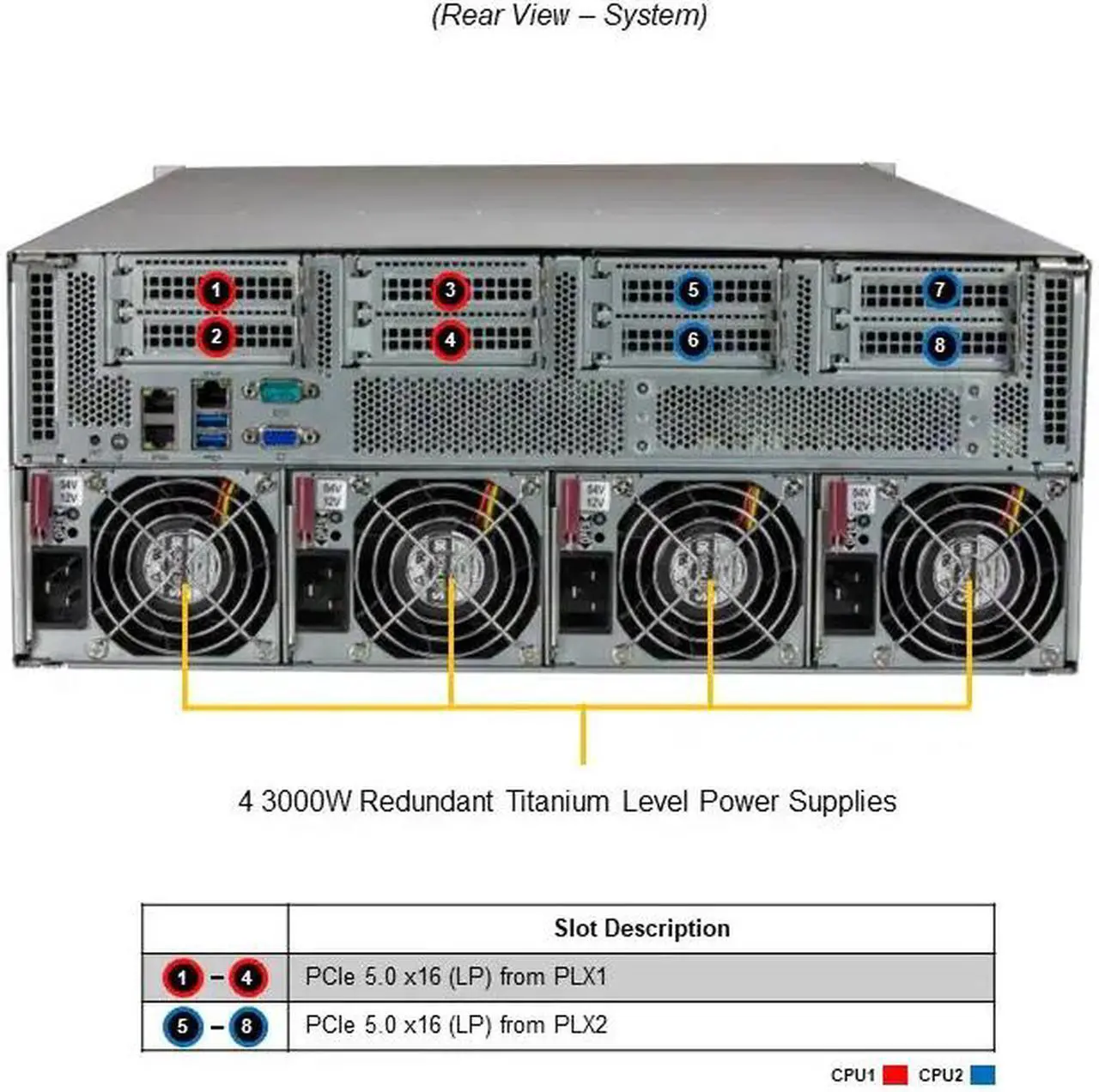

| Max. Power | 4x 3000W Redundant Titanium Level power supplies |
|---|
| Temperature | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
|---|---|
| Humidity | Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Features | Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown |
|---|
| Dimensions | 7" x 17.67" x 32.79" |
|---|---|
| Weight | 105 lbs. |
| First Listed on Newegg | November 03, 2023 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 1 year
- Limited Warranty period (labor): 3 years
- Read full details
Return Policies
- Return for refund until: January 31, 2027
- Return for replacement until: January 31, 2027
- This item is covered by Newegg.com's Extended Holiday Return Policy.
- Read full return policy for details.
We want to ensure your holiday shopping this year is hassle-free. That’s why we’re automatically extending our return policies on almost every product! For purchases placed between November 1st, 2026 and December 31, 2026 you will have until January 31, 2027 to return your product.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-408-503-8000
- Support Website
- View other products from Supermicro
LOADING...
The SUPERMICRO SYS-421GU-TNXR is a 4U dual-socket server barebone for AI/ML, HPC, and data-center deployments, supporting up to four double-width GPUs, two Intel Xeon processors, and up to 8TB of ECC DDR5 memory; CPU, memory, and storage are not included.
Recommended For
- AI/ML teams building a rack-mounted training or fine-tuning node around a four-GPU NVIDIA HGX H100/H200 configuration with NVLink.
- HPC teams running compute workloads that benefit from a four-GPU server, dual Xeon CPU support, and high-capacity ECC DDR5 memory.
- Organizations deploying LLM or NLP infrastructure in a data-center rack, with the power and cooling capacity for a high-density GPU server.
- Server integrators who want to configure a specialized GPU system around this 4U platform rather than buy a complete, ready-to-run server.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | AI, machine-learning, and HPC workloads requiring a dual-socket platform with support for up to four double-width GPUs |
| Processor And Platform | Barebone LGA 4677 platform for up to two 4th Gen Intel Xeon Scalable processors, with future support for 5th Gen Intel Xeon processors; supports CPUs up to 350W TDP with air or liquid cooling; no CPU installed |
| Memory Configuration | 32 288-pin DIMM slots support DDR5-4800 ECC memory, up to 8TB using 32 x 256GB DIMMs; no memory installed |
| GPU And Interconnect | Supports up to four double-width GPUs, including NVIDIA HGX H100 4-GPU (80GB); PCIe 5.0 x16 CPU-to-GPU interconnect and NVIDIA NVLink GPU-to-GPU interconnect |
| Storage And Expansion | Six 2.5-inch hot-swap NVMe/SATA hybrid drive bays and two M.2 slots supporting NVMe or SATA3 boot drives; no storage installed; eight PCIe 5.0 x16 low-profile slots |
| Networking And I/O | Intel X710-AT2 LAN controller with up to 10Gb Ethernet, two RJ45 ports, and one VGA port |
| Power | Four redundant 3000W Titanium-level power supplies |
| Security And Firmware | Cryptographically signed firmware, Secure Boot, secure firmware updates, automatic firmware recovery, remote-attestation supply-chain security, runtime BMC protections, and system lockdown |
| Environmental Specifications | Operating temperature: 10°C to 35°C; non-operating temperature: -40°C to 60°C; operating humidity: 8% to 90% and non-operating humidity: 5% to 95%, non-condensing |
| Dimensions And Weight | 7 x 17.67 x 32.79 inches; 105 lb |
| Model Identifiers | SUPERMICRO SYS-421GU-TNXR, 4U rackmount server barebone |
