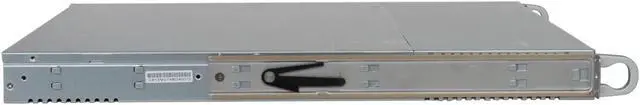

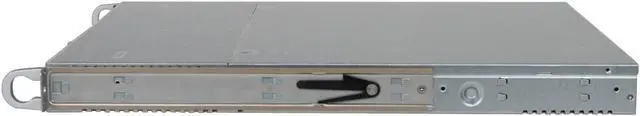

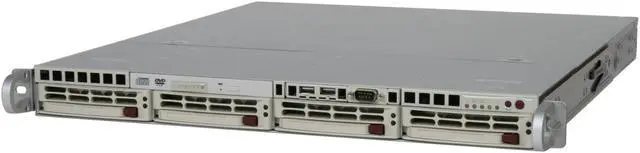

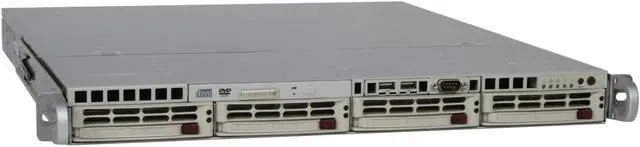

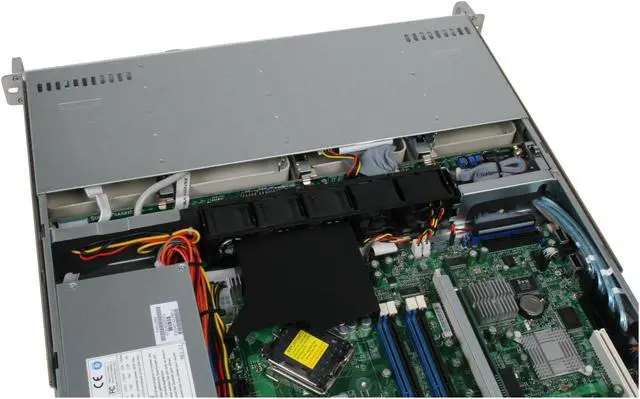

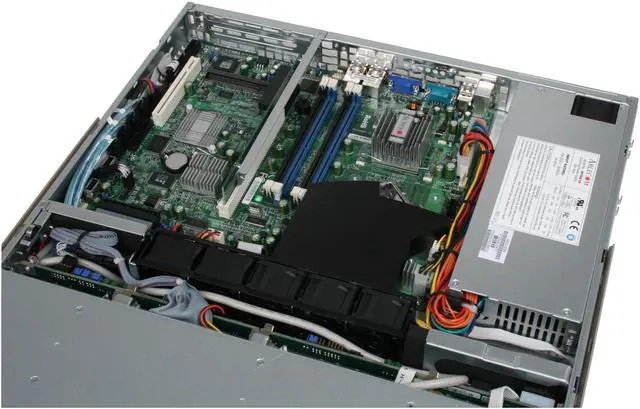

SUPERMICRO SYS-5015B-MT 1U Rackmount Barebone Server LGA 775 Intel 3210 DDRII 800/667/533
- LGA 775
- Intel Core 2 / Xeon
- 4 x 240Pin Memory Slots
- Fixed 300W AC power supply module with PFC
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Supermicro SYS-5015B-MT
| Brand | SUPERMICRO |
|---|---|
| Model | SYS-5015B-MT |
| Form Factor | 1U Rackmount |
| CPU Type | Intel Core 2 / Xeon |
|---|---|
| CPU Socket | LGA 775 |
| FSB | 1333/1066 MHz |
| North Bridge | Intel 3210 |
|---|---|
| South Bridge | ICH9R |
| Memory Slots | 4 x 240Pin |
|---|---|
| Max Memory Supported | 8GB |
| Memory Type Supported | DDRII 800/667/533 |
| Channel Supported | Dual Channel |
| ECC Supported | Yes |
| ATA | 1x ATA 33/66/100 |
|---|---|
| Serial ATA | 6 x SATA 300 |
| SATA RAID | RAID 0, 1, 5, 10 support (Windows Only) RAID 0, 1, 10 support (Linux) |
| GPU/VPU | ATI ES1000 |
|---|---|
| Video Memory | 32MB |
| PCI Express | 1x PCI Express x8 |
|---|---|
| PCI-X | 1x 133 MHz |
| First LAN | Intel 82573V |
|---|---|
| Second LAN | Intel 82573L |
| Max. LAN Speed | 1 Gigabit |
| Hot-Swap Bays | 4 |
|---|
| Front USB | 2 |
|---|---|
| COM | 1 |
| PS/2 | 2 |
| VGA | 1 |
| Rear USB | 2 |
| RJ45 | 2 |
| Max. Power | Fixed 300W AC power supply module with PFC |
|---|
| Dimensions | 19.8" x 17.2" x 1.7" |
|---|---|
| Weight | 38.0 lbs. |
| First Listed on Newegg | January 24, 2008 |
|---|
