SUPERMICRO SYS-5015P-T 1U Rackmount Barebone Server LGA 775 Intel E7230 DDRII 667/533
- LGA 775
- Intel Pentium D / Pentium EE / Celeron
- 4 x 240Pin Memory Slots
- 400W Cold-swap Power Supply with I2C for Remote Management
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

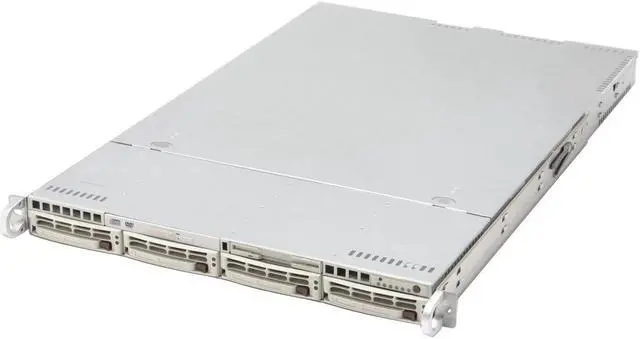

Supermicro's SYS-5015P-T 1U barebone server is a big bang in a small package. The front panel has four hot swap SATA drive bays, a slim DVD–ROM drive, and a slim floppy drive. On the back there is one regular height and one slim expansion slot. A 400W power supply provides power to the server.

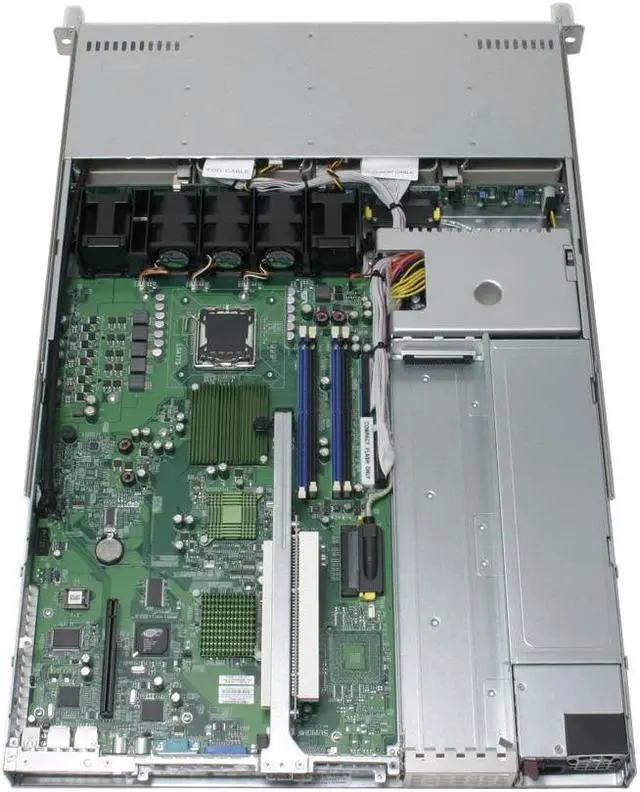

The Super PDSMPi motherboard mother board can handle a Pentium 4 or Celeron D processor. Four DIMM sockets support up to 8GB of Unbuffered DDR2 667/533 ECC memory. The SATA controller supports RAID levels 0, 1, 5 and 10.

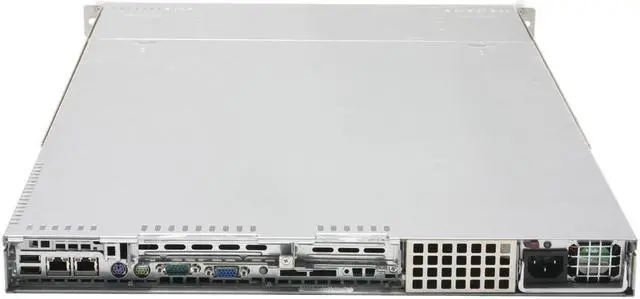

ATI's RageXL controller with 8 MB of video memory provides graphics support. Dual gigabit ports, two USB 2.0 ports, an RS-232 port and PS/2 keyboard and mouse ports round out the ports on this system.
Supermicro's SYS-5015P-T 1U barebone server is a big bang in a small package. The front panel has four hot swap SATA drive bays, a slim DVD–ROM drive, and a slim floppy drive. On the back there is one regular height and one slim expansion slot. A 400W power supply provides power to the server.
The Super PDSMPi motherboard mother board can handle a Pentium 4 or Celeron D processor. Four DIMM sockets support up to 8GB of Unbuffered DDR2 667/533 ECC memory. The SATA controller supports RAID levels 0, 1, 5 and 10.
ATI's RageXL controller with 8 MB of video memory provides graphics support. Dual gigabit ports, two USB 2.0 ports, an RS-232 port and PS/2 keyboard and mouse ports round out the ports on this system.
The Super PDSMPi motherboard mother board can handle a Pentium 4 or Celeron D processor. Four DIMM sockets support up to 8GB of Unbuffered DDR2 667/533 ECC memory. The SATA controller supports RAID levels 0, 1, 5 and 10.
ATI's RageXL controller with 8 MB of video memory provides graphics support. Dual gigabit ports, two USB 2.0 ports, an RS-232 port and PS/2 keyboard and mouse ports round out the ports on this system.

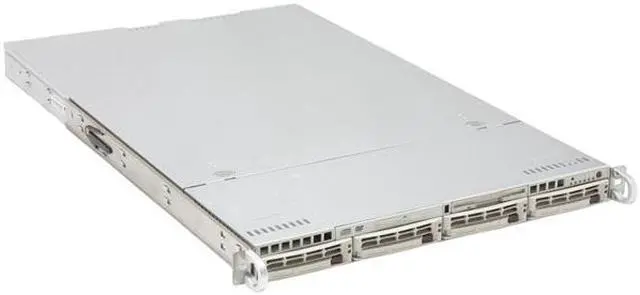

1U Rack Mount Server BareboneFeaturing the 1U (1.75-inch high) rack mount design, the SUPERMICRO SYS-5015P-T fits into any 19-inch rack and works perfectly in situations requiring high manageability such as the computer room and control center.
Intel Pentium 4/D/Extreme Edition and Celeron D SupportThe onboard LGA 775 socket supports Intel Pentium D, Pentium 4 Extreme Edition, Pentium 4, Pentium Extreme Edition and Celeron D CPUs with 1066MHz, 800MHz or 533MHz FSB (front side bus).
Four ECC DDR2 Memory SlotsFour 240-pin DIMM sockets support unbuffered ECC DDR2 677, 533 and 400 SDRAM in capacities of up to 8GB.
PCI Express and PCI-X Expansion SlotsA universal (SXB-E) slot compatible with PCI Express x4 and 64-bit 133MHz PCI-X cards, a 64-bit 100MHz PCI-X expansion slot and an IPMI slot provide useful expandability.

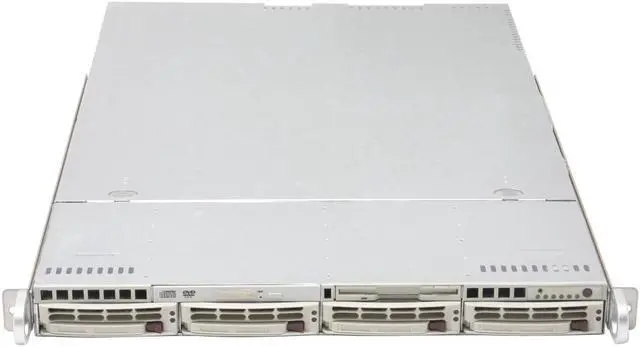

Hot-swappable SATA Hard Drive BaysThe SUPERMICRO SYS-5015P-T features four hot-swappable SATA drive bays for easy installation and replacement.
Remotely Manageable 400W Power SupplyThe 400W cold-swap power supply provides power for all components installed and ensures system reliability. With the remote management feature, do power-on/off over the network.
1U Rack Mount Server BareboneFeaturing the 1U (1.75-inch high) rack mount design, the SUPERMICRO SYS-5015P-T fits into any 19-inch rack and works perfectly in situations requiring high manageability such as the computer room and control center.
Intel Pentium 4/D/Extreme Edition and Celeron D SupportThe onboard LGA 775 socket supports Intel Pentium D, Pentium 4 Extreme Edition, Pentium 4, Pentium Extreme Edition and Celeron D CPUs with 1066MHz, 800MHz or 533MHz FSB (front side bus).
Four ECC DDR2 Memory SlotsFour 240-pin DIMM sockets support unbuffered ECC DDR2 677, 533 and 400 SDRAM in capacities of up to 8GB.
PCI Express and PCI-X Expansion SlotsA universal (SXB-E) slot compatible with PCI Express x4 and 64-bit 133MHz PCI-X cards, a 64-bit 100MHz PCI-X expansion slot and an IPMI slot provide useful expandability.
Hot-swappable SATA Hard Drive BaysThe SUPERMICRO SYS-5015P-T features four hot-swappable SATA drive bays for easy installation and replacement.
Remotely Manageable 400W Power SupplyThe 400W cold-swap power supply provides power for all components installed and ensures system reliability. With the remote management feature, do power-on/off over the network.Warranty & Returns
