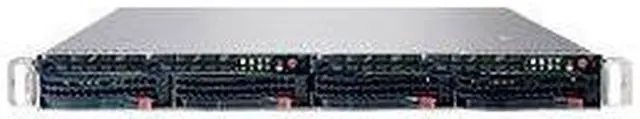

SUPERMICRO SYS-5015TB-TB 1U Rackmount Server Barebone (Two Systems) LGA 775 Intel X48 DDR3 1333/1066/800
- LGA 775
- Supports Quad-Core Intel Xeon X3300/X3200 series
- Supports Dual-Core Intel Xeon E3100/3000 series
- Supports Intel Xeon processor L3360 and L3110 series
- Supports Intel Core2 Quad Q9000/Q8000/Q6000 series
- Supports Intel Core2 Duo E8000/E7000/E6000/E4000 series
- Supports Intel Pentium E5000/E2000 series
- Supports Intel Celeron E1000 and 400 series
- *NOTE: 1600MHz CPU has to use 1600 MHz XMP Memory.
- 4 x 240Pin Memory Slots
- 780W AC to DC power supply w/ PFC
+
+
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Supermicro SYS-5015TB-TB
| Brand | SUPERMICRO |
|---|---|
| Model | SYS-5015TB-TB |
| Form Factor | 1U Rackmount |
| CPU Type | Supports Quad-Core Intel Xeon X3300/X3200 series Supports Dual-Core Intel Xeon E3100/3000 series Supports Intel Xeon processor L3360 and L3110 series Supports Intel Core2 Quad Q9000/Q8000/Q6000 series Supports Intel Core2 Duo E8000/E7000/E6000/E4000 series Supports Intel Pentium E5000/E2000 series Supports Intel Celeron E1000 and 400 series *NOTE: 1600MHz CPU has to use 1600 MHz XMP Memory. |
|---|---|
| CPU Socket | LGA 775 |
| FSB | 1600/1333/1066/800 MHz |
| North Bridge | Intel X48 |
|---|---|
| South Bridge | ICH9R |
| Memory Slots | 4 x 240Pin |
|---|---|
| Max Memory Supported | 8GB |
| Memory Type Supported | DDR3 1333/1066/800 |
| Channel Supported | Dual Channel |
| Serial ATA | 4 x SATA 300 |
|---|---|
| SATA RAID | RAID 0, 1, 5, 10 (Windows) RAID 0, 1, 10 (Linux) |
| GPU/VPU | XGI Volari Z9S |
|---|---|
| Video Memory | 32MB |
| PCI Express | 1 (x16) PCI-e 2.0 slot (Low Profile) |
|---|
| First LAN | Intel 82573V |
|---|---|
| Second LAN | Intel 82573L |
| Max. LAN Speed | Dual 1 Gigabit |
| Hot-Swap Bays | 2 x 3.5" SATA |
|---|
| COM | 1 |
|---|---|
| VGA | 1 |
| Rear USB | 2 |
| RJ45 | 2 |
| Max. Power | 780W AC to DC power supply w/ PFC |
|---|
| Dimensions | 27.75" x 17.2" x 1.7" |
|---|---|
| Weight | 40 lbs. |
| First Listed on Newegg | January 06, 2016 |
|---|
