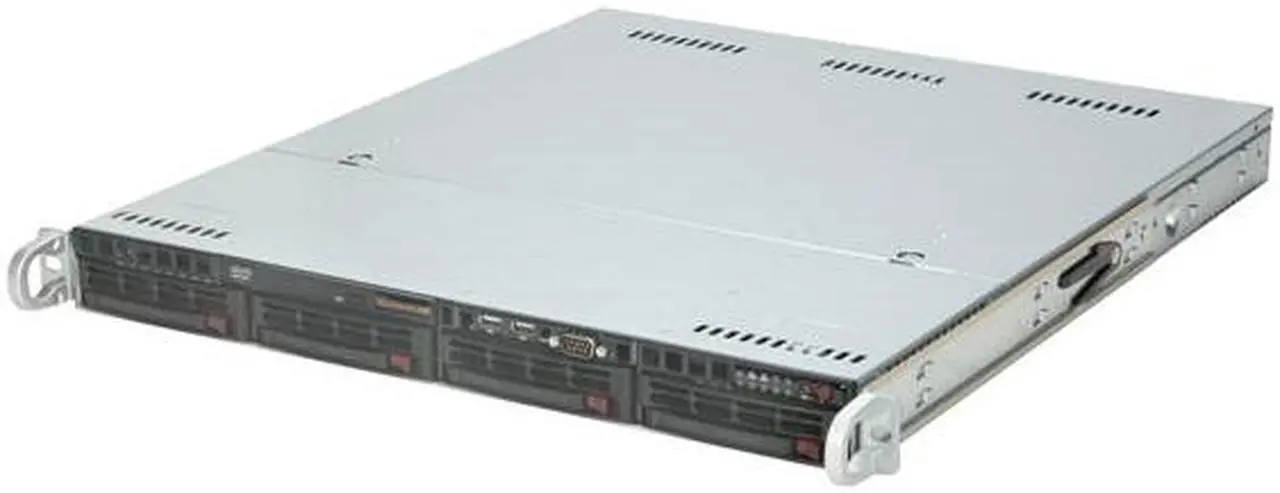

SUPERMICRO SYS-5016I-MT 1U Rackmount Server Barebone LGA 1156 Intel 3400 DDR3 1333/1066/800
In stock.
Ships from United States.
Most customers receive within 3-8 days.
- LGA 1156
- Intel Xeon X3400/L3400, Core i3, Pentium G6950, Celeron G1101
- 6 x 240Pin Memory Slots
- 280W AC power supply w/ PFC
Specs
Reviews
Learn more about the Supermicro SYS-5016I-MT
| Brand | SUPERMICRO |
|---|---|
| Model | SYS-5016I-MT |
| CPU Type | Intel Xeon X3400/L3400, Core i3, Pentium G6950, Celeron G1101 |
|---|---|
| CPU Socket | LGA 1156 |
| North Bridge | Intel 3400 |
|---|
| Memory Slots | 6 x 240Pin |
|---|---|
| Max Memory Supported | Supports up to 48 GB DDR3 ECC Registered memory (RDIMM) in 6 DIMM sockets. Supports up to 16 GB DDR3 ECC Un-Buffered memory (UDIMM) in 4 DIMM sockets. |
| Memory Type Supported | DDR3 1333/1066/800 |
| ECC Supported | Yes |
| Registered | Yes |
| Serial ATA | 6 x SATA 300 |
|---|---|
| SATA RAID | RAID 0, 1, 5, 10 support (Windows) RAID 0, 1, 10 support (Linux) |
| GPU/VPU | Matrox G200eW |
|---|---|
| Video Memory | 16MB DDR2 |
| PCI Express | 1 (x16) PCI-E 2.0 slot via riser card |
|---|
| First LAN | Intel 82574L |
|---|---|
| Second LAN | Intel 82574L |
| Max. LAN Speed | Dual 10/100/1000Mbps |
| Slim Bays | 1 |
|---|---|

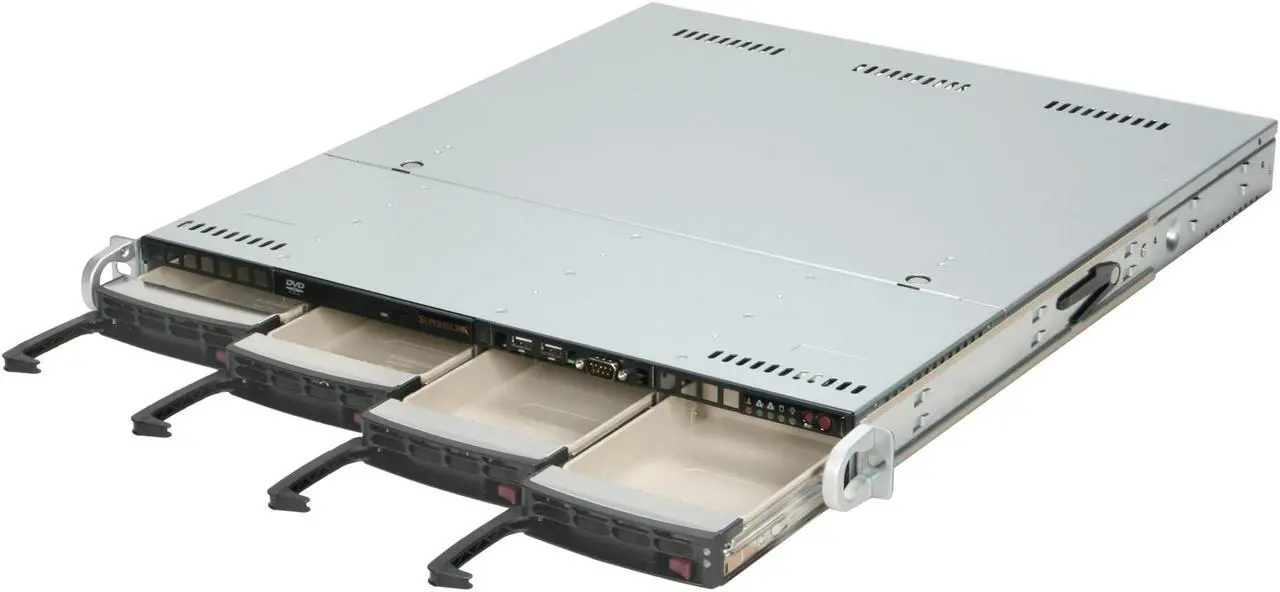

| Hot-Swap Bays | 4 x 3.5" SAS / SATA |
| Front USB | 2 |
|---|---|
| COM | 1 |
| PS/2 | 2 |
| VGA | 1 |
| Rear USB | 2 |
| RJ45 | 2 |
| Other Ports | Front Panel: 1x Serial COM Port |
| Max. Power | 280W AC power supply w/ PFC |
|---|
| Features | Colors: Black Super I/O: Winbond 83627DHG-P Buttons: Power On/Off button, System Reset button LEDs: Power LED Hard drive activity LED 2x Network activity LEDs System Overheat / Fan Fail LED System Fans: 4x Cooling Fans Other: Chassis intrusion detection Chassis intrusion header RoHS Compliant |
|---|
| Form Factor | 1U Rackmount |
|---|
| Dimensions | 19.8" x 17.2" x 1.7" |
|---|---|
| Weight | 38 lbs. |
| Date First Available | January 06, 2016 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 1 year
- Limited Warranty period (labor): 3 years
- Read full details
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by CA Server Pro Return Policy
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-408-503-8000
- Support Website
- View other products from Supermicro
LOADING...
Pros: See other thoughts.
Cons: See other thoughts.
Overall Review: With regards to the previous reviewers comments... the motherboard has nothing to do with the RAM support as the memory controller is now integrated into the CPU die directly. The LGA 1156 based chips (Lynnfields) do not support x4 DRAM dies, only x8 DRAM dies. Don't confuse single-rank (SR), double-rank (DR), quad-rank (QR) with "x4"/"x8" DRAM dies, these terms refer to different things. Again, RAM compatibility on LGA1156 platform is subject to the IMC (Internal Memory Controller) on the Lynnfield die, and it has nothing to do the motherboard's northbridge because there isn't an MCH (Memory Controller Hub) on these boards. Please understand what you are purchasing before you purchase it. We have several of these servers in production using the proper RAM (x8 DRAM dies) from Kingston (KVR1333D3E9SK2/4G)
