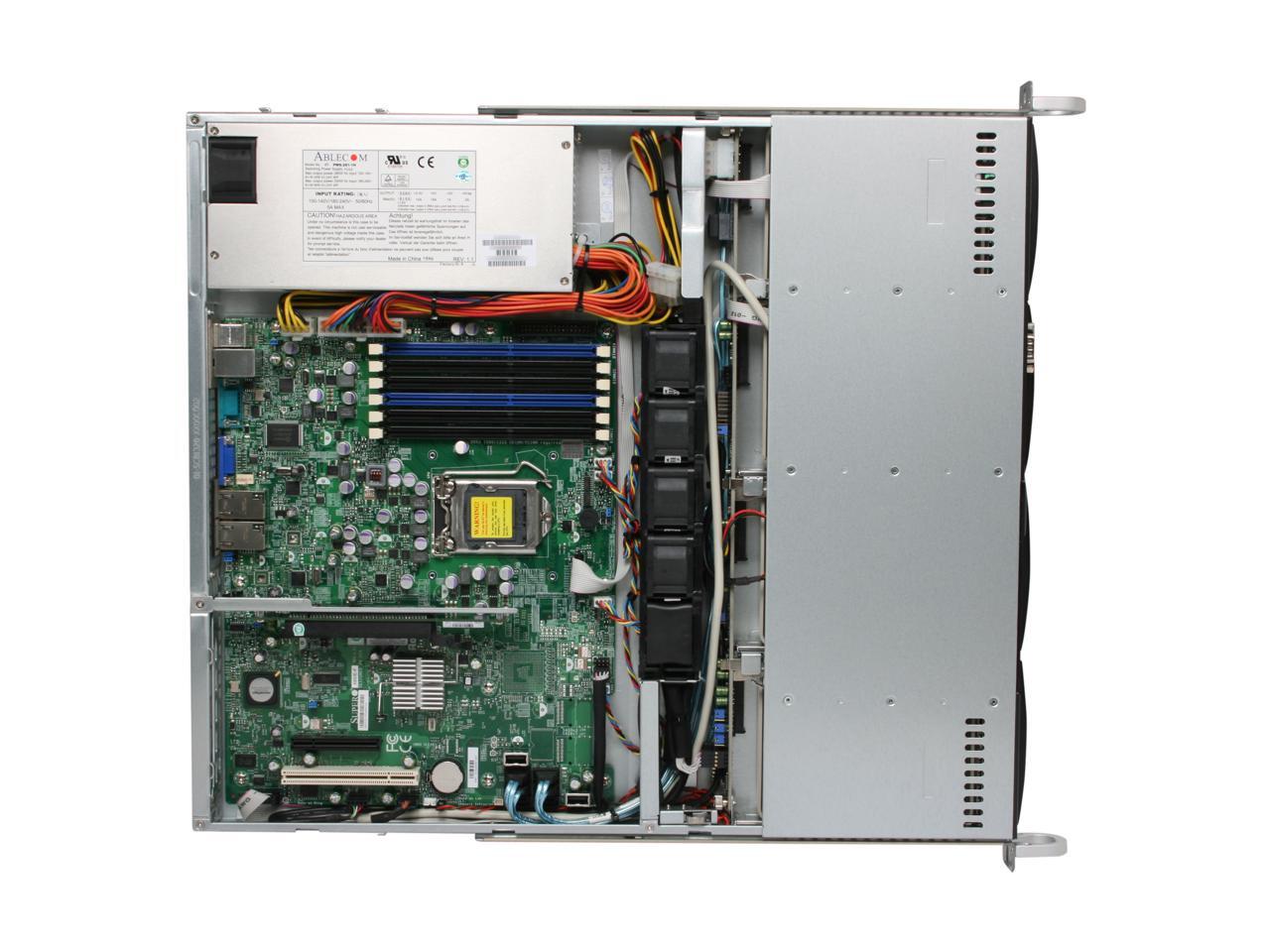

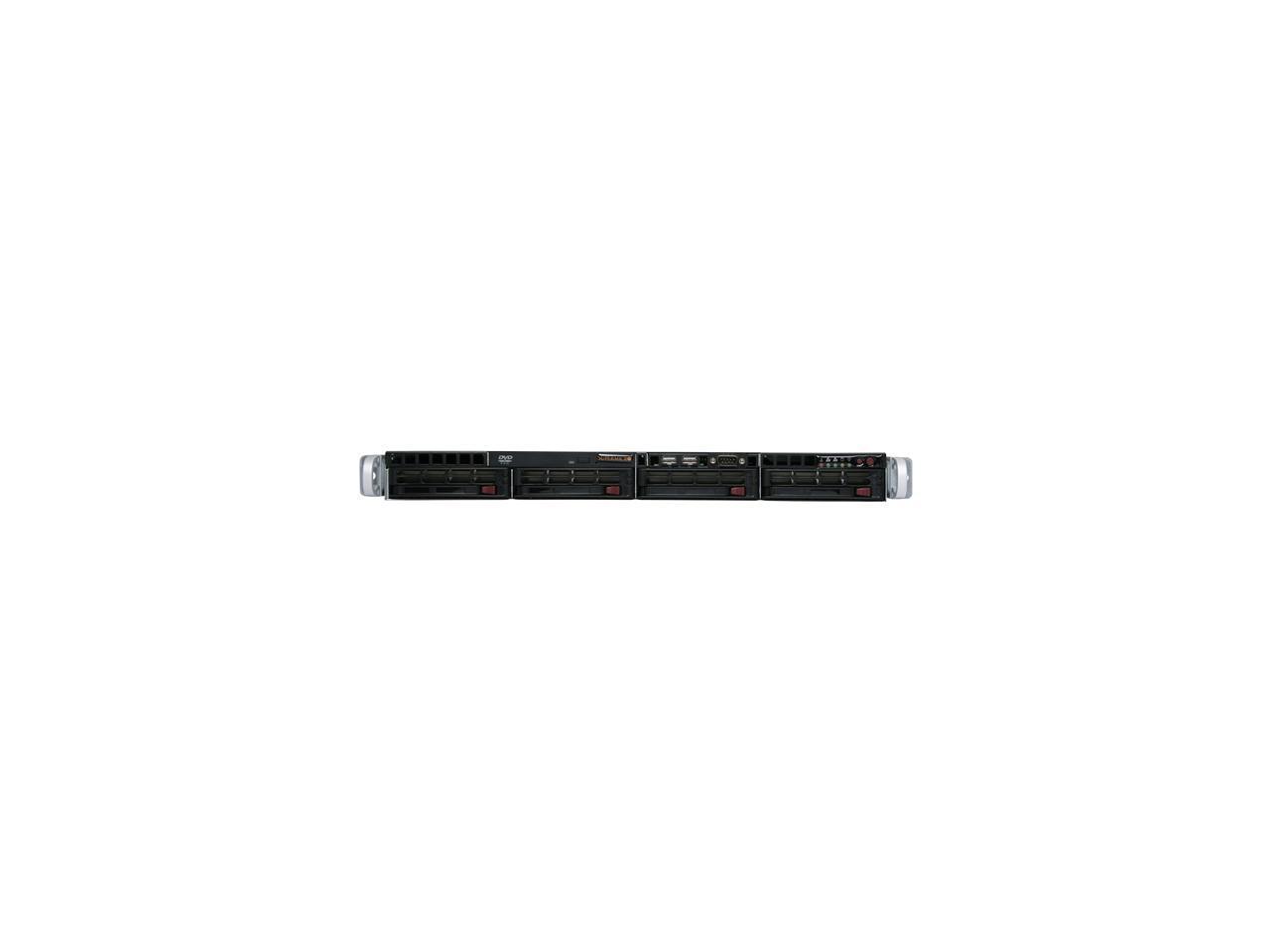

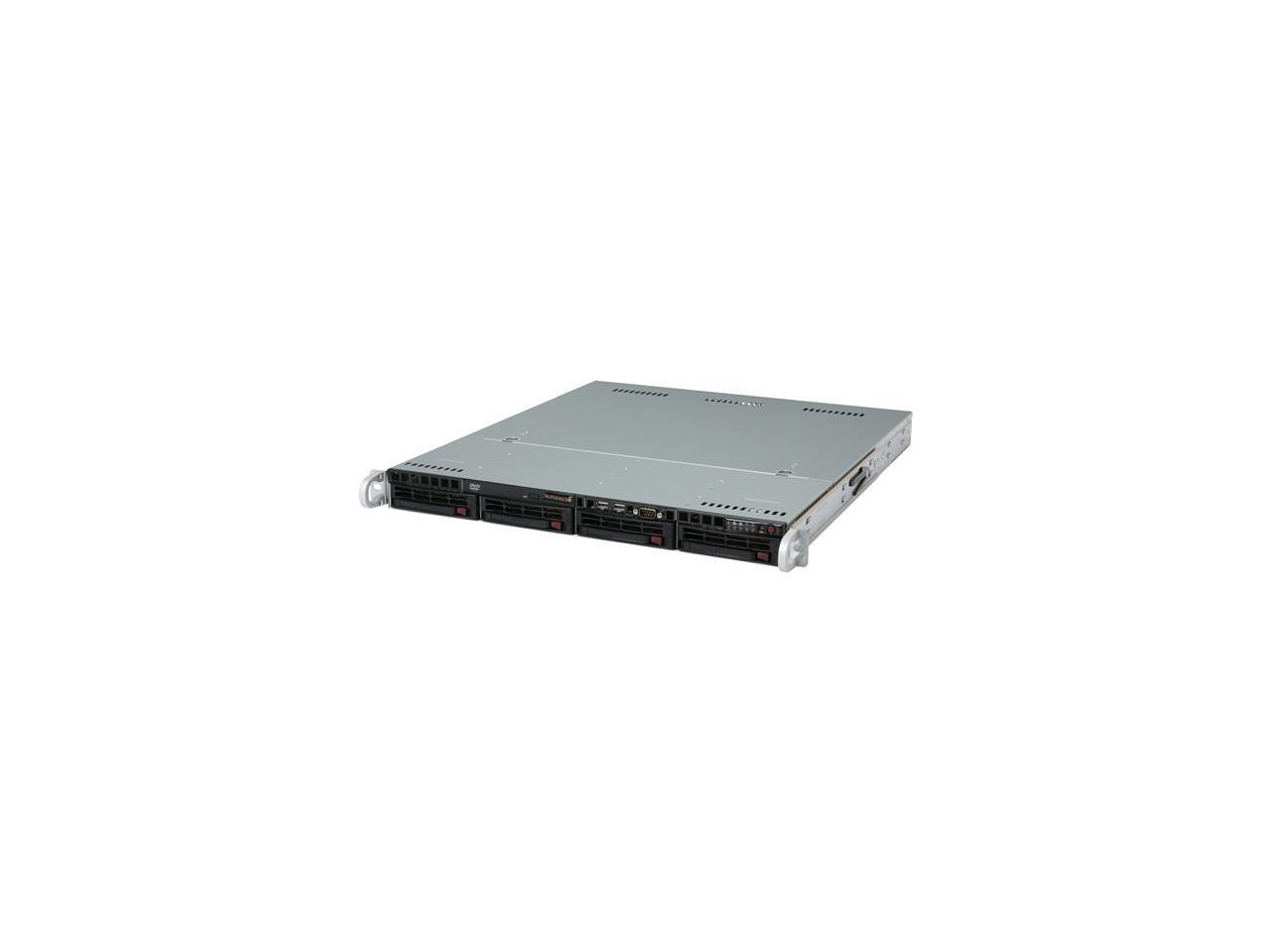

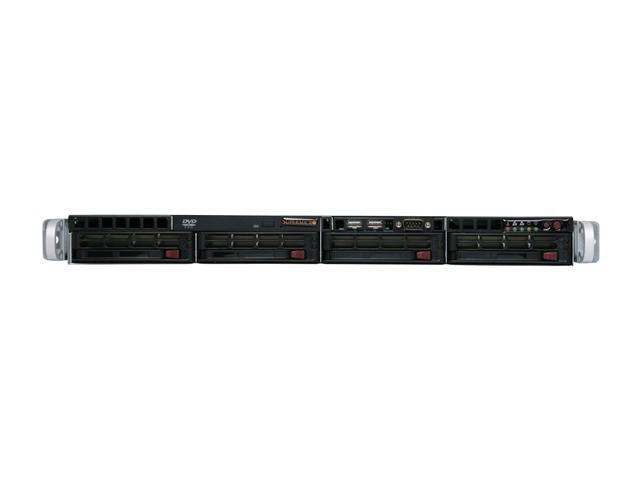

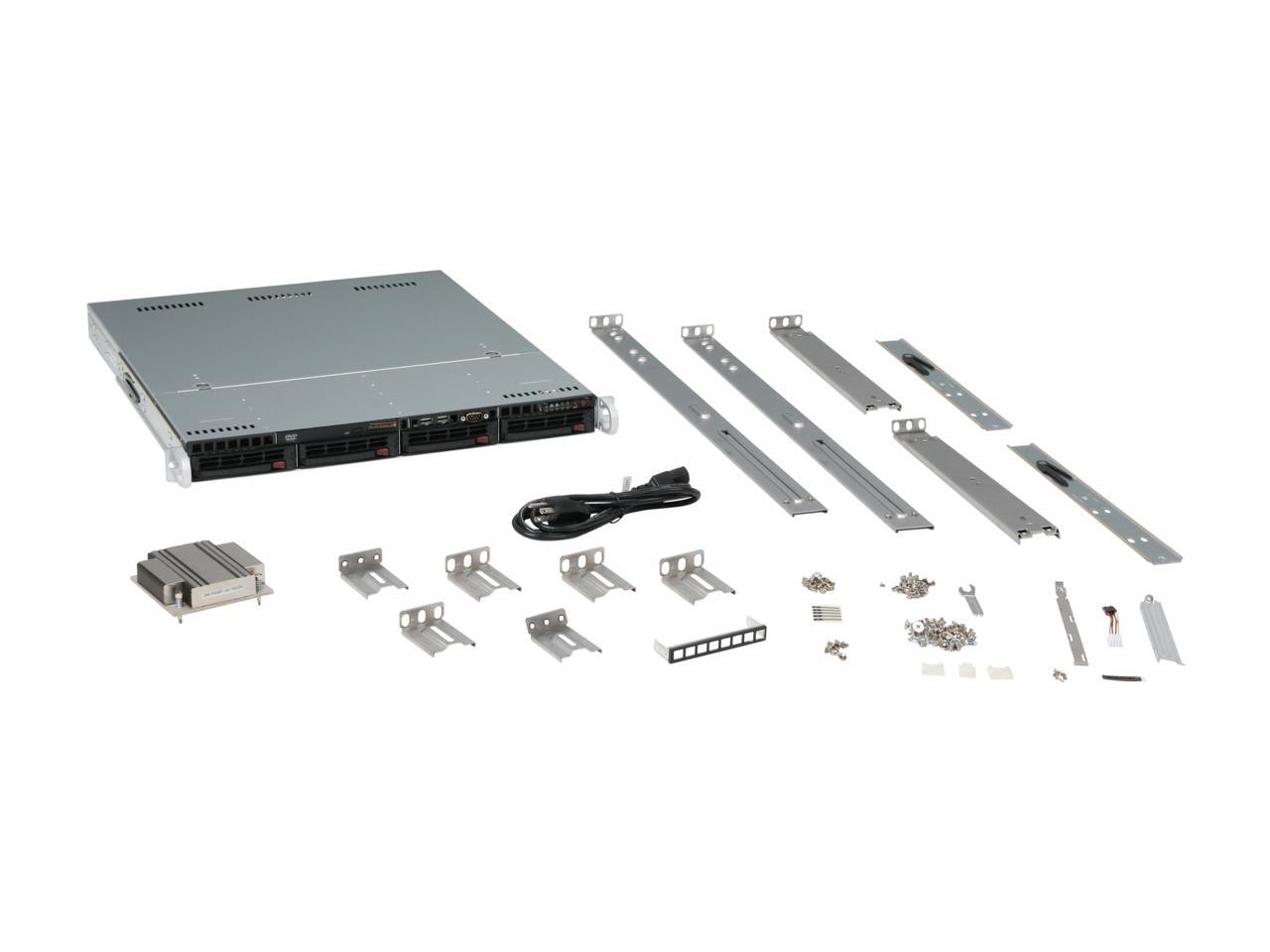

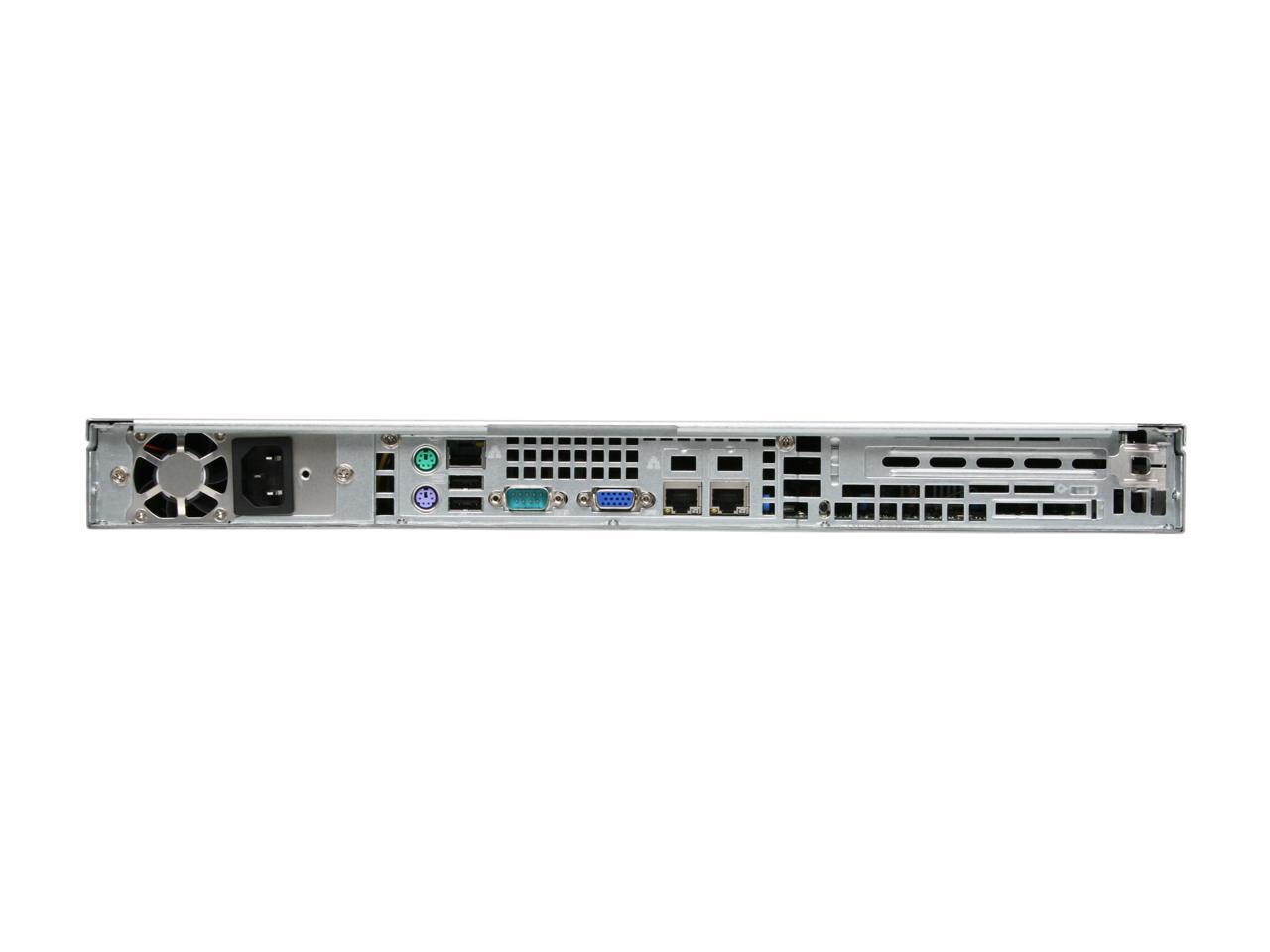

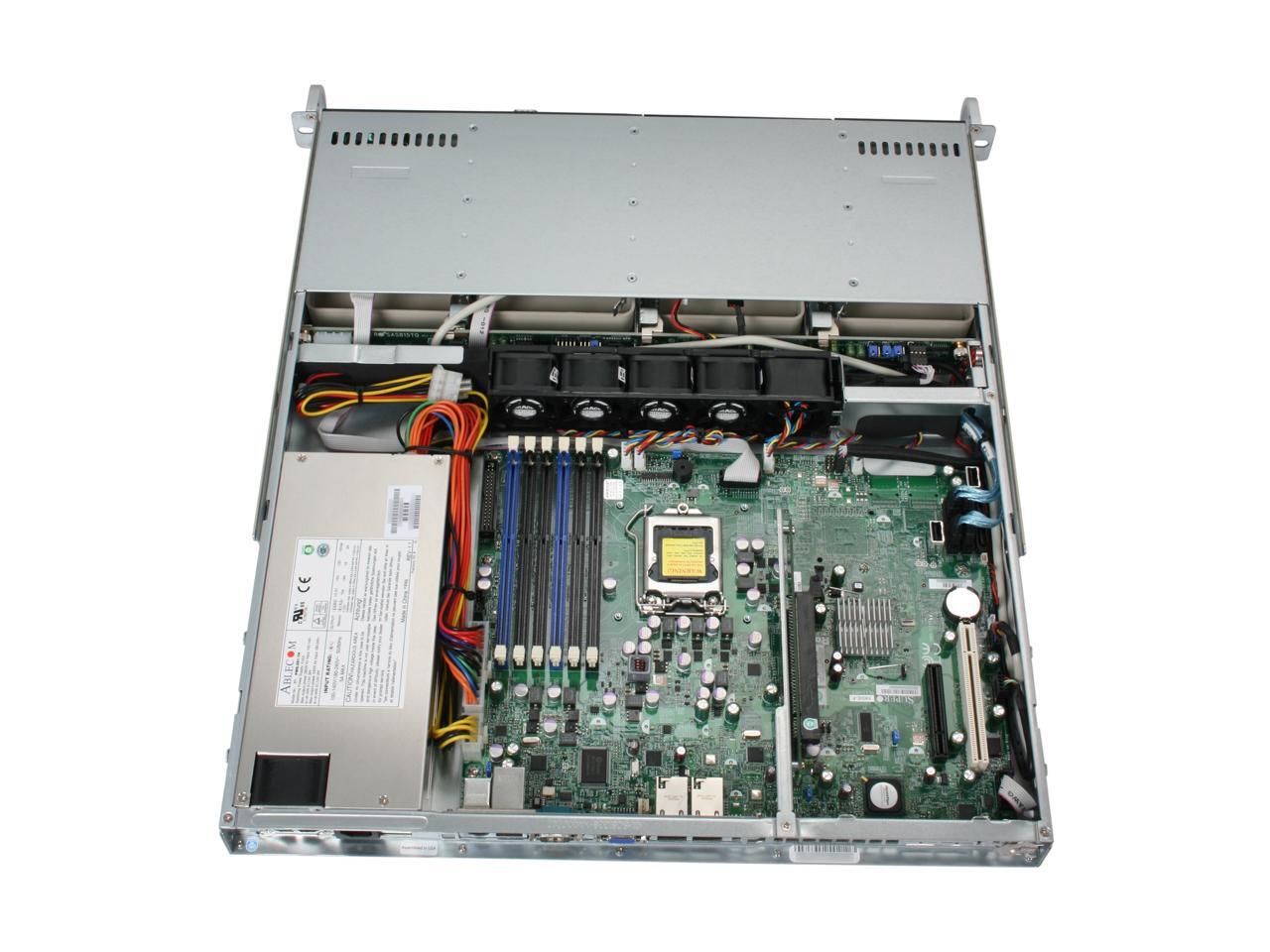

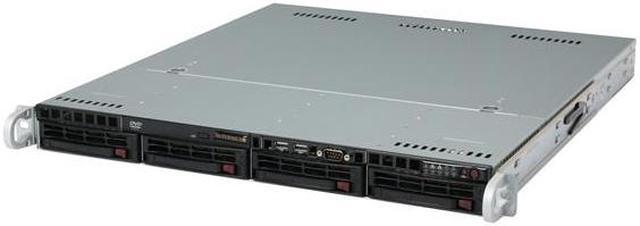

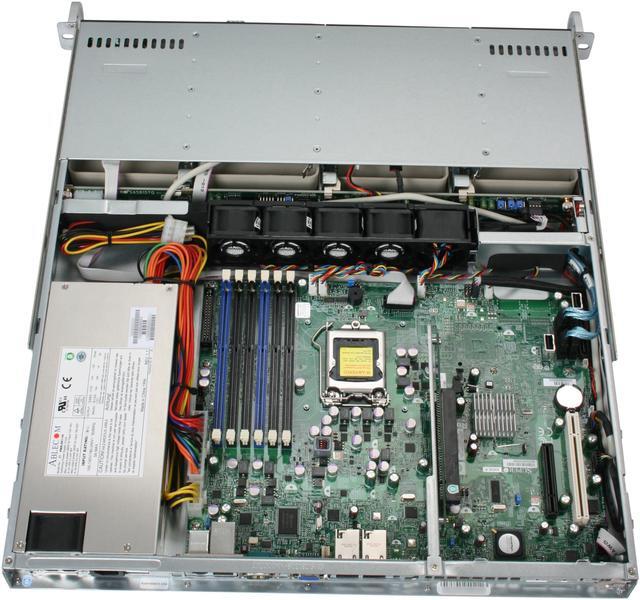

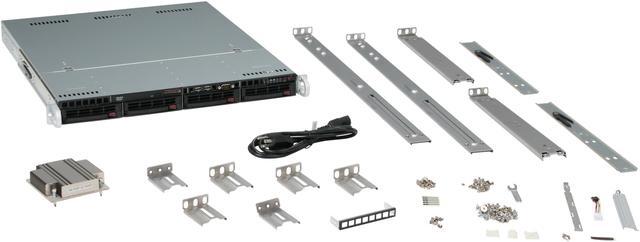

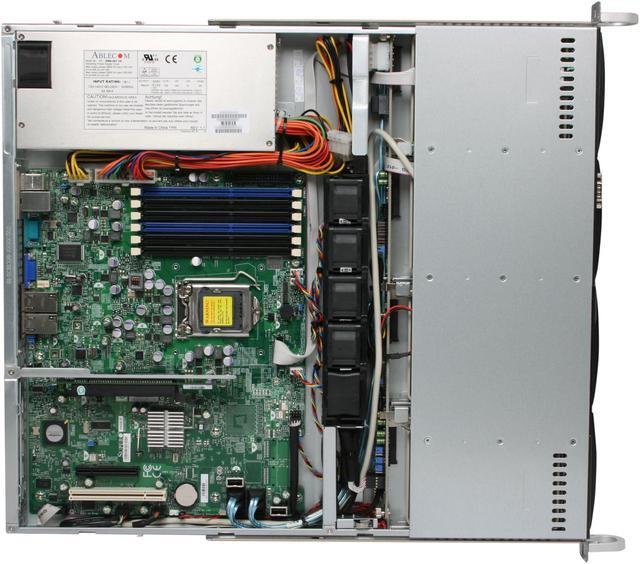

SUPERMICRO SYS-5016I-MTF 1U Rackmount Server Barebone LGA 1156 Intel 3420 DDR3 1333/1066/800
- 1 x LGA 1156 Support Intel Xeon X3400/L3400, Core i3, Pentium G6950, Celeron G1101
- 6 x 240Pin Memory Slots (Max 48GB)
- Support 4 x SATA 300 HDD
- 280W AC power supply w/ PFC
Specs
Reviews (1)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Supermicro SYS-5016I-MTF
| Brand | SUPERMICRO |
|---|---|
| Model | SYS-5016I-MTF |
| Form Factor | 1U Rackmount |
| CPU Type | Intel Xeon X3400/L3400, Core i3, Pentium G6950, Celeron G1101 |
|---|---|
| CPU Socket | LGA 1156 |
| Installed CPU | No CPU Installed |
| Max Processors | 1 |
| North Bridge | Intel 3420 |
|---|
| Memory Slots | 6 x 240Pin |
|---|---|
| Installed Memory Size | No Memory Installed |
| Max Memory Supported | Supports up to 48 GB DDR3 ECC Registered memory (RDIMM) in 6 DIMM sockets Supports up to 16 GB DDR3 ECC |
| Memory Type Supported | DDR3 1333/1066/800 |
| ECC Supported | Yes |
| Registered | Yes |
| Installed HDD | No Storage Installed |
|---|---|
| Serial ATA | 6 x SATA 300 |
| SATA RAID | RAID 0, 1, 5, 10 support (Windows) RAID 0, 1, 10 support (Linux) |
| GPU/VPU | Matrox G200eW |
|---|---|
| Video Memory | 16MB DDR2 |
| PCI Express | 1 (x16) PCI-E 2.0 slot via riser card |
|---|
| First LAN | Intel 82574L |
|---|---|
| Second LAN | Intel 82574L |
| Max. LAN Speed | Dual 1 Gigabit |
| Slim Bays | 1 |
|---|---|
| Hot-Swap Bays | 4 x 3.5" SAS / SATA |
| Front USB | 2 |
|---|---|
| COM | 1 |
| PS/2 | 2 |
| VGA | 1 |
| Rear USB | 2 |
| RJ45 | 2 |
| Other Ports | Front Panel: 1x Serial COM Port |
| Max. Power | 280W AC power supply w/ PFC |
|---|
| Features | Colors: Black Super I/O: Winbond 83627DHG-P Buttons: Power On/Off button, System Reset button LEDs: Power LED Hard drive activity LED 2x Network activity LEDs System Overheat / Fan Fail LED System Fans: 4x Cooling Fans Integrated IPMI 2.0 with KVM and Dedicated LAN Other: Chassis intrusion detection, Chassis intrusion header RoHS Compliant |
|---|
| Dimensions | 19.8" x 17.2" x 1.7" |
|---|---|
| Weight | 38 lbs. |
| First Listed on Newegg | October 21, 2009 |
|---|
