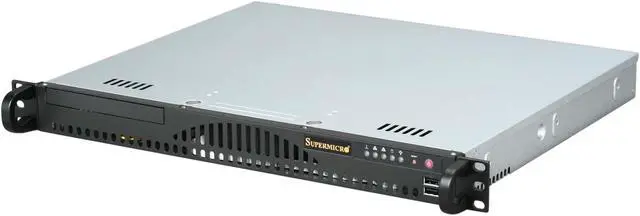

SUPERMICRO SYS-5016T-MRB 1U Rackmount Server Barebone LGA 1366 Intel X58 DDR3 1333/1066/800
- LGA 1366
- Intel Xeon 5600/5500 series
- 6 x 240Pin Memory Slots
- 200W Low Noise High-Efficiency (85%) AC-DC power supply with PFC
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Supermicro SYS-5016T-MRB
| Brand | SUPERMICRO |
|---|---|
| Model | SYS-5016T-MRB |
| Form Factor | 1U Rackmount |
| CPU Type | Intel Xeon 5600/5500 series |
|---|---|
| CPU Socket | LGA 1366 |
| North Bridge | Intel X58 |
|---|---|
| South Bridge | ICH10R |
| Memory Slots | 6 x 240Pin |
|---|---|
| Max Memory Supported | 24GB |
| Memory Type Supported | DDR3 1333/1066/800 |
| Channel Supported | Triple Channel |
| ECC Supported | Yes |
| Serial ATA | 6 x SATA 300 |
|---|---|
| SATA RAID | RAID 0 |
| GPU/VPU | Integrated Video |
|---|
| PCI Express | 1 (x16) PCI-e 2.0 slot via riser card |
|---|
| First LAN | Intel 82574L |
|---|---|
| Second LAN | Intel 82574L |
| Max. LAN Speed | Dual 1 Gigabit |
| Front USB | 2 |
|---|---|
| COM | 1 |
| PS/2 | 2 |
| VGA | 1 |
| Rear USB | 2 |
| RJ45 | 2 |
| Max. Power | 200W Low Noise High-Efficiency (85%) AC-DC power supply with PFC |
|---|
| Features | Color: Black Processor: Intel Xeon Processor 5600 Series (Westmere) Intel Xeon Processor 5500 Series (Nehalem-EP) NOTE: Intel Xeon 3500 Series and Core i7 are Not Supported (Max TDP > 100 Watts) QPI (up to 6.4 GT/s) 1x 3.5" internal SATA drive bay Super I/O: Winbond 83627DHG chip Buttons: Power On/Off button System Reset button LEDs: Power LED Hard drive activity LED 2x Network activity LEDs System Overheat LED System Fans: 1 x 100mm blower fan Chassis intrusion detection Chassis intrusion header RoHS Compliant |
|---|

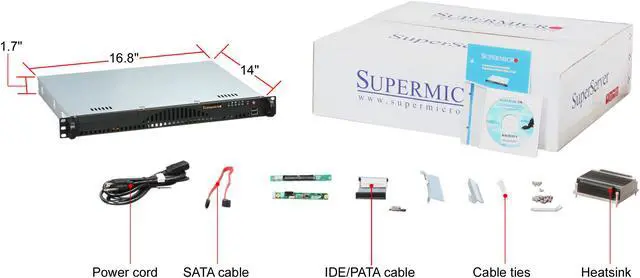

| Dimensions | 16.8" x 14.0" x 1.7" |
|---|---|
| Weight | 17 lbs. |
| First Listed on Newegg | July 07, 2010 |
|---|
