SUPERMICRO SYS-5017C-LF 1U Rackmount Server Barebone LGA 1155 Intel C202 DDR3 1333/1066/800

(16) Write a Review
  • 1 x LGA 1155 Support Intel Xeon E3-1200 & 2nd Generation Core i3 & Pentium
  • 4 x 240Pin Memory Slots
  • 32GB Max Memory Supported
  • 200W Low Noise AC-DC power supply with PFC
This item is covered under the Manufacturer Only Return Policy.
Overview
Specs
Reviews (16)
SYS-5017C-LF

SUPERMICRO SYS-5017C-LF 1U Rackmount Server Barebone



Key Features

SYS-5017C-LF
  • 1. Single socket H2 (LGA 1155) supports Intel® Xeon® E3-1200 & v2 series, 2nd Gen Core i3 processors*
  • 2. Intel® C202 PCH Chipset
  • 3. 1x 3.5" or optional 2x 2.5" internal SATA2 hard drive bays
  • 4. 1x PCI-E 3.0* x8 Low-profile slot
  • 5. Up to 32GB DDR3 ECC 1333MHz / 1600MHz* UDIMMs in 4 sockets
  • 6. Intel® 82579LM and 82574L, 2x Gigabit Ethernet LAN ports
  • 7. IPMI 2.0 on Dedicated LAN port
  • 8. 200W Low-noise power supply w/ PFC
  • 9. Disk-on-module (DOM) power connector


Specifications

Product SKUs
SYS-5017C-LF SuperServer 5017C-LF (Black)
Motherboard
Super X9SCL-F
Processor/Cache
CPU
  • Intel® Xeon® processor E3-1200 & v2 series, Intel® 2nd Gen and 3rd Gen Core i3, Intel® Pentium® and Celeron processors * ^
  • Socket H2 (LGA 1155)
NOTE Supports CPU models E3-1220L, E3-1220LV2, E3-1260L, with max. TDP ≤ 45W
System Memory
Memory Capacity
  • 4x 240-pin DDR3 DIMM sockets
  • Supports up to 32 GB DDR3 ECC Un-Buffered memory (UDIMM)
Memory Type
  • 1600*/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes 8GB, 4GB, 2GB, 1GB
Memory Voltage 1.5 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset Intel® C202 PCH chipset
SATA
  • 6x SATA 2.0 (3Gbps) w/ RAID 0, 1, 5, 10
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • Nuvoton WPCM450 BMC
Network Controllers
  • Intel® 82579LM and Intel® 82574L,
    2x Gigabit Ethernet LAN ports
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1x Realtek RTL8201N PHY (dedicated IPMI)
VGA Nuvoton WPCM450RA0BX
Super I/O Nuvoton NCT6776F
Input / Output
Serial ATA
  • 6 SATA 2.0 ports
  • Up to 2 SATA hard drives supported
LAN
  • 2x RJ45 LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
USB
  • 2x USB rear ports
  • 1x USB Type-A
  • 6x USB ports via header
  • Total 9 USB 2.0 Compliant
VGA 1x VGA port
Serial Port / Header
  • 2x Fast UART 16550 serial ports
     (one header and one rear port)


BIOS rev. 2.0 or above is needed to support new E3-1200 v2 CPUs, which supports PCI-E 3.0 & DDR3 1600.
^ Per Intel's spec, for platforms using C202/C204 PCH:

  • 1) Intel i5/i7 CPUs are not supported
  • 2) Intel E3-12x5 series processors which have integrated graphics support are not supported


Gallery

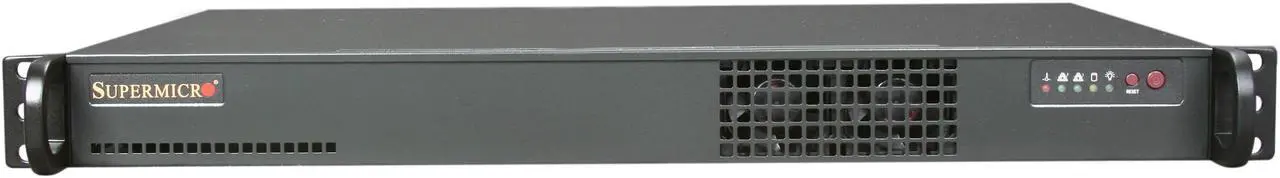

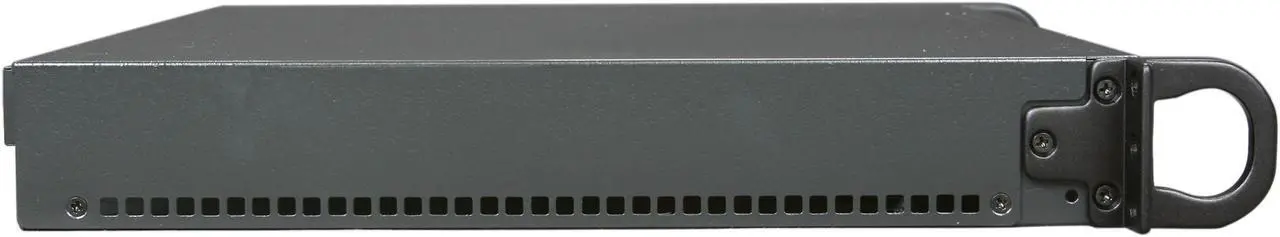

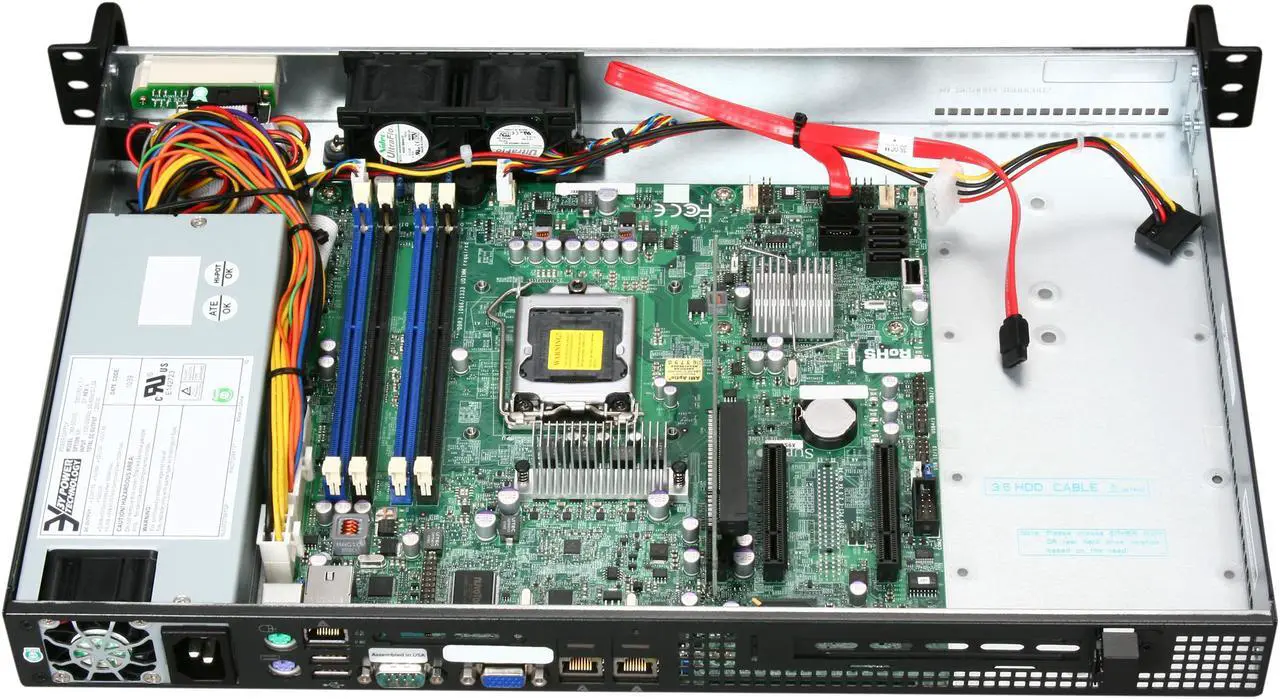

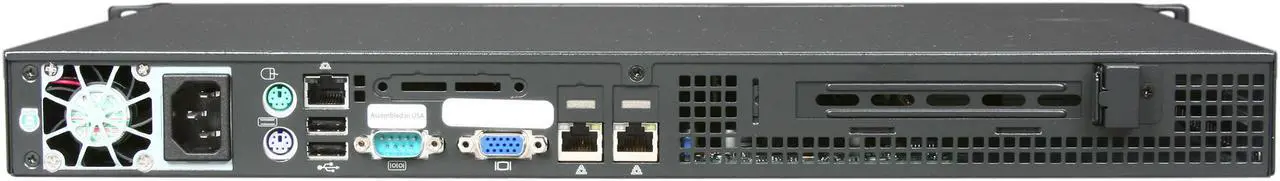

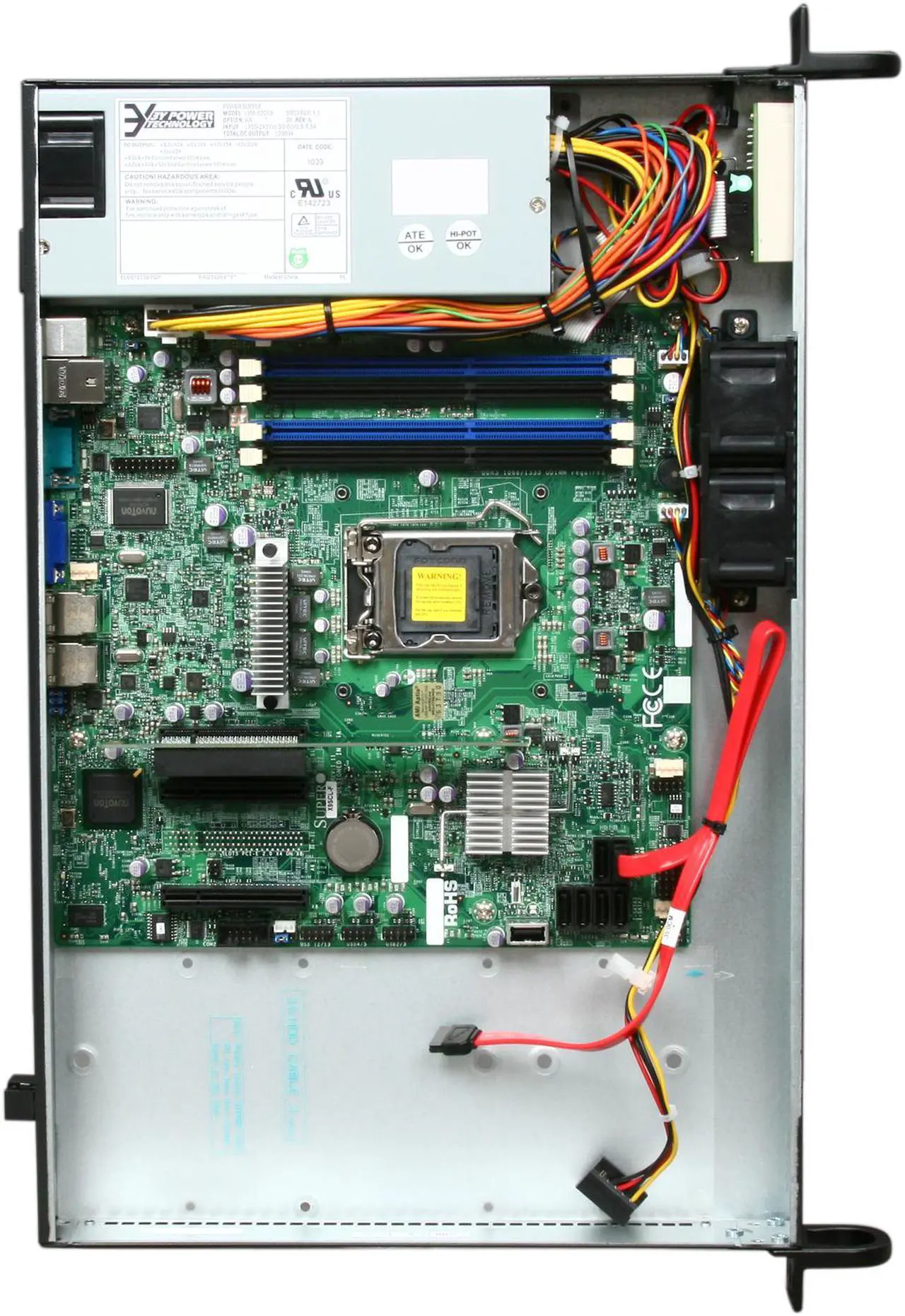

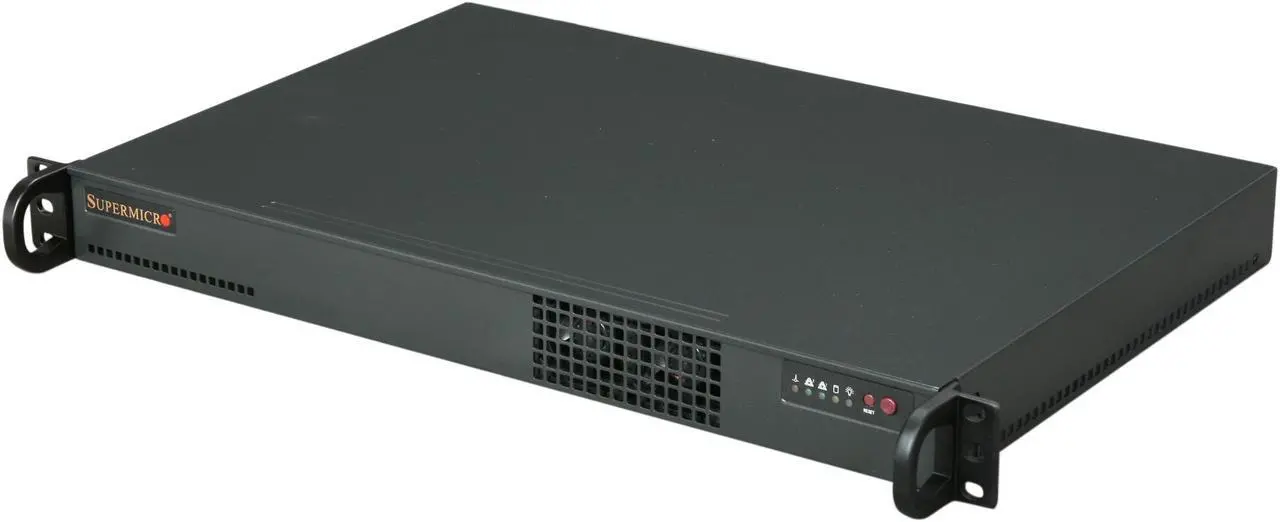

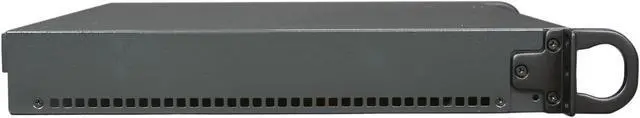

SYS-5017C-LF SYS-5017C-LF SYS-5017C-LF

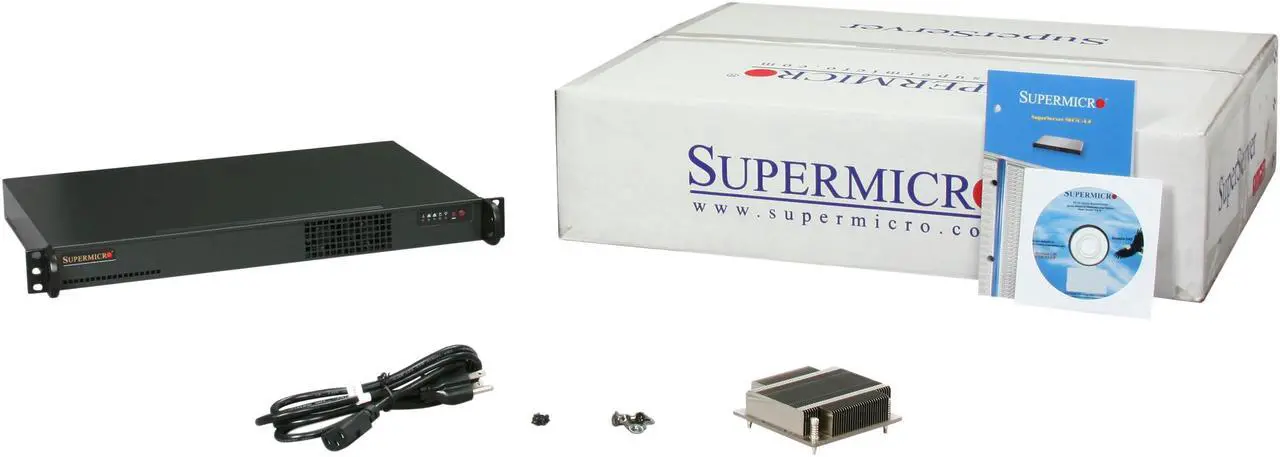

Whats in the Box

SYS-5017C-LF
