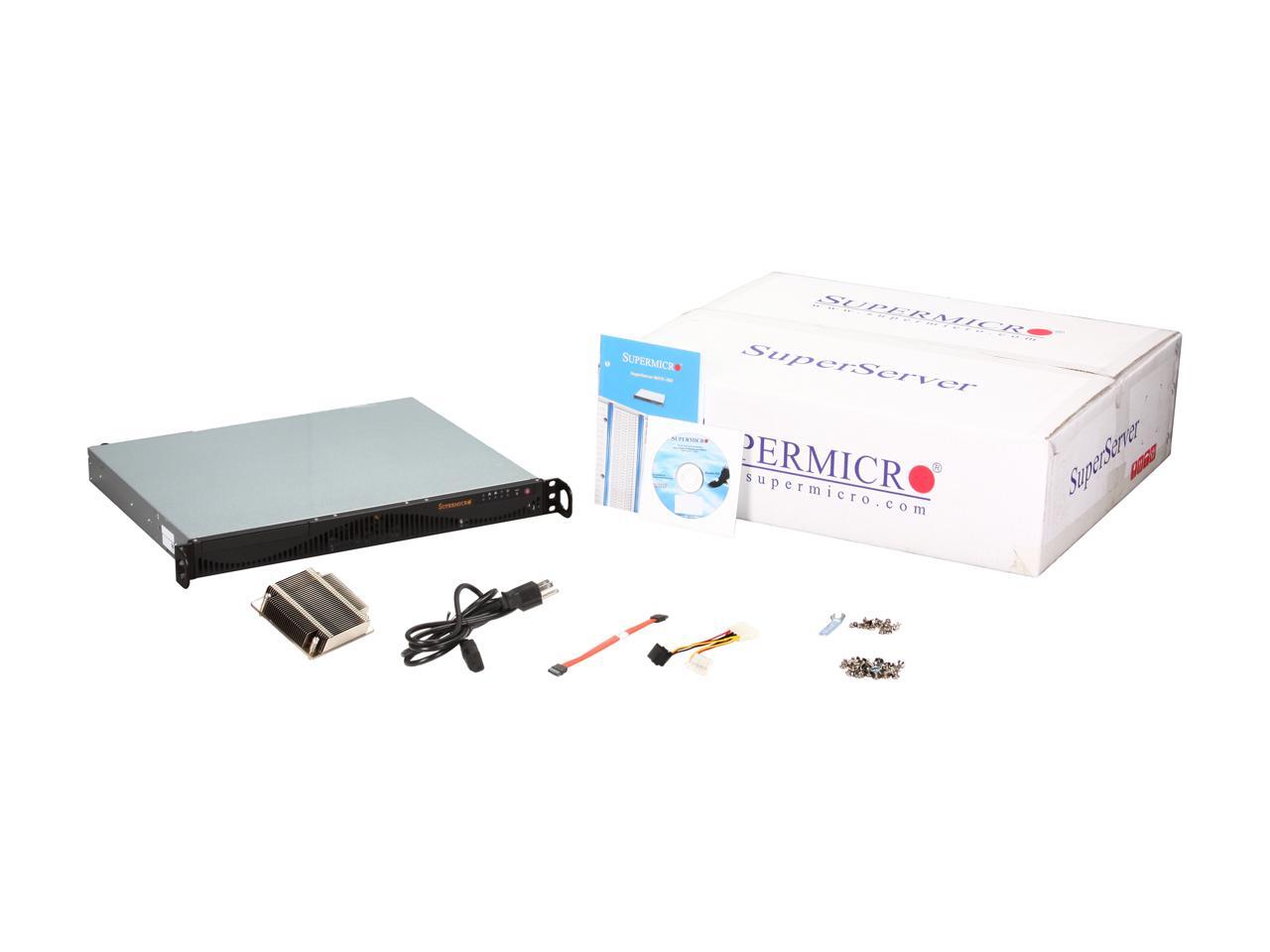

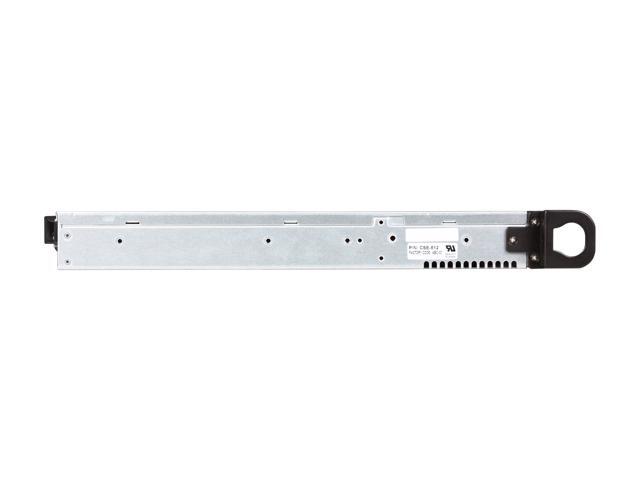

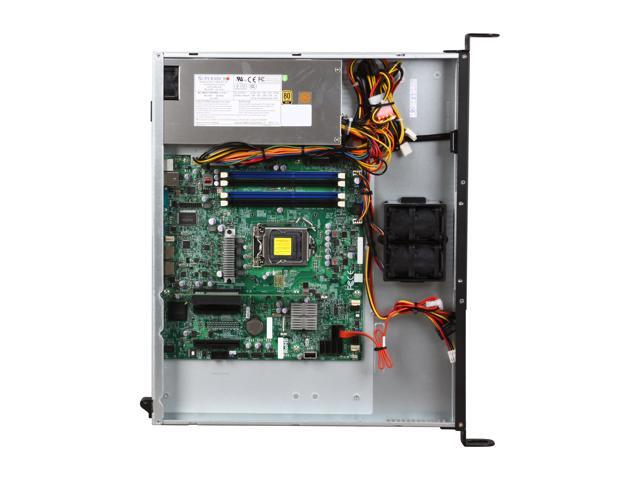

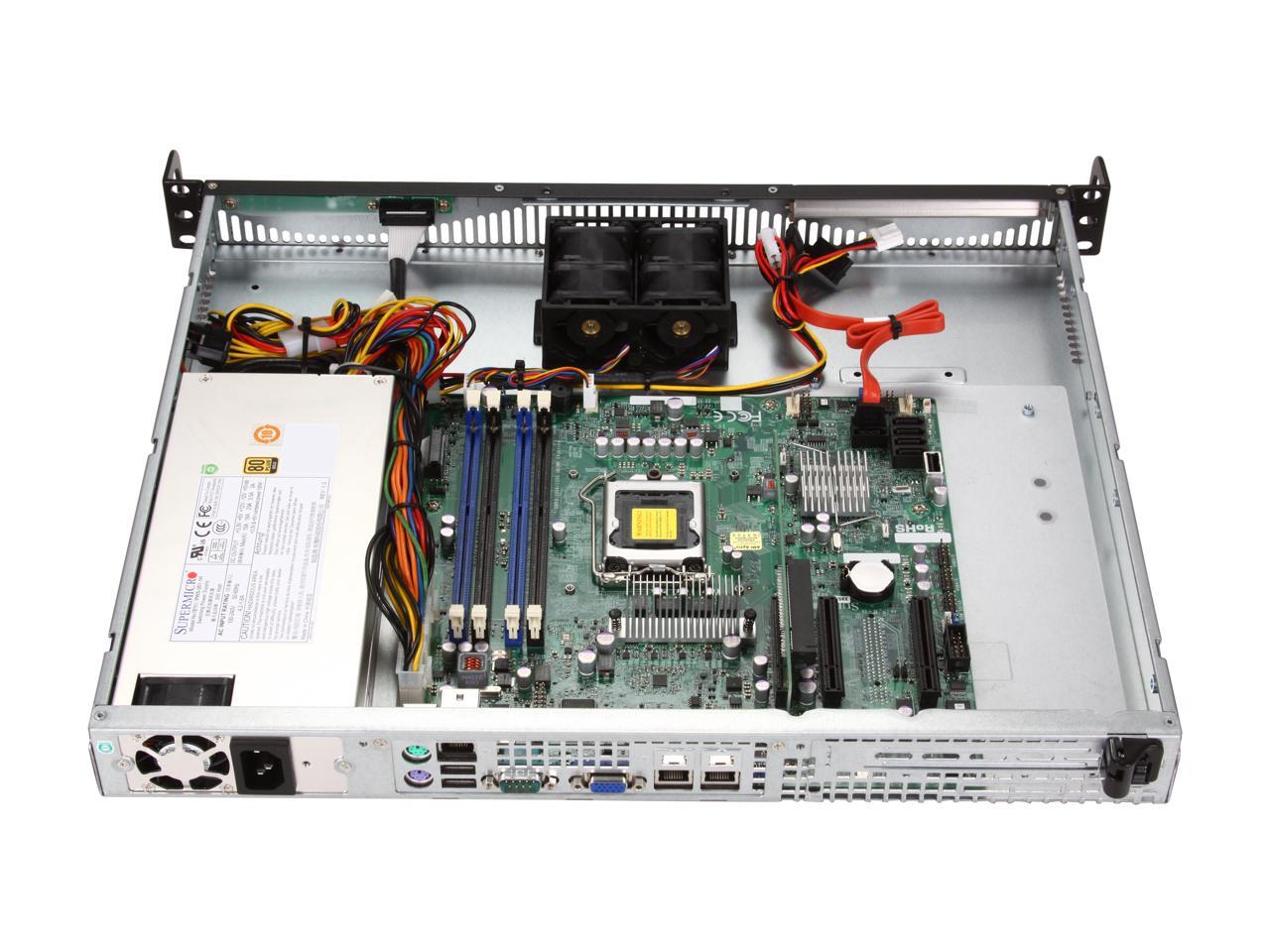

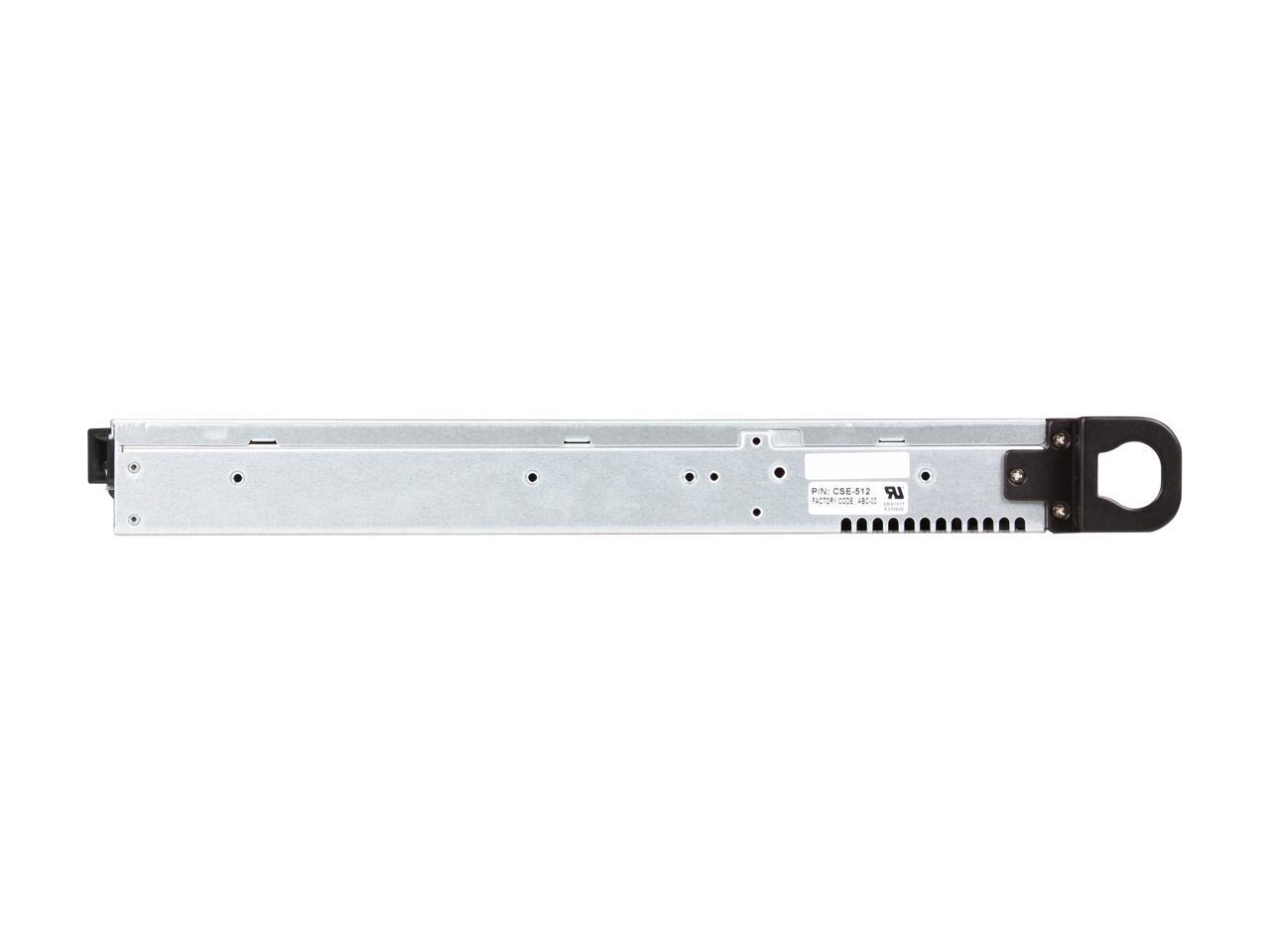

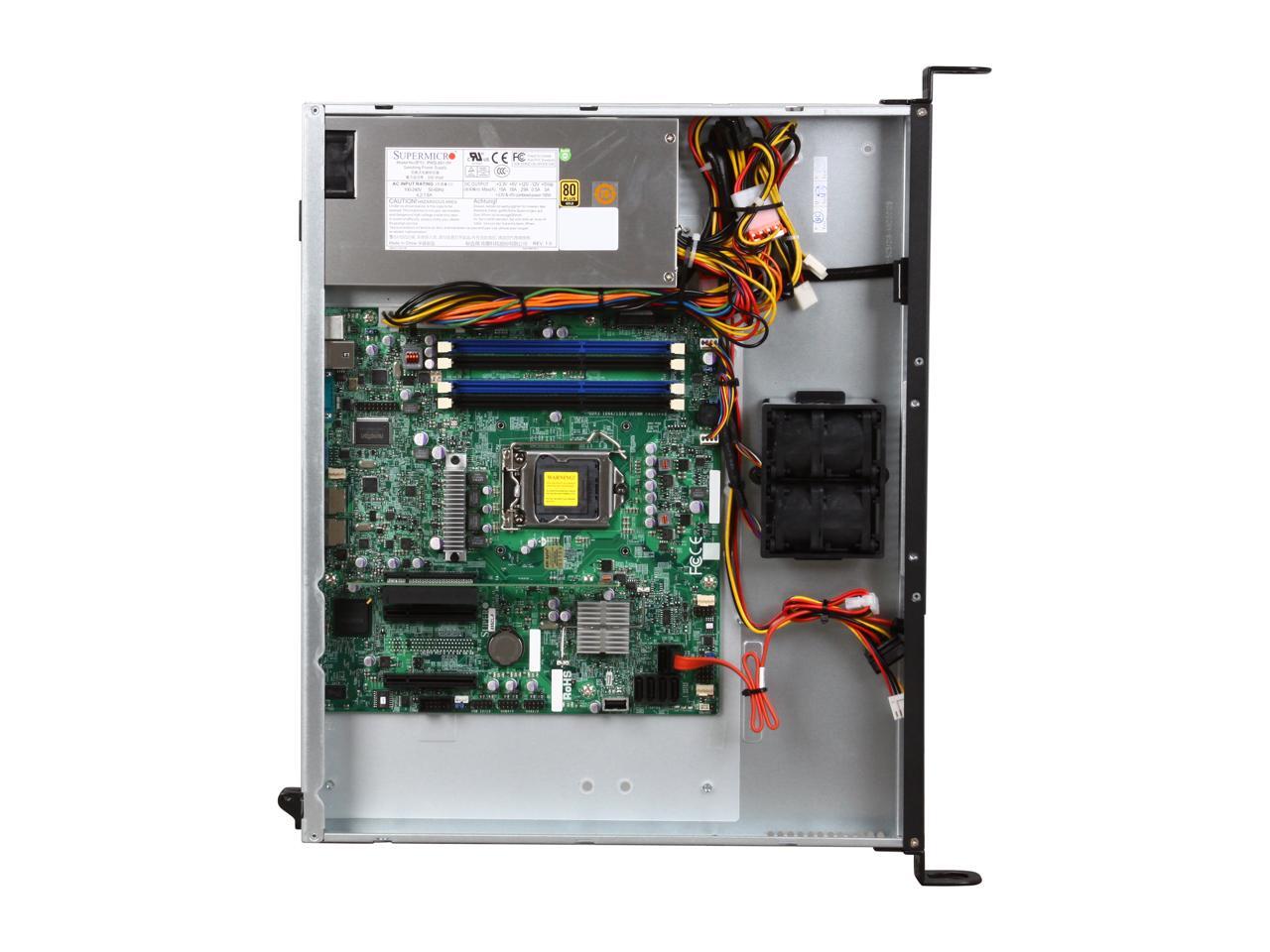

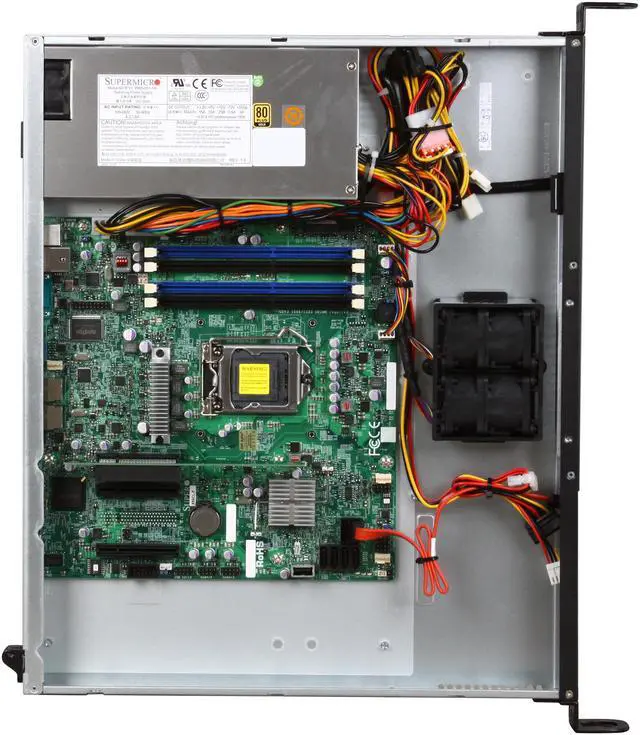

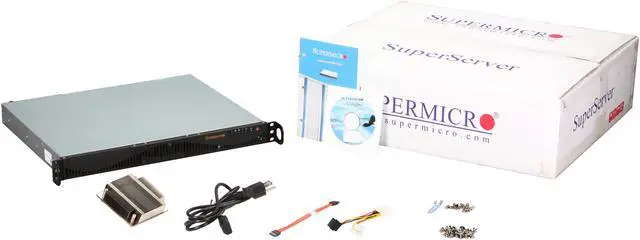

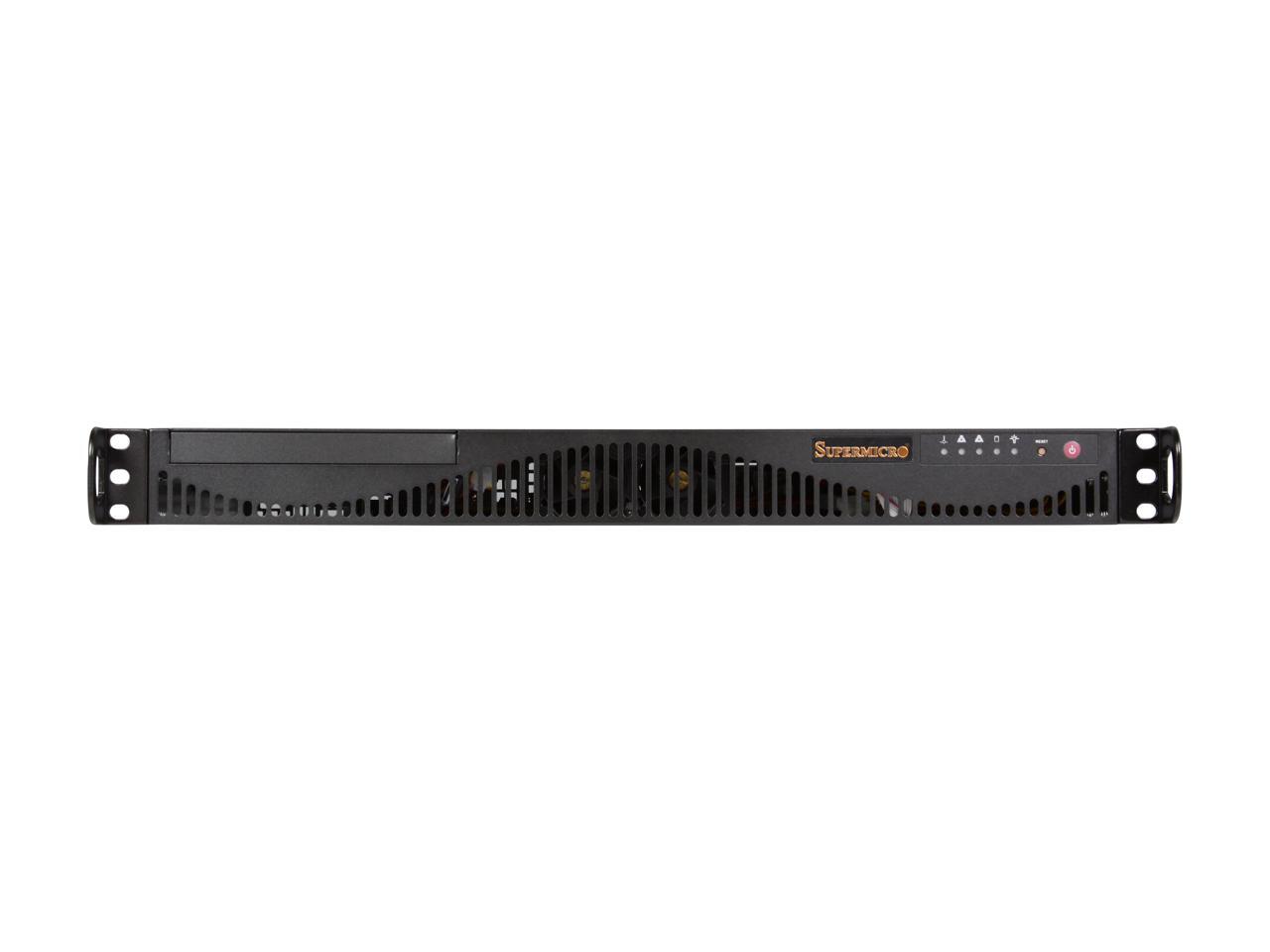

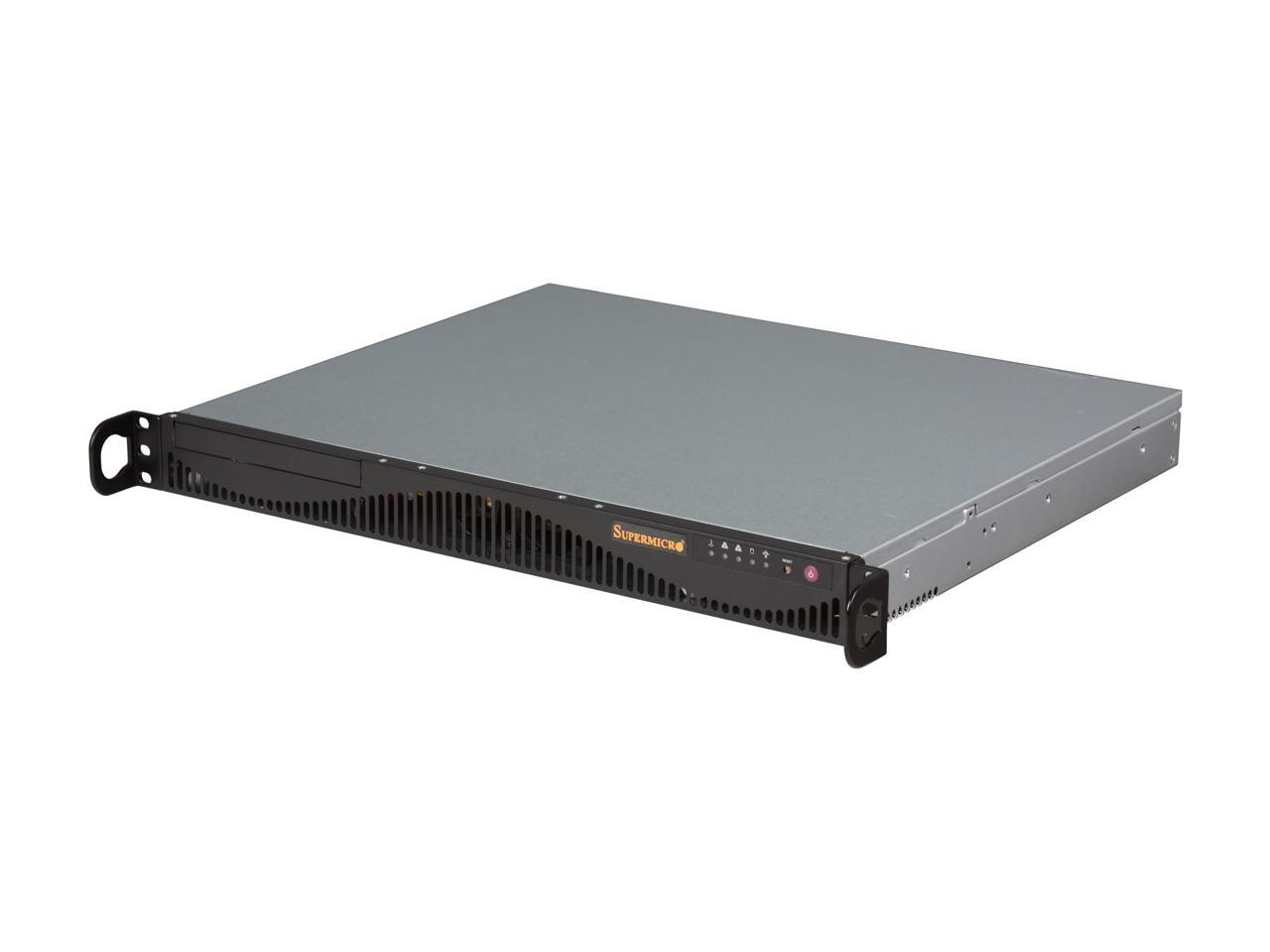

SUPERMICRO SYS-5017C-MF 1U Rackmount Server Barebone LGA 1155 Intel C202 DDR3 1333/1066/800

(8) Write a Review
  • 1 x LGA 1155 Support Intel Xeon E3-1200 & 2nd Generation Core i3
  • 4 x 240Pin Memory Slots (Max 32GB)
  • Support 6 x SATA 300 HDD
  • 350W AC power supply w/ PFC
This item is covered under the Manufacturer Only Return Policy.
Specs
Reviews (8)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Supermicro SYS-5017C-MF

General
Brand SUPERMICRO
Model SYS-5017C-MF
Form Factor 1U Rackmount
CPU Supported
CPU Type Intel Xeon E3-1200 & 2nd Generation Core i3
CPU Socket LGA 1155
Installed CPU No CPU Installed
Max Processors 1
Chipset
North Bridge Intel C202
Memory Supported
Memory Slots 4 x 240Pin
Installed Memory Size No Memory Installed
Max Memory Supported 32GB
Memory Type Supported DDR3 1333/1066/800
ECC Supported Yes
Storage Supported
Installed HDD No Storage Installed
Serial ATA 6 x SATA 300
SATA RAID RAID 0/1/5/10
Graphics
GPU/VPU Nuvoton WPCM450RA0BX
Expansion Slots
PCI Express 1 x PCI-E 2.0 x8 slot
Communications
First LAN Intel 82579LM
Second LAN Intel 82574L
Max. LAN Speed Dual 1 Gigabit
Expansion Bays
3.5" Bays 2

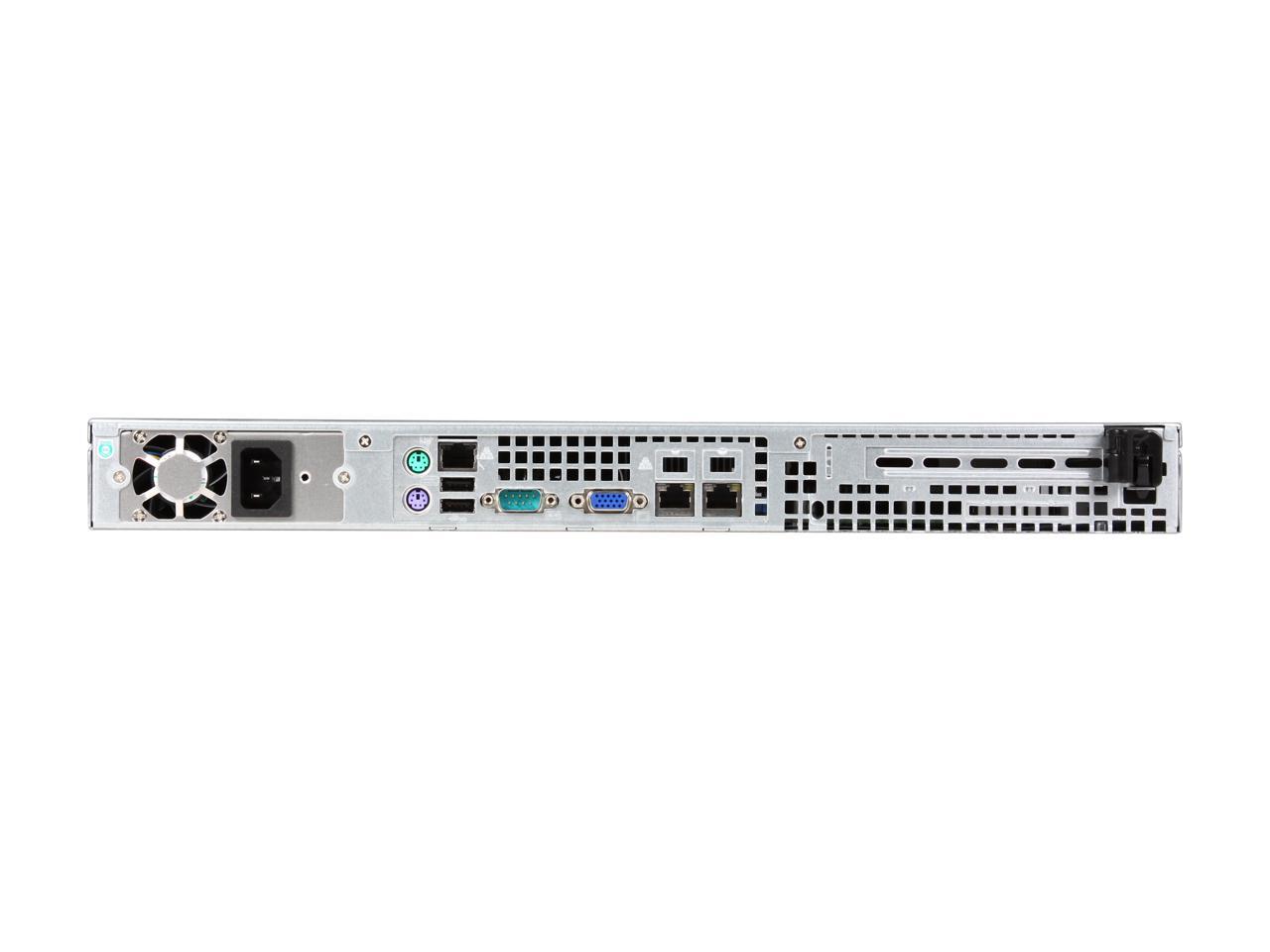

Panel Ports
COM 1
PS/2 2
VGA 1
Rear USB 2
RJ45 3
Power Supply
Max. Power 350W AC power supply w/ PFC
Features
Features Color: Black

Processor:
Intel Xeon processor E3-1200 family, Intel 2nd Generation Core i3 family processors.

IPMI 2.0 on Dedicated LAN port

Super I/O: Nuvoton NCT6776F

Buttons:
Power On/Off button
System Reset button

LEDs:
Power LED
Hard drive activity LED
2x Network activity LEDs
System Overheat LED

SAS/SATA HDD Backplane(SAS support requires optional SAS controller)

System Cooling:
2 x 4cm 4-pin PWM Fans
1 x Air Shroud

RoHS Compliant.
Dimensions & Weight
Dimensions 17.2" x 14.5" x 1.7"
Weight 38 lbs. (Gross)
