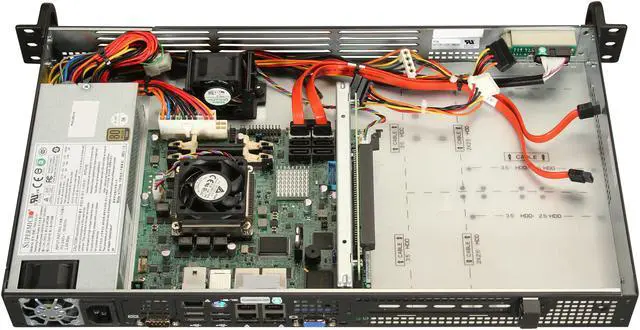

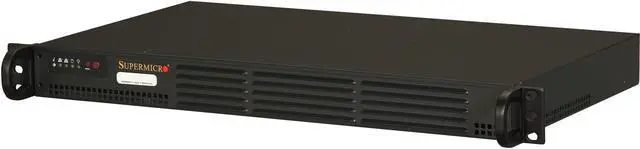

SUPERMICRO SYS-5017P-TLN4F 1U Rackmount Server System Intel QM77 DDR3 1866 / 1600 / 1333

(1) Write a Review
  • Embedded 3rd Gen. Intel Core i7-3612QE Mobile ECC processor
  • Intel QM77 Chipset
  • 2x 3.5" or 4x 2.5" internal SATA2 * Hard drive bays (optional)
  • 1x PCI-E 3.0 x16 slot
This item is covered under the Manufacturer Only Return Policy.
Overview
Specs
Reviews (1)
See all Q & A
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now
SYS-5017P-TLN4F

SUPERMICRO SYS-5017P-TLN4F Server Barebone

Features

SYS-5017P-TLN4F
  • Embedded 3rd Gen. Intel® Core i7-3612QE Mobile ECC processor (up to 3.1GHz, 6M Cache)
  • Intel® QM77 Chipset
  • 2x 3.5" or 4x 2.5" internal SATA2 * Hard drive bays (optional)
  • 1x PCI-E 3.0 x16 slot**
  • Up to 16GB ECC DDR3 1066/1333MHz on 2x SO-DIMMs
  • Intel® 82574L; 4x GbE LAN ports
  • IPMI 2.0 on Dedicated LAN port
  • 200W Low-noise power supply w/ PFC
  • Disk-on-module (DOM) power connector

Specifications

Product SKUs
SYS-5017P-TLN4F SuperServer 5017P-TLN4F (Black)
Motherboard
Motherboard Super X9SPV-LN4F-3QE
Processor/Cache
CPU Embedded 3rd Gen. Intel® Core i7-3612QE Mobile ECC processor (up to 3.1GHz, 6M Cache)
System Memory
Memory Capacity
  • 2x 204-pin DDR3 SODIMM slots
  • Supports up to 16 GB DDR3 ECC memory
Memory Type 1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes 8GB, 4GB, 2GB
Memory Voltage 1.5 V, 1.35 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset Intel® QM77 Chipset
SATA
  • SATA 2.0 3Gbps with RAID 0, 1, 5, 10
  • SATA 3.0 6Gbps with RAID 0, 1
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • Nuvoton WPCM450 BMC
Network Controllers
  • Intel® 82574L Gigabit Ethernet controllers 4x Gigabit LAN ports
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1x Realtek RTL8201F PHY (dedicated IPMI)
Graphics Intel Integrated Graphics HD 4000 or Matrox G200eW to VGA via BIOS setup
Input / Output
SATA
  • 2x SATA 3.0 ports (6Gbps)
  • 4x SATA 2.0 ports (3Gbps)
LAN
  • 4x RJ45 LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
USB
  • 4x USB 3.0 ports (via header)
  • 6x USB 2.0 ports (4 rear, 2 via header)
VGA 1x VGA port
Serial Port / Header 2x COM ports (1 rear, 1 header)
System BIOS
BIOS Type 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • DMI 2.3
  • PCI 2.3
  • ACPI 1.0 / 2.0
  • USB Keyboard support
  • SMBIOS 2.3

Whats in the Box

SYS-5017P-TLN4F

These compact, low-power server systems offer incredible performance in a small form factor. Features include DDR3 with ECC support, SATA3 storage interface with RAID, PCI-E 3.0, and multiple Gigabit Ethernet network ports. In addition, remote management/console over network is built-in, based on IPMI 2.0. Graphics support for APIs such as DX11, OpenCL 1.1, and OpenGL 3.1 provide even more value for end applications.
