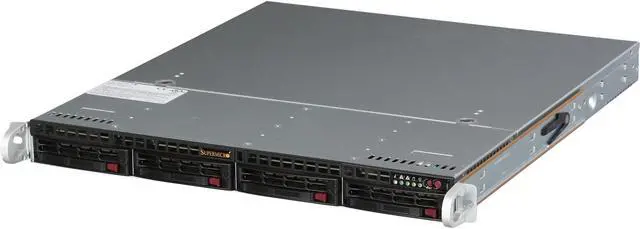

Main image of SUPERMICRO SYS-5018A-MLHN4 1U Rackmount Server Barebone (Black) FCBGA 1283 DDR3 1600/1333

Alt view image 2 of 7 - SUPERMICRO SYS-5018A-MLHN4 1U Rackmount Server Barebone (Black) FCBGA 1283 DDR3 1600/1333

Alt view image 3 of 7 - SUPERMICRO SYS-5018A-MLHN4 1U Rackmount Server Barebone (Black) FCBGA 1283 DDR3 1600/1333

Alt view image 4 of 7 - SUPERMICRO SYS-5018A-MLHN4 1U Rackmount Server Barebone (Black) FCBGA 1283 DDR3 1600/1333

Alt view image 5 of 7 - SUPERMICRO SYS-5018A-MLHN4 1U Rackmount Server Barebone (Black) FCBGA 1283 DDR3 1600/1333

Alt view image 6 of 7 - SUPERMICRO SYS-5018A-MLHN4 1U Rackmount Server Barebone (Black) FCBGA 1283 DDR3 1600/1333

Alt view image 7 of 7 - SUPERMICRO SYS-5018A-MLHN4 1U Rackmount Server Barebone (Black) FCBGA 1283 DDR3 1600/1333

Shop All Supermicro Products

SUPERMICRO SYS-5018A-MLHN4 1U Rackmount Server Barebone (Black) FCBGA 1283 DDR3 1600/1333

Be the first to review this product...

FCBGA 1283
Intel Atom C2550 2.4GHz 4C/4T TDP 14W
4 x 240Pin Memory Slots (max 64GB)
Support 2 x SATA 600 + 4 x SATA 300 HDD
200W Low Noise AC-DC power supply with PFC

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Supermicro's systems based on the Intel® Atom™ processor C2000 series System-on-Chip are well-suited for entry-level server platforms and embedded IPC market applications.

General
Brand	SUPERMICRO
Model	SYS-5018A-MLHN4
Form Factor	1U Rackmount

CPU Supported
CPU Type	Intel Atom C2550 2.4GHz 4C/4T TDP 14W
CPU Socket	FCBGA 1283
Installed CPU	1
Max Processors	1

Memory Supported
Memory Slots	4 x 240Pin
Installed Memory Size	No Memory Installed
Max Memory Supported	64GB
Memory Type Supported	DDR3 1600/1333
ECC Supported	Yes

Storage Supported
Installed HDD	No Storage Installed
Serial ATA	2 x SATA 600 + 4 x SATA 300

Graphics
GPU/VPU	BMC integrated Aspeed AST2400

Communications
First LAN	C2000 SoC I354 Quad GbE Controller
Max. LAN Speed	1 Gigabit

Expansion Bays
Hot-Swap Bays	4x 3.5" Hot-swap SATA2 hard drive bays

Panel Ports
COM	2x Fast UART 16550 Serial Port (1 rear, 1 via header)
VGA	1
Rear USB	7x USB 2.0 ports (4 rear, 1 Type A, 2 via header)
RJ45	4x RJ45 Gigabit Ethernet LAN ports 1x RJ45 Dedicated IPMI LAN port

Power Supply
Max. Power	200W Low Noise AC-DC power supply with PFC

Features
Features	1x SATA DOM (Disk on Module) power connector TPM 1.2 header Front Panel Buttons Power On/Off button System Reset button LEDs Power LED Hard drive activity LED 2x Network activity LEDs System Overheat LED IPMI Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support Aspeed AST 2400 BMC

Dimensions & Weight
Dimensions	19.8" x 17.2" x 1.7" (D x W x H)
Weight	Net: 8lbs Gross: 31lbs

Additional Information
First Listed on Newegg	June 10, 2014
