Supermicro SuperServer 5018D-FN8T Xeon D Mini 1U Rackmount, 10 GbE LAN, SFP+, IPMI
- Intel Xeon D-1518 2.2 GHz
- 1 x 3.5" drive bay or up to 4 x 2.5" drive bays
- 1 x PCI-E 3.0 x8 slot, M.2 PCIe 3.0 x4
- Up to 128GB ECC RDIMM or 64GB ECC / non-ECC

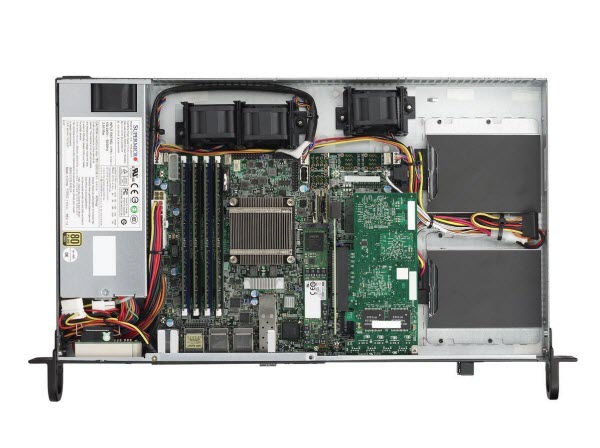

The Supermicro SuperServer 5018D-FN8T features the Intel Xeon D-1518 Quad Core Processor with two SFP+ 10Gb ports, six 1GbE ports and a dedicated IPMI port. The entire configuration is enclosed in a compact (9.8" depth) 1U rackmount chassis with front-access I/O ports. The Intel Xeon D provides a power-efficient platform that consumes less power and generates less heat than conventional server platforms. This server is suitable for Cloud and Virtualization, networking and other embedded applications.
Integrated Board: X10SDV-TP8F
The four DDR4 DIMM sockets support up to 128GB DDR4 ECC RDIMM or up to 64GB DDR4 ECC/non-ECC UDIMM. The motherboard comes with one PCIe 3.0 x8 slot and four SATA 3 ports.
The motherboard has one M.2 slot. M.2 supports a variety of card sizes with increased functionality and spatial efficiency. It supports PCI-E 3.0 x4 (32 Gb/s) SSD cards in the 2242, 2280 and 22110 form factors.
One 40mm chassis fan combined with passive heatsink provides excellent cooling efficiency while not producing excess noise. Less heat means higher performance without throttling.
The high-efficiency, 80 PLUS Gold Certified 200W low-noise power supply ensures all the components run stably and quietly at full load.
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 1 year
- Limited Warranty period (labor): 3 years
- Read full details
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by BuyVPC Return Policy
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-408-503-8000
- Support Website
- View other products from Supermicro
Pros: Small form factor. Low power consumption. 6 onboard NIC's, 2 SFP+ ports and 1 IPMI. Factory installed processor and heat sink. Plenty of fans for cooling (including installed peripheral cards). Reasonably quiet after boot. High value/ high ROI when compared to other competitive security gateway platforms.
Cons: None thus far.
Overall Review: This unit was purpose built as a pfSense firewall/router installed with most of the additional available security packages and deployed in a small business environment. I have added a 500M solid state drive, 32G of Crucial ECC RAM along with an additional 4 port Intel server NIC. The unit has more than enough capability to handle the network traffic for my company with plenty of room for expansion. It boots and loads within 3 minutes and operates as expected. Compatible 'generic' 10Gb fiber port SPF+ modules were easy to find and competitively priced. This unit was incredibly easy to set up, boot and provision going from lab to production in 2 days without a hiccup. Most of my company servers are built with Supermicro Brand products - some are 12 years old - and still operate flawlessly in a production environment. This unit appears to have the same high quality construction and features I have experienced with Supermicro's other product lines. I would highly recommend this product for use as a security gateway.
