Supermicro's systems based on the Intel® Xeon® processor D / Pentium D System-on-Chip are well-suited for Space-efficient, compact design, less than 10 depth (32 depth for 12x 3.5 drive bay high-density storage SKUs), Best Performance per Watt, Fast to build and deploy. Product Type: Server Product Type: Server Input Voltage: 230 V AC Input Voltage: 120 V AC Manufacturer Part Number: SYS-5018D-FN8T Limited Warranty: 3 Year Weight (Approximate): 8 lb Form Factor: Rack-mountable Processor Speed: 2.20 GHz Processor Type: Xeon Form Factor: Rack-mountable Manufacturer: Supermicro Computer, Inc Product Model: 5018D-FN8T Product Name: Super Server 5018D-FN8T (Black) Processor Speed: 2.20 GHz Processor Type: Xeon Product Line: Super Server Controller Type: Serial ATA/600 Rack Height: 1U Brand Name: Supermicro Rack Height: 1U Brand Name: Supermicro Memory Technology: DDR4 SDRAM Processor Model: D-1518 Processor Model: D-1518 Height: 1.7 Width: 17.2 Depth: 9.8 Processor Core: Quad-core (4 Core) Environmentally Friendly: Yes Processor Manufacturer: Intel Number of Processors Supported: 1 Number of Processors Installed: 1 Maximum Power Supply Wattage: 200 W Product Family: Super Server Processor Core: Quad-core (4 Core) Environmentally Friendly: Yes Environmental Certification: RoHS Processor Manufacturer: Intel Graphics Controller Manufacturer: ASPEED Graphics Controller Model: AST2400 Number of Power Supplies Installed: 1 Number of Total Memory Slots: 4 Number of Processors Supported: 1 Number of Processors Installed: 1 Ethernet Technology: 10 Gigabit Ethernet Maximum Power Supply Wattage: 200 W
SuperServer 5018D-FN8T

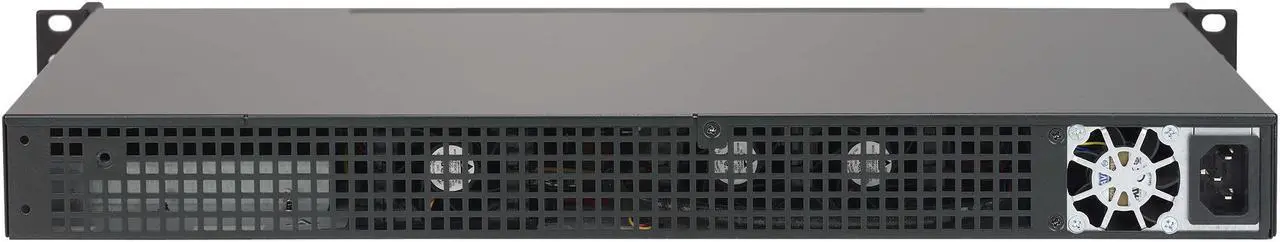

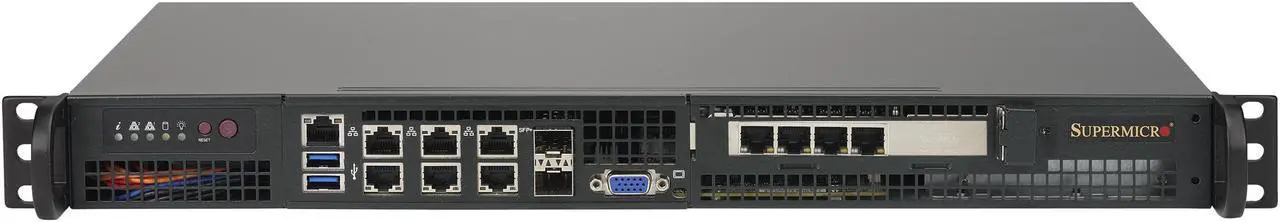

The Supermicro SuperServer 5018D-FN8T features the Intel Xeon D-1518 Quad Core Processor with two SFP+ 10Gb ports, six 1GbE ports and a dedicated IPMI port. The entire configuration is enclosed in a compact (9.8" depth) 1U rackmount chassis with front-access I/O ports. The Intel Xeon D provides a power-efficient platform that consumes less power and generates less heat than conventional server platforms. This server is suitable for Cloud and Virtualization, networking and other embedded applications.
Integrated Board: X10SDV-TP8F
FEATURES
Excellent Expandability
The four DDR4 DIMM sockets support up to 128GB DDR4 ECC RDIMM or up to 64GB DDR4 ECC/non-ECC UDIMM. The motherboard comes with one PCIe 3.0 x8 slot and four SATA 3 ports.
M.2 Slot for Fast Storage
The motherboard has one M.2 slot. M.2 supports a variety of card sizes with increased functionality and spatial efficiency. It supports PCI-E 3.0 x4 (32 Gb/s) SSD cards in the 2242, 2280 and 22110 form factors.
Advanced Cooling System
One 40mm chassis fan combined with passive heatsink provides excellent cooling efficiency while not producing excess noise. Less heat means higher performance without throttling.
Great Power Supply
The high-efficiency, 80 PLUS Gold Certified 200W low-noise power supply ensures all the components run stably and quietly at full load.
Learn more about the Supermicro SYS-5018D-FN8T
Model
Brand
SUPERMICRO
Model
SYS-5018D-FN8T
CPU Supported
CPU Type
Intel Xeon processor D-1518, 2.2 GHz; CPU TDP support 35W FCBGA 1667
CPU Socket
FCBGA 1667
Memory Supported
Max Memory Supported
Supports up to 128GB DDR4 ECC RDIMM Supports up to 64GB DDR4 ECC / non-ECC UDIMM
