SUPERMICRO SYS-5019C-MR 1U Rackmount Server Barebone LGA 1151 Intel C246 DDR4 2666 / 2400 / 2133 MHz ECC SDRAM

OUT OF STOCK.
  • LGA 1151
  • Single Socket H4 (LGA 1151), CPU TDP support up to 95W
  • Support Intel Xeon Processor E-2100 series, 8th Gen. Intel Core i3 / Pentium / Celeron Processors
  • 400W 1U Redundant Power Supplies with PMbus
Specs
Reviews

Learn more about the Supermicro SYS-5019C-MR

Best Seller Ranking #12 in Server Barebones
Model
Brand SUPERMICRO
Model SYS-5019C-MR
CPU Supported
CPU Type Single Socket H4 (LGA 1151), CPU TDP support up to 95W
Support Intel Xeon Processor E-2100 series, 8th Gen. Intel Core i3 / Pentium / Celeron Processors
CPU Socket LGA 1151
Chipset
North Bridge Intel C246
Memory Supported
Max Memory Supported 4 x DIMM slots
Up to 128GB Unbuffered ECC UDIMM
Up to DDR4-2666 MHz
Memory Type Supported DDR4 2666 / 2400 / 2133 MHz ECC SDRAM
ECC Supported Yes
Storage Supported
Serial ATA 6 x SATA 600
SATA RAID RAID 0/1/5/10
Graphics
GPU/VPU Aspeed AST2500 BMC
Expansion Slots
PCI Express 1 x PCI-E 3.0 x16 slot
Communications
Number of LAN Dual LAN with Intel I210-AT
First LAN Intel I210-AT
Second LAN Intel I210-AT
Expansion Bays
Hot-Swap Bays 4 x Hot-swap 3.5" drive bays

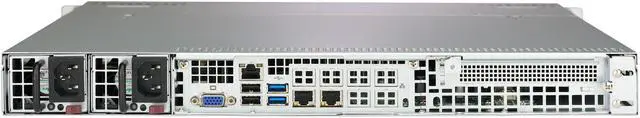

Panel Ports
Rear USB 2 x USB 3.1 ports (rear)
2 x USB 2.0 ports (rear)
RJ45 2 x RJ45 Gigabit Ethernet LAN ports
1 x RJ45 Dedicated IPMI LAN port
Power Supply
Max. Power 400W 1U Redundant Power Supplies with PMbus
Features
Features Single socket H4 (LGA 1151) supports Intel Xeon processor E-2100, 8th Gen. Intel Core i3 Processors, Intel Celeron, Intel Pentium

Intel C246 chipset

Up to 128GB ECC UDIMM, up to DDR4-2666 MHz; 4 x DIMM slots

1 x PCI-E 3.0 x16 slot

4 x Hot-swap 3.5" drive bays

M.2 Interface:
1 x SATA/PCI-E 3.0 x4 and 1 x PCI-E 3.0 x4
M.2 Form Factor: 2260/2280/22110
M.2 Key: M-Key

2 x GbE LAN ports, 1 x dedicated IPMI LAN

2 x USB 3.1 (rear), 2 x USB 2.0 (rear)

1 x VGA, 2 x COM, 1 x TPM header

400W High efficiency (96%) Redundant PSU; Platinum Level
Details
Form Factor 1U Rackmount
Dimensions & Weight

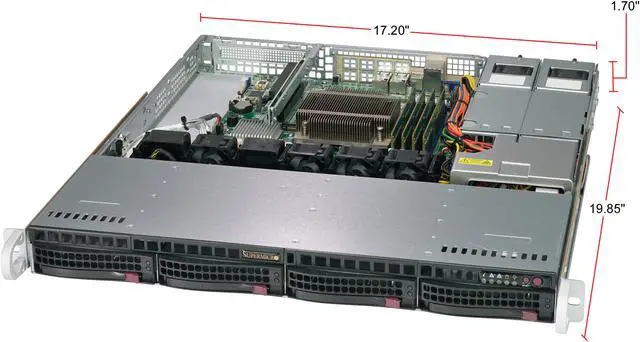

Dimensions 1.70" x 17.20" x 19.85"
Weight 21.00 lbs.
Additional Information
Date First Available February 14, 2019
