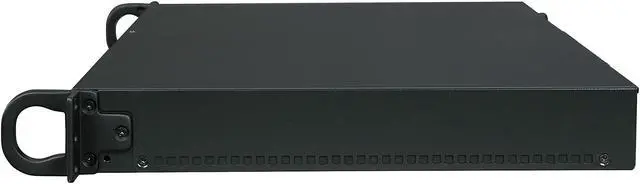

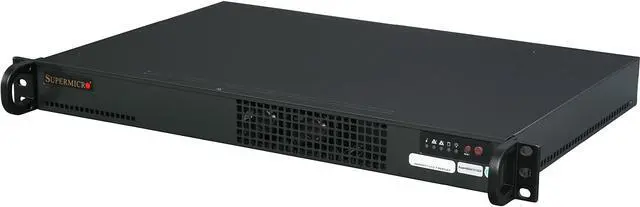

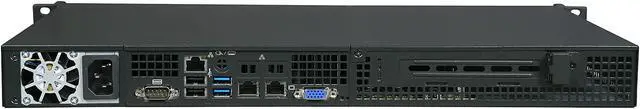

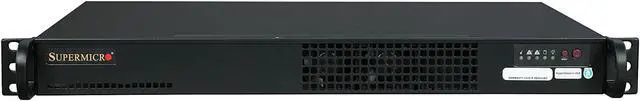

SUPERMICRO SYS-5019S-L 1U Rackmount Server Barebone LGA 1151 Intel C232 DDR4 2133/1866/1600

(8) Write a Review
  • Single Socket H4 (LGA 1151) supports Intel Xeon processor E3-1200 v6 / v5, Intel 7th / 6th Gen. Core i3 series
  • 1 x 3.5" Fixed drive bay or 2 x 2.5" drive option
  • Up to 64GB Unbuffered ECC UDIMM DDR4 2400 MHz; 4 x DIMM slots
  • 1 x PCI-E 3.0 x8 AOC slot
  • 2 x GbE ports with Intel i210-AT, 1 x Dedicated IPMI port
  • 1 x VGA, 1 x COM, 2 x USB 3.0, 2 x USB 2.0
  • 200W Multi-output power supply
Overview
Specs
Reviews (8)
See all Q & A
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now
SYS-5019S-L

SUPERMICRO SYS-5019S-L 1U Rackmount Server Barebone

Features

SYS-5019S-L
  • Mainstream, Entry Appliance
  • Low Power, Cost effective
  • Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v5, Intel® 6th Gen. Core™ i3 series
  • Intel® C232 chipset
  • 1x 3.5" Fixed drive bay or 2x 2.5" drive option
  • Up to 64GB Unbuffered ECC UDIMM DDR4 2133MHz; 4x DIMM slots
  • 1x PCI-E 3.0 x8 AOC slot
  • 2x GbE ports with Intel® i210-AT 1x shared IPMI port
  • I/O ports: 1x VGA, 1x COM, 2x USB 2.0, USB 3.0
  • 200W Multi-output power supply

Integrated Board

SYS-5019S-L
  • Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v5, Intel® 6th Gen. Core™ i3 series, Intel® Celeron® and Intel® Pentium®
  • Intel® C232 chipset
  • Up to 64GB Unbuffered ECC UDIMM DDR4 2133MHz; 4x DIMM slots
  • Expansion slots: 1 PCI-E 3.0 x8 (in x16), 1 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8)
  • Dual GbE LAN with Intel® i210-AT
  • 6x SATA3 (6Gbps) via C232; RAID 0, 1, 5, 10
  • I/O: 1x VGA, 1x COM, TPM header
  • 2x SuperDOM with built-in power
  • 5x USB 3.0 (2 rear + 2 via header + 1 Type A), 6x USB 2.0 (2 rear + 4 via headers)
  • Integrated IPMI 2.0 and KVM with Dedicated LAN

Specifications

Product SKUs
SYS-5019S-L SuperServer 5019S-L (Black)
Motherboard
Motherboard Super X11SSL-F
Processor/Cache
CPU
  • Single Socket H4 (LGA 1151) supports:
  • Intel® Xeon® processor E3-1200 v5, Intel® 6th Gen Core™ i3
  • CPU TDP up to 45W, 80W option fan
System Memory
Memory Capacity
  • 4x 288-pin DDR4 DIMM slots
  • Up to 64GB DDR4 ECC UDIMM
Memory Type 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
DIMM Sizes 16GB, 8GB, 4GB
Memory Voltage 1.2 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset Intel® C232 chipset
SATA
  • SATA3 (6Gbps) via C232 controller
  • RAID 0, 1, 5, 10 support
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • Dual Intel® I210-AT Gigabit Ethernet LAN ports
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Video ASPEED AST2400 BMC
Expansion Slots
PCI-Express 1x PCI-E 3.0 x8 AOC slot
Input / Output
SATA 2x SATA3 (6Gbps) ports
LAN
  • 2x RJ45 Gigabit Ethernet LAN ports
  • 1x RJ45 Shared IPMI LAN port
USB
  • USB 3.0
  • 2x USB 2.0 ports
Video 1x VGA port
Serial Port / Header 1x COM ports (1 rear)
SuperDOM 2x SuperDOM (Disk on Module) ports with built-in power
System BIOS
BIOS Type 8MB SPI Flash EEPROM with AMI BIOS
BIOS Features
  • DMI 2.3
  • PCI 2.3
  • ACPI 1.0 / 2.0
  • USB Keyboard support
  • SMBIOS 2.3
PC Health Monitoring
Voltage Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
FAN
  • Total of 4 fan headers supporting up to 4 fans
  • 4 fans with tachometer status monitoring
  • Status monitor for speed control
  • Status monitor for on/off control
  • Low noise fan speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • I2C temperature sensing logic
  • Thermal Monitor 2 (TM2) support
  • PECI
LED
  • CPU / System Overheat LED
  • Suspend static indicator LED
  • UID/Remote UID
Other Features
  • Chassis intrusion detection
  • Chassis intrusion header
  • Chipkill support
  • RoHS, Halogen Free
Chassis
Form Factor 1U Rackmount
Model CSE-510-203B
Dimensions and Weight
Height 1.7" (43mm)
Width 17.2" (437mm)
Depth 11.3" (287mm)
Package
  • Net Weight: 8.45 lbs (3.83 kg)
  • Gross Weight: 12.55 lbs (5.69 kg)
Available Colors Black
Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • 2x Network activity LEDs
  • System Overheat LED
  • Information LED (temp., status)
Drive Bays
Optional 1x 3.5" or 2x 2.5" internal drive bays (fixed)
System Cooling
Fans
  • 2x 40x28mm 4-pin PWM Cooling Fans
  • 1x FAN-0147L4 option for 80W CPU
Power Supply
Power Supply 200W Low Noise AC-DC power supply with PFC
AC Voltage 100 - 240V, 50-60Hz, 2.6 Amp Max
+5V 8.0 Amp (max.)
+5V standby 2.0 Amp (max.)
+12V 16 Amp (max.)
-12V 0.5 Amp (max.)
+3.3V 8.0 Amp (max.)
Certification 80 Plus Gold Certified
Operating Environment / Compliance
RoHS RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)

What's in the Box

SYS-5019S-L
MAIN OVERVIEW FEATURES: Number of Processors Supported: 1Processor Socket: Socket H4 LGA-1151Processor Supported: Xeon,Core i364-bit Processing: YesChipset Manufacturer: IntelChipset Model: C232Maximum Memory: 64 GBMemory Technology: DDR4 SDRAMMemory Standard: DDR4-2133/PC4-17000Number of Total Memory Slots: 4Controller Type: Serial ATA/600RAID Supported: YesGraphics Controller Manufacturer: ASPEEDGraphics Controller Model: AST2400Ethernet Technology: Gigabit EthernetNumber of Total Expansion Slots: 1Number of PCI Express x8 Slots: 1Number of SATA Interfaces: 2Input Voltage: 120 V AC,230 V ACNumber of Power Supplies Installed: 1Maximum Power Supply Wattage: 200 WColor: BlackForm Factor: Rack-mountableRack Height: 1UHeight: 1.70" (43.18 mm)Width: 17.20" (436.88 mm)Depth: 11.30" (287.02 mm)Weight (Approximate): 3.83 kgPackage Contents: SuperServer 5019S-L (Black) 1 x Super X11SSL-F Motherboard 1 x 1U Chassis 1 x 35CM end to end, SATA CABLE, PB FREE, 26AWG, flat 1 x 5019S-L,QRG,HF,RoHS/REACH 1 x 1U PASSIVE CPU HS FOR INTEL LGA1156 1 x 1U 200W Multi-output 80Plus Gold PWS Environmentally Friendly: YesEnvironmental Certification: RoHSLimited Warranty: 3 Year

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 3 years
  • Read full details

Return Policies

  • Return for refund within: Non-refundable
  • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Replacement Only Return Policy. Read full return policy for details.
