SUPERMICRO SYS-5019S-M 1U Rackmount Server Barebone LGA 1151 Intel C236 DDR4 2133/1866/1600

Be the first to review this product...
  • LGA 1151
  • Intel Xeon E3-1200 v5, Intel 6th Gen Core i3
  • 4 x 288Pin Memory Slots
  • 350W AC power supply w/ PFC
Overview
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now
SYS-5019S-M

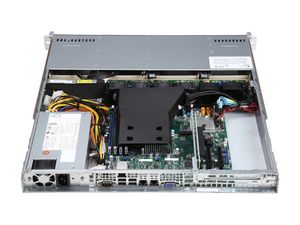

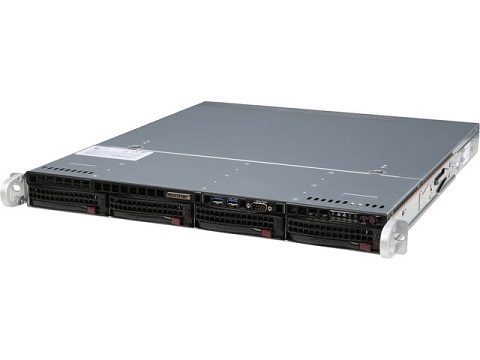

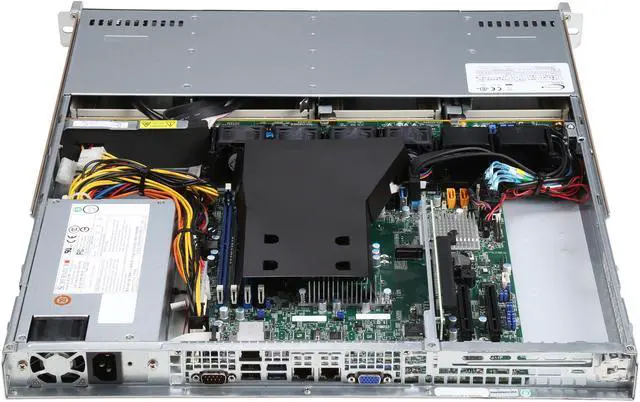

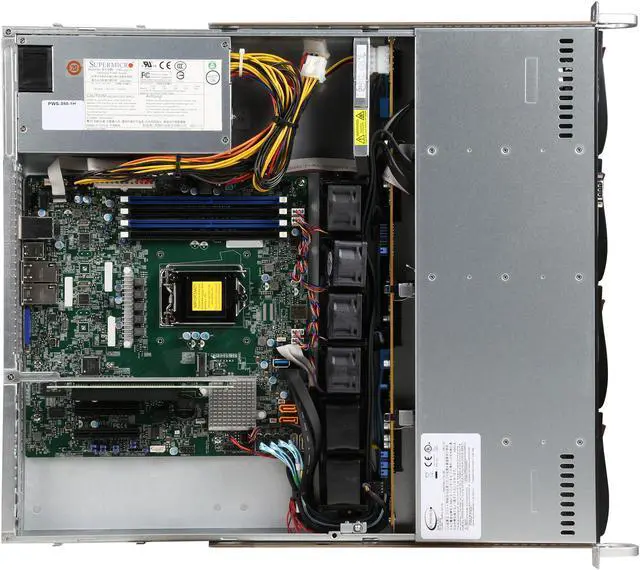

SUPERMICRO SYS-5019S-M 1U Rackmount Server Barebone

Features

SYS-5019S-M
  • Cloud, Web hosting, File/Print
  • High flexibility, Communication
  • Mainstream, Light load VM
  • Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v5, Intel® 6th Gen. Core™ i3 series
  • Intel® C236 chipset
  • 4x 3.5" Hot-swap SATA3 bays w/ RAID
  • Up to 64GB Unbuffered ECC UDIMM DDR4 2133MHz; 4x DIMM slots
  • 1 PCI-E 3.0 x8 (in x16) AOC slot
  • 2x GbE ports with Intel® i210-AT
  • Integrated IPMI 2.0 and KVM with Dedicated LAN
  • I/O ports: 1x VGA, 2x COM, 2x USB 3.0 (front/rear), USB 2.0
  • 350W Platinum Level Power Supply

Integrated Board

SYS-1018R-WC0R
  • Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v5, Intel® 6th Gen. Core™ i3 series, Intel® Celeron® and Intel® Pentium®
  • Intel® C236 chipset
  • Up to 64GB Unbuffered ECC UDIMM DDR4 2133MHz; 4x DIMM slots
  • Expansion slots: 1 PCI-E 3.0 x8 (in x16), 1 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8)
  • Dual GbE LAN with Intel® i210-AT
  • 8x SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10
  • I/O: 1x VGA, 2x COM, TPM header
  • 2x SuperDOM with built-in power
  • 5x USB 3.0 (2 rear + 2 via header + 1 Type A), 6x USB 2.0 (2 rear + 4 via headers)
  • M.2 NGFF connector
  • Support Intel VHD with selected CPU

Specifications

Product SKUs
SYS-5019S-M SuperServer 5019S-M (Black)
Motherboard
Motherboard Super X11SSH-F
Processor/Cache
CPU
  • Single Socket H4 (LGA 1151) supports:
  • Intel® Xeon® processor E3-1200 v5, Intel® 6th Gen Core™ i3
  • CPU TDP up to 80W
System Memory
Memory Capacity
  • 4x 288-pin DDR4 DIMM slots
  • Up to 64GB DDR4 ECC UDIMM
Memory Type 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs
DIMM Sizes 16GB, 8GB, 4GB
Memory Voltage 1.2 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset Intel® C236 chipset
SATA
  • SATA3 (6Gbps) via C236 controller
  • RAID 0, 1, 5, 10 support
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • ASPEED AST2400 BMC
Network Controllers
  • Dual Intel® I210-AT Gigabit Ethernet LAN ports
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Video ASPEED AST2400 BMC
Input / Output
SATA 4x SATA3 (6Gbps) ports
LAN
  • 2x RJ45 Gigabit Ethernet LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
USB
  • 2x USB 3.0 ports (front/rear)
  • 2x USB 2.0 ports
Video 1x VGA port
Serial Port / Header 2x COM ports (1 rear, 1 header)
SuperDOM 2x SuperDOM (Disk on Module) ports with built-in power
PC Health Monitoring
Voltage Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
FAN
  • Total of 4 fan headers supporting up to 4 fans
  • 4 fans with tachometer status monitoring
  • Status monitor for speed control
  • Status monitor for on/off control
  • Low noise fan speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • I2C temperature sensing logic
  • Thermal Monitor 2 (TM2) support
  • PECI
LED
  • CPU / System Overheat LED
  • Suspend static indicator LED
  • UID/Remote UID
Other Features
  • Chassis Intrusion Detection
  • Chassis Intrusion Header
  • Chipkill support
  • RoHS, Halogen Free
Chassis
Form Factor 1U Rackmount
Model CSE-813MFTQC-350CB
Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • 2x Network activity LEDs
  • System Overheat LED
Expansion Slots
PCI-Express
  • 1x PCI-E 3.0 x8 (in x16) AOC slot
  • 1x M.2 connector
Drive Bays
Hot-swap 4x 3.5" Hot-swap SATA3 drive bays
Peripheral Drives
Optional 2x 2.5" Fixed drives internal
System Cooling
Fans 4x 40x28mm 4-pin PWM Cooling Fans
Power Supply
Power Supply 350W AC power supply w/ PFC
AC Voltage 100-240 V, 50-60 Hz, 4.2-1.8 Amp
+5V
  • Max.: 15 Amp
  • Min.: 0.2 Amp
+5V standby
  • Max.: 3 Amp
  • Min.: 0 Amp
+12V
  • Max.: 29 Amp
  • Min.: 0.5 Amp
-12V
  • Max.: 0.2 Amp
  • Min.: 0 Amp
+3.3V
  • Max.: 12 Amp
  • Min.: 0.2 Amp
Certification 80 Platinum Level Certified
System BIOS
BIOS Type 8MB SPI Flash EEPROM with AMI BIOS
BIOS Features
  • DMI 2.3
  • PCI 2.3
  • ACPI 1.0 / 2.0
  • USB Keyboard support
  • SMBIOS 2.3
Operating Environment / Compliance
RoHS RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)

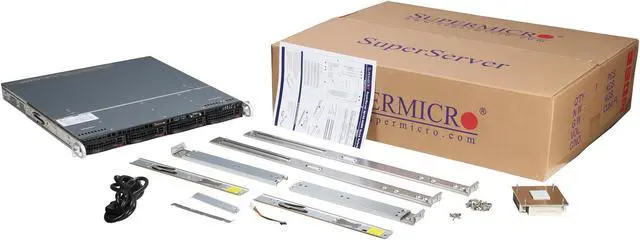

What's in the Box

SYS-5019S-M
MAIN OVERVIEW FEATURES: Number of Processors Supported: 1Processor Socket: Socket H4 LGA-1151Processor Supported: Xeon,Core i364-bit Processing: YesChipset Manufacturer: IntelChipset Model: C236Maximum Memory: 64 GBMemory Technology: DDR4 SDRAMMemory Standard: DDR4-2133/PC4-17000Number of Total Memory Slots: 4Controller Type: Serial ATA/600RAID Supported: YesGraphics Controller Manufacturer: ASPEEDGraphics Controller Model: AST2400Ethernet Technology: Gigabit EthernetNumber of Total Expansion Bays: 4Number of 3.5" Bays: 4Number of Total Expansion Slots: 2Number of PCI Express x8 Slots: 1Total Number of USB Ports: 4Number of USB 3.0 Ports: 2Number of SATA Interfaces: 4Input Voltage: 120 V AC,230 V ACNumber of Power Supplies Installed: 1Maximum Power Supply Wattage: 350 WColor: BlackForm Factor: Rack-mountableRack Height: 1UHeight: 1.70" (43.18 mm)Width: 17.20" (436.88 mm)Depth: 19.80" (502.92 mm)Weight (Approximate): 13.80 kgPackage Contents: SuperServer 5019S-M (Black) 1 x Super X11SSH-F Motherboard 1 x 1U Chassis 1 x SC811/SC512L/SC512F/SC813M/SC113M/SC513L-410B/SC513L-420B/SC513F, UP X9SRE/I, X9 Mylar Air Shroud, 12"x9.6" MB 1 x 1U 4-Port 12Gbps Backplane Support 4x3.5" SAS/SAS HDD/SSD 1 x 8 pin to 8 pin round SGPIO cable, 40cm, 28AWG, pinout 1-1,RoHS/REACH 1 x SET OF 4 SATA 56/45.5/35/23CM ROUND S-RA. 26AWG 1 x Riser card bracket for SC812,813,813M,815,111,113,113M 1 x Black 2x USB3.0/COM port tray in slim FDD bay 1 x 5019S-M/MR,QRG,HF,RoHS/REACH 1 x RSC-RR1U-E16 with PCI-E x16 output 1 x 1U PASSIVE CPU HS FOR INTEL LGA1156 1 x 1U Single AC-DC 350W Platinum Level, multiple output power supply Environmentally Friendly: YesEnvironmental Certification: RoHSLimited Warranty: 3 Year

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 3 years
  • Read full details

Return Policies

  • Return for refund within: Non-refundable
  • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Replacement Only Return Policy.
  • Read full return policy for details.
