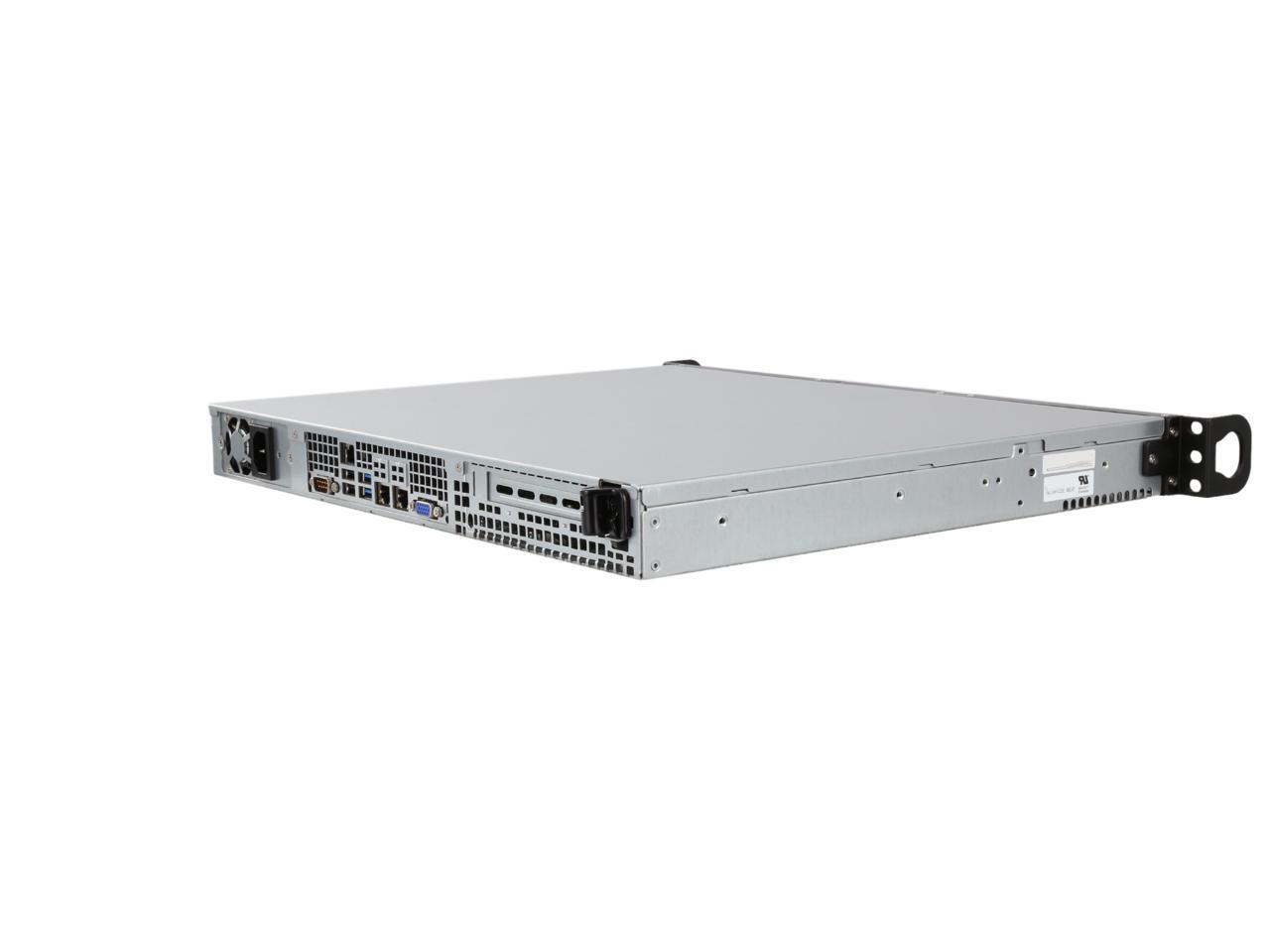

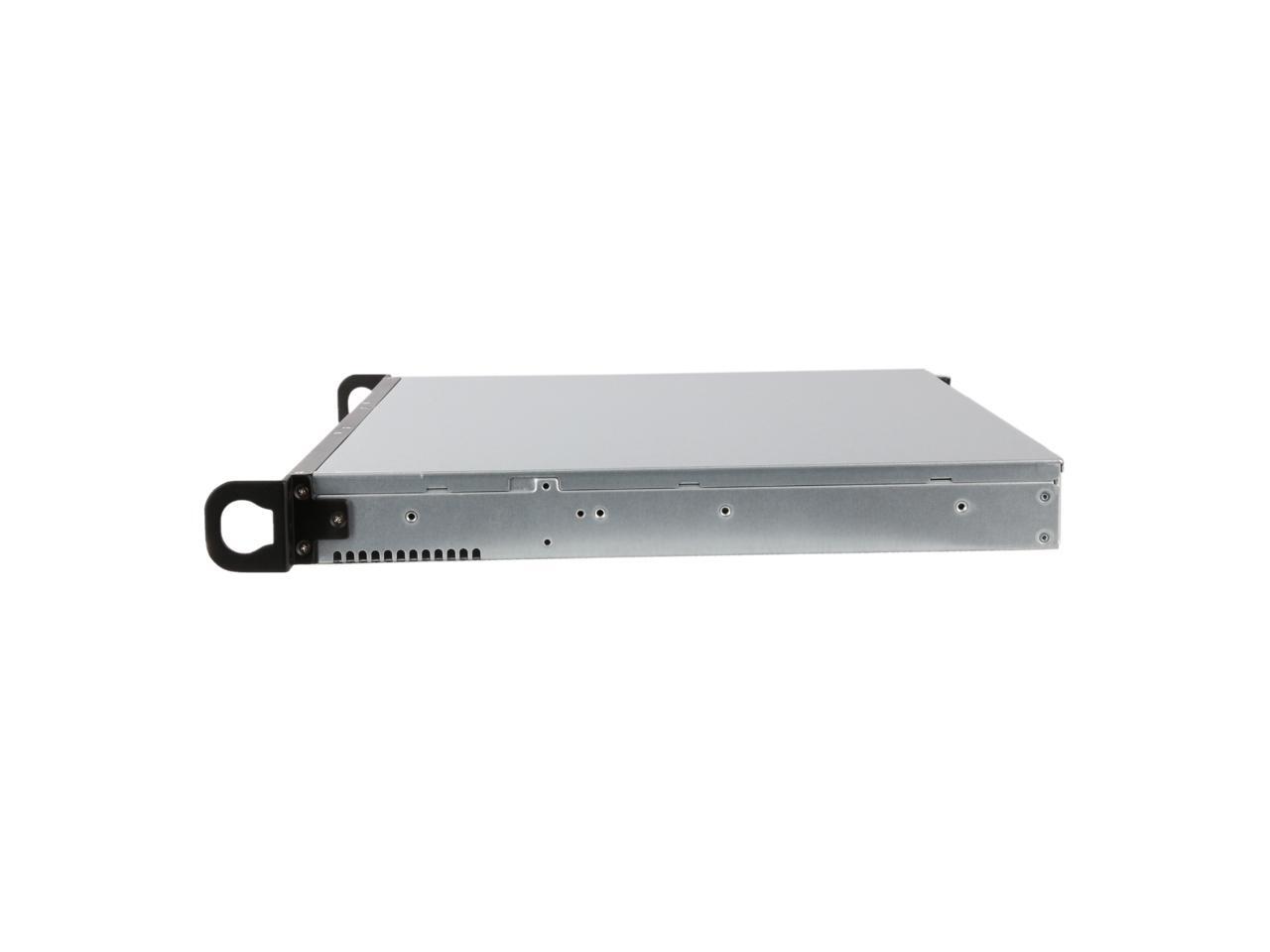

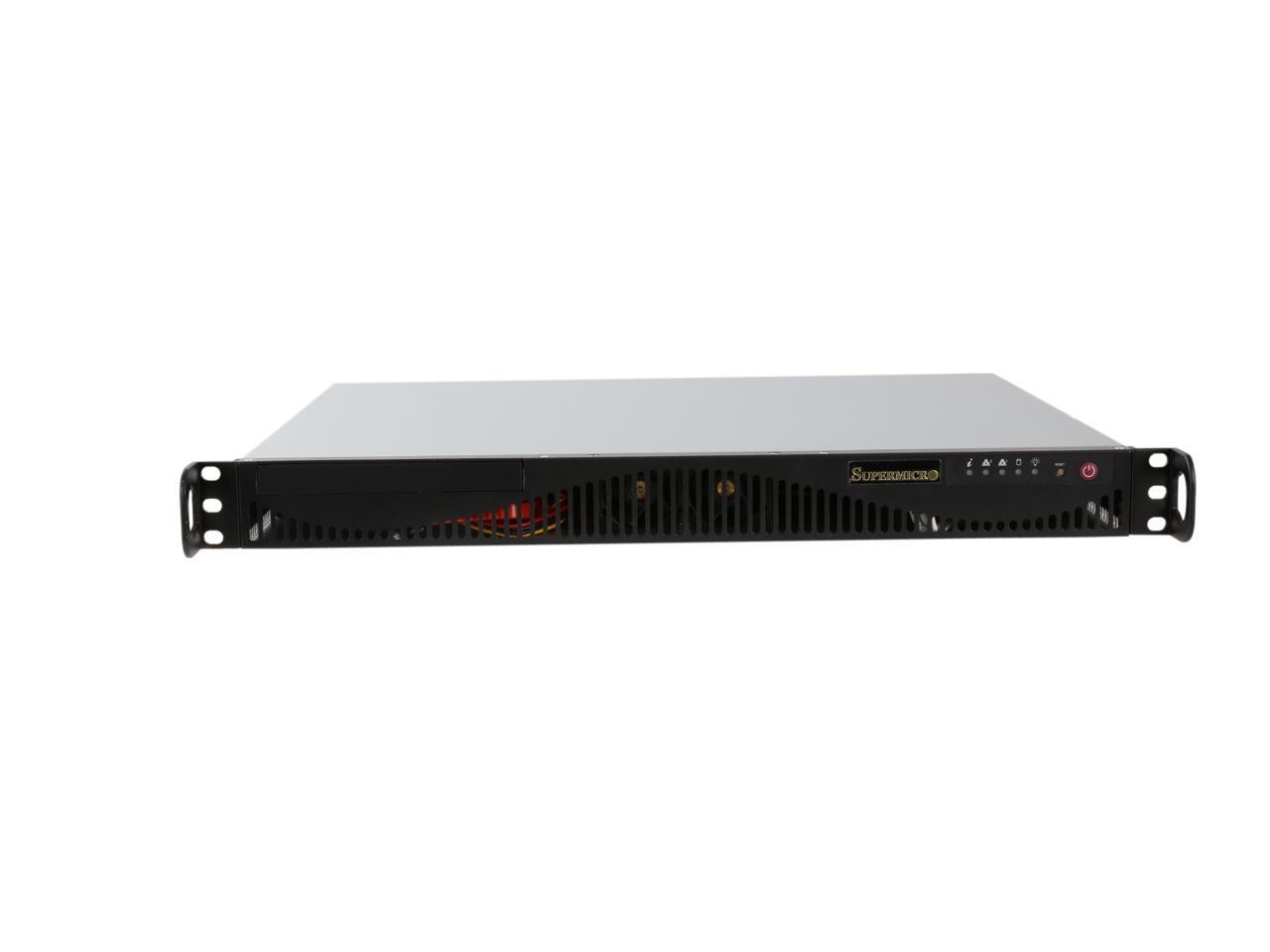

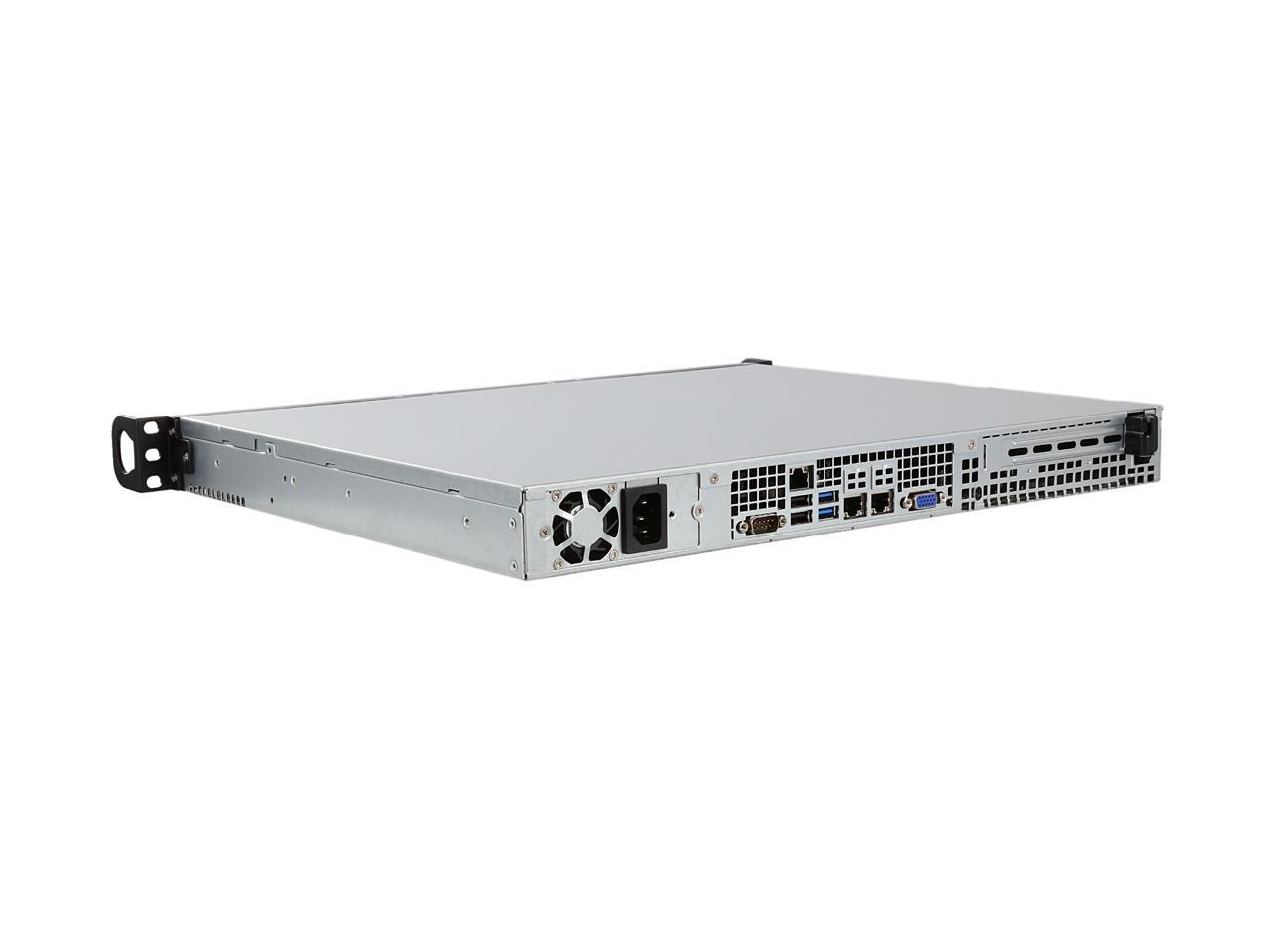

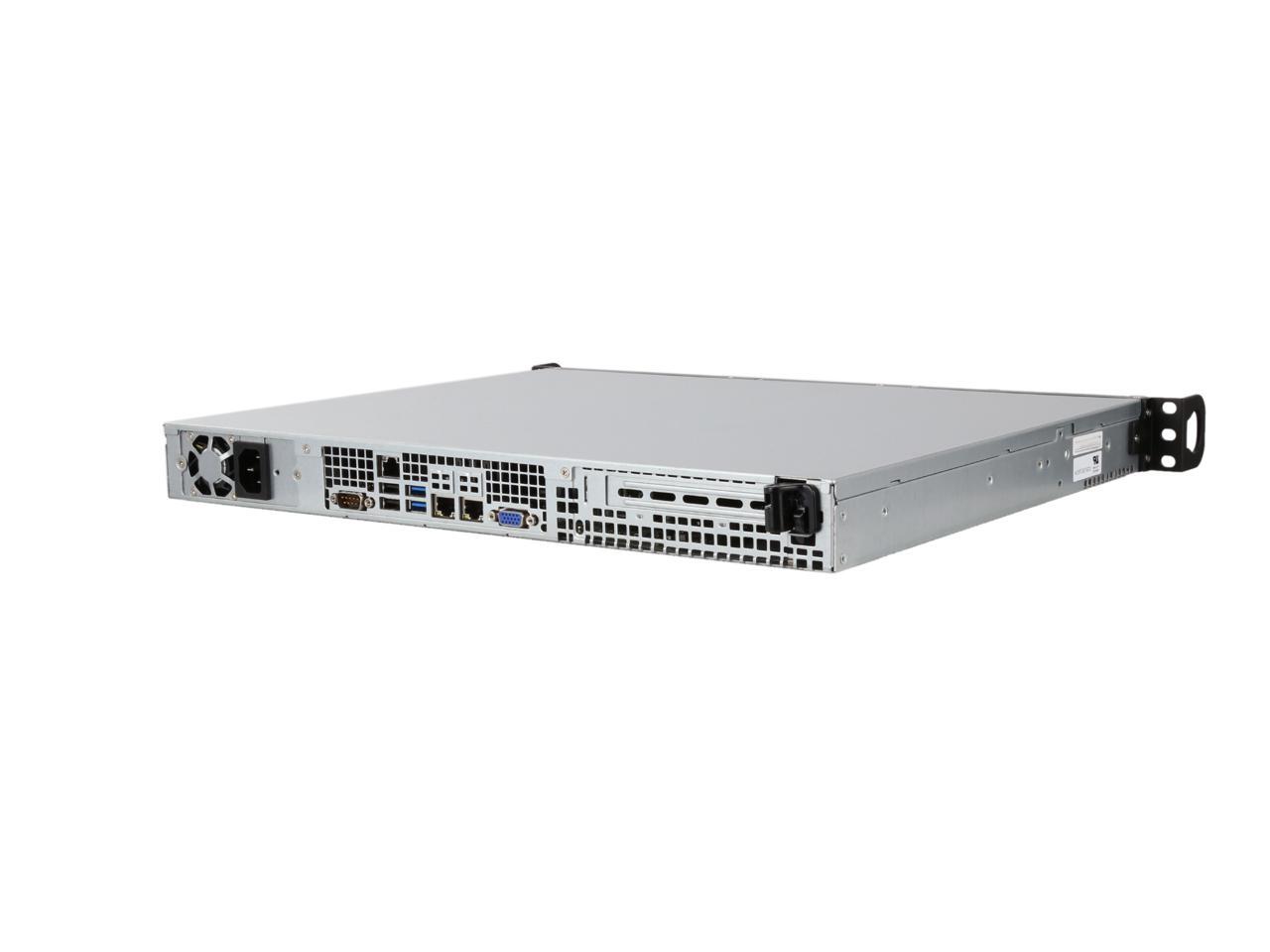

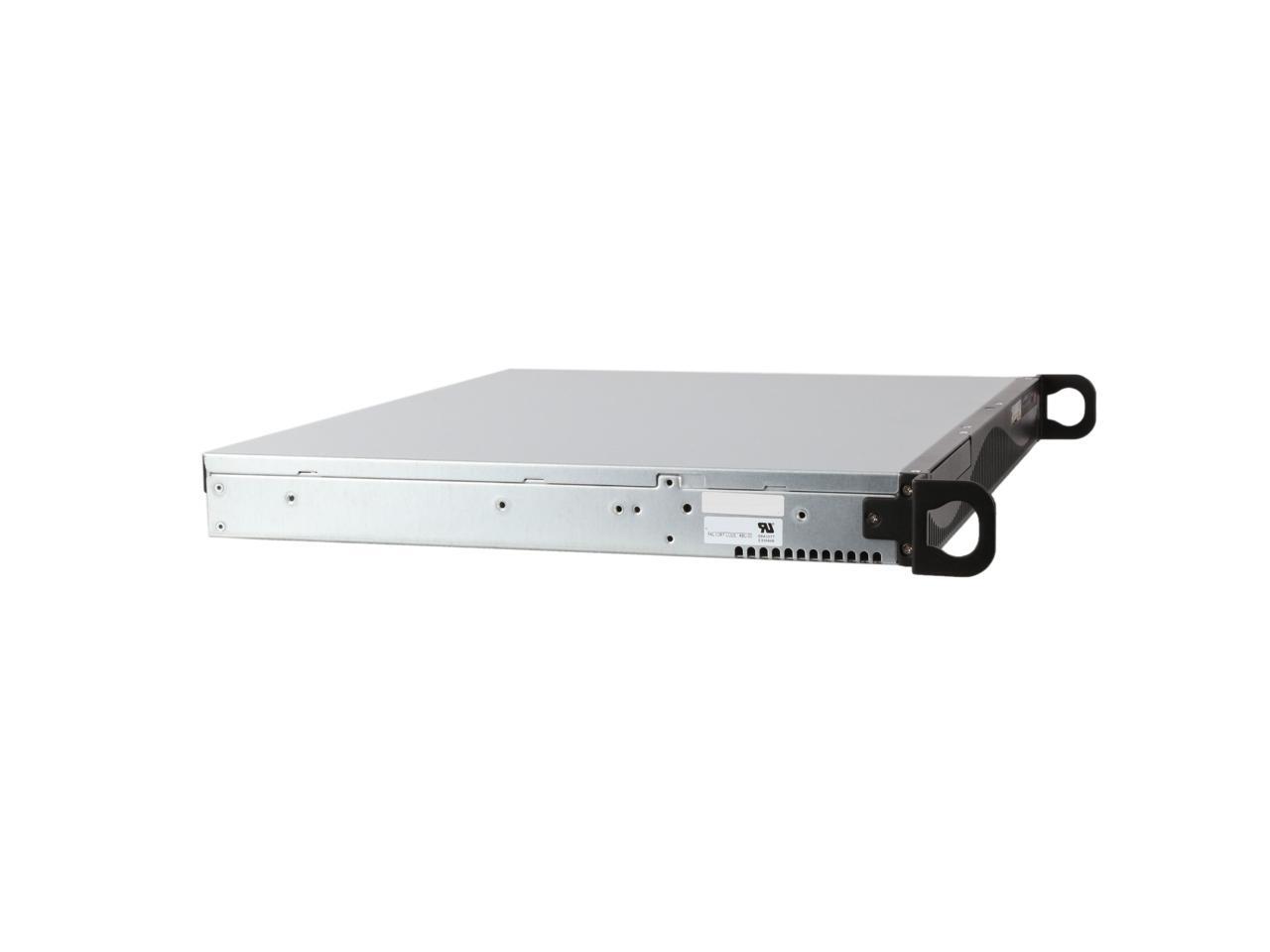

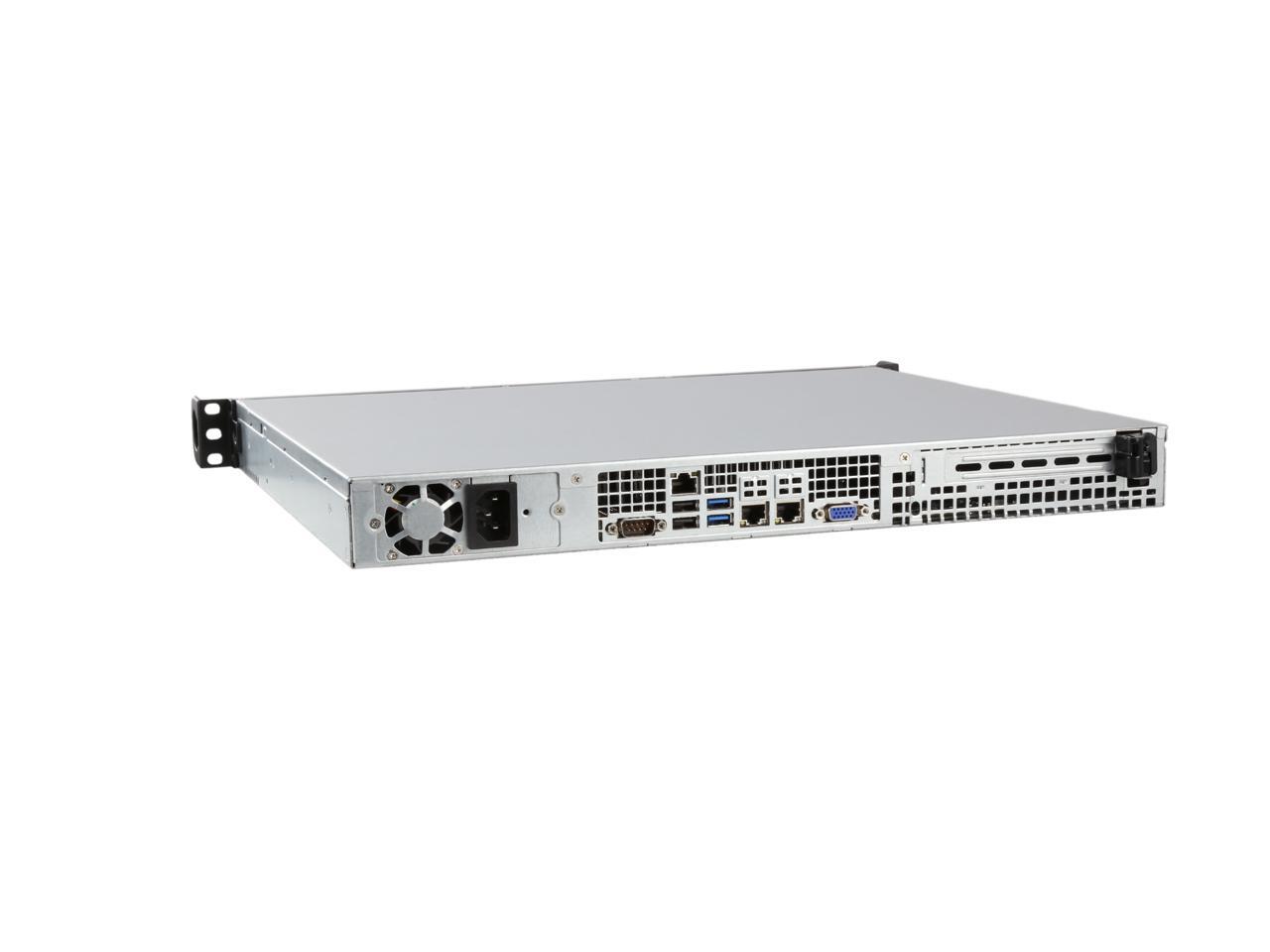

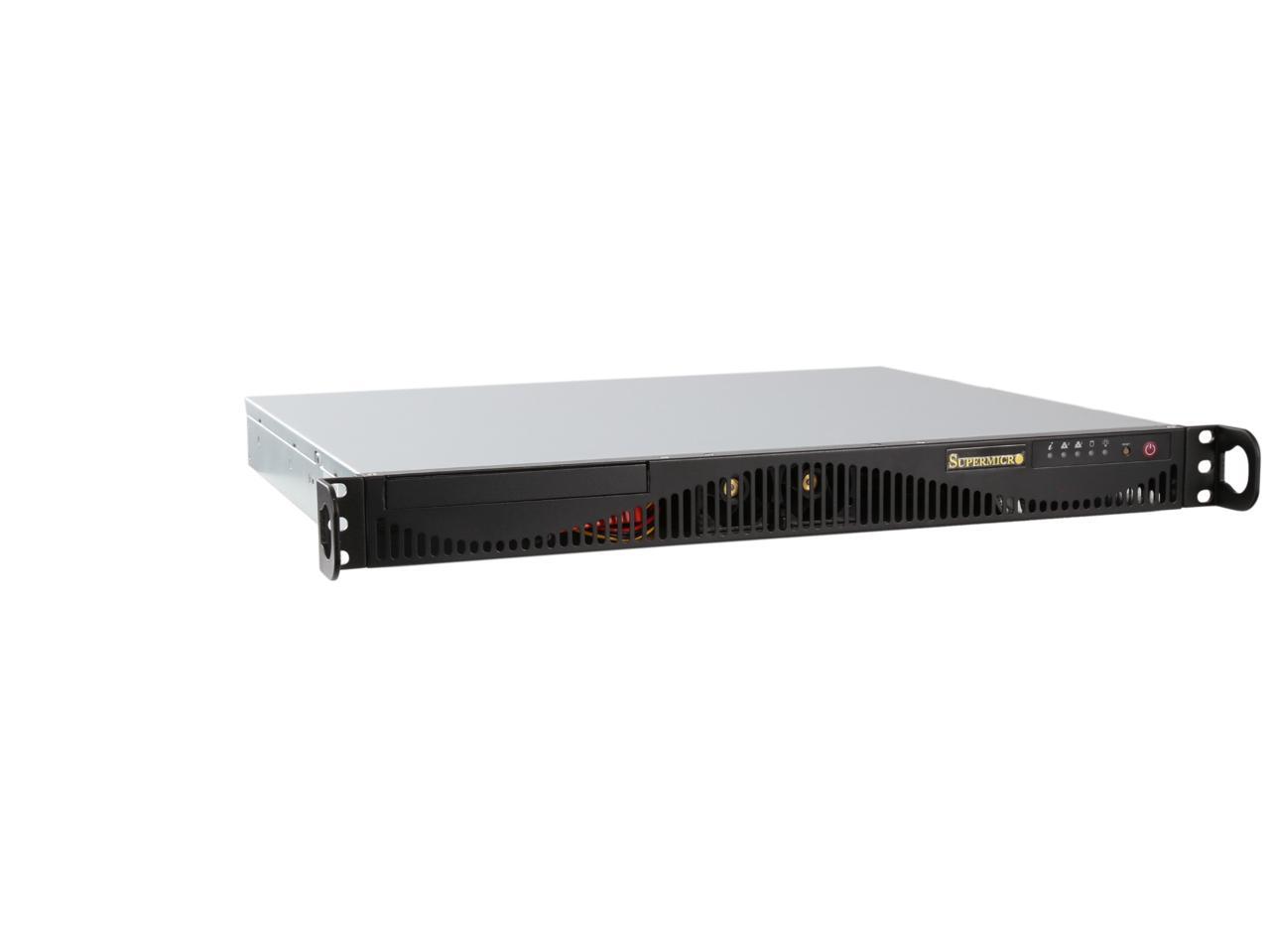

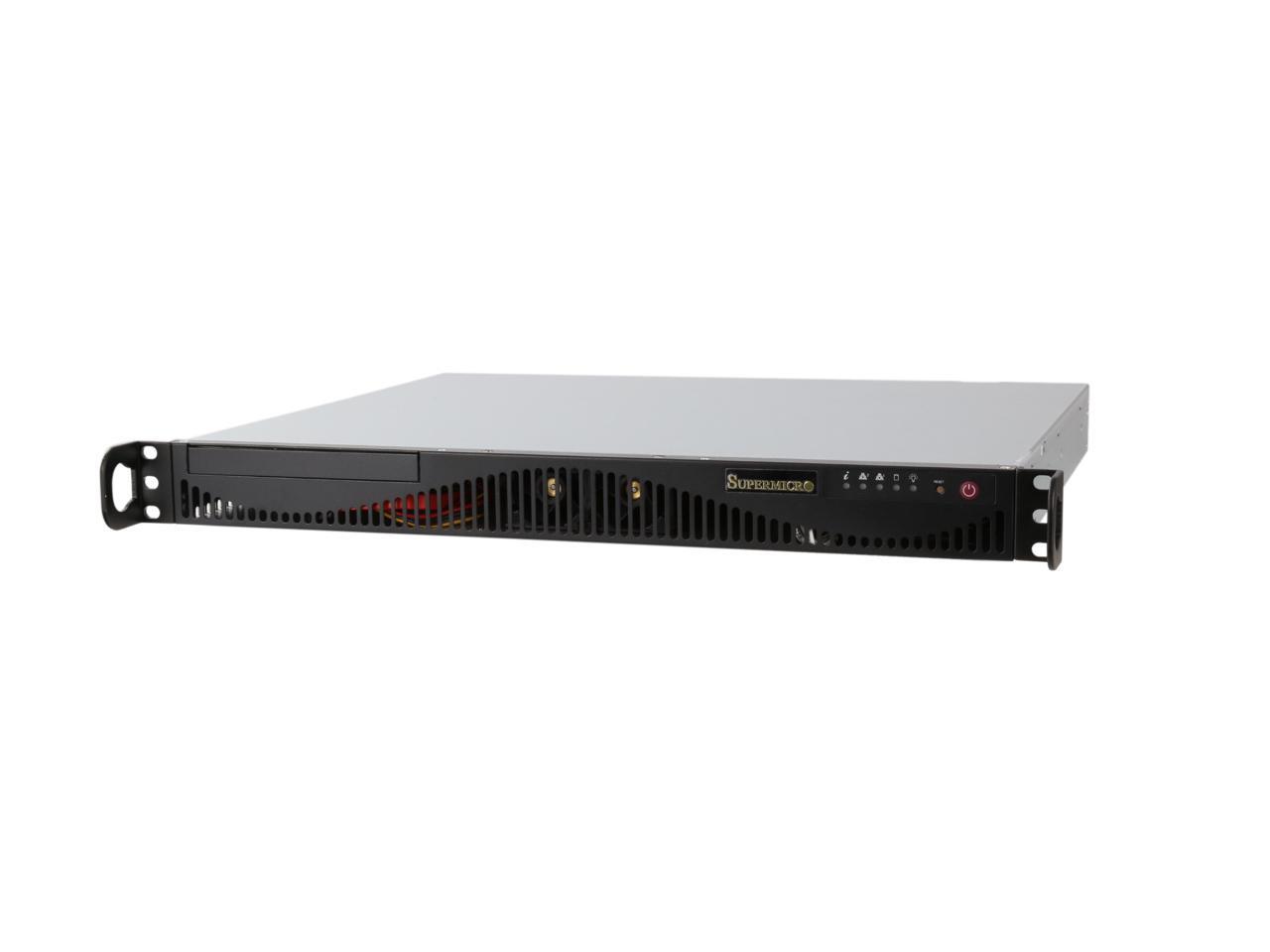

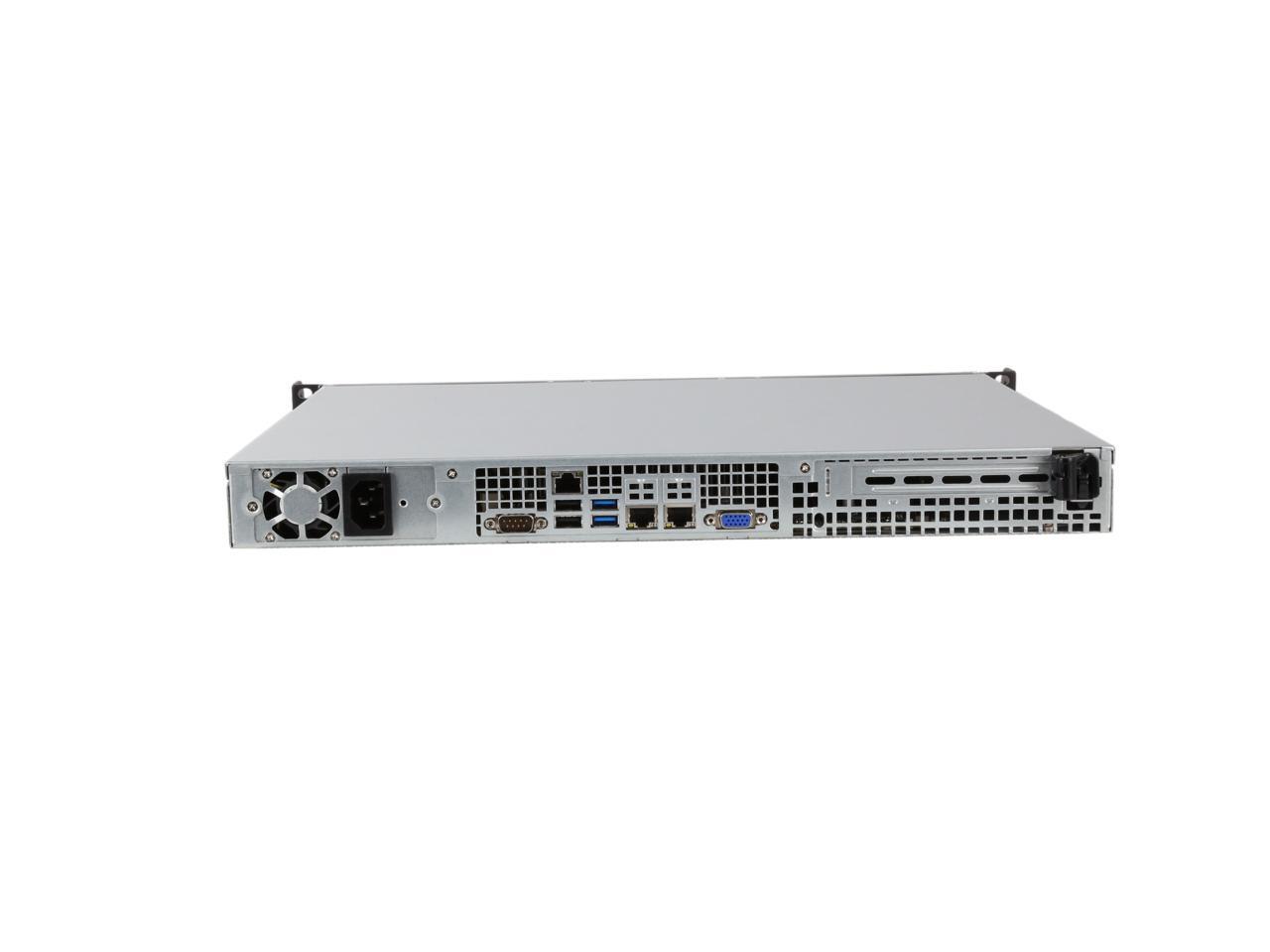

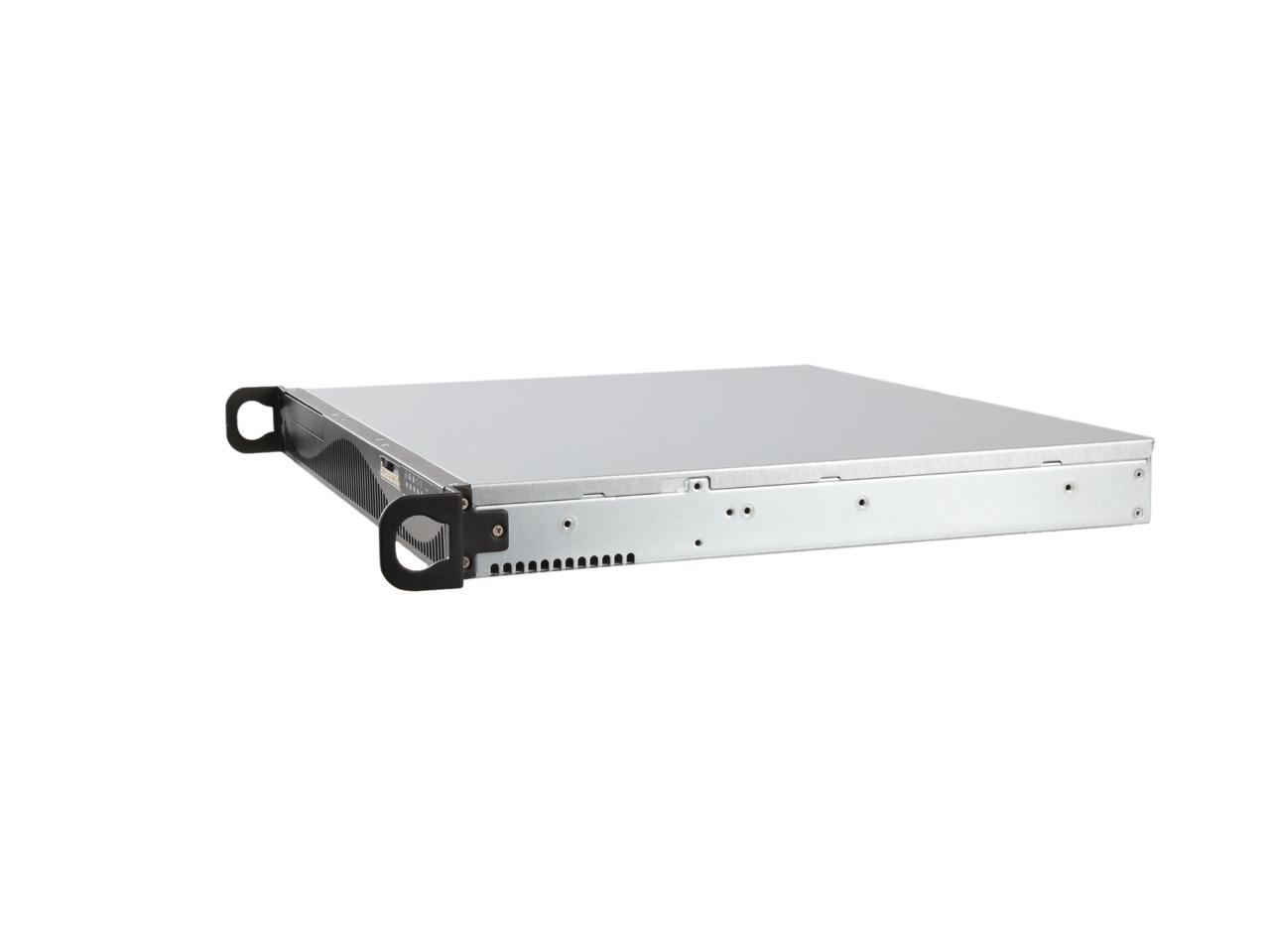

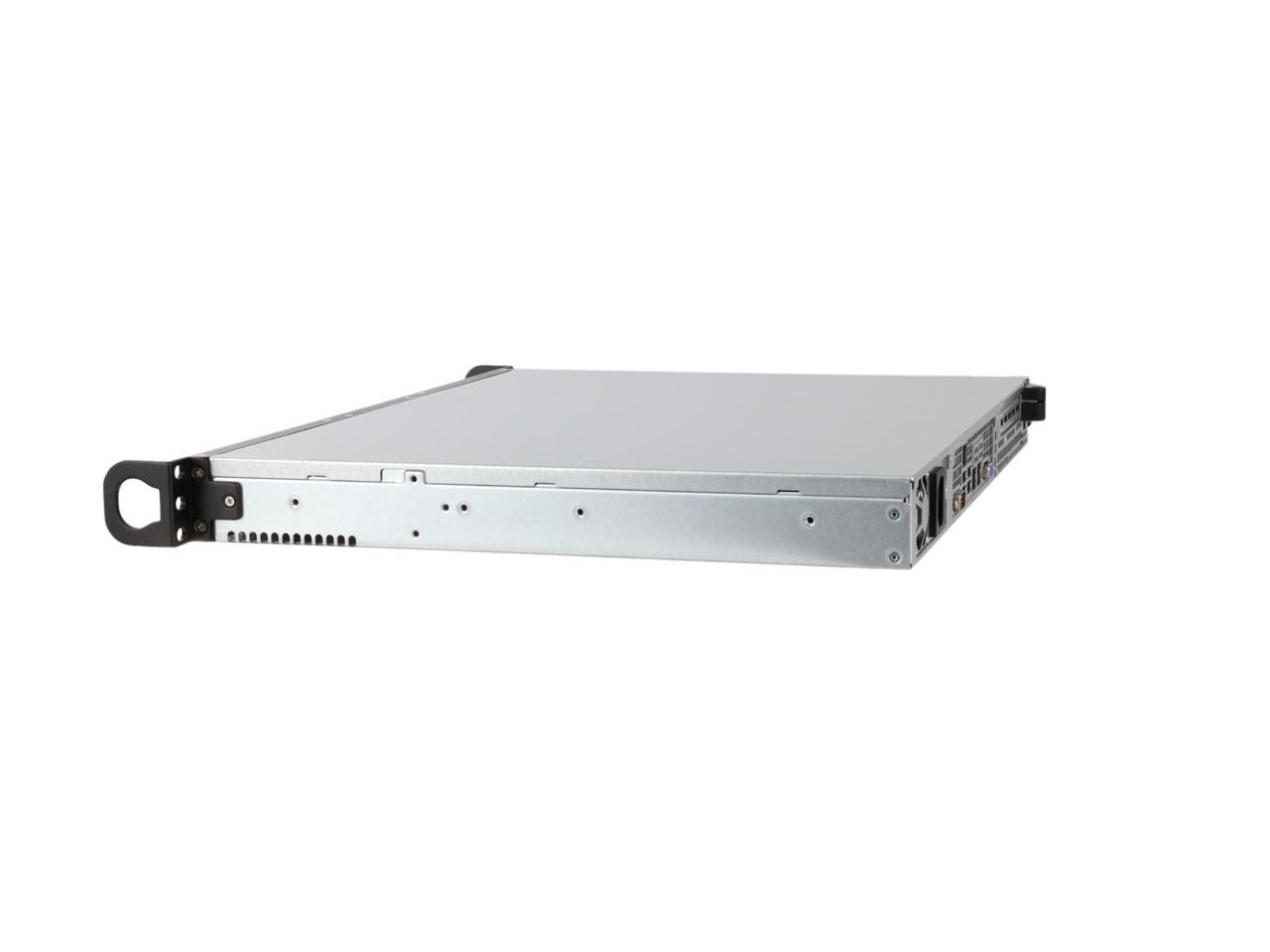

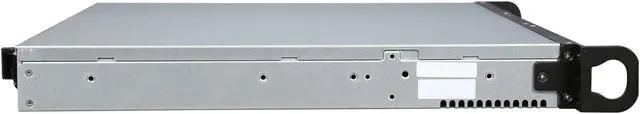

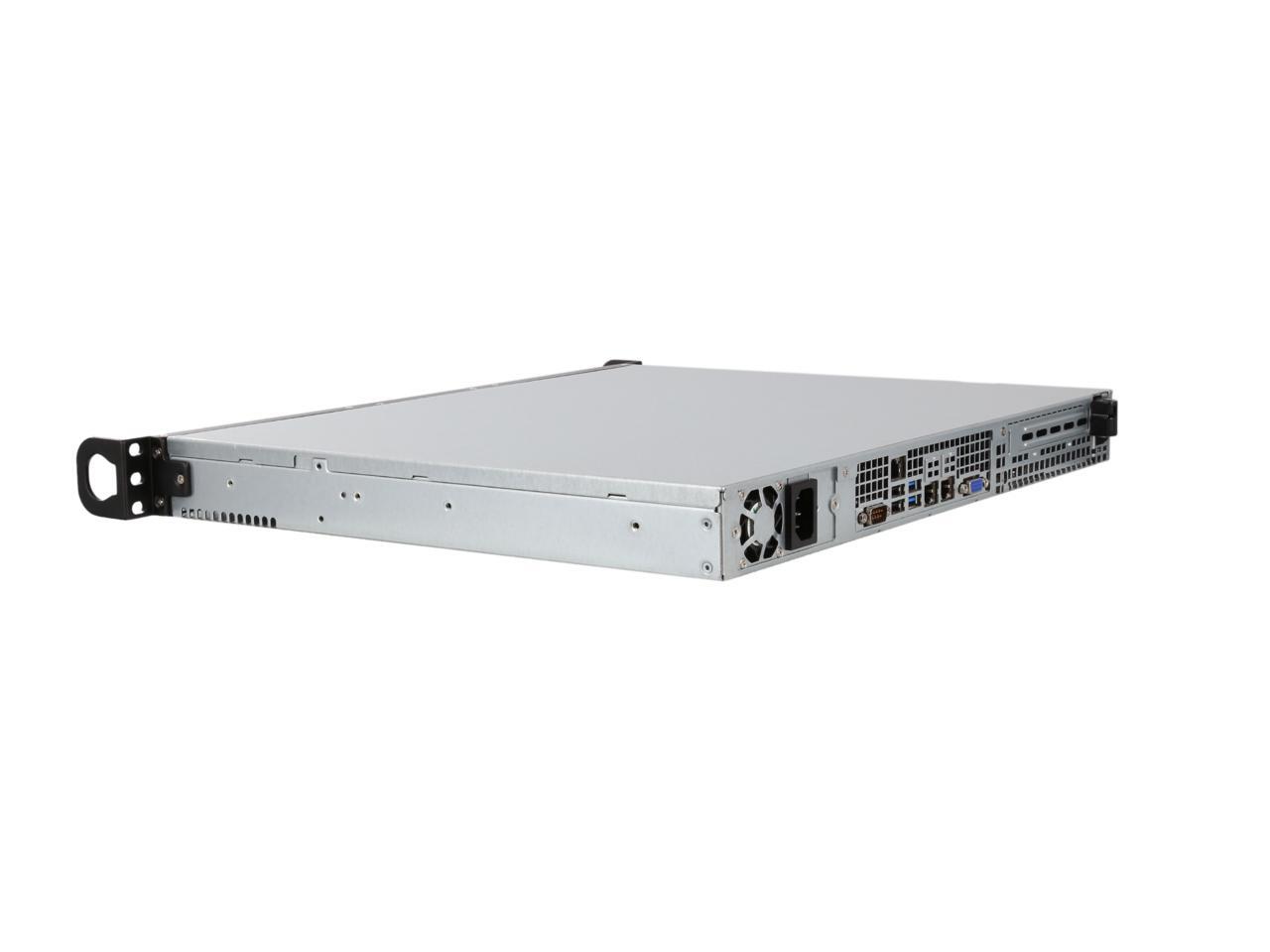

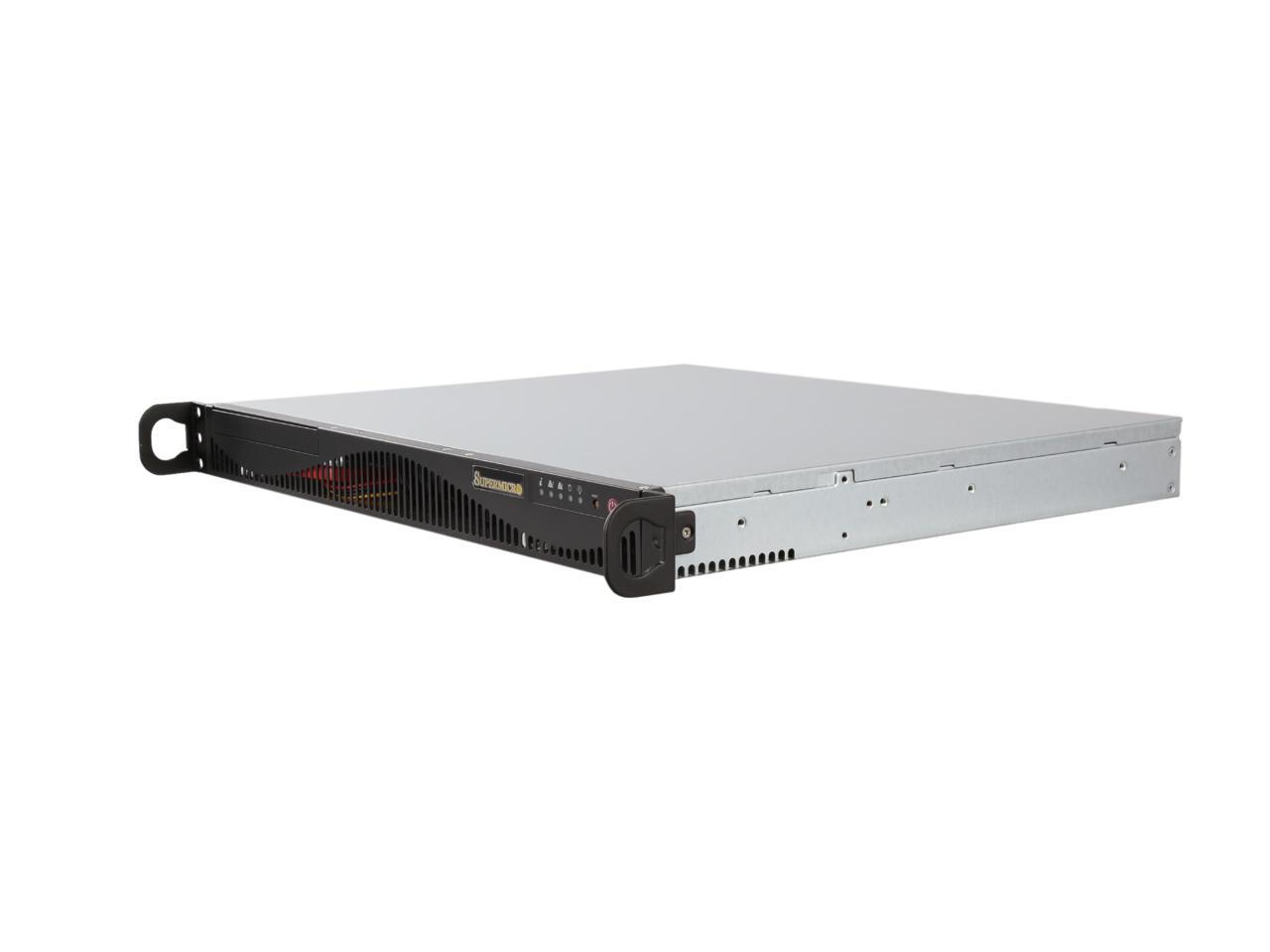

SUPERMICRO SYS-5019S-ML 1U Rackmount Server Barebone LGA 1151 Intel C236 DDR4 2400 / 2133 / 1866 / 1600 MHz
- Single Socket H4 (LGA 1151)
- Supports Intel Xeon processor E3-1200 v6 / v5, Intel 7th / 6th Gen Core i3
- 4 x 288Pin Memory Slots
- 350W AC power supply w/ PFC
+
+
Overview
Specs
Reviews (2)
Any questions? Our AI beta will help you find out quickly.
Try me now

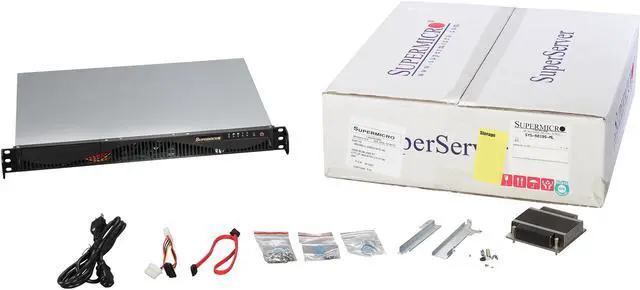

MAIN OVERVIEW FEATURES: Number of Processors Supported: 1Processor Socket: Socket H4 LGA-1151Processor Supported: Xeon,Core i364-bit Processing: YesChipset Manufacturer: IntelChipset Model: C236Maximum Memory: 64 GBMemory Technology: DDR4 SDRAMMemory Standard: DDR4-2133/PC4-17000Number of Total Memory Slots: 4Controller Type: Serial ATA/600RAID Supported: YesGraphics Controller Manufacturer: ASPEEDGraphics Controller Model: AST2400Ethernet Technology: Gigabit EthernetNumber of Total Expansion Slots: 2Number of PCI Express x8 Slots: 1Total Number of USB Ports: 4Number of USB 3.0 Ports: 2Number of SATA Interfaces: 2Input Voltage: 120 V AC,230 V ACNumber of Power Supplies Installed: 1Maximum Power Supply Wattage: 350 WColor: BlackForm Factor: Rack-mountableRack Height: 1UHeight: 1.7"Width: 17.2"Depth: 14.4"Weight (Approximate): 8.44 lbPackage Contents: SuperServer 5019S-ML (Black) 1 x Super X11SSH-F Motherboard 1 x 1U Chassis 1 x SC811/SC512L/SC512F/SC813M/SC113M/SC513L-410B/SC513L-420B/SC513F, UP X9SRE/I, X9 Mylar Air Shroud, 12"x9.6" MB 1 x 35CM end to end, SATA CABLE, PB FREE, 26AWG, flat 1 x 5019S-ML,QRG,HF,RoHS/REACH 1 x RSC-RR1U-E16 with PCI-E x16 output 1 x 1U PASSIVE CPU HS FOR INTEL LGA1156 1 x 1U Single AC-DC 350W Platinum Level, multiple output power supply Environmentally Friendly: YesEnvironmental Certification: RoHSLimited Warranty: 3 Year

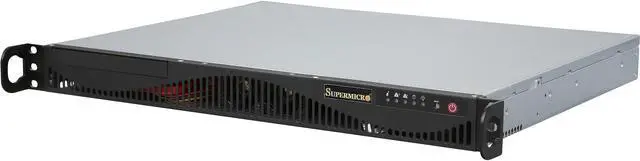

SUPERMICRO SYS-5019S-ML 1U Rackmount Server Barebone
Features
- Mainstream, Entry Appliance
- Low Power, Cost effective
- Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v5, Intel® 6th Gen. Core™ i3 series
- Intel® C236 chipset
- 2x 3.5" Fixed drive bay or 3x 2.5" drive option
- Up to 64GB ECC/non-ECC UDIMM DDR4 2133MHz; 4x DIMM slots
- 1x PCI-E 3.0 x8 AOC slot
- 2x GbE ports with Intel® i210-AT 1x shared IPMI port

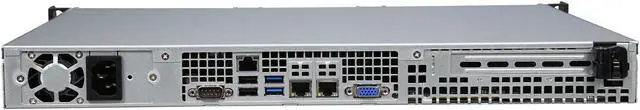

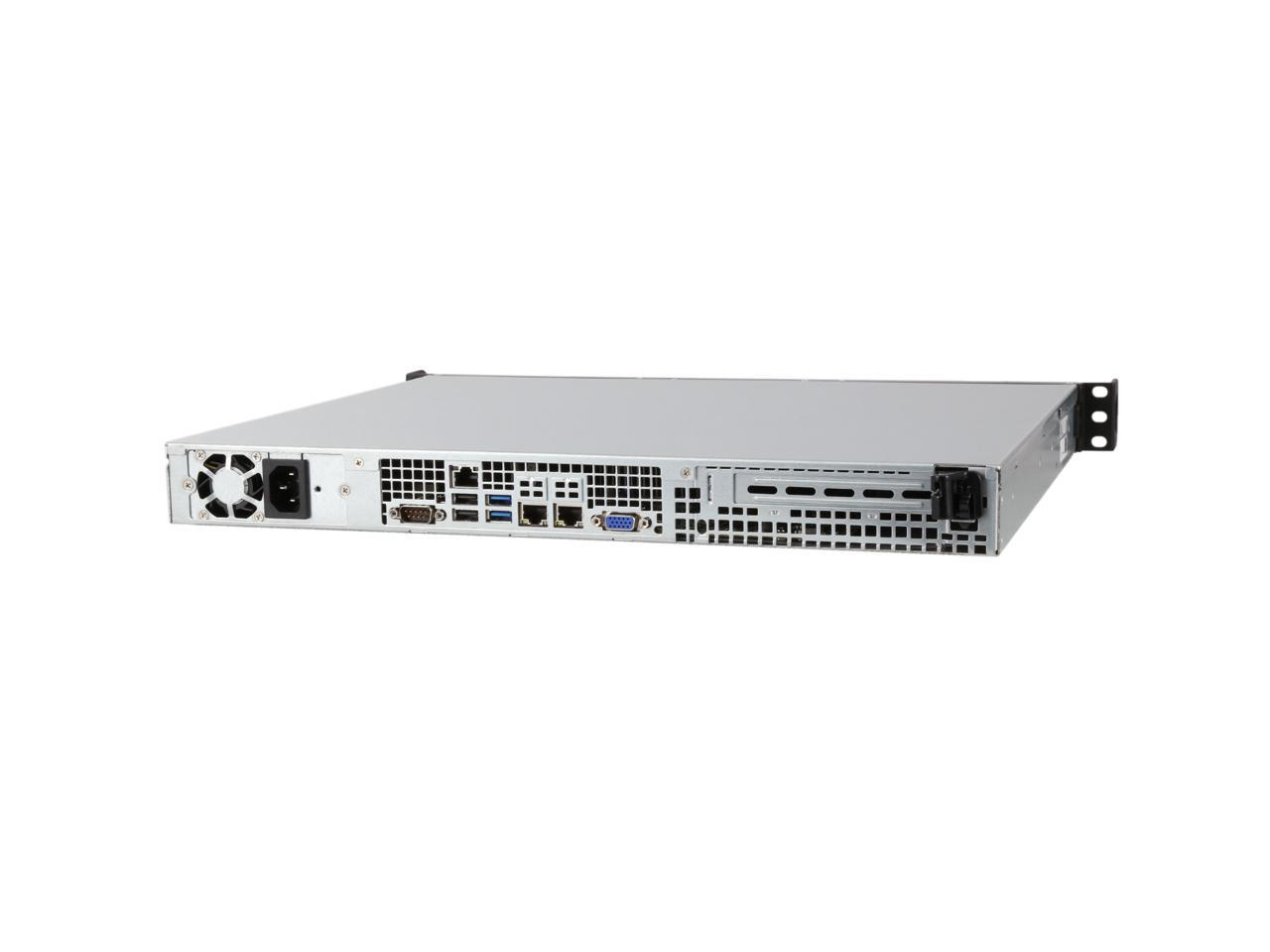

- I/O ports: 1x VGA, 1x COM, 2x USB 2.0, USB 3.0
- 350W Platinum Level power supply

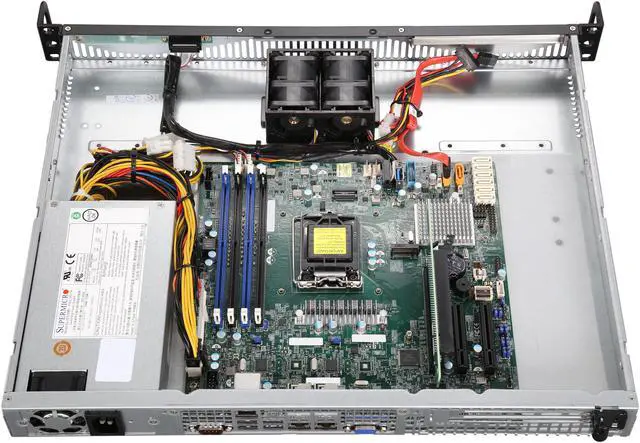

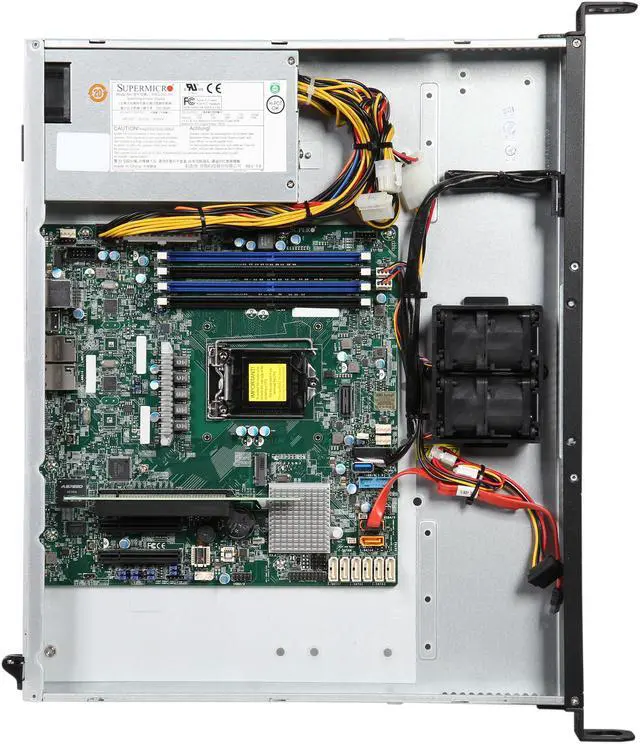

Integrated Board
- Single socket H4 (LGA 1151) supports Intel® Xeon® processor E3-1200 v5, Intel® 6th Gen. Core™ i3 series, Intel® Celeron® and Intel® Pentium®
- Intel® C236 chipset
- Up to 64GB Unbuffered ECC UDIMM DDR4 2133MHz; 4x DIMM slots
- Expansion slots: 1 PCI-E 3.0 x8 (in x16), 1 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8)
- Dual GbE LAN with Intel® i210-AT
- 8x SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10
- I/O: 1x VGA, 2x COM, TPM header
- 2x SuperDOM with built-in power
- 5x USB 3.0 (2 rear + 2 via header + 1 Type A), 6x USB 2.0 (2 rear + 4 via headers)
- M.2 NGFF connector
- Support Intel VHD with selected CPU
Specifications
| Product SKUs | |
| SYS-5019S-ML | SuperServer 5019S-ML (Black) |
| Motherboard | |
| Motherboard | Super X11SSH-F |
| Processor/Cache | |
| CPU |
|
| System Memory | |
| Memory Capacity |
|
| Memory Type | 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 288-pin (UDIMM) gold-plated DIMMs |
| DIMM Sizes | 16GB, 8GB, 4GB |
| Memory Voltage | 1.2 V |
| Error Detection |
|
| On-Board Devices | |
| Chipset | Intel® C236 chipset |
| SATA |
|
| IPMI |
|
| Network Controllers |
|
| Video | ASPEED AST2400 BMC |
| Expansion Slots | |
| PCI-Express |
|
| Input / Output | |
| SATA | 2x SATA3 (6Gbps) ports |
| LAN |
|
| USB |
|
| Video | 1x VGA port |
| Serial Port / Header | 1x COM ports (1 rear) |
| SuperDOM | 2x SuperDOM (Disk on Module) ports with built-in power |
| System BIOS | |
| BIOS Type | 8MB SPI Flash EEPROM with AMI BIOS |
| BIOS Features |
|
| PC Health Monitoring | |
| Voltage | Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages. |
| FAN |
|
| Temperature |
|
| LED |
|
| Other Features |
|
| Chassis | |
| Form Factor | 1U Rackmount |
| Model | CSE-512F-350B1 |
| Dimensions and Weight | |
| Height | 1.7" (43mm) |
| Width | 17.2" (437mm) |
| Depth | 14.4" (366mm) |
| Package | 6.1" (H) x 25.4" (W) x 19.8" (D) |
| Weight |
|
| Available Colors | Black |
| Front Panel | |
| Buttons |
|
| LEDs |
|
| Drive Bays | |
| Fixed | 2x 3.5" or 3x 2.5" (option) internal drive bays |
| System Cooling | |
| Fans | 2x 4cm counter-rotating mid fans |
| Power Supply | |
| Power Supply | 350W AC power supply w/ PFC |
| AC Voltage | 100-240 V, 50-60 Hz, 4.2-1.8 Amp |
| +5V | Max.: 15 Amp Min.: 0.2 Amp |
| +5V standby | Max.: 3 Amp Min.: 0 Amp |
| +12V | Max.: 29 Amp Min.: 0.5 Amp |
| -12V | Max.: 0.2 Amp Min.: 0 Amp |
| +3.3V | Max.: 12 Amp Min.: 0.2 Amp |
| Certification | 80 Plus Platinum Level Certified |
| Operating Environment / Compliance | |
| RoHS | RoHS Compliant |
| Environmental Spec. |
|
