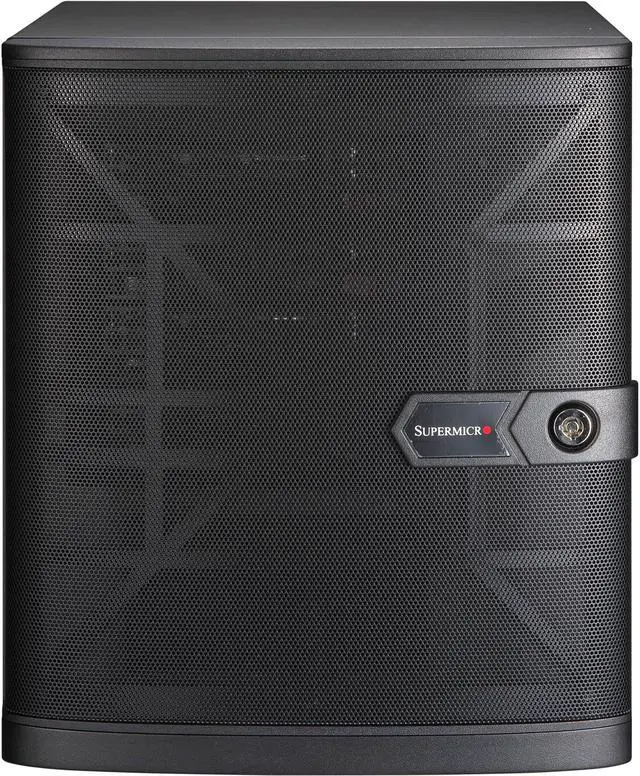

Supermicro Micro-tower, NAS, Cloud, Edge, Backup, Storage, Server Barebone 5029C-T, Intel C246 Chipset, Supports Intel Xeon E-2100 CPUs, 4 x Hot-swappable Drive Bays, IPMI
- LGA 1151
- Single Socket H4 (LGA 1151), CPU TDP support up to 80W
- Support Intel Xeon Processor E-2100 series, 8th Gen. Intel Core i3 / Pentium / Celeron Processors
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Supermicro SYS-5029C-T
| Brand | SUPERMICRO |
|---|---|
| Model | SYS-5029C-T |
| CPU Type | Single Socket H4 (LGA 1151), CPU TDP support up to 80W Support Intel Xeon Processor E-2100 series, 8th Gen. Intel Core i3 / Pentium / Celeron Processors |
|---|---|
| CPU Socket | LGA 1151 |
| North Bridge | Intel C242 |
|---|
| Max Memory Supported | 2 x DIMM slots Up to 64GB ECC UDIMM Up to DDR4-2666 MHz |
|---|---|
| Memory Type Supported | DDR4 2666 / 2400 / 2133 MHz ECC SDRAM |
| ECC Supported | Yes |
| Serial ATA | 6 x SATA 600 |
|---|---|
| SATA RAID | RAID 0/1/5/10 |
| GPU/VPU | Aspeed AST2500 BMC |
|---|
| PCI Express | 1 x PCI-E 3.0 x16 slot, for low-profile AOC |
|---|
| Number of LAN | Dual LAN with Intel I210-AT |
|---|---|
| First LAN | Intel I210-AT |
| Second LAN | Intel I210-AT |

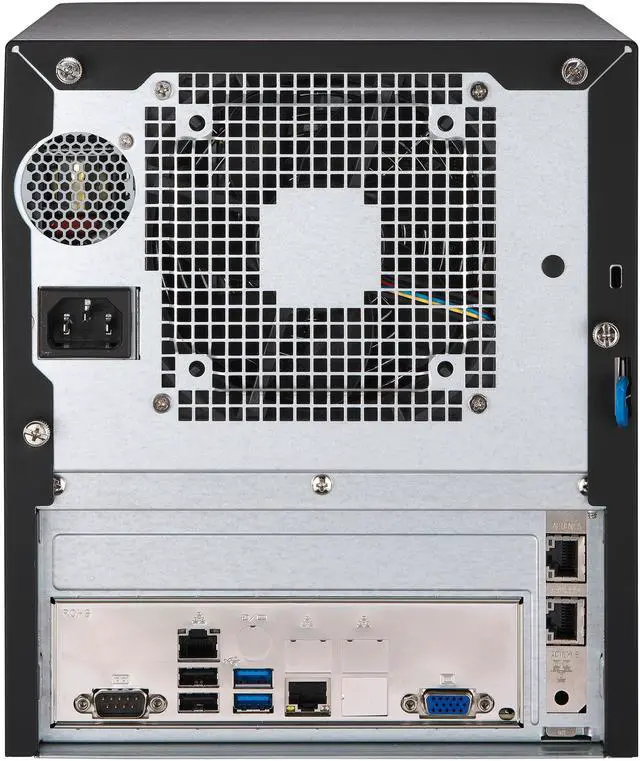

| Rear USB | 2 x USB 3.1 (rear) 2 x USB 2.0 (rear) |
|---|---|
| RJ45 | 2 x RJ45 Gigabit Ethernet LAN ports 1 x RJ45 Dedicated IPMI LAN port |

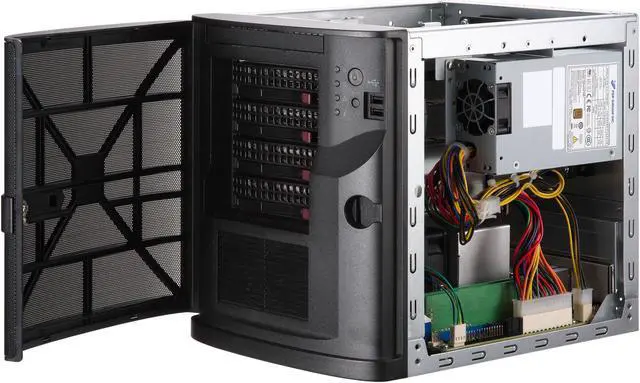

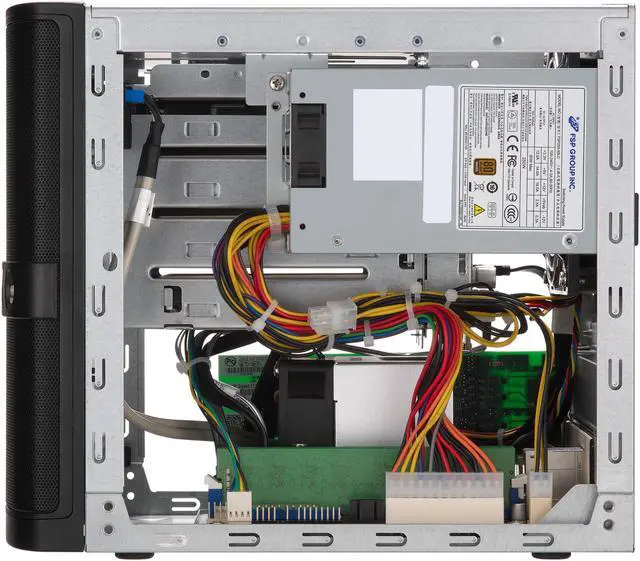

| Features | Single socket H4 (LGA 1151) supports Intel Xeon processor E-2100, 8th Gen. Intel Core i3 Processors, Intel Celeron, Intel Pentium Intel C242 chipset Up to 64GB ECC UDIMM, up to DDR4-2666 MHz; 2 DIMM slots 1 x PCI-E 3.0 x16 slot (for LP AOC) 4 x Hot-swap 3.5" drive bays with BPN, 2 x fixed 2.5" drive bays, 1 x optional slim DVD-ROM bay M.2 Interface: 1 x PCI-E 3.0 x4 or SATA 3.0 M.2 Form Factor: 2280 M.2 Key: M-Key 2 x GbE LAN ports, 1 x dedicated IPMI LAN 2 x USB 3.1 Gen1 (front), 2 x USB 3.1 Gen1 (rear), 2 x USB 2.0 (rear) 1 x VGA, 1 x COM, 1 x TPM 250W Bronze Level power supply |
|---|
| Form Factor | Mid-Tower |
|---|
| Dimensions | 9.45" x 8.27" x 11.00" |
|---|
| First Listed on Newegg | April 23, 2019 |
|---|
