SUPERMICRO SYS-5037C-T Pedestal Server Barebone LGA 1155 Intel C204 DDR3 1333/1066

(8) Write a Review
  • 1 x LGA 1155 Support Intel Xeon E3-1200 Series & 2nd Generation Core i3
  • 4 x 240Pin Memory Slots (Max 32GB)
  • Support 4 x SATA 300 and 2 x SATA 600 HDD
  • 500W AC power supply w/ PFC
Overview
Specs
Reviews (8)
See all Q & A
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

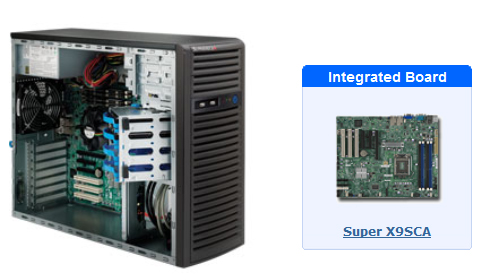

SYS-5037C-T

SUPERMICRO SYS-5037C-T Pedestal Server Barebone



Key Features

SYS-5037C-T
  • 1. Single socket H2 (LGA 1155) supports Intel® Xeon® E3-1200 & v2 series, 2nd Gen Core i3 processors*
  • 2. Up to 32GB DDR3 ECC 1333MHz / 1600MHz* UDIMMs in 4 sockets
  • 3. 1 PCI-E 3.0* x16, 2 PCI-E 2.0 x4 in x8, and 3 PCI 32-bit Expansion Slots
  • 4. Intel® 82574L, 2x GbE LAN ports
  • 5. Front I/O: 2x USB 2.0 ports
  • 6. 4x 3.5" internal SATA HDDs and opt. 4x 2.5" HDD cage, 90° rotatable
  • 7. 500W High-efficiency Power Supply


Specifications

Product SKUs
SuperServer SYS-5037C-T (Black)
Motherboard
MBD-X9SCA
Processor/Cache
CPU
  • Intel® Xeon® processor E3-1200 & v2 series, Intel® 2nd Gen and 3rd Gen Core i3, Intel® Pentium® and Celeron processors *
  • Socket H2 (LGA 1155)
System Memory
Memory Capacity
  • 4x 240-pin DDR3 DIMM slots
  • Supports up to 32 GB DDR3 ECC Un-Buffered memory (UDIMM)
Memory Type
  • 1600*/1333/1066MHz ECC DDR3, 240-pin gold-plated DIMMs
DIMM Sizes 8GB, 4GB, 2GB, 1GB
Memory Voltage 1.5 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset Intel® C204 PCH chipset
SATA
  • 4x SATA 2.0 (3Gbps) w/ RAID 0, 1, 5, 10
  • 2x SATA 3.0 (6Gbps) w/ RAID 0, 1
Network Controllers
  • Intel® 82574L, 2x Gigabit LAN ports
  • Virtual Machine Device Queues High efficient I/O overhead
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • Intel® I/OAT 3 support for fast, scaleable, and reliable networking
  • VMDq support for better performance of virtualization
Graphics Matrox G200eW 16MB DDR2
Super I/O Nuvoton WPCM450RA0BX
Expansion Slots
PCI-Express
  • 1 PCI-E 3.0* x16 slot
  • 2 PCI-E 2.0 x4 (in x8) slots
PCI 3 PCI 32-bit slots
Input / Output
Serial ATA
  • 6 SATA 2.0 ports
  • 6 SATA hard drives supported
LAN
  • 2x RJ45 LAN ports
USB
  • 2x USB rear ports
  • 6x USB ports via header
  • Total 8 USB 2.0 Compliant
VGA 1x VGA port
Serial Port / Header
  • 2x Fast UART 16550 serial port
    (one header and one rear port)
System BIOS
BIOS Type 32Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • DMI 2.3
  • PCI 2.3
  • ACPI 1.0 / 2.0
  • USB Keyboard support
  • SMBIOS 2.3


* BIOS rev. 2.0 or above is needed to support new E3-1200 v2 CPUs, which supports PCI-E 3.0 & DDR3 1600.



Gallery

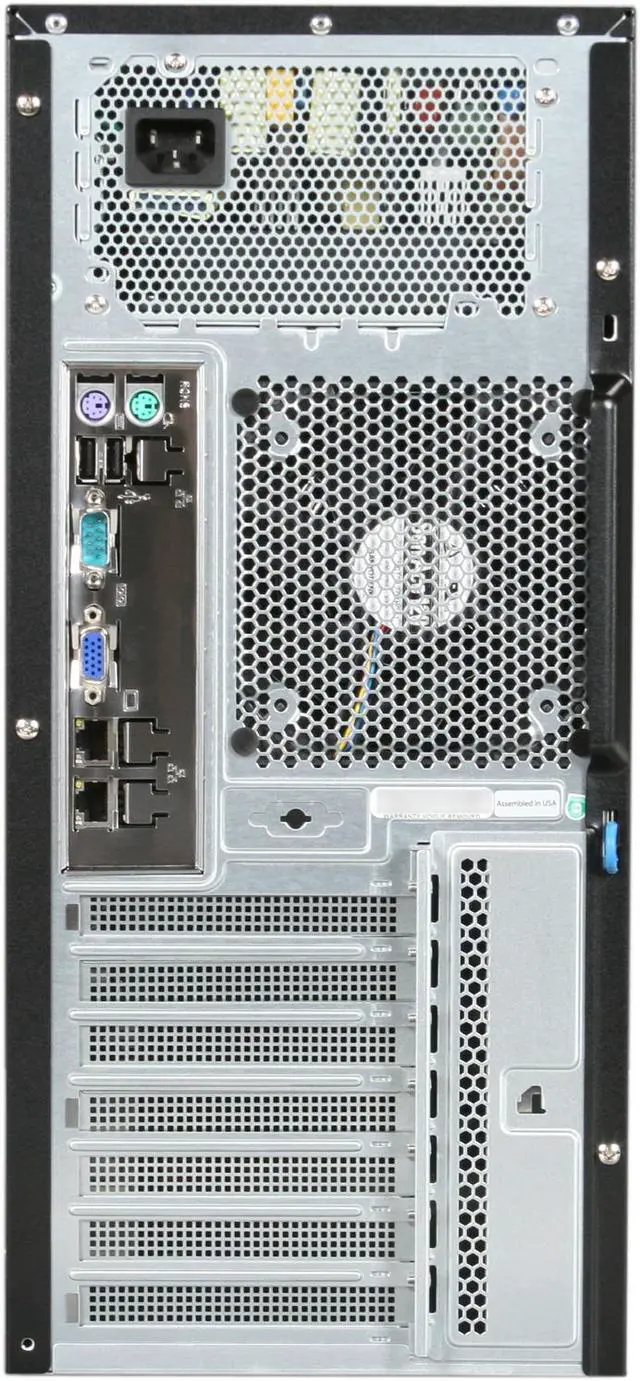

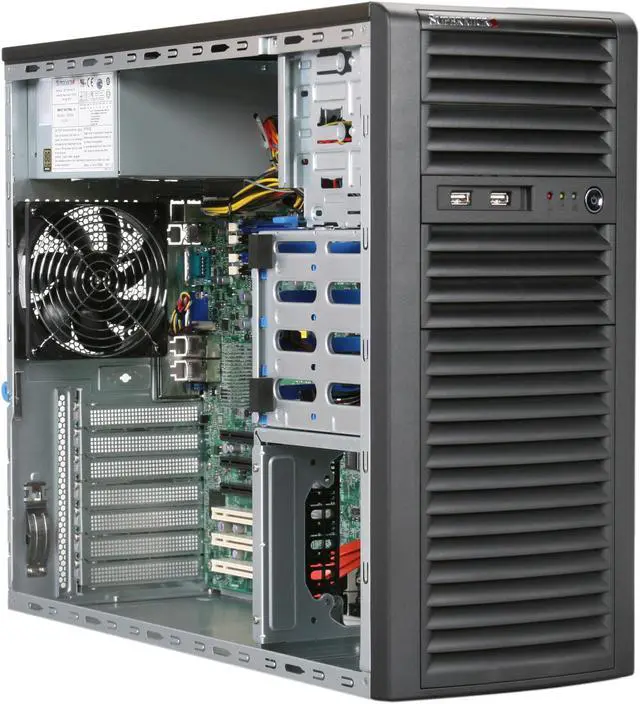

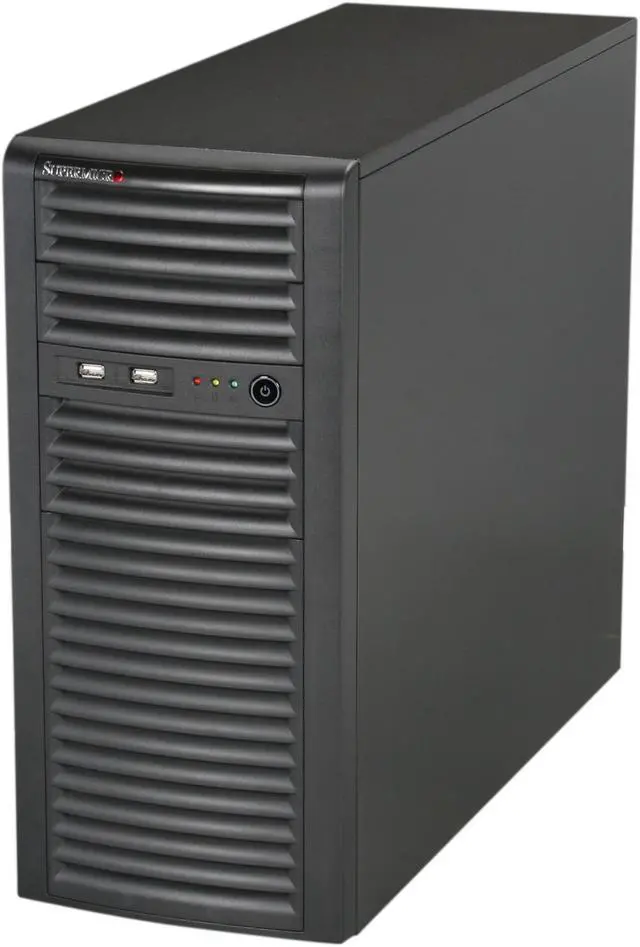

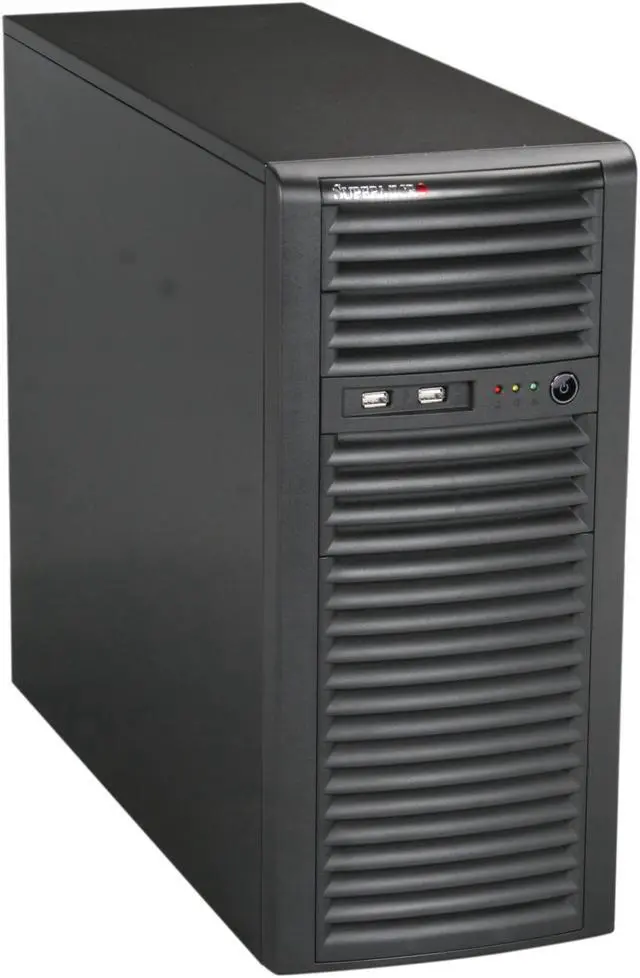

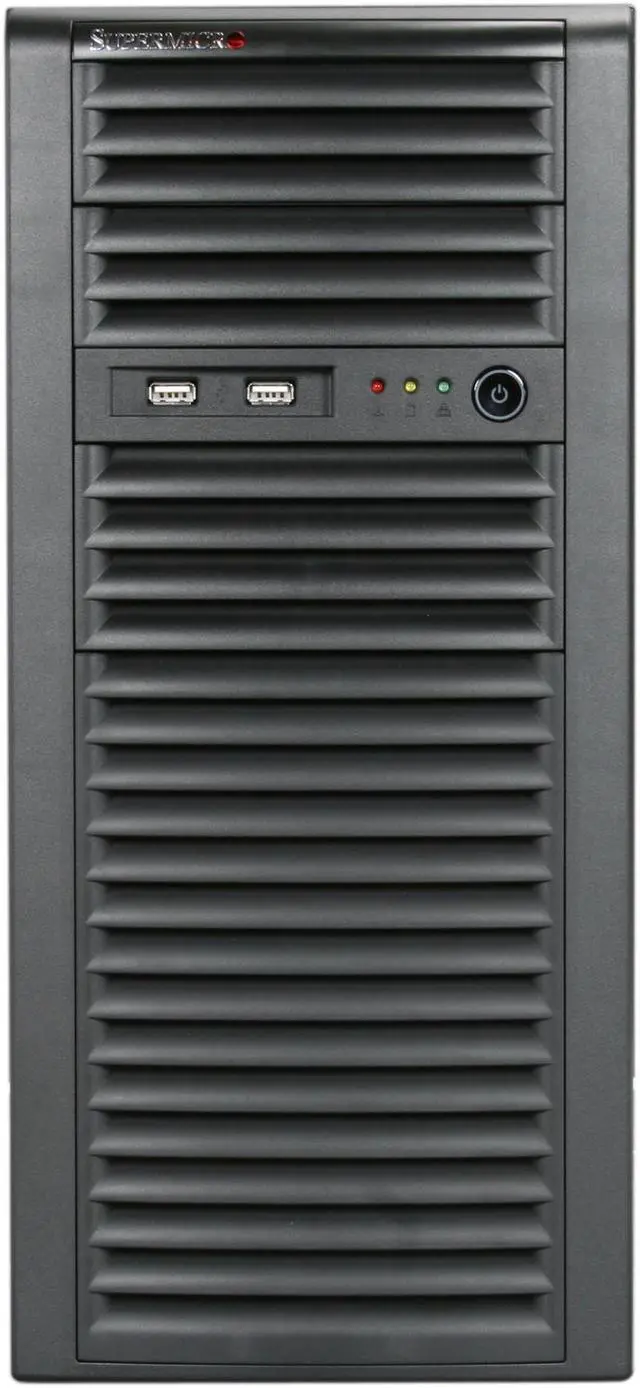

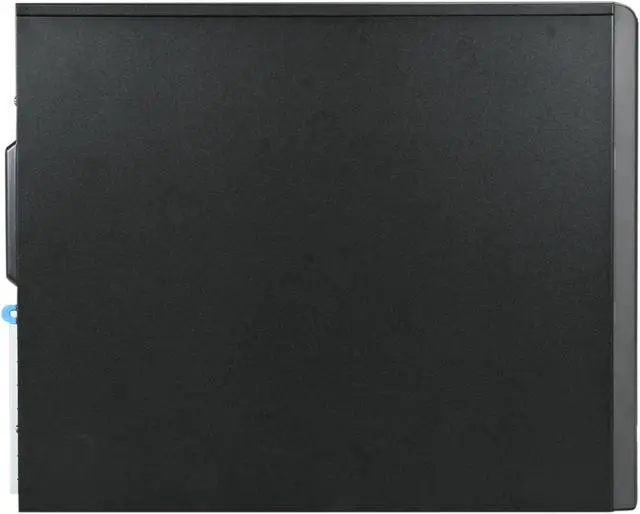

SYS-5037C-T SYS-5037C-T SYS-5037C-T

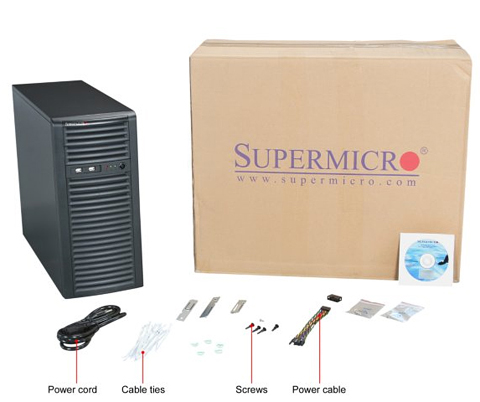

Whats in the Box

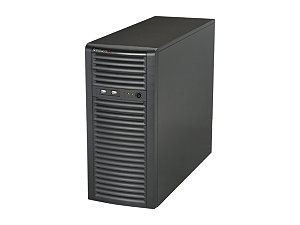

SYS-5037C-T

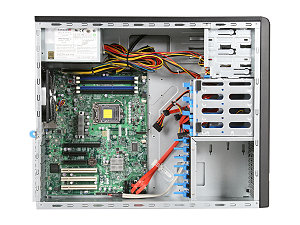

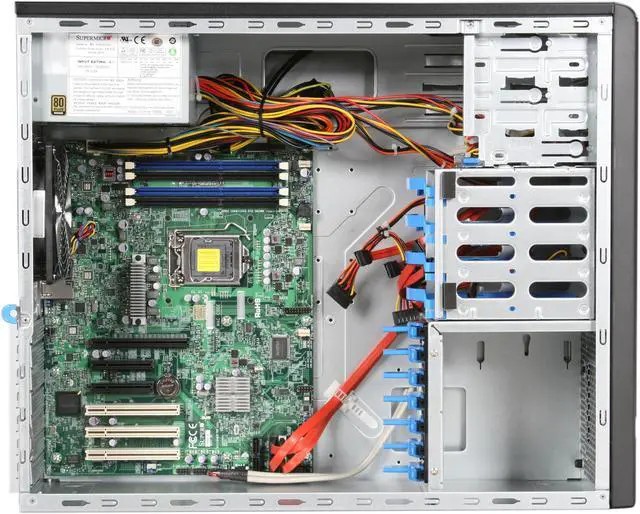

Supermicro's SYS-5037C-T Mid Tower server provides great performance and functionality at whisper-quiet noise level - perfect for workspace or home. This barebones setup includes the mid tower case that allows most configurations to be performed without tools, and an Intel C204 PCH chipset based motherboard which supports the latest Intel Sandy bridge CPUs in LGA1155 package.

The motherboard with the four memory slots, 6x SATA ports including 2x SATA 6Gb/s) with RAID support and loads of I/O ports plus expansion slots brings you unlimited scalability and flexibility. To promote high transfer speeds, the SYS-5037C-T includes dual port Intel gigabit Ethernet LAN controller. Last but not least, a 500w high efficiency power supply is included to provide the "juice" for all these pieces, and one whisper-quiet 12-cm exhaust fan is located at the rear to keep the entire system cool and stable.
  • neweggSupport Intel LGA1155 ProcessorThe SUPERMICRO SYS-5037C-T barebones equipped with Super X9SCA Motherboard supports a single Intel Xeon E3-1200 Series processor or 2nd generation Intel Core i3 & Pentium processor in LGA1155 package.
  • neweggScalable MemoryFour DIMM sockets in dual-channel configuration support up to 32 GB of DDR3-1333/1066 ECC Registered/Un-Buffered memory.
  • neweggExpandability1x PCI-E 2.0 x16, 2x PCI-E 2.0 x4 and 3x PCI 32-bit expansion slots provide excellent expandability.
  • neweggTool-Less HDD TraysThe chassis comes equipped with four 3.5" tool-less HDD trays in a 90° rotatable cage for quick, hassle-free hard drive installation or replacement.
  • neweggQuiet CoolingThis mid tower has 1x 12cm exhaust fan with optimal fan speed control for system cooling. Optimized Cooling Technology delivers whisper-quiet operation at only 21dB.
  • newegg80 PLUS Bronze Certified Power SupplyThe 500W 80 PLUS Bronze Certified power supply provides reliable, high-efficiency power for all components installed.
