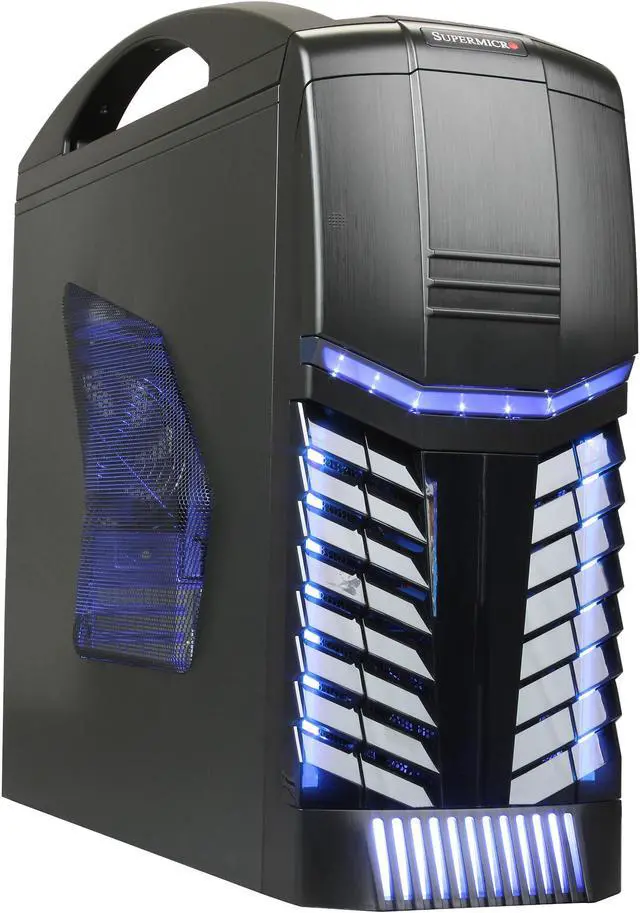

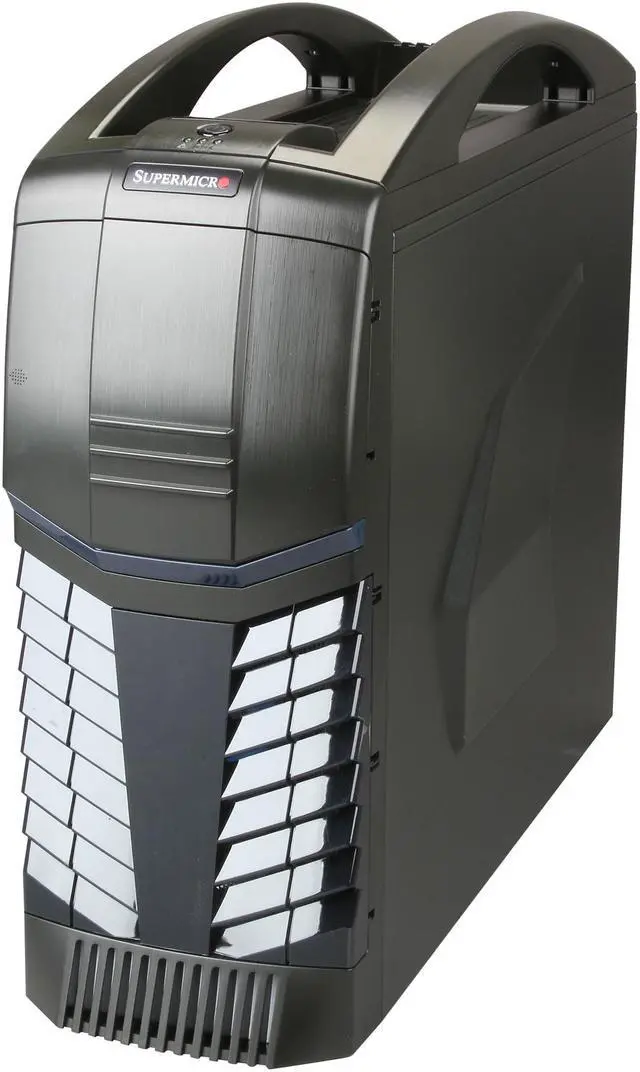

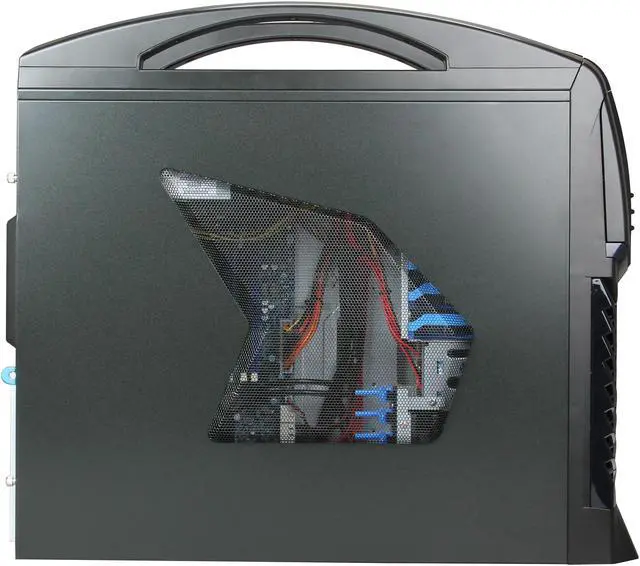

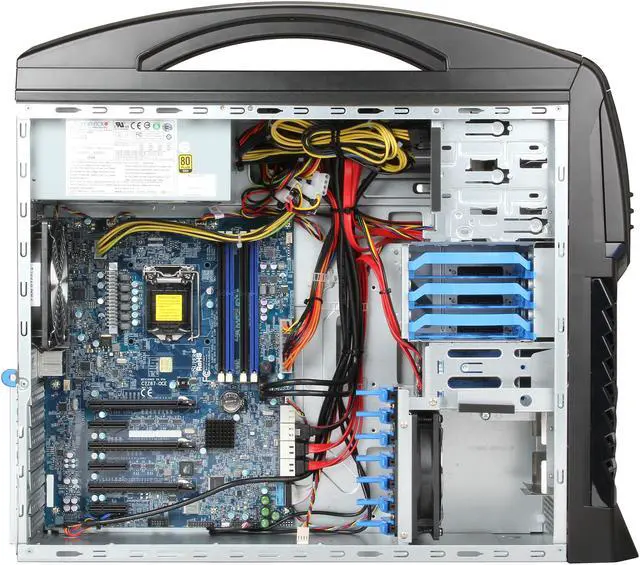

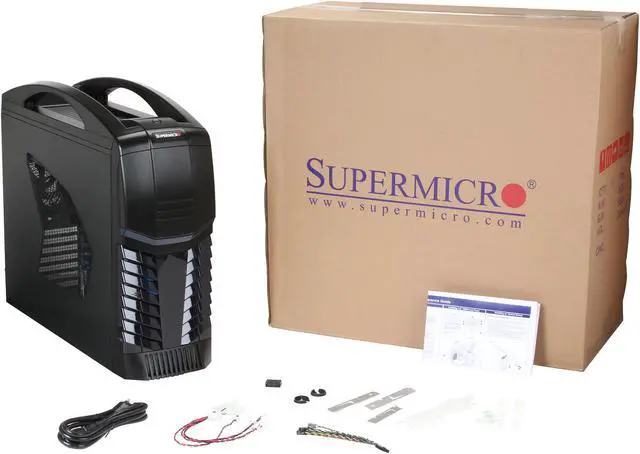

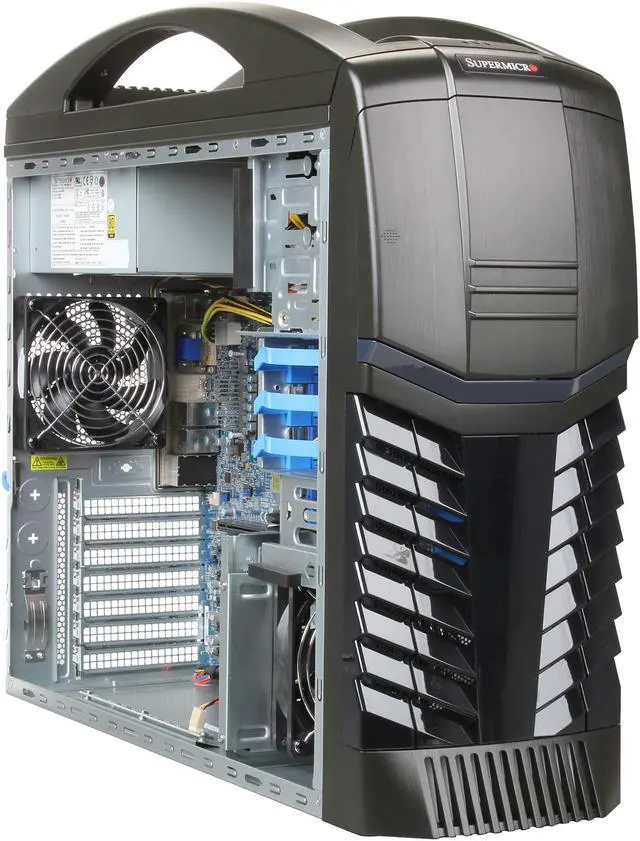

SUPERMICRO SYS-5038AD-T Mid-Tower Server Barebone LGA 1150 Intel Z87 DDR3 1600

Be the first to review this product...
  • 1 x LGA 1150 Support Intel 4th Gen Core i7 / i5 / i3
  • 4 x 240Pin Memory Slots (Max 32GB)
  • 6x SATA3 via PCH
  • 2x SATA3 ASM1061
  • 900W AC multi output power supply w/ PMBus, 80 PLUS Gold
Specs
Reviews
See all Q & A
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Supermicro SYS-5038AD-T

General
Brand SUPERMICRO
Series SuperServer
Model SYS-5038AD-T
Form Factor Mid-Tower
CPU Supported
CPU Type Intel 4th Gen Core i7 / i5 / i3
CPU Socket LGA 1150
Installed CPU No CPU Installed
Max Processors 1
Chipset
North Bridge Intel Z87
Memory Supported
Memory Slots 4 x 240Pin
Installed Memory Size No Memory Installed
Max Memory Supported 32GB
Memory Type Supported DDR3 1600
Storage Supported
Installed HDD No Storage Installed
Serial ATA 6x SATA3 (6Gbps) ports via PCH
2x SATA3 (6Gbps) ports via ASM1061
SATA RAID RAID 0/1/5/10
Expansion Slots
PCI Express 3 (x16) PCI-E 3.0 slots - Function as: 16/NA/NA or 8/8/NA or 8/4/4
3 (x1) PCI-E 2.0 in x4 slots
Onboard Audio RealTek ALC1150 High Definition Audio
Communications
First LAN Intel I210-AT
Second LAN Intel I217-LM
Max. LAN Speed Dual 1 Gigabit

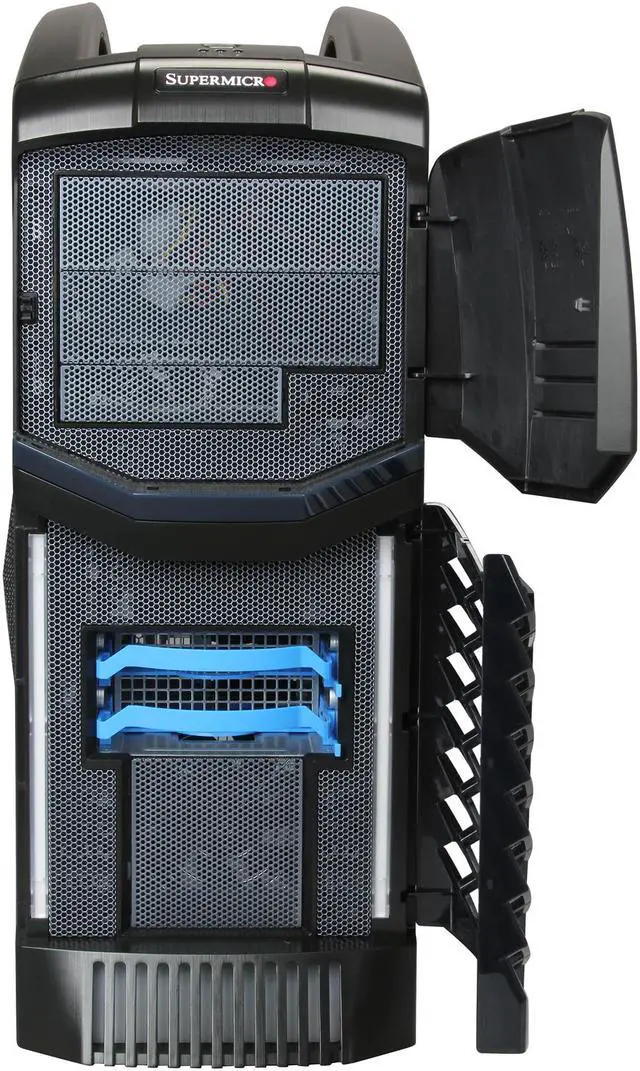

Expansion Bays
3.5" Bays 3
5.25" Bays 2
Hot-Swap Bays 4x 2.5", 2x 3.5"

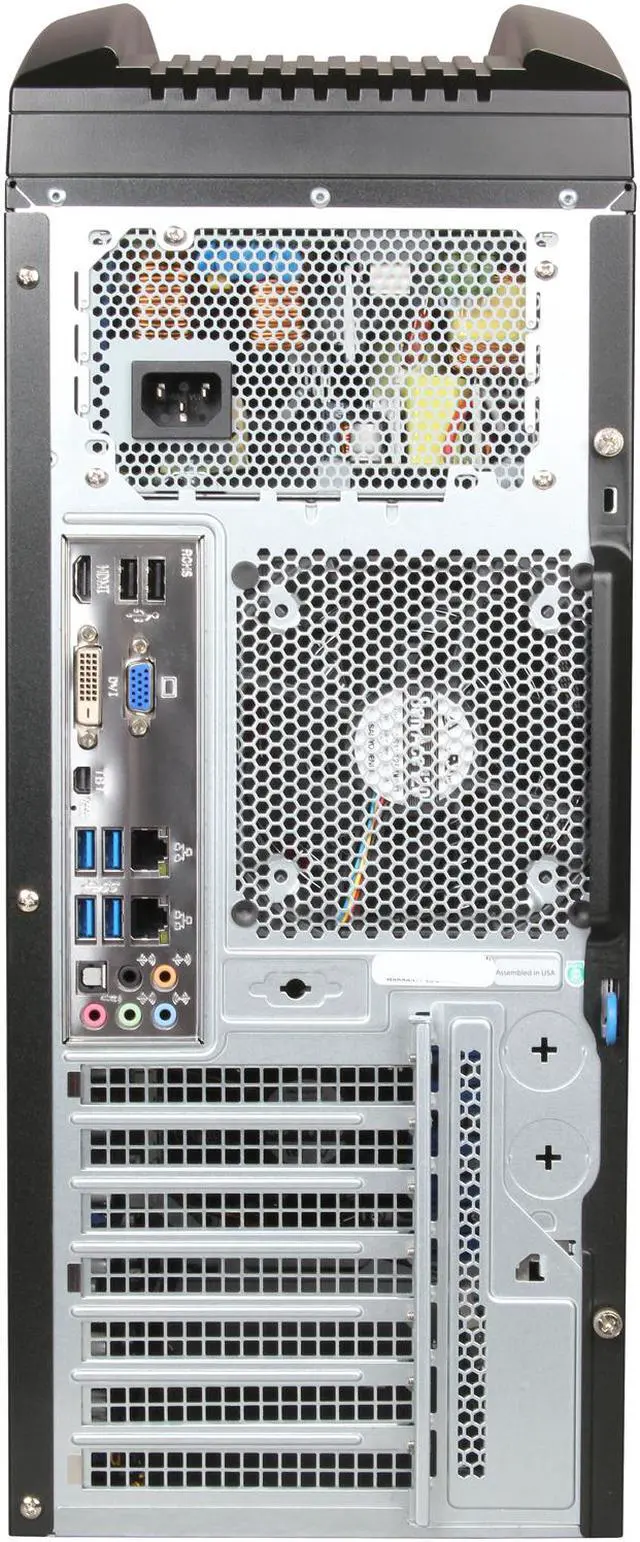

Panel Ports

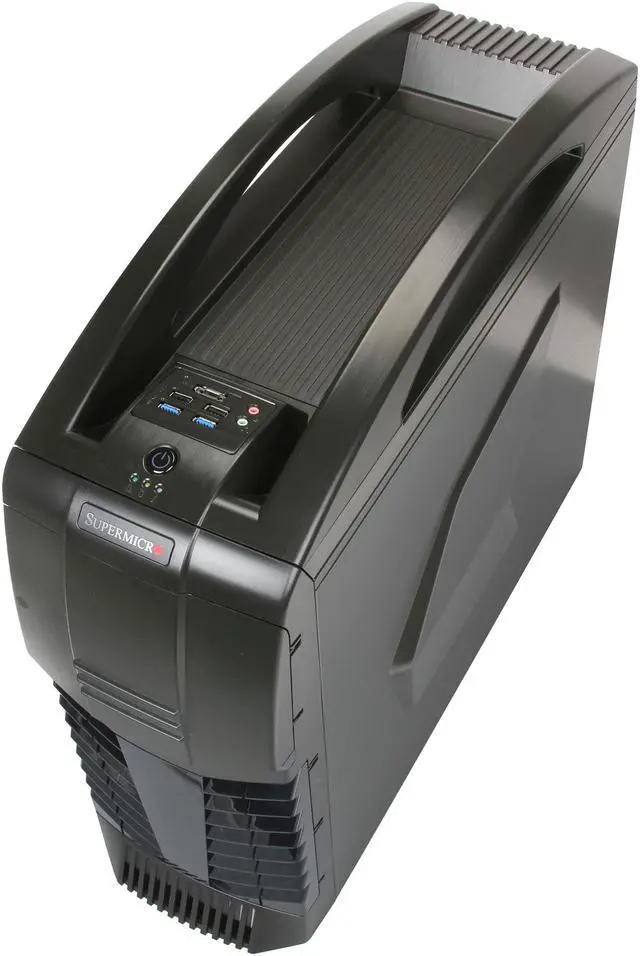

Front USB 2 x USB 3.0
2 x USB 2.0
VGA 1x VGA, 1x HDMI, 1x DVI, 1x Thunderbolt (DP1.1), Triple display support
Rear USB 4 x USB 3.0
2 x USB 2.0
RJ45 2
Rear Audio Ports 7.1 HD Jacks
Other Ports 1x COM port (header)
Power Supply
Max. Power 900W AC multi output power supply w/ PMBus, 80 PLUS Gold
Dimensions & Weight
Dimensions 22.83" x 20.08" x 8.66"
Weight 35 lbs.
Additional Information
First Listed on Newegg December 03, 2013

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 3 years
