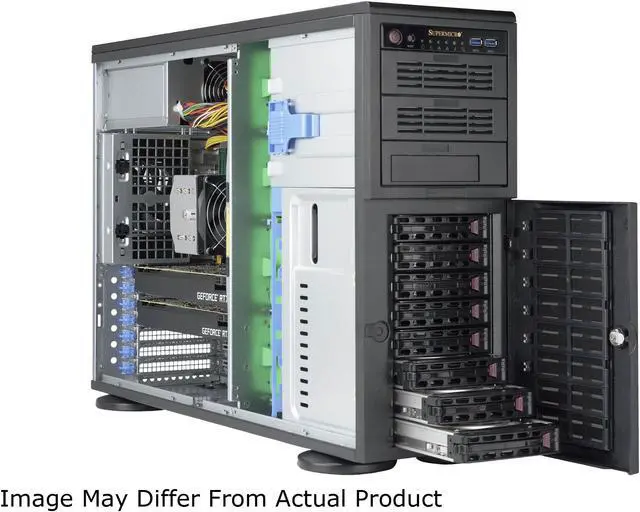

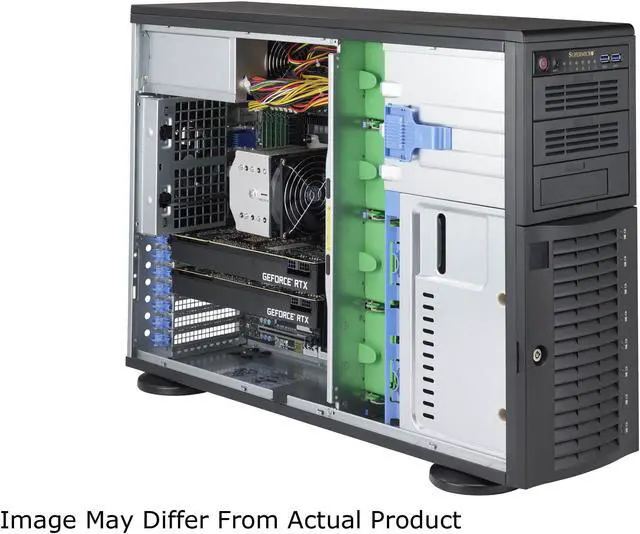

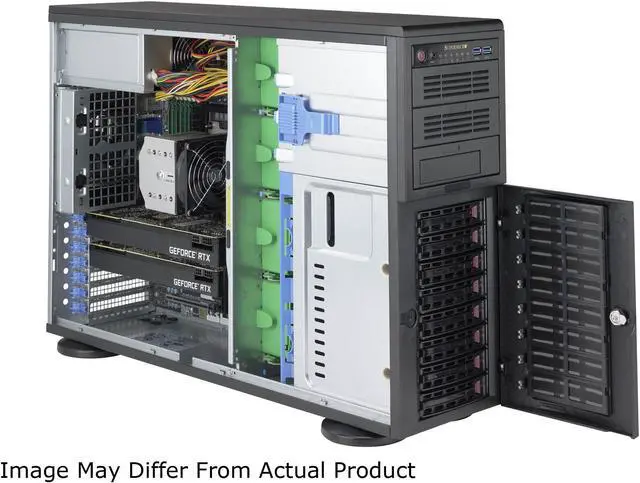

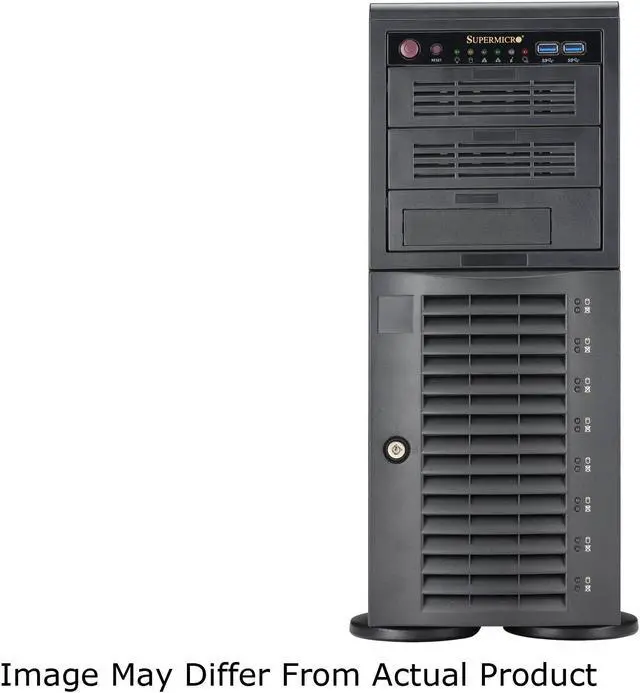

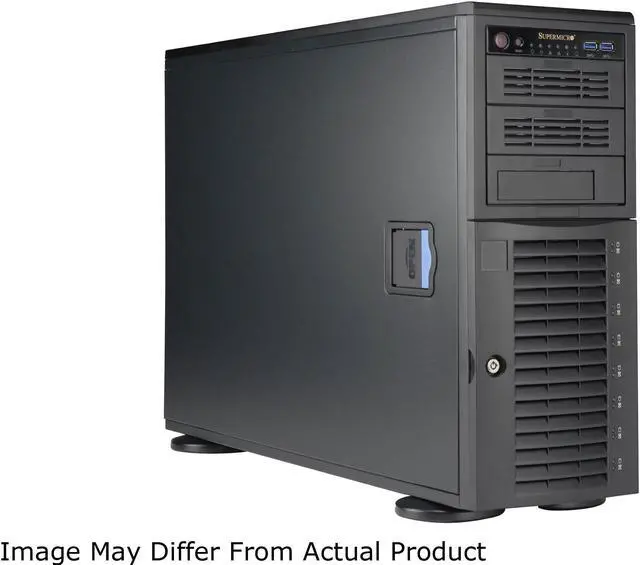

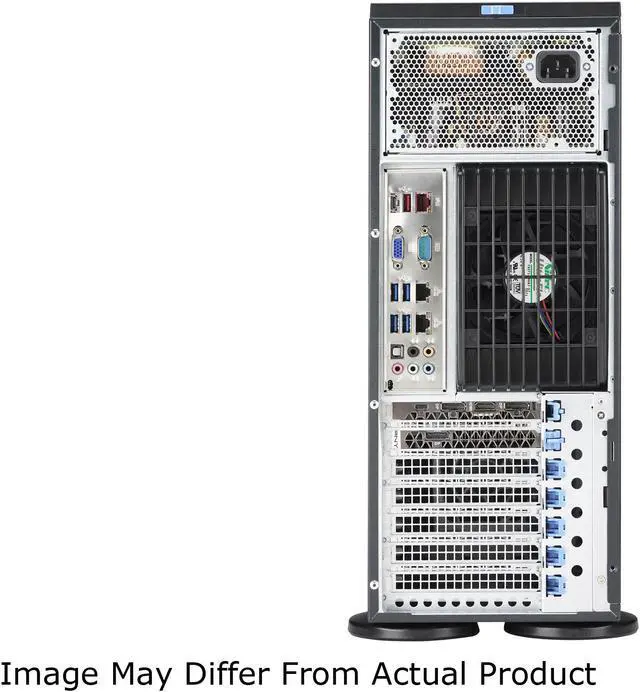

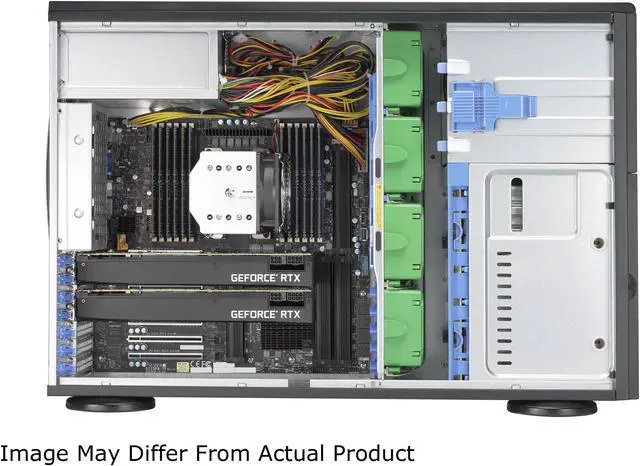

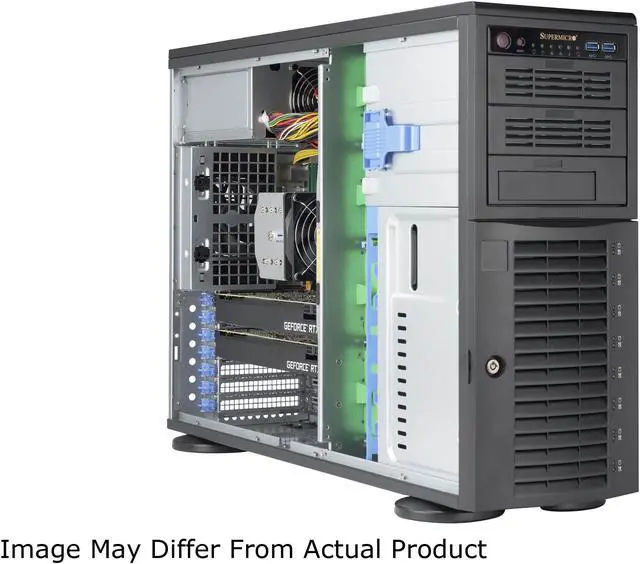

SUPERMICRO SYS-5049A-T Server Barebone LGA 3647 Intel C621 12 x DDR4 ECC RDIMM / RDIMM3DS / LRDIMM / LRDIMM 3DS
- 1. Single Socket P (LGA 3647) support
- 2nd Gen Intel® Xeon® Scalable
- processors (Cascade Lake/Skylake)‡
- 2. 12 DIMMs; up to 3TB 3DS ECC
- DDR4-2933MHz† RDIMM/LRDIMM
- 3. 4 PCI-E 3.0 x16, 3 PCI-E 3.0 x8
- (in x16) slots,
- M.2 Interface: 4 PCI-E 3.0 x4
- M.2 Form Factor: 2242/2260/2280/22110
- M.2 Key: M-Key
- * M.2 support RAID 0,1 (up to RAID 5, 10), VROC key is required for RAID 1
- 4. 1x 10GBase-T and 1x 1GbE LAN ports
- 5. 7.1 HD Audio
- 6. 8 Hot-swap 3.5" SAS3/SATA3 drive bays
- with SGPIO
- 7. 1000/1200W Multi-output Power Supply
+
+
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Supermicro SYS-5049A-T
| Brand | SUPERMICRO |
|---|---|
| Model | SYS-5049A-T |
| Workload | Workstation |
| CPU Type | Single Intel Xeon Scalable Family (LGA 3647), up to 205W TDP |
|---|---|
| CPU Socket | LGA 3647 |
| North Bridge | Intel C621 |
|---|
| Max Memory Supported | Up to 2933 MHz, max. capacity 1536GB via RDIMM 3DS |
|---|---|
| Memory Type Supported | 12 x DDR4 ECC RDIMM / RDIMM3DS / LRDIMM / LRDIMM 3DS |
| Hot-Swap Bays | 8 x hot-swappable 3.5" drive bays via SAS3 / SAS2 / SATA3 |
|---|
| COM | 1 |
|---|---|
| VGA | 1 |
| Rear USB | 2 x USB 3.1 Gen2 (10G) (1 Type C + 1 Type A) 4 x USB 3.1 Gen1 |
| RJ45 | 3 x LAN ports (GbE via Intel i210AT, GbE via AST2500, 10 GbE via AQC107) |
| Other Ports | HD Audio 7.1 channel connector via Realtek ALC888S |
| Max. Power | 1 x 1200W 80PLUS Platinum Certified High Efficiency |
|---|
| Dimensions | 17.80" x 7.00" x 25.50" |
|---|
| First Listed on Newegg | May 28, 2021 |
|---|
