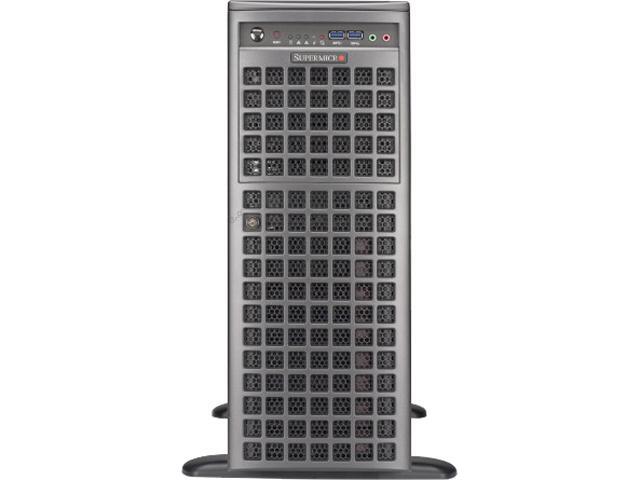

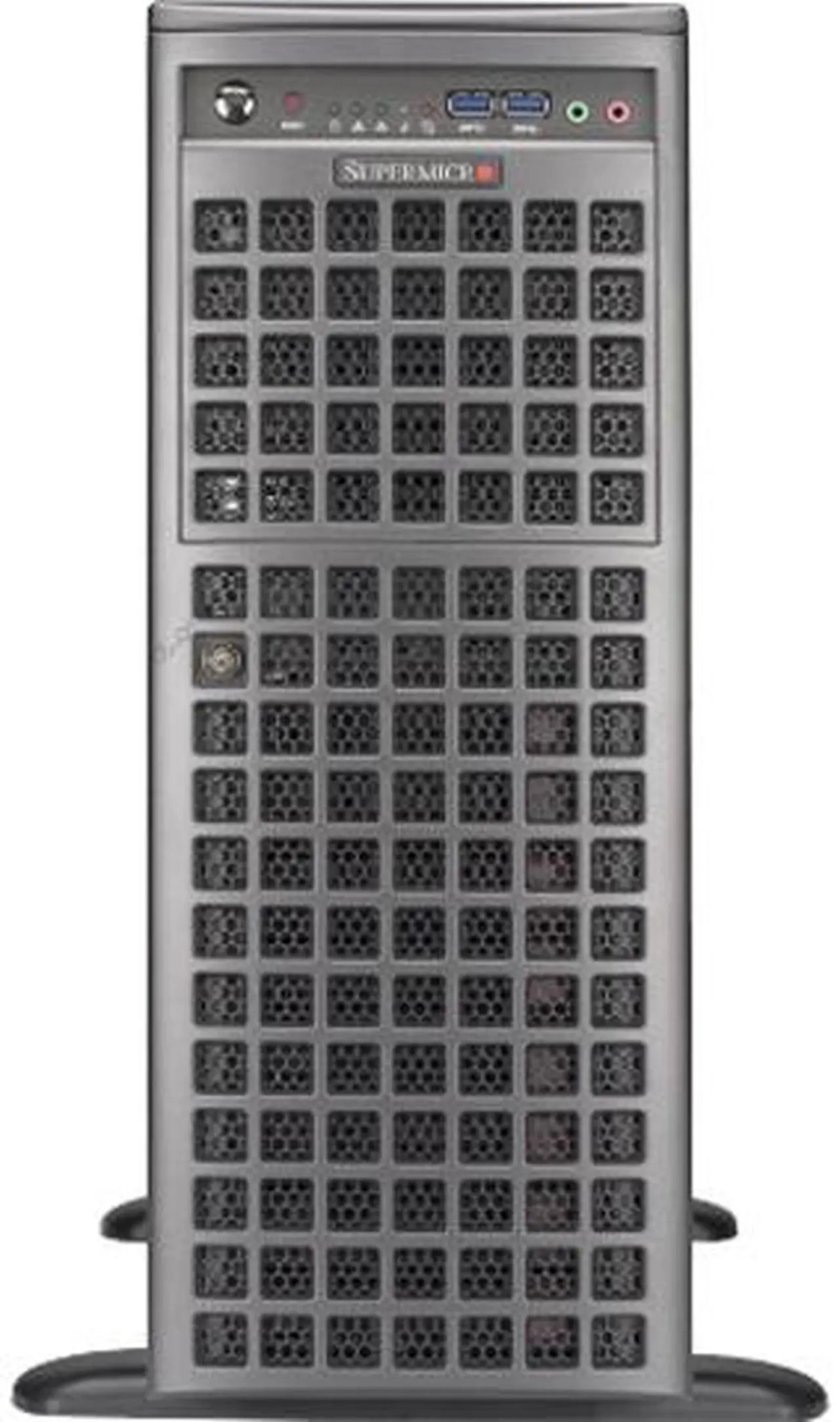

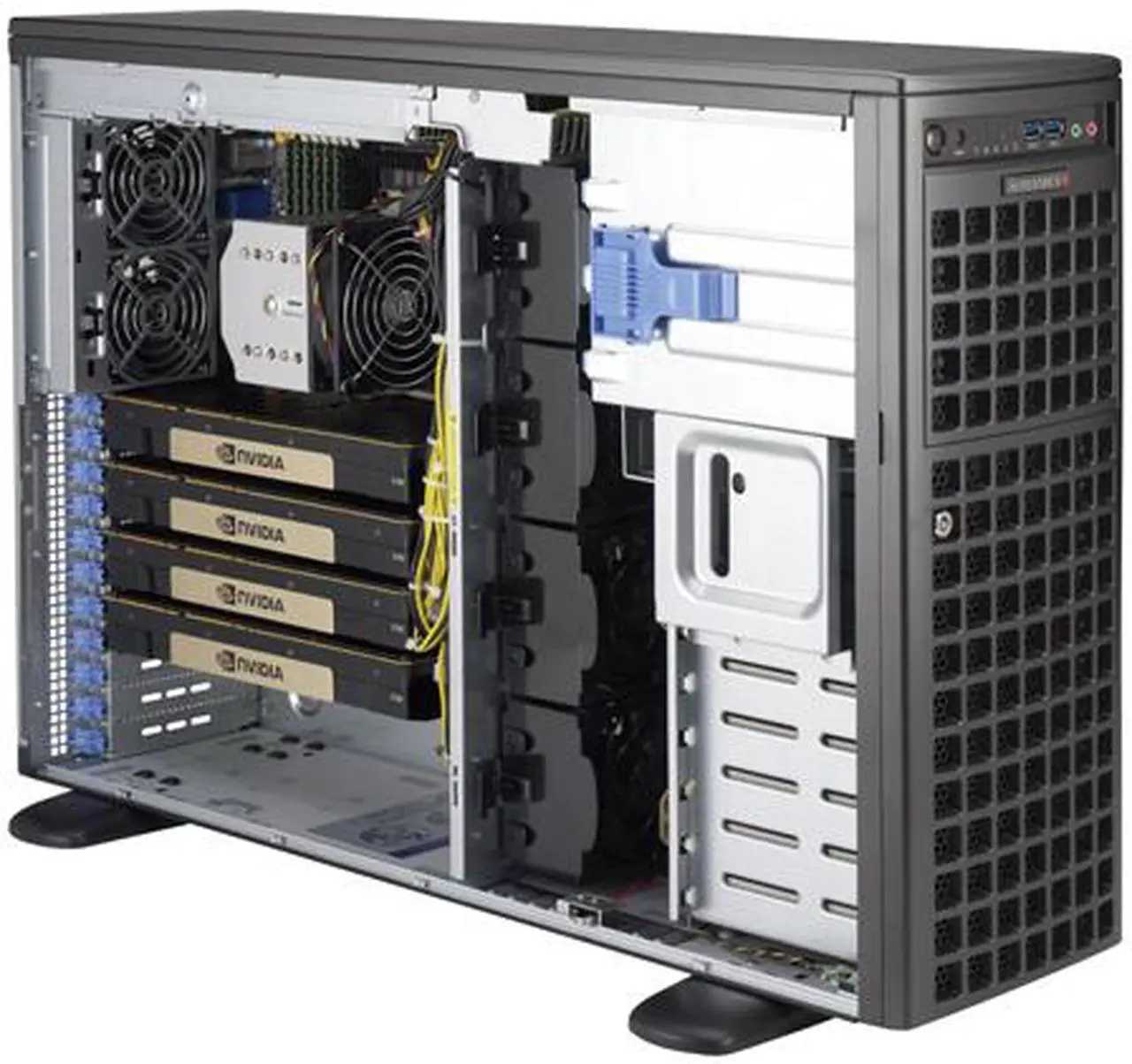

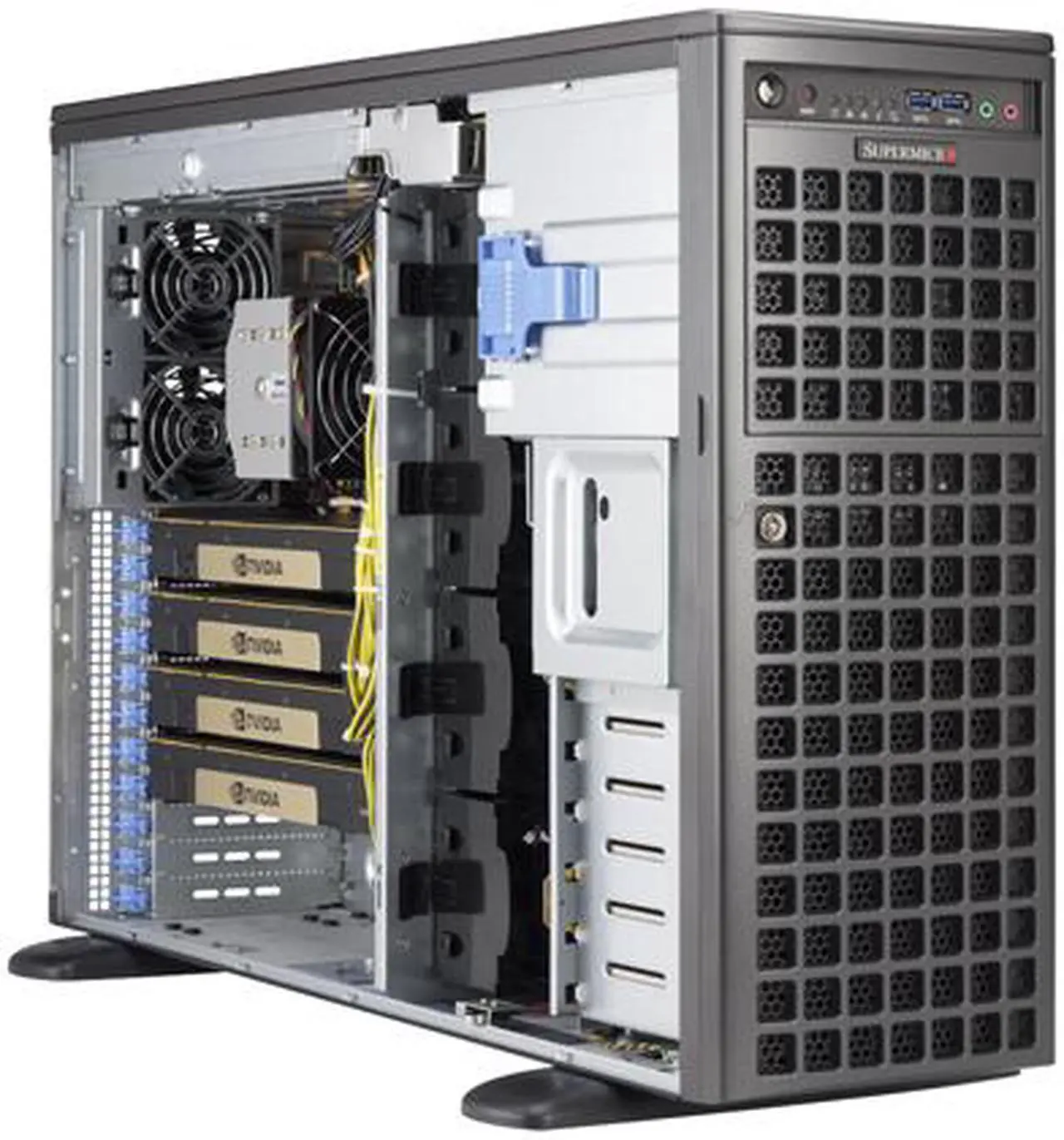

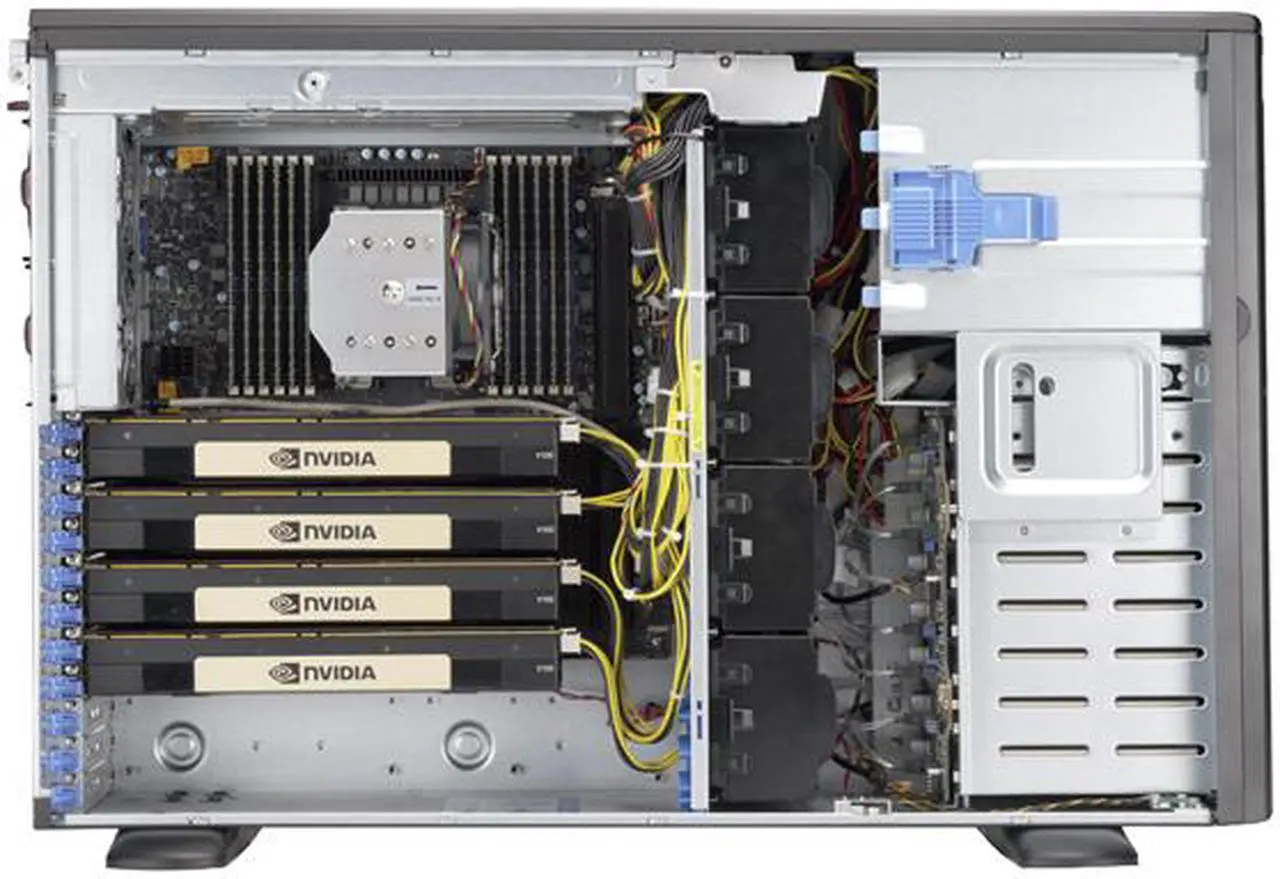

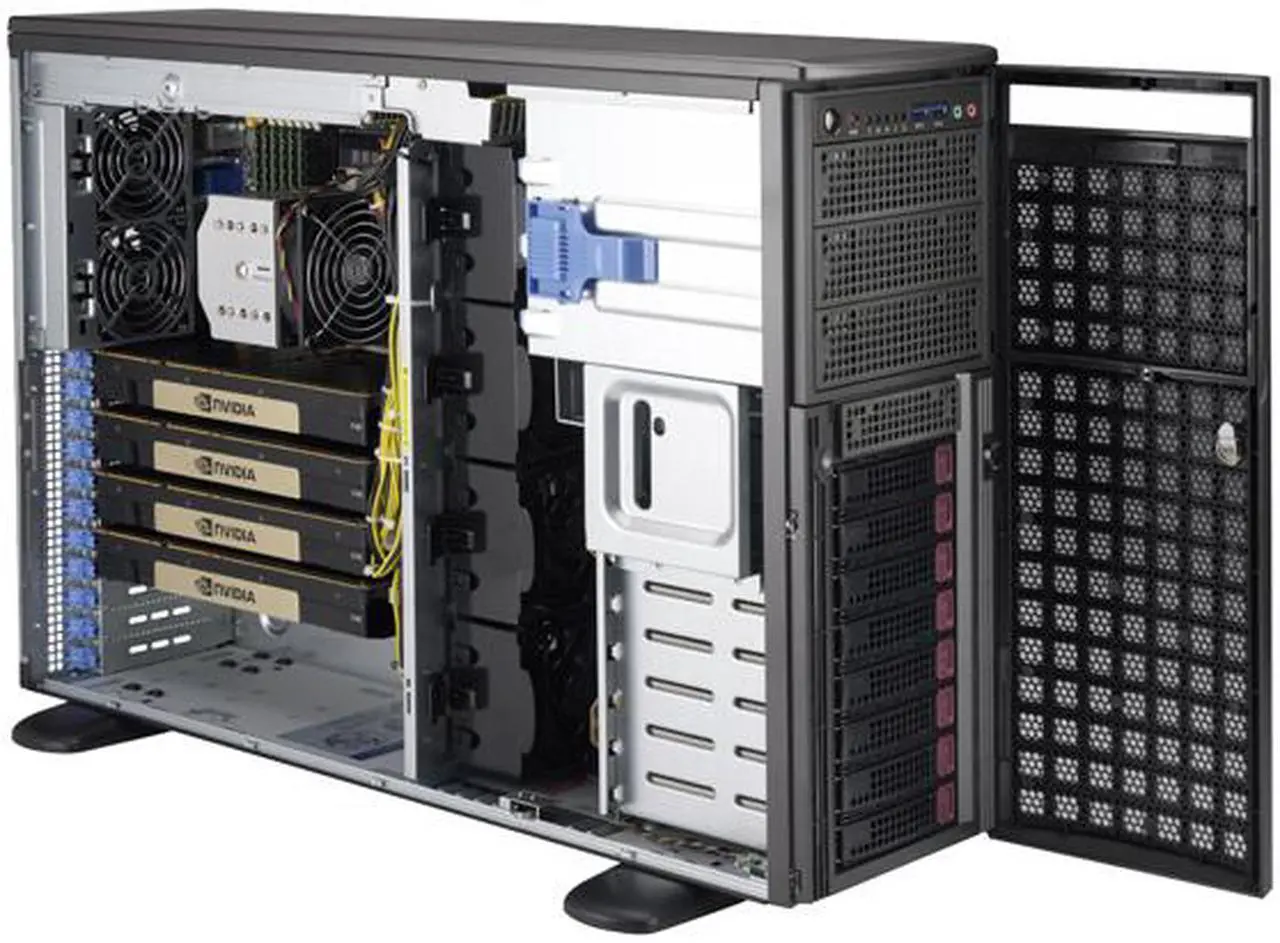

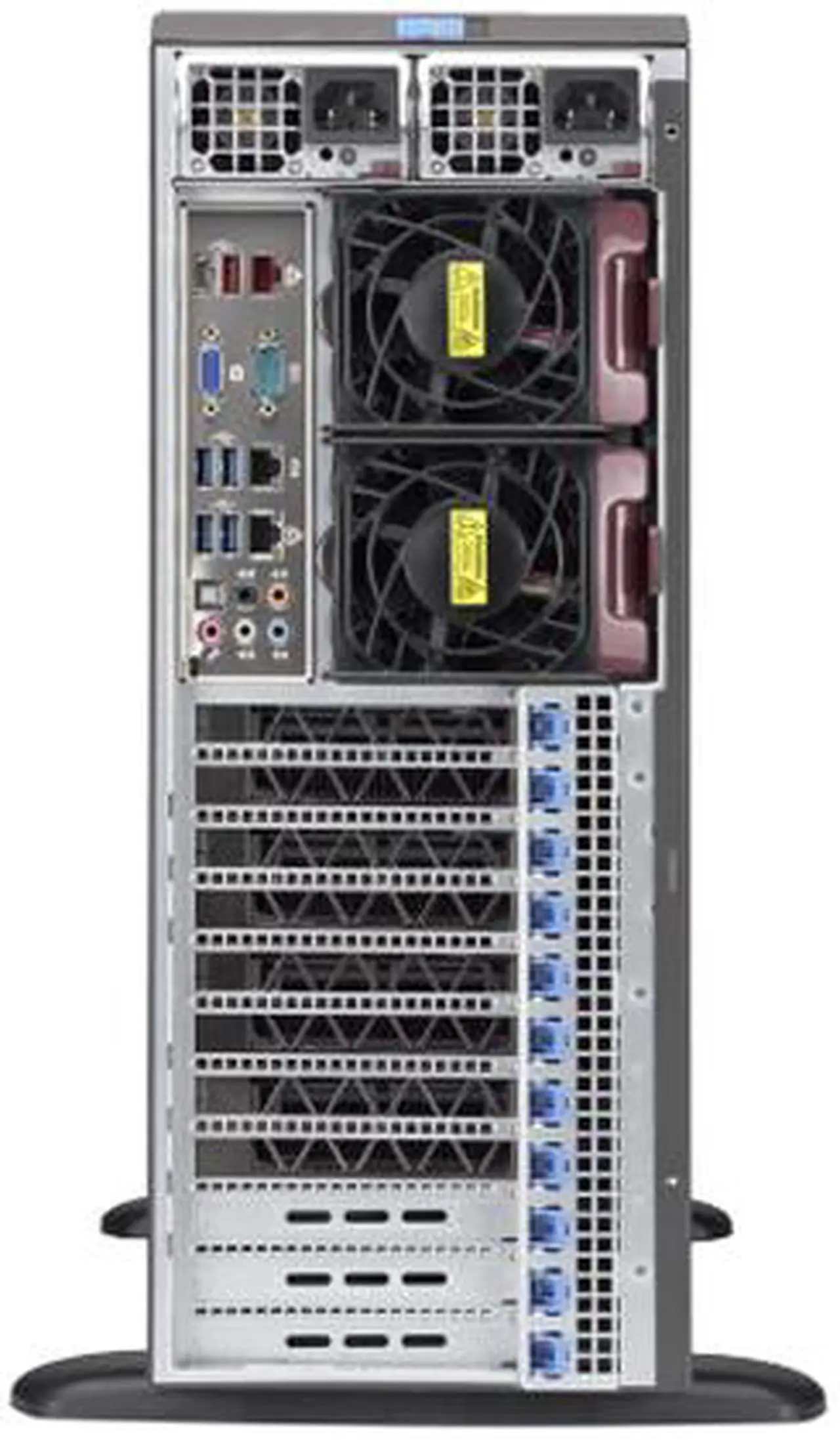

SUPERMICRO SYS-5049A-TR 4U Rackmountable / Tower Server Barebone LGA 3647 Intel C621
- LGA 3647
- 2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors
- Intel Xeon W-32xx Processors
- Support CPU TDP up to 205W
- Up to 28 Cores
- 12 x 288Pin Memory Slots
- 2200W Redundant Power Supplies with PMBus
Specs
Reviews
Learn more about the Supermicro SYS-5049A-TR
| Brand | SUPERMICRO |
|---|---|
| Series | SuperWorkstation |
| Model | SYS-5049A-TR |
| CPU Type | 2nd Gen Intel Xeon Scalable Processors and Intel Xeon Scalable Processors Intel Xeon W-32xx Processors Support CPU TDP up to 205W Up to 28 Cores |
|---|---|
| CPU Socket | LGA 3647 |
| North Bridge | Intel C621 |
|---|
| Memory Slots | 12 x 288Pin |
|---|---|
| Installed Memory Size | No Memory Installed |
| Max Memory Supported | Intel Xeon Scalable Processors: Support up to 3TB 3DS ECC RDIMM, DDR4-2933MHz; up to 2TB 3DS ECC LRDIMM, DDR4-2933MHz; or 3TB DCPMM, DDR4-2666MHz, in 12 DIMM slots. Intel Xeon W-3200 Processors: Support up to 2TB 3DS ECC RDIMM/LRDIMM; up to 1TB 3DS RDIMM/LRDIMM. |
| ECC Supported | Yes |
| Installed HDD | No Storage Installed |
|---|---|
| Serial ATA | 8 x SATA3 (6Gbps) |
| SATA RAID | RAID 0/1/5/10 |
| PCI Express | 4 PCI-E 3.0 x16 slots 3 PCI-E 3.0 x8 (in x16 slot) PCI-E x16 Slot#1 shares with M.2, Slot#2 shares with Slot#3 (NA/16,8/8), Slot#4 shares with Slot#5 (NA/16,8/8), Slot#6 shares with Slot#7 (NA/16,8/8) (16/NA/16/NA/16/NA/16 or 16/8/8/8/8/8/8) |
|---|
| Onboard Audio | 7.1 channel HD Audio by Realtek ALC888S |
|---|
| Number of LAN | 1 RJ45 Gigabit Ethernet LAN port 1 RJ45 10GBase-T Ethernet LAN port 1 RJ45 Dedicated IPMI LAN port |
|---|---|
| Max. LAN Speed | 10 Gigabit |
| 3.5" Bays | 8 Hot-swap 3.5" SAS3/SATA3 drive bays (SATA3 default) |
|---|---|
| 5.25" Bays | 3x 5.25" drive bays |
| Hot-Swap Bays | 8 |
| Front USB | 2 USB 2.0 Type A ports 2 USB 3.1 Gen1 ports |
|---|---|
| COM | 1 COM port (header) |
| VGA | 1 |
| Rear USB | 4 USB 3.1 Gen1 ports 4 USB 3.1 Gen2 ports (1 rear Type A + 1 Rear Type C) |
| RJ45 | 3 |
| Rear Audio Ports | 7.1 HD Audio with optical S/PDIF |
| Max. Power | 2200W Redundant Power Supplies with PMBus |
|---|
| Form Factor | 4U Rackmountable / Tower |
|---|
| Dimensions | 18.10" x 7.00" x 26.50" |
|---|---|
| Weight | 57 lbs. |
| Date First Available | July 27, 2023 |
|---|
