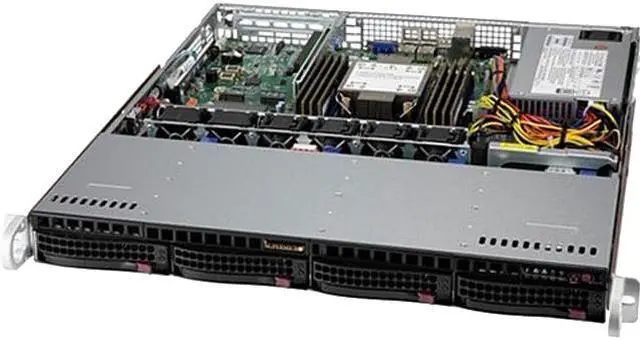

SUPERMICRO SYS-510P-M 1U Rackmount Server Barebone LGA 4189 Intel C621A DDR4 3200 / 2933 / 2666
- Single Socket P+ (LGA-4189) 3rd Gen Intel Xeon Scalable processors. Up to 220W TDP.
- 8 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel DCPMM
- 1 PCI-E 4.0 x16 (FHHL) slot
- Intel Ethernet Controller i350 2x 1GbE RJ45
- 4x hot-swap 3.5" Hybrid SATA3/NVMe drive bays, SAS3 with additional SAS controller card; Onboard 2x NVMe/SATA M.2
- Single Platinum 500W Power Supply
+
+
Specs
Reviews (1)
See all Q & A
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Learn more about the Supermicro SYS-510P-M
| Brand | SUPERMICRO |
|---|---|
| Series | SuperServer |
| Model | SYS-510P-M |
| Form Factor | 1U Rackmount |
| Workload | General Purpose Server |
| CPU Type | Intel Xeon Scalable Processor |
|---|---|
| CPU Socket | LGA 4189 |
| Installed CPU | No CPU Installed |
| Max Processors | 1 |
| North Bridge | Intel C621A |
|---|
| Memory Slots | 8 x 288Pin |
|---|---|
| Installed Memory Size | No Memory Installed |
| Max Memory Supported | 3TB |
| Memory Type Supported | DDR4 3200 / 2933 / 2666 |
| ECC Supported | Yes |
| Installed HDD | No Storage Installed |
|---|---|
| Serial ATA | 10 x SATA 600 |
| SATA RAID | RAID 0/1/5/10 |
| GPU/VPU | Aspeed AST2600 |
|---|
| PCI Express | Slot 1: PCI-E 4.0 x16 FHHL 2 x PCI-E 3.0 x 4 and SATA M-key, 2280, 22110 |
|---|
| First LAN | Intel I350 |
|---|---|
| Second LAN | Intel I350 |
| Max. LAN Speed | 1 Gigabit |
| 3.5" Bays | 4 |
|---|
| Front USB | 1 x USB 3.2 Gen 1 |
|---|---|
| COM | 2 |
| VGA | 1 |
| Rear USB | 2 x USB 3.2 Gen 1 2 x USB 2.0 |
| RJ45 | 1 x RJ45 Dedicated IPMI LAN port 2 x RJ45 1GbE LAN ports |
| Dimensions | 1.70" x 17.20" x 19.98" |
|---|---|
| Weight | 17.60 lbs. |
| First Listed on Newegg | May 14, 2021 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 1 year
- Limited Warranty period (labor): 3 years
- Read full details
Return Policies
- Return for refund until: January 31, 2027
- Return for replacement until: January 31, 2027
- This item is covered by Newegg.com's Extended Holiday Return Policy.
- Read full return policy for details.
We want to ensure your holiday shopping this year is hassle-free. That’s why we’re automatically extending our return policies on almost every product! For purchases placed between November 1st, 2026 and December 31, 2026 you will have until January 31, 2027 to return your product.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-408-503-8000
- Support Website
- View other products from Supermicro
LOADING...
The SUPERMICRO SuperServer SYS-510P-M is a 1U rackmount server barebone for organizations building general-purpose server systems with a 3rd Gen Intel Xeon Scalable processor. It supports one CPU up to 220W, up to 3TB of DDR4 memory, and four hot-swap drive bays; CPU, memory, and storage are not included.
Recommended For
- Small-business IT teams deploying a rack-mounted web, email, firewall, or print server; Supermicro identifies these as target applications for the SYS-510P-M.
- Administrators fitting a single-socket Xeon server into limited rack space who can supply and install their own CPU, memory, and storage.
- SMB or hosting operators needing a compact server with ECC memory support, remote IPMI management, and up to four front-accessible hot-swap drives.
- IT teams building a modest storage or network appliance that can work within two onboard 1GbE ports and one PCIe expansion slot.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | General-purpose 1U server builds; the processor, memory, and storage must be installed separately |
| Processor And Platform | Supports one Intel Xeon Scalable processor on the LGA 4189 platform, with an Intel C621A chipset |
| Memory Configuration | Eight 288-pin slots support up to 3TB of DDR4-3200/2933/2666 memory with ECC; memory is not installed |
| Storage And RAID | Four 3.5-inch bays and 10 SATA 600 ports; supports RAID 0/1/5/10, with no storage installed |
| Expansion Slots And M.2 | One PCIe 4.0 x16 FHHL slot, plus two PCIe 3.0 x4/SATA M-key M.2 positions for 2280 or 22110 drives |
| Networking | Dual Intel I350 1GbE LAN ports, plus a dedicated RJ45 IPMI LAN port |
| Management, Video And I/O | Aspeed AST2600 graphics; one front USB 3.2 Gen 1 port, two rear USB 3.2 Gen 1 ports, two rear USB 2.0 ports, two COM ports, and one VGA port |
| Form Factor And Dimensions | 1U rackmount chassis measuring 1.70 × 17.20 × 19.98 inches and weighing 17.60 lb |
| Model Identifiers | SUPERMICRO SuperServer SYS-510P-M |
